Merrytek MSA019 Instructions Manual page 7

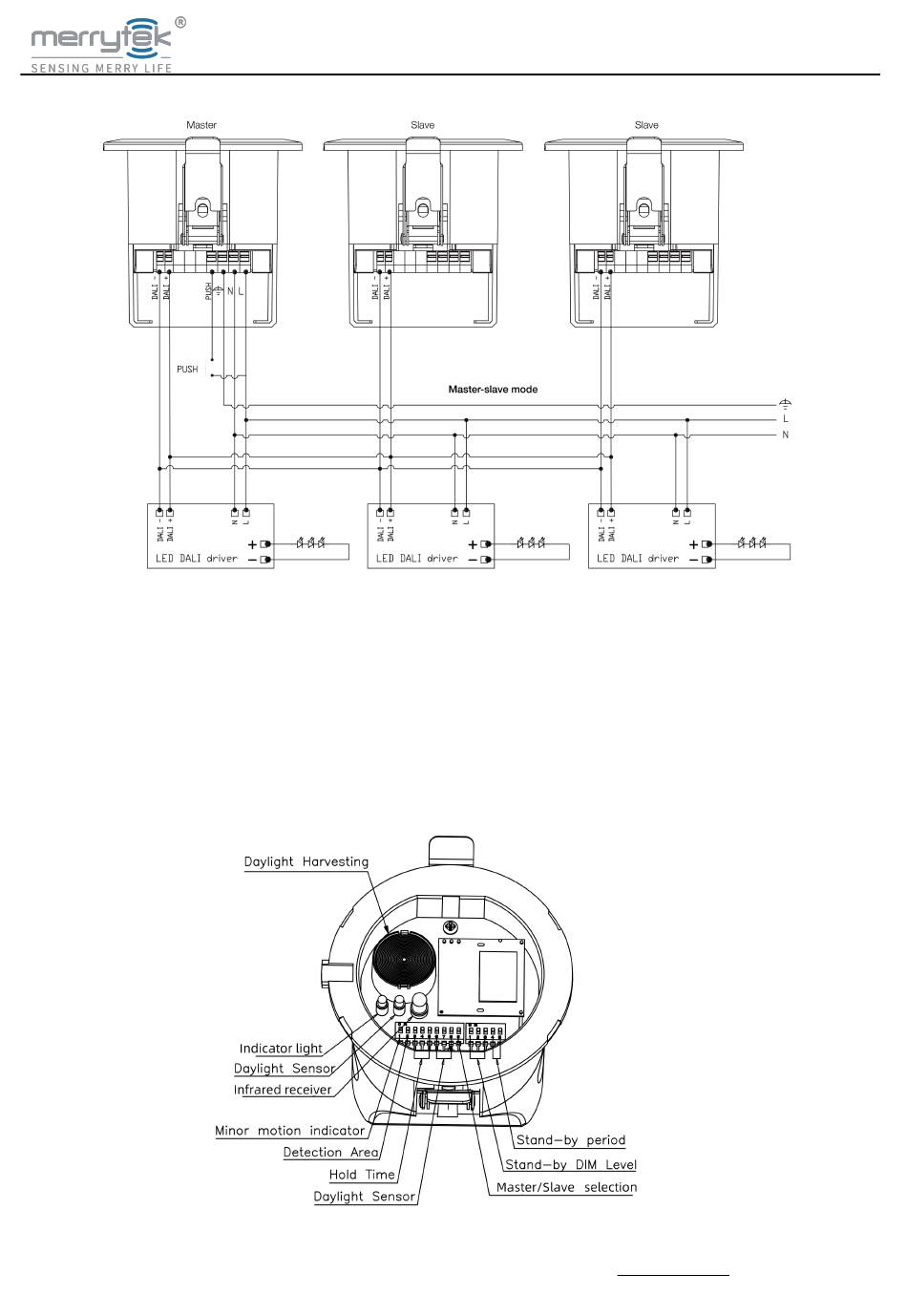

2. Master-slave mode：
Note：
1. When multiple sensors are connected, only one sensor can be the master, others should be slaves. Under
Broadcast mode or master-slave mode, one sensor must be the master.
2. When working normally, the hold time depend on the setting of the last triggered sensor.
3. It's recommended to connect 64pcs DALI drivers when one sensor is connected; 40pcs DALI drivers when 2 sensors;
30pcs DALI drivers when 3ps sensors; 20pcs DALI drivers when 4pcs sensors. Up to 4pcs DALI sensors can be
connected to one DALI bus.
6. Structure
Add: No.17th Building, Dianda Guyuan Industrial Park, Mashantou, Matian, Guangming District, Shenzhen, China, 518106
Tel: +86 (0)755-2305 7253
All technical information is subject to the physical performance, Merrick reserves the right to final interpretation
LIFEBEING SENSOR
Shenzhen Merrytek Technology Co.,Ltd
Fax: +86 (0)755-2786 3012
page 7 of 12
MSA019
Website: www.merrytek.com
Version: A0
