Merrytek MSA019 Instructions Manual page 3

Storage
Temperature/humidity
LVD standards
EMC standards
Certificate
Environmental
Standards
Requirement
Certificate
Wiring
IP Rating
Others Protection Class
Installation
Installation dimension
Life time
3. Function

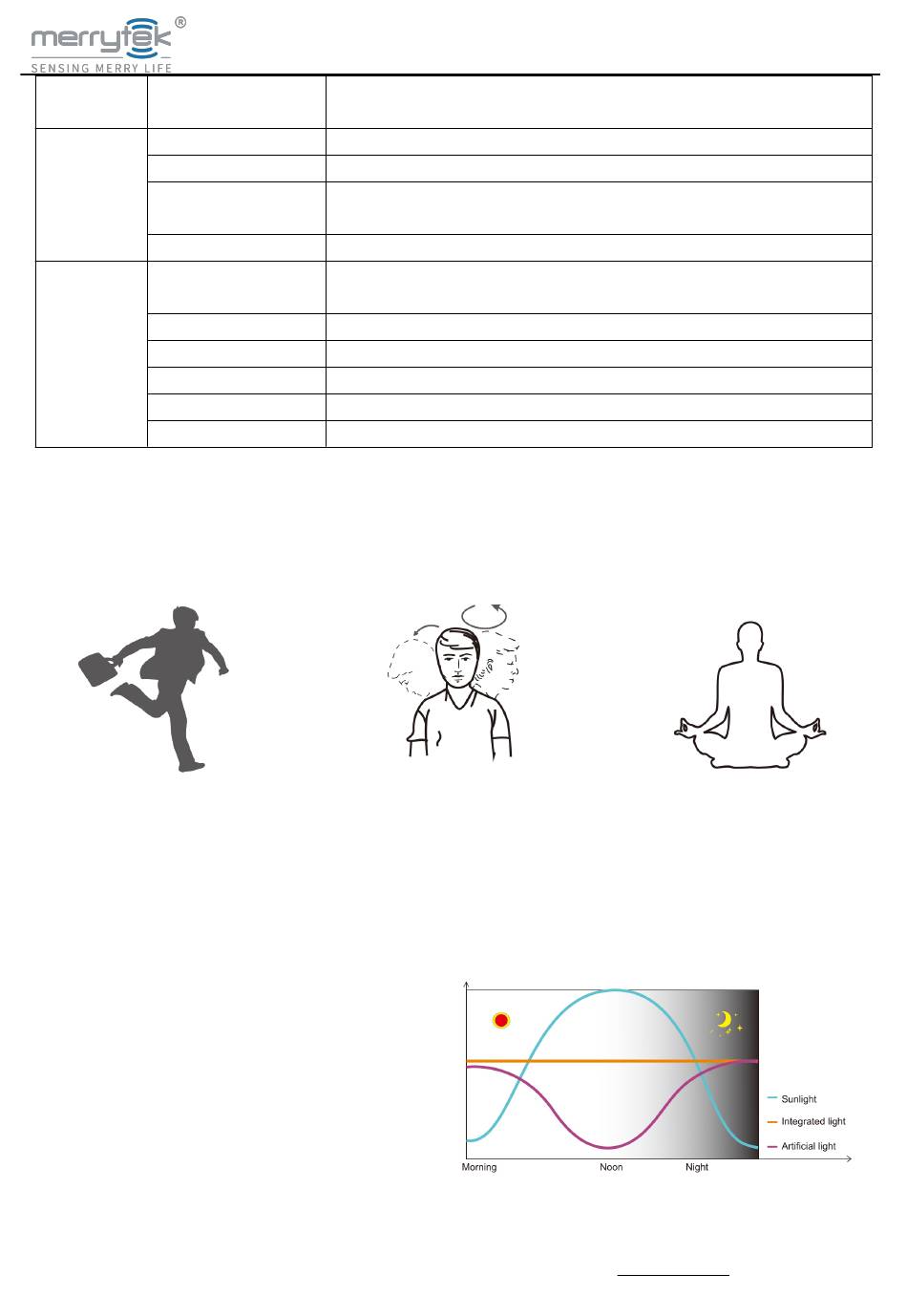

Instructions of signal detection: the sensor detects human walking, slight motion (such as body movement, turn up
head and others minor movements) and breathing to realize the detection of human existence in non-sleep state.
Movement signal active
* Movement signal: Big movement for sensor triggering
* Slight motion signal: very small movement even only body motion can be collected, the indicator flashes once.
* Breathing signal: when no slight motion signal, only breathing signal can be collected, the indicator flashes for 3
times by detecting 3 effective breathing signals.
Daylight harvesting：
Built-in daylight harvesting sensor, according to the
target lux level, automatic detect the natural light level to
adjust artificial light level automatically, realizing the
natural light and artificial light complementary,
maintaining the target lux level. It can be used in offices,
airports, shopping malls and other places where need
keep constant lux level.
Add: No.17th Building, Dianda Guyuan Industrial Park, Mashantou, Matian, Guangming District, Shenzhen, China, 518106
Tel: +86 (0)755-2305 7253
All technical information is subject to the physical performance, Merrick reserves the right to final interpretation
LIFEBEING SENSOR
-40℃...+80℃ /Humidity: 85% (Non condensing)
EN61058-1, EN61058-1-2
EN55015, EN61547, EN61000-3-2, EN61000-3-3
Compliant to RoHS
CE
"L N ground" port diameter: 0.75-1.5 mm
"DALI2" port diameter: 0.75-1.0mm
IP20
Class II
Flush mounted
Cut size: Ø70-Ø80
5 years warranty@Ta 230V full load
Slight motion& Breathing signal maintain
Shenzhen Merrytek Technology Co.,Ltd
Fax: +86 (0)755-2786 3012
page 3 of 12
MSA019
2
2
Website: www.merrytek.com
Version: A0
