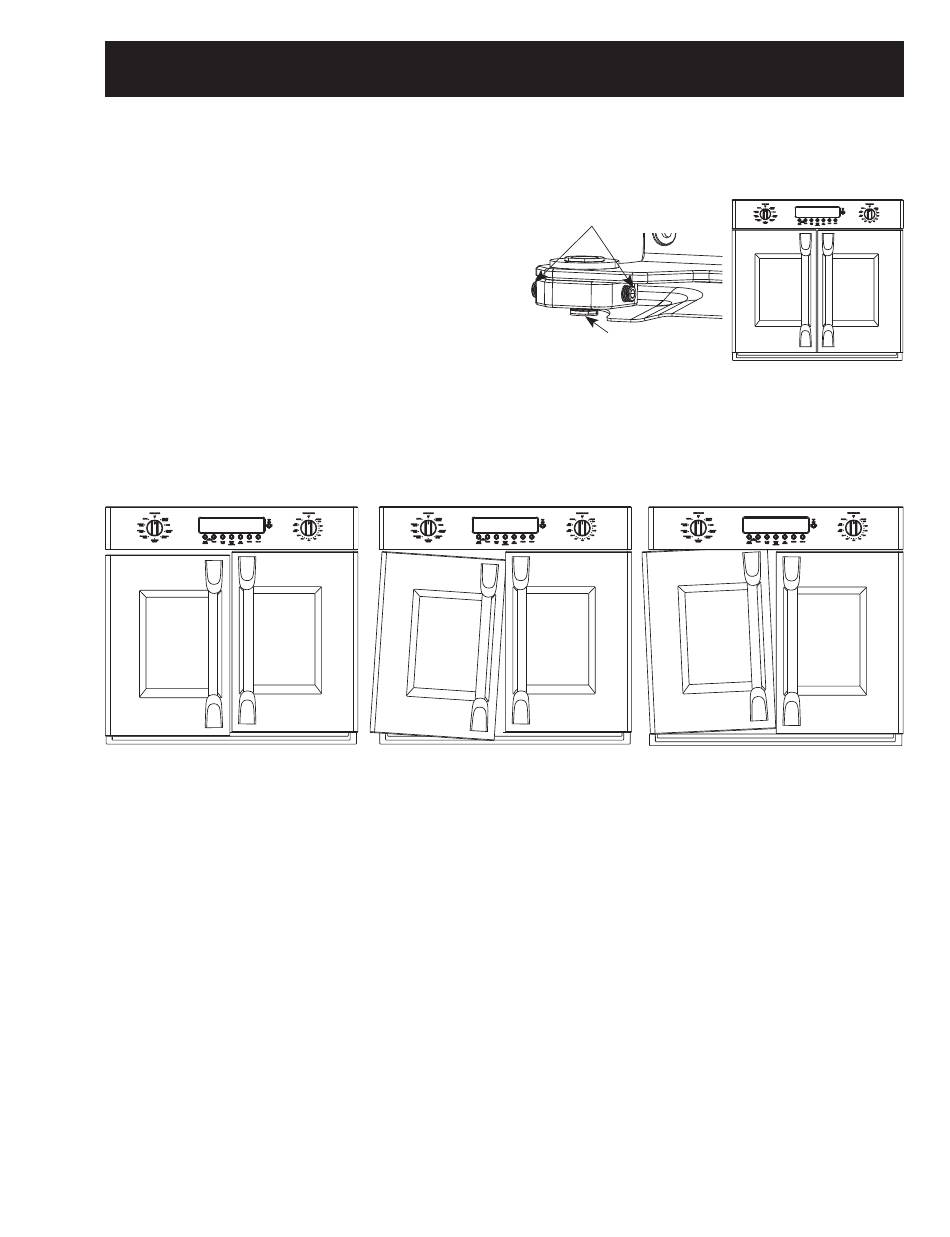

DOOR ADJUSTMENT MECHANISM
The door adjustment mechanism is located on both the right and left doors at the bottom hinges. Only the
left side adjustment mechanism is shown in this manual.
1. Using a 9/16 in. socket wrench, tighten the
vertical adjustment screw to adjust door up, and
loosen to adjust the door down.
2. The horizontal adjustment screws pivot the door
about an axis. Using a 1/8 in. hex key, loosen
both screws, then tighten the appropriate screw
to pivot the door. Once the door is in place, verify
both screws are tightened.
EXAGGERATED EXAMPLES FOR LEFT DOOR ADJUSTMENT
Example 1: Left door low, center
gap even.
Steps for adjustment:
1. Tighten the left vertical
adjustment screw.
2. If left door is still low, loosen the
right vertical adjustment screw.

Door Height and Angle Adjustment

Example 2: Left door low,
center gap larger at bottom.
Steps for adjustment:
1. Loosen the inside horizontal
adjustment screw.
2. Tighten the outside
horizontal adjustment
screw until the center gap
is even.
3. If the left door is still low,
tighten the left vertical
adjustment screw.
4. Tighten the inside horizontal
adjustment screw.
Horizontal Adjustment Screws
Vertical Adjustment Screw
Example 3: Left door high, center
gap larger at top.
Steps for adjustment:
1. Loosen the outside horizontal
2. Tighten the outside horizontal
3. If the left door is still low,
4. Tighten the inside horizontal
– 51 –
adjustment screw.
adjustment screw until the
center gap is even.
tighten the left vertical
adjustment screw.
adjustment screw.
