Prior to doing any repairs on the French Door models, it is important to note the force required to move the

as it was when the repair was started. A gauge will come with the chain assembly and inner door panel

assemblies.

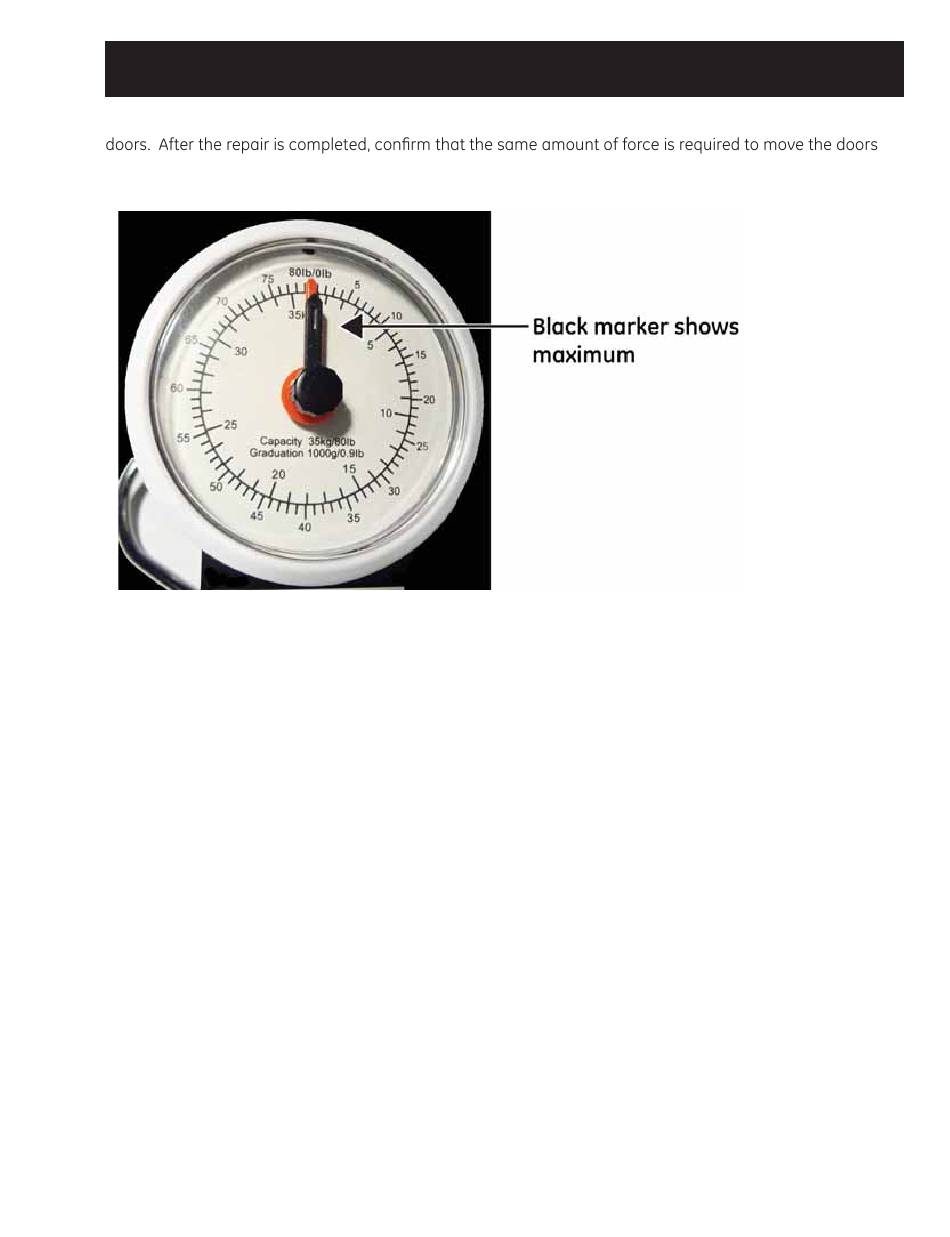

Using the Force Gauge

1. Open the doors 3 to 4 inches.

2. Reset the gauge marker to zero.

3. Hook the gauge around the handle, keep the gauge perpendicular to the door, and slowly open the door

approximately 5 inches. Avoid jerking or rapid motion when opening the door. The marker will show

maximum force.

4. Record the reading for reassembly.

NOTE: The doors only have to be moved a short distance, approximately 3 to 5 inches.
