User Interface and Encoders
User Interface and Encoders Access

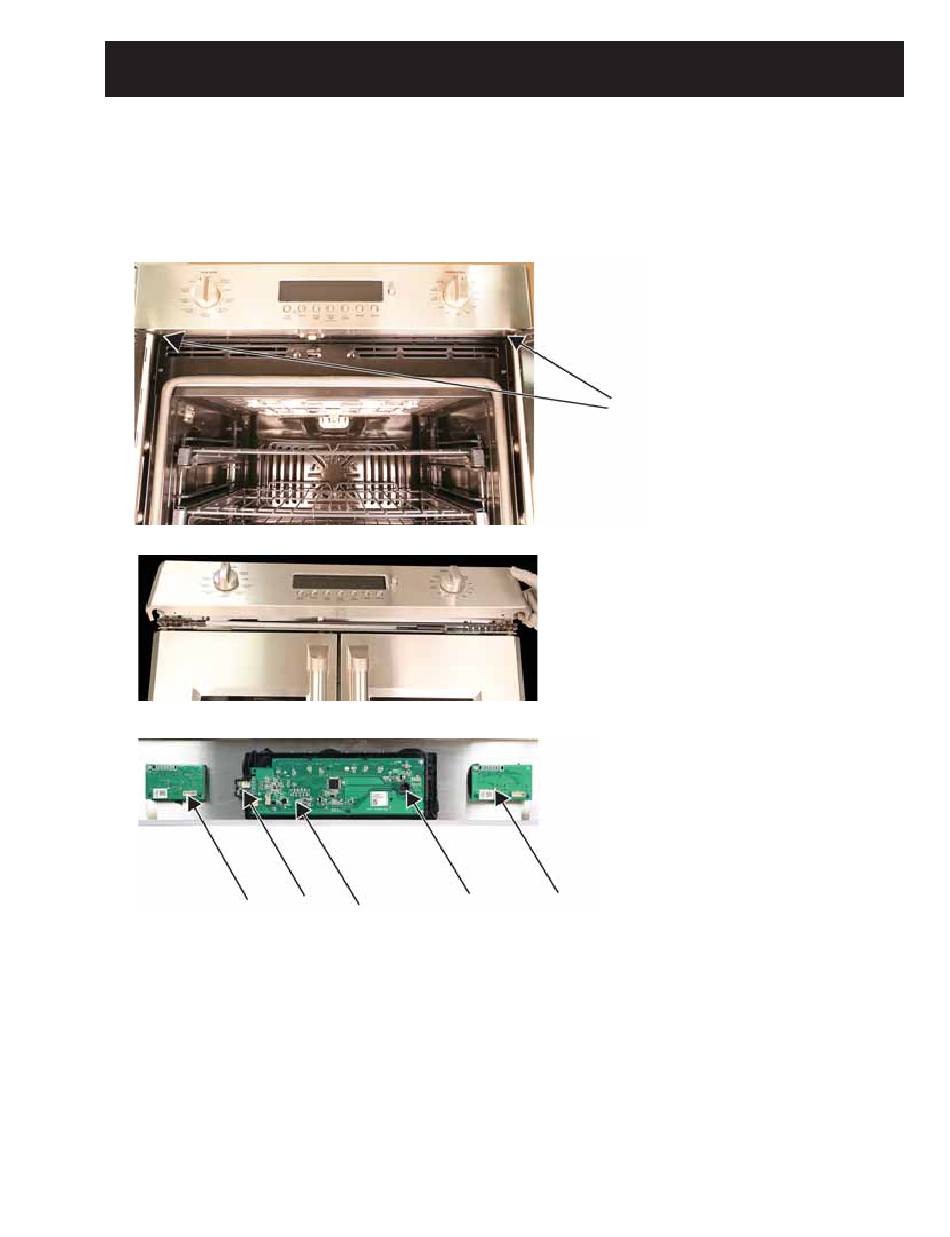

1. Remove the two T20 Torx screws from the control panel.
2. Lift the bottom of the panel up and allow the top of the control to disengage from the top of the unit.
3. Disconnect the wire harness connectors from the Encoders, User Interface and Wi-Fi board.
Control panel screws
Temperature
RJ45
WiFi
Select
User
Encoder
Board
Encoder
Interface
– 25 –
