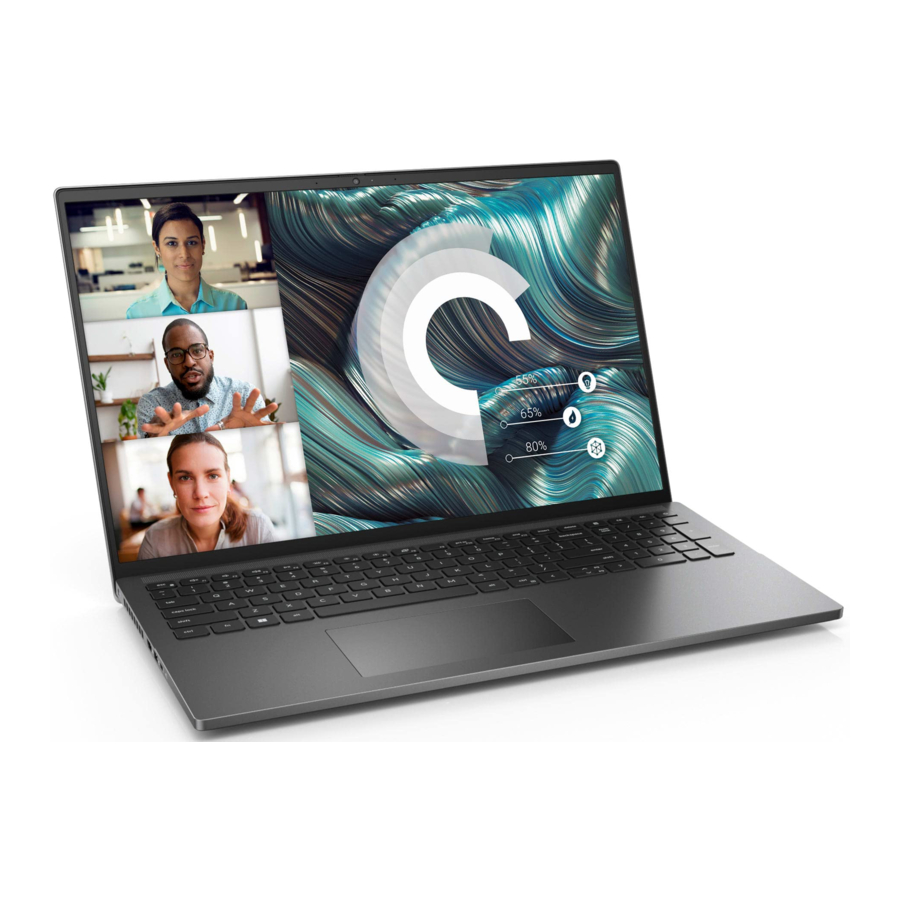

Dell Vostro 7620 (NOT20232) Manual

NOTE: A NOTE indicates important information that helps you make better use of your product.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

A WARNING indicates a potential for property damage, personal injury, or death.

Set up your Vostro 7620

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

1. Connect the power adapter and press the power button.


NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time.

2. Finish Windows setup.
   Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:

• Connect to a network for Windows updates.
  NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
• If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account.
• On the Support and Protection screen, enter your contact details.

3. Locate and use Dell apps from the Windows Start menu—Recommended.

Table 1. Locate Dell apps

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.
	SupportAssist SupportAssist proactively and predictively identifies hardware and software issues on your computer and automates the engagement process with Dell Technical support. It addresses performance and stabilization issues, prevents security threats, monitors, and detects hardware failures. For more information, see SupportAssist for Home PCs User's Guide at www.dell.com/serviceabilitytools. Click SupportAssist and then, click SupportAssist for Home PCs. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information on using Dell Update, search in the Knowledge Base Resource at www.dell.com/support.
	Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at www.dell.com/support.

Views of Vostro 7620

Right

1. Global headset jack
   Connect headphones or a headset (headphone and microphone combo).
2. USB 3.2 Gen 1 port
   Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
3. Network port
   Connect an Ethernet (RJ-45) cable from a router or a broadband modem for network or Internet access, with a transfer rate of 10/100/1000 Mbps.
4. SD-card slot
   Reads from and writes to the SD card. The computer supports the following card types:

• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• Secure Digital Extended Capacity (SDXC)

5. Security-cable slot (wedge-shaped)
   Connect a security cable to prevent unauthorized movement of your computer.

Left

1. Power-adapter port
   Connect a power adapter to provide power to your computer and charge the battery.
2. HDMI 2.0 port
   Connect to a TV, external display or another HDMI-in enabled device. Provides video and audio output.
3. USB 3.2 Gen 1 port
   Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
4. Thunderbolt 4.0 port with Power Delivery and DisplayPort
   Supports USB4, DisplayPort 1.4, Thunderbolt 4 and also enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 40 Gbps for USB4 and Thunderbolt 4.
   NOTE: You can connect a Dell Docking Station to the Thunderbolt 4 ports. For more information, search in the Knowledge Base Resource at www.dell.com/support.
   NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
   NOTE: USB4 is backward compatible with USB 3.2, USB 2.0, and Thunderbolt 3.
   NOTE: Thunderbolt 4 supports two 4K displays or one 8K display.
5. Power and battery-status light
   Indicates the power state and battery state of the computer.
   Solid white—Power adapter is connected and the battery is charging.
   Solid amber—Battery charge is low or critical.
   Off—Battery is fully charged.
   NOTE: On certain computer models, the power and battery-status light are also used for diagnostics. For more information, see the Troubleshooting section in your computer's Service Manual.

Top

1. Speaker (tweeter)
   Provides audio output.
2. Power button with optional fingerprint reader
   Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
   When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for four seconds to force shut-down the computer.

If the power button has a fingerprint reader, place your finger on the power button to log in.

NOTE: The highlighted area indicates the actual active fingerprint reader area and the image is for illustration purposes only.

NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.

3. Right-click area
   Press to right-click.
   NOTE: The right-click area is enabled when you touch the touchpad.
4. Left-click area
   Press to left-click.
   NOTE: The left-click area is enabled when you touch the touchpad.
5. Precision touchpad
   Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.

Display

1. Left microphone
   Provides digital sound input for audio recording and voice calls.
2. Privacy shutter
   Slide the privacy shutter to cover the camera lens and protect your privacy when the camera is not in use.
3. Camera
   Enables you to video chat, capture photos, and record videos.
4. Camera-status light
   Turns on when the camera is in use.
5. Right microphone
   Provides digital sound input for audio recording and voice calls.

Bottom

1. Left speaker (woofer)
   Enhances low-frequency audio output.
2. Right speaker (woofer)
   Enhances low-frequency audio output.
3. Service Tag and regulatory labels
   The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. The regulatory label contains regulatory information of your computer.

Specifications of Vostro 7620

Dimensions and weight

The following table lists the height, width, depth, and weight of your Vostro 7620.

Table 2. Dimensions and weight

Description	Values
Height:
Front height	16.95 mm (0.67 in.)
Rear height	18.99 mm (0.75 in.)
Width	356.78 mm (14.05 in.)
Depth	251.90 mm (9.92 in.)
Weight (minimum)	2.02 kg (4.45 lb) NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.

Processor

The following table lists the details of the processors supported by your Vostro 7620.

Table 3. Processor

Chipset

The following table lists the details of the chipset supported by your Vostro 7620.

Table 4. Chipset

Operating system

Your Vostro 7620 supports the following operating systems:

• Windows 11 Pro, 64-bit
• Windows 11 Pro National Education, 64-bit
• Windows 11 Home, 64-bit

Memory

The following table lists the memory specifications of your Vostro 7620.

Table 5. Memory specifications

Description	Values
Memory slots	One-SODIMM slot One 8 GB memory module integrated with the system board
Memory type	DDR5
Memory speed	4800 MHz
Maximum memory configuration	40 GB
Minimum memory configuration	8 GB
Memory size per slot	8 GB, 16 GB, and 32 GB
Memory configurations supported	8 GB, 1 x 8 GB integrated, DDR5, 4800 MHz 16 GB, 1 x 8 GB integrated + 1 x 8 GB, DDR5, 4800 MHz, dual-channel 24 GB, 1 x 8 GB integrated + 1 x 16 GB, DDR5, 4800 MHz, dual-channel 40 GB, 1 x 8 GB integrated + 1 x 32 GB, DDR5, 4800 MHz, dual-channel NOTE: Dual-channel support is up to a total of 8 + 8 GB = 16 GB memory.

External ports

The following table lists the external ports of your Vostro 7620.

Table 6. External ports

Description	Values
Network port	One RJ45 ethernet port
USB ports	Two USB 3.2 Gen 1 ports One Thunderbolt 4 port with DisplayPort and Power Delivery
Audio port	One universal headset jack
Video port	One HDMI 2.0 port One Thunderbolt 4 port with DisplayPort and Power Delivery NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect to a DisplayPort device.
Media-card reader	One SD-card slot
Power-adapter port	One 4.50 mm x 2.90 mm DC-in
Security-cable slot	One security cable slot (wedge-shaped)

Internal slots

The following table lists the internal slots of your Vostro 7620.

Table 7. Internal slots

Description	Values
M.2	One M.2 2230/2280 slot for solid-state drive One M.2 2230 slot for WiFi and Bluetooth combo card NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support.

Communications

Ethernet
Table 8. Ethernet specifications

Wireless module
Table 9. Wireless module specifications

Audio

The following table lists the audio specifications of your Vostro 7620.

Table 10. Audio specifications

Camera

The following table lists the camera specifications of your Vostro 7620.

Table 11. Camera specifications

Storage

This section lists the storage options on your Vostro 7620.

Your Vostro 7620 supports one of the following storage configurations:

• One M.2 2230 solid-state drive.
• One M.2 2280 solid-state drive.

The primary drive of your Vostro 7620 is the M.2 drive where your operating system is installed.

Table 12. Storage specifications

Media-card reader

The following table lists the media cards supported by your Vostro 7620.

Table 13. Media-card reader specifications

Description	Values
Media-card type	One SD card slot
Media-cards supported	Secure Digital (SD) Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

Keyboard

The following table lists the keyboard specifications of your Vostro 7620.

Table 14. Keyboard specifications

Touchpad

The following table lists the touchpad specifications of your Vostro 7620.

Table 15. Touchpad specifications

Power adapter

The following table lists the power adapter specifications of your Vostro 7620.

Table 16. Power adapter specifications

Description	Option one	Option two
Type	130 W AC adapter	130 W USB Type-C
Connector dimensions:
External diameter	4.50 mm	Not applicable
Internal diameter	2.90 mm	Not applicable
Input voltage	100 VAC–240 VAC	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz	50 Hz–60 Hz
Input current (maximum)	1.80 A	1.80 A
Output current (continuous)	6.70 A	20 V/ 6.50 A (Continuous) 20 V/ 4.50 A (Continuous) 15 V/ 3 A (Continuous) 9 V/ 3 A (Continuous) 5 V/ 3 A (Continuous)
Rated output voltage	19.50 VDC	20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)
Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery

The following table lists the battery specifications of your Vostro 7620.

Table 17. Battery specifications

Description	Option one	Option two
Battery type	3-cell polymer (56 Wh)	6-cell polymer (86 Wh)
Battery voltage	13.20 V	13.35 VDC
Battery weight (maximum)	0.26 kg (0.57 lb)	0.34 kg (0.75 lb)
Battery dimensions:
Height	7.56 mm (0.30 in.)	7.56 mm (0.30 in.)
Width	77.70 mm (3.06 in.)	77.70 mm (3.06 in.)
Depth	295.20 mm (11.62 in.)	295.20 mm (11.62 in.)
Temperature range:
Operating	0°C to 45°C (32°F to 113°F)	0°C to 45°C (32°F to 113°F)
Storage	-20°C to 65°C (-4°F to 149°F)	-20°C to 65°C (-4°F to 149°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com.	2 hour (express), when the computer is off 3 hour (standard), when the computer is off	2 hour (express), when the computer is off 3 hour (standard), when the computer is off
Coin-cell battery	Not supported	Not supported
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Display

The following table lists the display specifications of your Vostro 7620.

Table 18. Display specifications

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint-reader of your Vostro 7620.

Table 19. Fingerprint reader specifications

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Vostro 7620.

Table 20. GPU—Integrated

Controller	External display support	Memory size	Processor
Intel UHD Graphics	USB Type-C port with DisplayPort Alt mode and Thunderbolt 4	Shared system memory	12th Generation Intel Core i5/i7
Intel Iris Xe Graphics NOTE: Intel Iris Xe Graphics will default to Intel UHD Graphics on computers with single-channel memory configuration.	USB Type-C port with DisplayPort Alt mode and Thunderbolt 4	Shared system memory	12th Generation Intel Core i5/i7

GPU—Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Vostro 7620.

Table 21. GPU—Discrete

Operating and storage environment

This table lists the operating and storage specifications of your Vostro 7620.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 22. Computer environment

Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10000 ft)	-15.2 m to 10668 m (-49.87 ft to 35000 ft)
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

* Measured using a random vibration spectrum that simulates user environment.

† Measured using a 2 ms half-sine pulse.

ComfortView Plus

Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

• Position the display at a comfortable viewing distance between 20 and 28 inches (50 and 70 cm) from your eyes.
• Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
• Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
• Take an extended break for 20 minutes every two hours.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).

However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing fn + Esc. Subsequently, multi-media control can be invoked by pressing fn and the respective function key. For example, mute audio by pressing fn + F1.

NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 23. List of keyboard shortcuts

The fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 24. List of keyboard shortcuts

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 25. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell app
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows www.dell.com/support/linux
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer concerns	Go towww.dell.com/support. On the menu bar at the top of the Support page, select Support > Knowledge Base. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.

NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.

NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
