Dell Precision 7770 (P115F) Manual

Notes/cautions and warnings

information NOTE: A NOTE indicates important information that helps you make better use of your product.


A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.


A WARNING indicates a potential for property damage, personal injury, or death.

Views of the Product

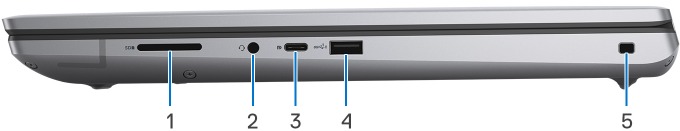

Views of the Product - Right View

  1. SD-card slot
    Insert a SD card to expand your storage and store photos, videos, and data from your computer. The computer supports the following card types:
    • Secure Digital (SD)
    • Secure Digital High Capacity (SDHC)
    • Secure Digital Extended Capacity (SDXC)
  2. Universal audio jack
    Connect headphones or a headset (headphone and microphone combo).
  3. USB 3.2 Gen 2 Type-C port with DisplayPort alt mode
    Connect devices such as external storage devices, printers, and external displays. Provides data transfer rate of up to 10 Gbps.
    Supports DisplayPort 1.4 and also enables you to connect an external display using a display adapter.

information NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.

  1. USB 3.2 Gen 1 port with PowerShare
    Connect devices such as external storage devices and printers.
    Provides data transfer speeds up to 5 Gbps. PowerShare enables you to charge your USB devices even when your computer is turned off.

information NOTE: If your computer is turned off or in hibernate state, you must connect the power adapter to charge your devices using the PowerShare port. You must enable this feature in the BIOS setup program.

information NOTE: Certain USB devices may not charge when the computer is turned off or in sleep state. In such cases, turn on the computer to charge the device.

  1. Security-cable slot (wedge-shaped)
    Attach a security cable to prevent unauthorized movement of your computer.

Left

Views of the Product - Left View

  1. Power-adapter port - 7.4 mm
    Connect a power adapter to provide power to your computer and charge the battery.
  2. Network port
    Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access, with a transfer rate of 10/100/1000 Mbps.
  3. HDMI 2.0a port (integrated graphics)/HDMI 2.1 port (discrete graphics)
    Connect to a TV, external display or another HDMI-in enabled device. Provides video and audio output.
  4. USB 3.2 Gen 1 port
    Connect peripherals such as keyboard, mice, and printers and external storage devices. Supports data transfer speeds up to 5 Gbps.
  5. Thunderbolt 4 ports with USB Type-C
    Supports USB4, DisplayPort 1.4, Thunderbolt 4 and also enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 40 Gbps for USB4 and Thunderbolt 4.

information NOTE: You can connect a Dell Docking Station to the Thunderbolt 4 ports. For more information, search in the Knowledge Base Resource at Dell Support Site.

information NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.

information NOTE: USB4 is backward compatible with USB 3.2, USB 2.0, and Thunderbolt 3.

information NOTE: Thunderbolt 4 supports two 4K displays or one 8K display.

  1. Smart card reader

Top

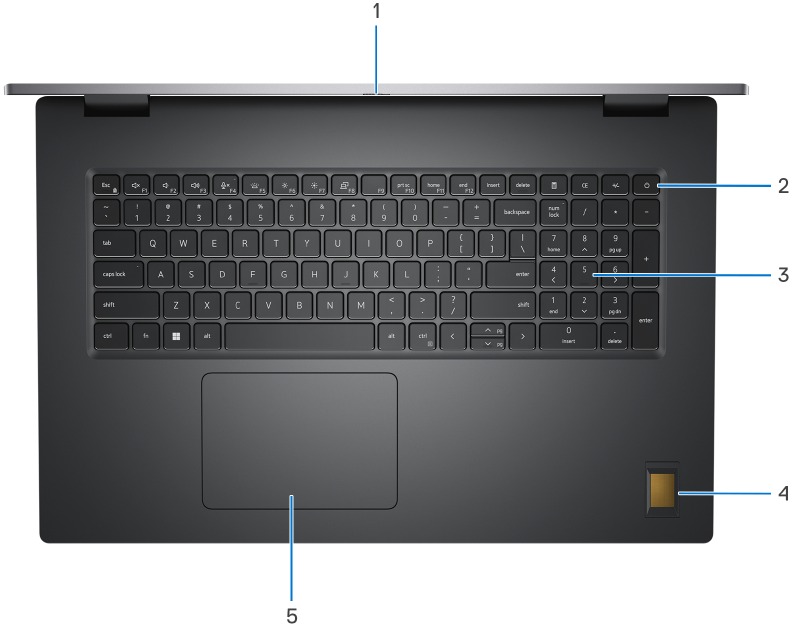

Views of the Product - Top View

  1. RGB-infrared camera
    This combined camera supports both infrared Windows Hello facial recognition and standard RGB imaging for photos and videos.
  2. Power button
    Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
    When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut-down the computer.
    information NOTE: You can customize the power-button behavior in Windows. For more information, see Me and My Dell at Dell Support Manuals.
  3. Keyboard
  4. Power button with optional finger print reader
    Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
    Press to put the computer in sleep state if it is turned on.
    Press and hold for four seconds to force shut-down the computer.
    Press and hold for 25 seconds to force Real Time Clock (RTC) battery reset.
  5. Precision touchpad
    Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.

Display

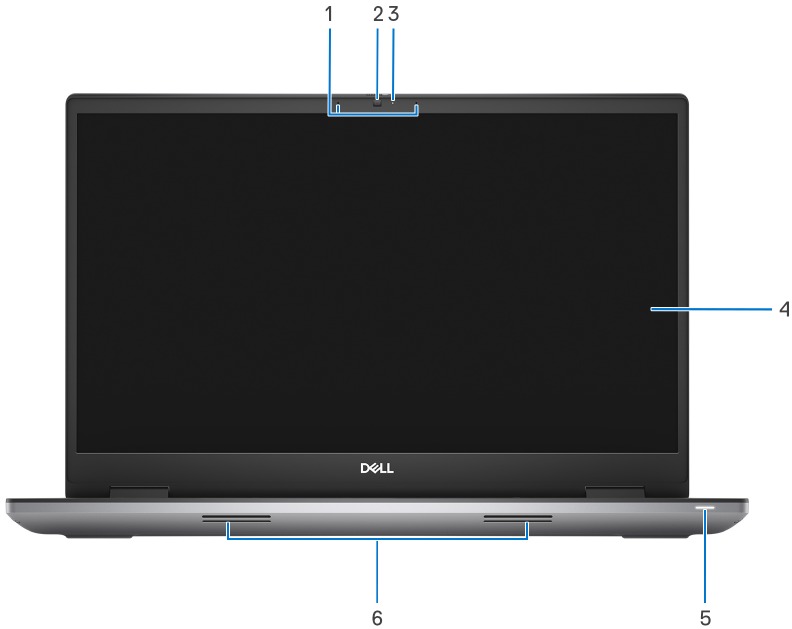

Views of the Product - Display

  1. Microphones
    Provides digital sound input for audio recording, voice calls, and so on.
  2. RGB-infrared camera
    This combined camera supports both infrared Windows Hello facial recognition and standard RGB imaging for photos and videos.
  3. Camera-status light
    Turns on when the camera is in use.
  4. LCD panel
    Provides visual output to the user.
  5. Power-status light
    Indicates the power state of the computer.
    White light—Power adapter is connected and the battery is charging.
  6. Speakers
    Provide audio output.

Bottom

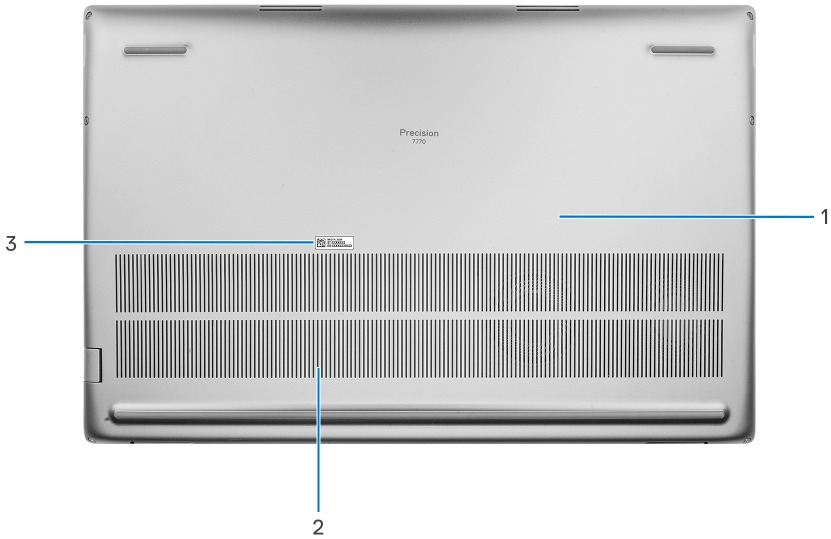

Views of the Product - Bottom View

  1. Base cover
  2. Air vents
    Air is blown out by the internal fans through the air vents.
    information NOTE: To prevent the computer from overheating, ensure that the air vents are not blocked when the computer is running.
  3. Service Tag and regulatory labels
    The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. The regulatory label contains regulatory information of your computer.

Service Tag

The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information.

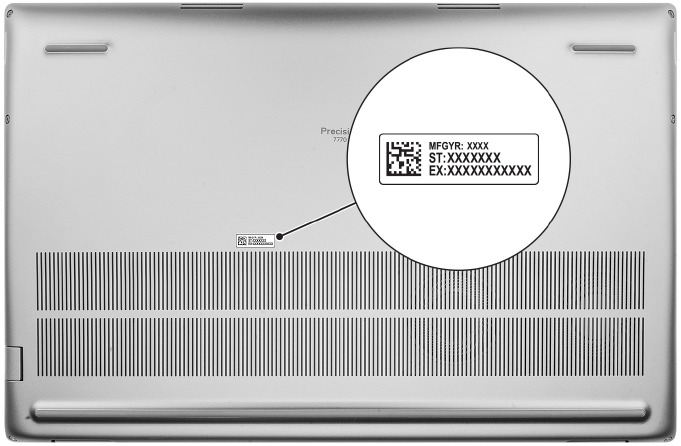

Views of the Product - Service Tag Location

Battery charge and status light

The following table lists the battery charge and status light behavior of your Precision 7770.

Table 1. Battery charge and status light behavior

Power Source LED Behavior System Power State Battery Charge Level
AC Adapter Off S0 - S5 Fully Charged
AC Adapter Solid White S0 - S5 < Fully Charged
Battery Off S4 - S5 11-100%
Battery Solid Amber (590+/-3 nm) S0 - S5 < 10%
  • S0 (ON) - System is turned on.
  • S4 (Hibernate) - The system consumes the least power compared to all other sleep states. The system is almost at an OFF state, expect for a trickle power. The context data is written to hard drive.
  • S5 (OFF) - The system is in a shutdown state.

Specifications of the Product

Dimensions and weight

The following table lists the height, width, depth, and weight of your Precision 7770.

Table 2. Dimensions and weight

Description Values
Height: Front height 1.03 in. (25.95 mm)
Rear height 1.06 in. (26.70 mm)
Width 15.67 in. (398.00 mm)
Depth 10.44 in. (265.02 mm)

Weight

information NOTE: The weight of your computer depends on the configuration that is offered.

6.66 lb (3.02 kg)

Processor

The following table lists the details of the processors that are supported in your Precision 7770.

Table 3. Processor

Description Option one Option two Option three
Processor type 12th Generation Intel Core i5-12600HX, vPro 12th Generation Intel Core i7-12850HX, vPro 12th Generation Intel Core i9-12950HX, vPro
Processor wattage 55 W 55 W 55 W
Processor core count 4 P cores and 8 E cores 8 P cores and 8 E cores 8 P cores and 8 E cores
Processor thread count 16 24 24
Processor speed P cores 2.50 GHz to 4.60 GHz, E cores 1.80 GHz to 3.30 GHz P cores 2.10 GHz to 4.80 GHz, E cores 1.50 GHz to 3.40 GHz P cores 2.30 GHz to 5.00 GHz, E cores 1.70 GHz to 3.60 GHz
Processor cache 18 MB 25 MB 30 MB
Integrated graphics Intel UHD Graphics Intel UHD Graphics Intel UHD Graphics

Chipset

The following table lists the details of the chipset that is supported in your Precision 7770.

Table 4. Chipset

Description Values
Chipset Intel PCH-LP
Processor Intel 12th Generation Intel Core i5/i7/i9
DRAM bus width 64-bit
Flash EPROM 64 MB
PCIe bus Up to Gen4

Operating system

Your Precision 7770 supports the following operating systems:

  • Windows 11 Pro, 64-bit with DGR
  • Windows 11 Pro National Education, 64-bit
  • Windows 11 Home, 64-bit with DGR
  • Windows 10 Home, 64-bit (factory installed downgrade with a Windows 11 Professional License)
  • Windows 10 Pro, 64-bit (factory installed downgrade with a Windows 11 Professional License)
  • Windows 10 Enterprise, 64-bit (factory installed downgrade with a Windows 11 Professional License)
  • Windows 10 Pro Education, 64-bit (factory installed downgrade with a Windows 11 Professional License)
  • Windows 10 Pro China, 64-bit (factory installed downgrade with a Windows 11 Professional License)
  • RedHat Enterprise Linux 8.6
  • Ubuntu 20.04 LTS, 64-bit

Memory

The following table lists the memory specifications that are supported by your Precision 7770.

Table 5. Memory specifications

Description Values
Memory slots
  • CAMM interface
  • SODIMM
Memory type DDR5
Memory speed
  • 3600 MHz
  • 4800 MHz
Maximum memory configuration
  • 128 GB - CAMM module
  • 64 GB - SODIMM
Minimum memory configuration
  • 16 GB - CAMM module
  • 8 GB - SODIMM
Memory size per slot 8 GB, 16 GB, 32 GB, 64 GB, 128 GB
Memory configurations supported
  • 16 GB, 1 x 16 GB, DDR5, 4800 MHz, non-ECC, CAMM module
  • 32 GB, 1 x 32 GB, DDR5, 4800 MHz, non-ECC, CAMM module
  • 64 GB, 1 x 64 GB, DDR5, 4800 MHz, non-ECC, CAMM module
  • 128 GB, 1 x 128 GB, DDR5, 3600 MHz, non-ECC, CAMM module
  • 8 GB, 1 x 8 GB, DDR5, 4800 MHz, non-ECC, SODIMM
  • 16 GB, 1 x 16 GB, DDR5, 4800 MHz, ECC, SODIMM
  • 16 GB, 2 x 8 GB, DDR5, 4800 MHz, non-ECC, SODIMM, dual-channel
  • 32 GB, 2 x 16 GB, DDR5, 4800 MHz, ECC, SODIMM, dualchannel
  • 32 GB, 2 x 16 GB, DDR5, 4800 MHz, non-ECC, SODIMM, dual-channel
  • 64 GB, 2 x 32 GB, DDR5, 4800 MHz, non-ECC, SODIMM, dual-channel
information NOTE:
  • For system shipped with CAMM, remove memory Interposer board to upgrade to SODIMM type memory.
  • For system shipped with SODIMM memory, install the memory interposer board to upgrade to CAMM type memory.

External ports and slots

The following table lists the external ports and slots of your Precision 7770.

Table 6. External ports and slots

Description Values
Network port One RJ45 Ethernet port
USB ports
  • Two Thunderbolt 4 ports (USB Type-C)
  • One USB 3.2 Gen 2 Type-C port with DisplayPort alt mode
  • One USB 3.2 Gen 1 port with PowerShare
  • One USB 3.2 Gen 1 port
Audio port One universal audio jack
Video port(s)
  • Two Thunderbolt 4 ports (USB Type-C)
  • One HDMI 2.0a port (UMA)
  • One HDMI 2.1 port (DGPU)
Media-card reader One SD-card slot
Power-adapter port
  • 180 W AC adapter, 7.40 mm - SFF
  • 240 W AC adapter, 7.40 mm - SFF
Security-cable slot One wedge-shaped security slot

Input and output power of external ports
The following table lists the input and output power of external ports on the Precision 7770.

Table 7. Input and output power of external ports

Port type Connector type Input power
(Independent Mode*)
Input power
(Combined Mode**)
Output power
(Independent mode)
Output power
(Combined mode)
Poweradapter port 7.40 mm barrel, DC-IN connector 240 W Not applicable Not applicable Not applicable
USB Type-C port Two Thunderbolt 4 ports with USB Type-C 130 W 210 W (105 W support for each port) 15 W (5 V/3 A) 22.5 W (5 V/3A + 5 V/1.5 A)
One USB 3.2 Gen 2 Type-C port with DisplayPort alt mode Not applicable Not applicable 15 W (5 V/3 A) Not applicable
USB Type-A port One USB 3.2 Gen 1 port with PowerShare Not applicable Not applicable 7.5 W (5 V/1.5 A) Not applicable
One USB 3.2 Gen 1 port without PowerShare Not applicable Not applicable 4.5 W (5 V/0.9 A) Not applicable

* Independent mode is a configuration where there is a single power source for either input or output. This power source can be a barrel adapter or a USB Type-C adapter, and it is used with a single Type-C device.
**Combined mode involves dual-input power sources for the Type-C adapter, and the output power is distributed to two or more Type-C devices.

Internal slots

The following table lists the internal slots of your Precision 7770.

Table 8. Internal slots

Description Values
M.2
  • One WWAN
  • One WLAN
  • Four M.2 solid-state drive
information NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at Dell Support Site.

Ethernet

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Precision 7770.

Table 9. Ethernet specifications

Description Values
Model Intel i219LM
Transfer rate 10/100/1000 Mbps

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Precision 7770.

Table 10. Wireless module specifications

Description Values
Model number Intel AX211
Transfer rate Up to 2400 Mbps
Frequency bands supported

2.4 GHz/5 GHz/6 GHz

information NOTE: The 6 GHz frequency is supported on computers installed with Windows 11 operating system only.

Wireless standards
  • WiFi 802.11a/b/g
  • Wi-Fi 4 (Wi-Fi 802.11n)
  • Wi-Fi 5 (WiFi 802.11ac)
  • Wi-Fi 6E (WiFi 802.11ax)
information NOTE: 160 MHz channel use, MU-MIMO, new 6 GHz band
Encryption
  • 64-bit and 128-bit WEP
  • AES-CCMP
  • TKIP
Bluetooth wireless card Bluetooth 5.2

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) modules that are supported on your Precision 7770.

Table 11. WWAN module specifications

Description Option one
Model number DW5930e, Qualcomm Snapdragon SDX55 5G
Transfer rate Up to 3 Gbps DL/250 Mbps UL (3GPP Release 15 NR/LTE CAT20)
Frequency bands supported
  • NR: (1, 2, 3, 5, 7, 8, 12, 20, 28, 38, 41, 66, 77, 78, 79)
  • LTE: (1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66)
  • HSPA+: (1, 2, 4, 5, 6, 8, 9, 19)
Wireless standards
  • NR FR1(Sub 6) FDD/TDD
  • LTE FDD/TDD
  • WCDMA/HSPA+
  • GPS/GLONASS/Beidou/Galileo
Encryption Not supported
Global Navigation Satellite System (GNSS) Supports GPS, and GLONASS
information NOTE: For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number, see the knowledge base article 000143678 at Dell Support Site.

Audio

The following table lists the audio specifications of your Precision 7770.

Table 12. Audio specifications

Description Values
Audio controller Realtek ALC711-VD
Stereo conversion Supported
Internal audio interface SoundWire
External audio interface One universal audio jack
Number of speakers Four (Two tweeter speakers and two woofer speakers)
Internal-speaker amplifier Realtek ALC1319D
External volume controls Keyboard shortcut controls
Speaker output: Average 2 W + 2 W (tweeter), 2 W + 2 W (woofer)
Peak 2.5 W + 2.5 W (tweeter), 2.5 W + 2.5 W (woofer)
Microphone Dual digital-array microphones

Storage

This section lists the storage options on your Precision 7770.

Table 13. Storage matrix

Storage M.2 2280 SSD (Slot 6) M.2 2280/2230 SSD (Slot 4) M.2 2280 SSD (Slot 5) M.2 2280 SSD (Slot 3)
M.2 Gen4 SSD Boot Yes No No No
M.2 Gen4 SSD Boot Yes Yes No No
M.2 Gen4 SSD Boot Yes Yes Yes No
M.2 Gen4 SSD Boot Yes Yes Yes Yes
M.2 2230 Gen4 SSD Boot No Yes No No
M.2 Gen3/4 SED SSD Yes No No No
M.2 Gen3/4 SED SSD Yes Yes No No
M.2 Gen3/4 SED SSD Yes Yes Yes No
M.2 SED SSD Yes Yes Yes Yes

Table 14. Storage specifications

Storage type Interface type Capacity
M.2 2230 Class 35 SSD PCIe NVMe Gen4 x4 256 GB
M.2 2280 Class 40 SSD PCIe NVMe Gen4 x4 Up to 4 TB
M.2 2280 Class 40 SED (Self-Encrypting Drive) PCIe NVMe Gen3 x4 Up to 1 TB

RAID

RAID - Redundant Array of Independent Disks
For optimal performance when configuring drives as a RAID volume, Dell Technologies recommends drive models that are identical.

information NOTE: RAID is not supported on Intel Optane configurations.

RAID 0 (Striped, Performance) volumes benefit from higher performance when drives are matched because the data is split across multiple drives: any I/O operations with block sizes larger than the stripe size splits the I/O and become constrained by the slowest of the drives. For RAID 0 I/O operations where block sizes are smaller than the stripe size, whichever drive the I/O operation targets determine the performance, which increases variability and results in inconsistent latencies. This variability is pronounced for write operations, and it can be problematic for applications that are latency sensitive. One such example of this is any application that performs thousands of random writes per second in small block sizes.

RAID 1 (Mirrored, Data Protection) volumes benefit from higher performance when drives are matched because the data is mirrored across multiple drives: all I/O operations must be performed identically to both drives, thus variations in drive performance when the models are different, results in the I/O operations completing only as fast as the slowest drive. While this does not suffer the variable latency issue in small random I/O operations as with RAID 0 across heterogeneous drives, the impact is nonetheless large because the higher performing drive becomes limited in all I/O types. One of the worst examples of constrained performance here is when using unbuffered I/O. To ensure that writes are fully committed to non-volatile regions of the RAID volume, unbuffered I/O bypasses cache (for example by using the Force Unit Access bit in the NVMe protocol) and the I/O operation will not complete until all the drives in the RAID volume have completed the request to commit the data. This kind of I/O operation completely negates any advantage of a higher performing drive in the volume.

RAID 5 as the most common and best "all-round" RAID level, RAID 5 stripes data blocks across all drives in an array (at least 3 to a maximum of 32), and also distributes parity data across all drives. In the event of a single drive failure, the system reads the parity data from the working drives to rebuild the data blocks that were lost. RAID 5 read performance is comparable to that of RAID 0, but there is a penalty for writes since the system must write both the data block and the parity data before the operation is complete. The RAID parity requires one drive capacity per RAID set, so usable capacity will always be one drive less than the total number of drives in the configuration. Not suited for applications requiring many small random data writes due to poor random data write performance.

RAID 10 (sometimes referred to as RAID 1+0) combines RAID 1 and RAID 0 to offer multiple sets of mirrors striped together. RAID 10 offers good performance with good data protection and no parity calculations. RAID 10 requires a minimum of four drives, and usable capacity is 50% of available drives. It should be noted, however, that RAID 10 can use more than four drives in multiples of two. Each mirror in RAID 10 is called a "leg" of the array. A RAID 10 array using, say, eight drives (four "legs," with four drives as capacity) will offer extreme performance in both spinning media and SSD environments as there are many more drives splitting the reads and writes into smaller chunks across each drive. Ideal for applications requiring many small random data writes due to superb random data write performance.

Care must be taken to match not only the drive vendor, capacity, and class, but also the specific model. Drives from the same vendor, with the same capacity, and even within the same class, can have different performance characteristics for certain types of I/O operations. Thus, matching by model ensures that the RAID volumes are consisted of a homogeneous array of drives that deliver all the benefits of a RAID volume without incurring the additional penalties when one or more drives in the volume are lower performing.

Precision 7770 supports RAID with more than one solid state drive configuration.

Media-card reader

The following table provides the specification of media cards supported by your Precision 7770.

Table 15. Media-card reader specifications

Description Values
Media-card slot type SD card
Media-cards supported
  • Secure Digital (SD)
  • Secure Digital High Capacity (SDHC)
  • Secure Digital Extended Capacity (SDXC)
information NOTE: The maximum capacity that is supported by the media-card reader varies depending on the standard of the media card that is installed on your computer.

Keyboard

The following table lists the keyboard specifications of your Precision 7770.

Table 16. Keyboard specifications

Description Values
Keyboard type
  • Non-backlit keyboard
  • Backlit keyboard
Keyboard layout QWERTY
Number of keys
  • United States and Canada: 99 keys
  • United Kingdom: 103 keys
  • Japan: 106 keys
Keyboard size X=19.05 mm key pitch
Y=18.05 mm key pitch
Keyboard shortcuts

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

information NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in the BIOS setup program.

information NOTE: If Copilot in Windows is not available on your computer, pressing the Copilot key launches Windows search. For more information about Copilot in Windows, search in the Knowledge Base Resource at the Dell Support site.

Camera

The following table lists the camera specifications of your Precision 7770.

Table 17. Camera specifications

Description Values
Number of cameras One
Camera type There are two camera options:
  • FHD RGB
  • FHD IR
Camera location Front camera
Camera sensor type Proximity sensor technology
Camera resolution: Still image 0.92 megapixel
Video 1920 x 1080 (FHD) at 30 fps
Infrared camera resolution: Still image 0.30 megapixel
Video 1920 x 1080 (FHD) at 30 fps
Diagonal viewing angle: Camera 74.9 degrees
Infrared camera 70 degrees

Touchpad

The following table lists the touchpad specifications of your Precision 7770.

Table 18. Touchpad specifications

Description Values
Touchpad resolution: Horizontal >300 dpi
Vertical 761
Touchpad dimensions: Horizontal 115.00 mm (4.52 in.)
Vertical 80.00 mm (3.14 in.)
Touchpad gestures For more information about the touchpad gestures available on Windows, see the Microsoft Knowledge Base article at Microsoft Support Site.

Power adapter

The following table lists the power adapter specifications of your Precision 7770.

Table 19. Power-adapter specifications

Description Option one Option two
Type 180 W AC adapter, 7.4 mm - SFF 240 W AC adapter, 7.4 mm - SFF
Connector dimensions: External diameter 7.40 mm 7.40 mm
Internal diameter 5.10 mm 5.10 mm
Power-adapter dimensions: Height 22 mm (0.8 in.) 22 mm (0.8 in.)
Width 66 mm (2.6 in.) 66 mm (2.6 in.)
Depth 130 mm (5.1 in.) 143 mm (5.6 in.)
Input voltage 100 VAC x 240 VAC 100 VAC x 240 VAC
Input frequency 50 Hz to 60 Hz 50 Hz to 60 Hz
Input current (maximum) 2.34 A 3.50 A
Output current (continuous) 9.23 A 12.30 A
Rated output voltage 19.50 VDC 19.50 VDC
Temperature range: Operating 0°C to 40°C (32°F to 104°F) 0°C to 40°C (32°F to 104°F)
Storage -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F)

Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery

The following table lists the battery specifications of your Precision 7770.

Table 20. Battery specifications

Description Option one Option two Option three Option four
Battery type 6-cell, 83 Wh, Lithiumion, ExpressCharge 2.0 6-cell, 93 WHr, Lithiumion, ExpressCharge and ExpressChargeBoost 6-cell, 83 Wh, Lithium-ion, LCL, ExpressCharge 6-cell, 93 WHr, Lithium-ion, LCL, ExpressCharge
Battery voltage 11.55 V (Nominal) 11.55 V (Nominal) 11.55 V (Nominal) 11.55 V (Nominal)
Battery weight (maximum) 0.383 kg (0.844 lb) 0.41 kg (0.90 lb) 0.383 kg (0.844 lb) 0.41 kg (0.90 lb)
Battery dimensions: Height 10.75 mm (0.42 in.) 13.25 mm (0.52 in.) 10.75 mm (0.42 in.) 13.25 mm (0.52 in.)
Width 296.75 mm (11.68 in.) 272.40 mm (10.72 in.) 296.75 mm (11.68 in.) 272.40 mm (10.72 in.)
Depth 66.68 mm (2.62 in.) 66.68 mm (2.62 in.) 66.68 mm (2.62 in.) 66.68 mm (2.62 in.)
Temperature range: Operating 0°C-50°C
(32°F-122°F)
0°C-50°C
(32°F-122°F)
0°C-50°C
(32°F-122°F)
0°C-50°C
(32°F-122°F)
Storage –20°C-60°C
(-4°F-140°F)
–20°C-60°C
(4°F-140°F)
–20°C-60°C
(-4°F-140°F)
–20°C-60°C
(-4°F-140°F)
Battery operating time Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. Varies depending on operating conditions and can significantly reduce under certain powerintensive conditions. Varies depending on operating conditions and can significantly reduce under certain powerintensive conditions. Varies depending on operating conditions and can significantly reduce under certain powerintensive conditions.

Battery charging time (approximate)

information NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on dell support.

  • ExpressCharge 2.0: From 0% up to 35% in as little as 20 minutes
  • Express charge: 2 hrs
  • Standard charge: 3 hrs
  • ExpressCharge Boost: From 0% up to 35% in as little as 20 minutes
  • Express charge: 2 hrs
  • Standard charge: 3 hrs
  • Express charge: 2 hrs
  • Standard charge: 3 hrs
  • Express charge: 2 hrs
  • Standard charge: 3 hrs
Coin-cell battery

Supported

information NOTE: It is recommended that you use a Dell coin-cell battery for your computer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell.

Supported

information NOTE: It is recommended that you use a Dell coincell battery for your computer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell.

Supported

information NOTE: It is recommended that you use a Dell coin-cell battery for your computer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell.

Supported

information NOTE: It is recommended that you use a Dell coin-cell battery for your computer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell.


Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.


Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.

Display

The following table lists the display specifications of your Precision 7770.

Table 21. Display specifications

Description Option one Option two
Display type 17.3-inch Full High Definition (FHD) 17.3-inch Ultra High Definition (UHD)
Touch options No No
Display-panel technology Wide-viewing angle (WVA) Wide-viewing angle (WVA), WLED
Display-panel dimensions (active area): Height 214.81 mm (8.46 in.) 214.81 mm (8.46 in.)
Width 381.89 mm (15.04 in.) 381.89 mm (15.04 in.)
Diagonal 438.16 mm (17.30 in.) 438.16 mm (17.30 in.)
Display-panel native resolution 1920 x 1080 3840 x 2160
Luminance (typical) 500 nits 500 nits
Megapixels 2.07 8.29
Color gamut 99% DCIP3 typical 99% DCIP3 typical
Pixels Per Inch (PPI) 127 255
Contrast ratio (minimum)
  • 1000:1 (typical)
  • 800:1 (minimum)
  • 1200:1 (typical)
  • 1000:1 (minimum)
Response time (maximum) 35 ms 35 ms
Refresh rate 60 Hz 120 Hz
Horizontal view angle +/- 80 degrees (minimum) +/- 80 degrees (minimum)
Vertical view angle +/- 80 degrees (minimum) +/- 80 degrees (minimum)
Pixel pitch 0.198 mm x 0.198 mm 0.099 mm x 0.099 mm
Power consumption (maximum) 9 W 10.3 W
Anti-glare vs glossy finish Anti-glare Anti-glare

Fingerprint reader

The following table lists the fingerprint-reader specifications of your Precision 7770.

Table 22. Fingerprint reader specifications

Description Values
Sensor technology Capacitive
Sensor resolution 500 DPI
Sensor pixel size
  • X: 108
  • Y: 88

Sensor

The following table lists the sensor of your Precision 7770.

Table 23. Sensor

Sensor support
Ambient Light Sensor
Windows Auto Brightness
Accelerometer

Adaptive Thermal Performance (Lap vs. Desk mode) requires Accelerometer

information NOTE: This is for thermal only.

Hall Effect Sensor
Sensor Hub
Proximity for SAR compliance (for the WWAN module) Near Field Proximity Sensor

GPU

Integrated GPU

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Precision 7770.

Table 24. Integrated GPU

Controller Memory size Processor
Intel UHD Graphics Shared system memory Intel 12th Generation Intel Core i5/i7/i9

Multiple display support matrix

The following table lists the multiple display support matrix for your Precision 7770.

Table 25. Multiple display support matrix

Graphics Card Direct Graphics Controller Direct Output Mode Supported external displays with computer internal display on Supported external displays with computer internal display off
Intel UHD Graphics Integrated 3 4

Discrete GPU

The following table lists the specifications of the discrete graphics processing unit (GPU) supported by your Precision 7770.

Table 26. Discrete GPU

Controller Memory size Memory type
NVIDIA RTX A1000 4 GB GDDR6
NVIDIA RTX A3000 12 GB GDDR6
NVIDIA RTX A4500 16 GB GDDR6
NVIDIA RTX A5500 16 GB GDDR6
NVIDIA GeForce RTX 3080Ti 16 GB GDDR6

Multiple display support matrix

The following table lists the multiple display support matrix for your Precision 7770.

Table 27. Multiple display support matrix

Graphics Card Direct Graphics Controller Direct Output Mode Supported external displays with computer internal display on Supported external displays with computer internal display off
NVIDIA RTX A1000
  • MS Hybrid
  • Direct Output Mode
  • Discrete Mode
  • 4
  • 4
  • 3
4
NVIDIA RTX A3000
  • MS Hybrid
  • Direct Output Mode
  • Discrete Mode
  • 4
  • 4
  • 3
4
NVIDIA RTX A4500
  • MS Hybrid
  • Direct Output Mode
  • Discrete Mode
  • 4
  • 4
  • 3
4
NVIDIA RTX A5500
  • MS Hybrid
  • Direct Output Mode
  • Discrete Mode
  • 4
  • 4
  • 3
4
NVIDIA GeForce RTX 3080Ti
  • MS Hybrid
  • Direct Output Mode
  • Discrete Mode
  • 4
  • 4
  • 3
4

Hardware security

The following table lists the hardware security of your Precision 7770.

Table 28. Hardware security

Hardware security
Trusted Platform Module (TPM) 2.0 discrete
FIPS 140-2 certification for TPM
TCG Certificatication for TPM (Trusted Computing Group)
Contacted Smart Card and Control Vault 3
Contactless Smart Card, NFC, and ControlVault 3
SED SSD NVMe, SSD and HDD (Opal and non-Opal) per SDL
Finger Print Reader in Power Button tied to Control vault 3
SED (Opal 2.0 only - PCIe Interface)
Chassis Intrusion Detection
Battery Removal Detection
RPMC SPI flash
SPI Flash Tamper Detection / Prevention Shunt Circuit

Smart-card reader

Contactless smart-card reader

This section lists the contactless smart-card reader specifications of your Precision 7770. This module is only available in computers shipped with Smart-card readers.

Table 29. Contactless smart-card reader specifications

Title Description Dell ControlVault 3 Contactless Smart-card reader with NFC
Felica Card Support Reader and software capable of supporting Felica contactless cards Yes
Prox (Proximity) (125 kHz) Card support Reader and software capable of supporting Prox/Proximity/125 kHz contactless cards No
ISO 14443 Type A Card Support Reader and software capable of supporting ISO 14443 Type A contactless cards Yes
ISO 14443 Type B Card Support Reader and software capable of supporting ISO 14443 Type B contactless cards Yes
ISO/IEC 21481 Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens Yes
ISO/IEC 18092 Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens Yes
ISO 15693 Card Support Reader and software capable of supporting ISO15693 contactless cards Yes
NFC Tag Support Supports reading and processing of NFC compliant tag information Yes
NFC Reader Mode Support for NFC Forum Defined Reader mode Yes
NFC Writer Mode Support for NFC Forum Defined Writer mode Yes
NFC Peer-to-Peer Mode Support for NFC Forum Defined Peer to Peer mode Yes
NFC Proximity OS Interface Enumerates NFP (Near Field Proximity) device for OS to utilize Yes
PC/SC OS interface Personal Computer/Smart-Card specification for integration of hardware readers into personal computer environments Yes
CCID driver compliance Common driver support for Integrated Circuit Card Interface Device for OS level drivers Yes
Dell ControlVault support Device connects to Dell ControlVault for usage and processing Yes

information NOTE: 125 Khz proximity cards are not supported.

Table 30. Supported cards

Manufacturer Card Supported
HID jCOP readertest3 A card (14443a) Yes
1430 1L
DESFire D8H
iClass (Legacy)
iClass SEOS
NXP/Mifare Mifare DESFire 8K White PVC Cards Yes
Mifare Classic 1K White PVC Cards
NXP Mifare Classic S50 ISO Card
G&D idOnDemand - SCE3.2 144K Yes
SCE6.0 FIPS 80K Dual+ 1 K Mifare
SCE6.0 nonFIPS 80K Dual+ 1 K Mifare
SCE6.0 FIPS 144K Dual + 1K Mifare
SCE6.0 nonFIPS 144K Dual + 1 K Mifare
SCE7.0 FIPS 144K
Oberthur idOnDemand - OCS5.2 80K Yes
ID-One Cosmo 64 RSA D V5.4 T=0 card
ID-One Cosmo 128K V5.5 card
Gemalto TOP DL GX4 144K card Yes
Sony Felica RC-S962 Yes
Felica RC-S966 Yes
PIVKey C910 PKI Yes
IDENTIV PIV programmed cards Yes

Contacted smart-card reader

The following table lists the contacted smart-card reader specifications of your Precision 7770.

Table 31. Contacted smart-card reader specifications

Title Description Dell ControlVault 3 Smart-card reader
ISO 7816 -3 Class A Card Support Reader capable of reading 5 V powered smart-card Yes
ISO 7816 -3 Class B Card Support Reader capable of reading 3 V powered smart-card Yes
ISO 7816 -3 Class C Card support Reader capable of reading 1.8 V powered smart-card Yes
T=0 support Cards support character level transmission Yes
T=1 support Cards support block level transmission Yes
EMVCo Compliant Compliant with EMVCo (for electronic payment standards) smart-card standards as posted to www.emvco.com Yes
EMVCo Certified Formally certified based on EMVCO smart-card standards Yes
PC/SC OS interface Personal Computer/Smart-Card specification for integration of hardware readers into personal computer environments Yes
CCID driver compliance Common driver support for Integrated Circuit Card Interface Device for OS level drivers. Yes
Dell ControlVault support Device connects to Dell ControlVault for usage and processing Yes

Operating and storage environment

This table lists the operating and storage specifications of your Precision 7770.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 32. Computer environment

Description Operating Storage
Temperature range 0°C to 35°C (32°F to 95°F) -40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum) 10% to 90% (non-condensing) 0% to 95% (non-condensing)
Vibration (maximum)* 0.66 GRMS 1.30 GRMS
Shock (maximum) 110 G 160 G
Altitude range -15.2 m to 3048 m (-49.8 ft to 10000 ft) -15.2 m to 10668 m (-49.8 ft to 35000 ft)

Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

* Measured using a random vibration spectrum that simulates the user environment.
† Measured using a 2 ms half-sine pulse.

Engineering specifications

Ethernet

Intel Ethernet Connection i219-LM
The following table lists the i219-LM specifications.

Table 33. Intel Ethernet Connection i219-LM specifications

Feature Values
External connector type RJ45
Data rate 10/100/1000 Mbps
Controller Details
Controller bus architecture PCI Express base specification revision 1.1
Integrated memory Yes
Data transfer mode Yes (Bus-Master DMA)
Power consumption (Full operation per data rate connection speed) 542 mW (Max)
Power consumption (Standby operation) 76 mW (Max)
IEEE standards compliance 802.3
Hardware certifications N/A
Boot ROM support EEPROM (Located in SPI)
Network Transfer Mode
Network transfer rate 10 Mb (full/half-duplex)
10BASE-T (full-duplex) 20 Mbps 100 Mb (full/half-duplex)
100BASE-TX (half-duplex) 100 Mbps 1000 Mb (full-duplex)
Environmental
Operating temperature range 0°C–85°C (32°F–185°F)
Operating humidity 20% to 80% (non condensing)
Operating system driver Support
  • Windows (x64)
  • Ubuntu
  • Neokylin
Manageability
  • Wakeup On LAN
  • PXE 2.1
Management capabilities alerting Optional Intel Standard Manageability (must be made at time of purchase).

This term does not connote an actual operating speed of 1 Gb/sec. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

Wireless module

Intel AX211, 2x2 MIMO, 2400 Mbps, 2.4/5/6 GHz, Wi-Fi 6E (WiFi 802.11ax), Bluetooth 5.3
The following table lists the Intel AX211 specifications.

information NOTE: Wi-Fi 6 is supported in regions where Wi-Fi 6E is unavailable.

Table 34. Intel AX211 specifications

Description Specifications
Host interface CNVio
Network standard IEEE 802.11a/b/g/n/ac/ax, 160 MHz channel use, MU-MIMO, new 6 GHz band
Wi-Fi Alliance certifications

Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED a/b/g/n/ac, WMM, WMM-Power Save, WPA2, WPA3, WPS, PMF,Wi-Fi Direct, Wi-Fi Agile Multiband

information NOTE: Other names and brands may be claimed as the property of others.

Operating frequency bands
  • 2.4 GHz
  • 5 GHz
  • 6 GHz
Data rate
  • 2.4 GHz 40M: Up to 574 Mbps
  • 5/6 GHz 80M: Up to 1.2 Gbps
  • 5/6 GHz 160M: Up to 2.4 Gbps
Power consumption Optimized power modes (sleep states) reduce power consumption during periods of inactivity
Security methods
  • WPA2 Personal and Enterprise
  • WPA3
Authentication protocols
  • 802.1X EAP-TLS
  • EAP-TTLS/MSCHAPv2
  • PEAPv0 -MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA)
Encryption
  • 64-bit and 128-bit WEP
  • TKIP
  • 128-bit AES-CCMP
  • 256-bit AES-GCMP
Product safety
  • UL
  • C-UL
  • CB (IEC60950-1)
Management capabilities alerting Support for Intel AMT
Government compliance
  • FIPS 140-2
  • FISMA
Client utility Intel PRO/Set wireless software v22 and later
Antenna diversity Supported
Radio On/Off Supported
Roaming Support seamless roaming between access points
Wake on wireless Supported
Wireless display Native Miracast support by Windows
Wireless PAN standard
  • Dual Mode Bluetooth 5.3
  • BLE
Bluetooth data rates Up to 3 Mbps
Bluetooth operating frequency bands 2.4 GHz
Bluetooth profiles supported Support for Microsoft Inbox Bluetooth Wireless Card profiles in Windows
Bluetooth data encryption 128-bit encryption
Bluetooth output power Power class 1
Operating temperature 0°C to + 50°C (Full performance at shield temperatures up to 80°C)
Storage temperature -40°C to +70°C
Humidity Up to 90% RH non-condensing (at temperatures of 25°C to 35°C)

WWAN module

Qualcomm Snapdragon X55 Global 5G Modem
The following table lists the Qualcomm Snapdragon X55 Global 5G Modem specifications.

Table 35. Qualcomm Snapdragon X55 specifications

Form factor M.2 3042 Key. B single side
Host interface PCIe Gen3
Network standard
  • NR FR1(Sub6) FDD/TDD
  • LTE FDD/TDD
  • WCDMA/HSPA+
  • GPS/GLONASS/Beidou/Galileo
Transfer rate Up to 3 Gbps DL/250 Mbps UL (3GPP Release15 NR/LTE CAT20)
Operating frequency bands
  • NR (1,2,3,5,7,8,12,20,28,38,41,66,71,77,78,79)
  • LTE(1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66)
  • HSPA+ (1,2,4,5,6,8,9,19)
Power supply DC 3.13 V to 3.63 V, Typical 3.3 V
SIM card Supported through external SIM slot
eSIM with Dual SIM (DSSA)

Supported

information NOTE: The availability of eSIM functionality embedded on the module is dependent on the region and carrier requirements.

Antenna diversity Supported
Radio On/Off Supported
Wake on wireless Not supported
Normal operating temperature -30°C to + 70°C
Extended operating temperature -40°C to +85°C
Antenna connector
  • WWAN ANT0 X 1
  • WWAN ANT1 X 1
  • WWAN ANT2 X 1
  • WWAN ANT3 X 1

GPU

Integrated GPU

Intel UHD Graphics
The following table lists the Intel UHD Graphics specifications.

Table 36. Intel UHD Graphics specifications

Bus type

Integrated graphics

information NOTE: Intel UHD Graphics uses the computers memory as video memory.

Memory type Unified Memory Architecture (UMA)
Memory interface Not applicable
Processor graphics i5/i7/i9
Estimated maximum power consumption (TDP) 15 W-25 W, in the CPU power
Maximum vertical refresh rate
  • HDMI 2.0a: 4096 x 2160 @ 60 Hz, 24 bpp
  • Max Digital: 4096 x 2304 @ 60 Hz, 24 bpp
Multiple display support Up to four displays using DisplayPort Multi-Streaming Technology (MST)

Discrete GPU

NVIDIA RTX A1000, 4 GB, GDDR6
The following table lists the NVIDIA RTX A1000 specifications.

Table 37. NVIDIA RTX A1000 specifications

Feature Values
GPU NVIDIA RTX A1000
Cores CUDA cores 2048, Tensor cores 64, RT cores 16
Memory bandwidth 224 GB/s
Memory type GDDR6
Memory size 4 GB
Memory interface 128-bit
TGP 80 W
GPU base clock 1470 MHz
GPU boost clock 1822 MHz
Vram clock 7001 MHz
PCIe Gen4 x 8
Features
  • Dynamic boost
  • Resizable BAR1
Video API Support
  • DirectX 12 Ultimate
  • OpenGL 4.6
  • Shader model 7.0
Maximum Display Resolution 8K @60 Hz
Number of Display Supported Up to four displays

NVIDIA RTX A3000, 12 GB, GDDR6
The following table lists the NVIDIA RTX A3000 specifications.

Table 38. NVIDIA RTX A3000 specifications

Feature Values
GPU NVIDIA RTX A3000
Cores CUDA cores 4096, Tensor cores 128, RT cores 32
Memory bandwidth 336 GB/s
Memory type GDDR6
Memory size 12 GB
Memory interface 192-bit
TGP 115 W
GPU base clock 1260 MHz
GPU boost clock 1725 MHz
Vram clock 7001 MHz
PCIe Gen4 x 8
Features
  • Dynamic boost
  • Resizeable BAR1
  • ECC
Operating Systems Graphics/Video API Support
  • DirectX 12 Ultimate
  • OpenGL 4.6
  • Shader model 7.0
Maximum display resolution 8K @60 Hz
Number of displays supported Up to four displays

NVIDIA RTX A450, 16 GB, GDDR6
The following table lists the NVIDIA RTX A4500 specifications.

Table 39. NVIDIA RTX A4500 specifications

Feature Values
GPU NVIDIA RTX A4500
Cores CUDA cores 5888, Tensor cores 184, RT cores 46
Memory bandwidth 512 GB/s
Memory type GDDR6
Memory size 16 GB
Memory interface 256-bit
TGP 115 W
GPU base clock 930 MHz
GPU boost clock 1550 MHz
Vram clock 8001 MHz
PCIe Gen4 x 8
Features
  • Dynamic boost
  • Resizeable BAR1
  • ECC
Operating Systems Graphics/Video API Support
  • DirectX 12 Ultimate
  • OpenGL 4.6
  • Shader model 7.0
Maximum display resolution 8K @60 Hz
Number of displays supported Up to four displays

NVIDIA RTX A5500, 16 GB, GDDR6
The following table lists the NVIDIA RTX A5500 specifications.

Table 40. NVIDIA RTX A5500 specifications

Feature Values
GPU NVIDIA RTX A5500
Cores CUDA cores 7424, Tensor cores 232, RT cores 58
Memory bandwidth 512 GB/s
Memory type GDDR6
Memory size 16 GB
Memory interface 256-bit
TGP 115 W
GPU base clock 975 MHz
GPU boost clock 1500 MHz
Vram clock 8001 MHz
PCIe Gen4 x 8
Features
  • Dynamic boost
  • Resizeable BAR1
  • ECC
Operating Systems Graphics/Video API Support
  • DirectX 12 Ultimate
  • OpenGL 4.6
  • Shader model 7.0
Maximum display resolution 8K @60 Hz
Number of displays supported Up to four displays

NVIDIA GeForce RTX 3080 Ti laptop
The following table provides the NVIDIA GeForce RTX 3080 Ti specifications of your Precision 7770.

Table 41. NVIDIA GeForce RTX 3080 Ti specifications

Feature Values
GPU NVIDIA GeForce RTX 3080 Ti
Cores CUDA cores 7424
Memory bandwidth 512 GB/s
Memory type GDDR6
Memory size 16 GB
Memory interface 256-bit
TGP 115 W
GPU base clock 1395 MHz
GPU boost clock 1260 MHz
Vram clock 8001 MHz
PCIe Gen4 x 8
Features
  • Dynamic boost
  • Resizeable BAR1
Operating Systems Graphics/Video API Support
  • DirectX 12 Ultimate
  • OpenGL 4.6
  • Shader model 7.0
Maximum display resolution 8K @60 Hz
Number of displays supported Up to four displays

Video port and resolution matrix

The following table lists the Video port and resolution matrix of your Precision 7770.

Table 42. Video port and resolution matrix

Port type DP++/HDCP 2.3 port (UMA and Discrete Graphics)
DP with DSC enabled
HDMI-OUT port— HDMI 2.0 (UMA Graphics) HDMI-OUT port— HDMI 2.1 (Discrete Graphics)
Maximum resolution
—single display
7680 x 4320 @ 60 Hz 3840 x 2160 @ 60 Hz 7680 x 4320 @ 60 Hz
Maximum resolution
—dual MST
4096 x 2304 @ 60 Hz + 4096 x 2304 @ 60 Hz Not applicable Not applicable
Maximum resolution
—triple MST
4096 x 2304 @ 60 Hz + 4096 x 2304 @ 60 Hz + 4096 x 2304 @ 60 Hz Not applicable Not applicable

Storage

M.2 2230, 256 GB, TLC PCIe NVMe Gen 4, Class 35 SSD
The following table lists the M.2 2230, 256 GB SSD specifications.

Table 43. 256 GB SSD specifications

Description Values
Capacity 256 GB
Height (approximate) 3.50 mm (0.13 in.)
Width (approximate) 22 mm (0.87 in.)
Depth (approximate) 30 mm (1.18 in.)
Interface type PCIe Gen 4
Speed (maximum) 64 Gb/s (up to 4 lanes)
MTTF 1.4M hours
Logical blocks 500,118,192
Power source
Power consumption (reference only)
  • Idle: 5 mW (PS4)
  • Active: 4W
Environmental operating conditions (non-condensing)
Temperature range 0°C to 70°C
Relative humidity range 10% to 90%
Op shock 1500G
Environmental non-operating conditions (non-condensing)
Temperature range -40°C to 70°C
Relative humidity range 5% to 95%

M.2 2280, 512 GB, PCIe NVMe Gen4 x4, Class 40 SSD
The following table lists the M.2 2280, 512 GB SSD specifications.

Table 44. 512 GB SSD specifications

Description Values
Capacity 512 GB
Height (approximate) 2.38 mm (0.17 in.)
Width (approximate) 22 mm (0.87 in.)
Depth (approximate) 80 mm (3.15 in.)
Interface type PCIe Gen4
Speed (maximum) 64 Gb/s (up to 4 lanes)
MTBF 1.4M hours
Logical blocks 1,000,215,216
Power source
Power consumption (reference only)
  • Idle: 5 mW (PS4 - L1.2)
  • Active: 5 W
Environmental operating conditions (non-condensing)
Temperature range 0°C to 70°C
Relative humidity range 10% to 90%
Op shock 1500G
Environmental non-operating conditions (non-condensing)
Temperature range -40°C to 70°C
Relative humidity range 5% to 95%

M.2 2280, 1 TB, PCIe NVMe Gen4 x4, Class 40 SSD
The following table lists the M.2 2280, 1 TB SSD specifications.

Table 45. 1 TB SSD specifications

Description Values
Capacity 1 TB
Height (approximate) 2.38 mm (0.17 in.)
Width (approximate) 22 mm (0.87 in.)
Depth (approximate) 80 mm (3.15 in.)
Interface type PCIe Gen4
Speed (maximum) 64 Gb/s (up to 4 lanes)
MTBF 1.4M hours
Logical blocks 2,000,409,264
Power source
Power consumption (reference only)
  • Idle: 5 mW (PS4 - L1.2)
  • Active: 5 W
Environmental operating conditions (non-condensing)
Temperature range 0°C to 70°C
Relative humidity range 10% to 90%
Op shock 1500G
Environmental non-operating conditions (non-condensing)
Temperature range -40°C to 70°C
Relative humidity range 5% to 95%

M.2 2280, 2 TB, PCIe NVMe Gen4 x4, Class 40 SSD
The following table lists the M.2 2280, 2 TB SSD specifications.

Table 46. 2 TB SSD specifications

Description Values
Capacity 2 TB
Height (approximate) 2.38 mm (0.09 in.)
Width (approximate) 22 mm (0.87 in.)
Depth (approximate) 80 mm (3.15 in.)
Interface type PCIe Gen4
Speed (maximum) 64 Gb/s (up to 4 lanes)
MTBF 1.4M hours
Logical blocks 4,000,797,360
Power source
Power consumption (reference only)
  • Idle: 5 mW (PS4 - L1.2)
  • Active: 5 W
Environmental operating conditions (non-condensing)
Temperature range 0°C to 70°C
Relative humidity range 10% to 90%
Op shock 1500G
Environmental non-operating conditions (non-condensing)
Temperature range -40°C to 70°C
Relative humidity range 5% to 95%

M.2 2280, 4 TB, PCIe NVMe Gen4 x4, Class 40 SSD
The following table lists the M.2 2280, 4 TB SSD specifications.

Table 47. 4 TB SSD specifications

Description Values
Capacity 4 TB
Height (approximate) 3.73 mm (0.15 in.)
Width (approximate) 22 mm (0.87 in.)
Depth (approximate) 80 mm (3.15 in.)
Interface type PCIe Gen4
Speed (maximum) 64 Gb/s (up to 4 lanes)
MTBF 1.4M hours
Logical blocks 8,001,573,552
Power source
Power consumption (reference only)
  • Idle: 5 mW (PS4 - L1.2)
  • Active: 5 W
Environmental operating conditions (non-condensing)
Temperature range 0°C to 70°C
Relative humidity range 10% to 90%
Op shock 1500G
Environmental non-operating conditions (non-condensing)
Temperature range -40°C to 70°C
Relative humidity range 5% to 95%

M.2 2280, 512 GB, PCIe NVMe Gen3 x4, Class 40 SSD, selfencrypting drive
The following table lists the M.2 2280, 512 GB SSD, self-encrypting drive specifications.

Table 48. 512 GB SSD, self-encrypting drive specifications

Description Values
Capacity 512 GB
Height (approximate) 2.38 mm (0.09 in.)
Width (approximate) 22.00 mm (0.87 in.)
Depth (approximate) 80.00 mm (3.15 in.)
Interface type PCIe Gen3
Speed (maximum) 32 Gb/s (up to 4 lanes)
MTBF 1.4M hours
Logical blocks 1,000,215,216
Power source
Power consumption (reference only)
  • Idle: 5 mW ( PS4 - L1.2)
  • Active: 4.50 W
Environmental operating conditions (non-condensing)
Temperature range 0°C to 70°C
Relative humidity range 10% to 90%
Op shock 1500G
Environmental non-operating conditions (non-condensing)
Temperature range -40°C to 70°C
Relative humidity range 5% to 95%

M.2 2280, 1 TB, PCIe NVMe Gen3 x4, Class 40 SSD, self-encrypting drive
The following table lists the M.2 2280, 1 TB SSD, self-encrypting drive specifications.

Table 49. 1 TB SSD, self-encrypting drive specifications

Description Values
Capacity 1 TB
Height (approximate) 2.38 mm (0.09 in.)
Width (approximate) 22.00 mm (0.87 in.)
Depth (approximate) 80.00 mm (3.15 in.)
Interface type PCIe Gen3
Speed (maximum) 32 Gb/s (up to 4 lanes)
MTBF 1.4M hours
Logical blocks 2,000,409,264
Power source
Power consumption (reference only)
  • Idle: 5 mW ( PS4 - L1.2)
  • Active: 4.50 W
Environmental operating conditions (non-condensing)
Temperature range 0°C to 70°C
Relative humidity range 10% to 90%
Op shock 1500G
Environmental non-operating conditions (non-condensing)
Temperature range -40°C to 70°C
Relative humidity range 5% to 95%

Media-card reader

The following table lists the media-card reader specifications of your Precision 7770.

Table 50. Media-card reader

Media supported (Maximum capacity supported will vary by Flash Media Types)
Media Supported SDXC, SDHC, SD
Secure Digital (SD) 4.0 UHS-II
Secure Digital (SD) 3.0 UHS-I
Support Specification Versions Secure Digital (SD) 4.0
Power source
Max Power Requirements 1.2 A
Supply Voltage Range 3.3 V
Power Consumption MS 0.08 mA
Environmental operating conditions (Non-condensing)
Operating Temperature Range 0°C to 70°C
Relative Humidity Range N/A
Environmental non-operating conditions (Non-condensing)
Operating Temperature Range N/A
Relative Humidity Range N/A

Power adapter

The following table lists the power adapter specifications of your Precision 7770.

Table 51. Power adapter specifications

Description Values
Type 180 W 240 W
Diameter (connector) 7.40 mm 7.40 mm
Input voltage 90 VAC to 264 VAC 90 VAC to 264 VAC
Input frequency 47 Hz to 63 Hz 47 Hz to 63 Hz
Input current (maximum) 4.2 A 4.2 A
Output current (continuous)
  • 12 VA/16.5 A
  • 12 VB/18 A
Standby mode:
  • 12 VA/1.5 A
  • 12 VB/2.5 A
  • 12 VA/16.5 A
  • 12 VB/18 A
Standby mode:
  • 12 VA/1.5 A
  • 12 VB/2.5 A
Rated output voltage
  • +12 VA
  • +12 VB
  • +12 VA
  • +12 VB
BTUs/h (based on PSU max wattage) 888 888
Temperature range
Operating 5°C to 45°C (41°F to 113°F) 5°C to 45°C (41°F to 113°F)
Storage -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F)
Compliance
Erp Lot6 Tier 2 requirement Yes Yes
80Plus compliant Yes Yes
Energy Star 8.0 compliant Yes Yes
GS mark compliant Yes Yes
NCTC Anti Power Surge certification Yes Yes
NCTC Anti Lightning Strike certification Yes Yes

Accessories

The following table lists the supported accessories on your Precision 7770.

Table 52. Accessories

Accessories
Dell Premier Multi-Device Wireless Keyboard and Mouse - KM7321W
Dell 7-in-1 USB-C Multiport Adapter - DA310
Dell Pro Hybrid Briefcase Backpack 15 - PO1521HB
Dell UltraSharp 32 HDR PremierColor Monitor - UP3221Q
Dell UltraSharp 38 Curved USB-C HUB Monitor - U3821DW
3Dconnexion SpaceMouse Wireless - 3DX-700066
Wacom Cintiq Pro 24 Creative Pen Display Touch - DTH-2420

Security

Software security

The following table lists the software security details of your Precision 7770.

Table 53. Software security

Security options
Dell Client Command Suite
Optional Dell Data Security and Management Software
Dell BIOS Verification
Optional Dell Endpoint Security and Management Software
VMware Carbon Black Endpoint Standard
VMware Carbon Black Endpoint Standard + Secureworks Threat Detection and Response
Dell Encryption Enterprise
Dell Encryption Personal
Carbonite
VMware Workspace ONE
Absolute Endpoint Visibility and Control
Netskope
Dell Supply Chain Defense

Fingerprint reader

The following table lists the fingerprint reader specifications of your Precision 7770.

Table 54. Fingerprint reader specifications

Category Goodix—GF5288WNC
Sensor technology Capacitive sensing
Sensor resolution 500 dpi
Sensor size 5.48 mm x 4.47 mm
Sensor pixel size 108 x 88 pixels
Dell ControlVault support No
Dell ControlVault 3.0 support No
Anti-spoofing Yes
Template storage In-sensor storage
Match on chip Yes
FIPS 201 certified No

Dell ControlVault 3.0

The following table lists the Dell ControlVault 3.0 specifications of your Precision 7770.

Table 55. Dell ControlVault 3.0 specifications

Title Description Dell ControlVault 3.0
CPU technology N/A 1 GHz ARM Cortex A7
RAM N/A 1 MB
ROM N/A 16 MB
TPM included TPM enumeration included within ControlVault No
Host Interface N/A USB 2.0
Fingerprint processing Fingerprint processing occurs within secure boundary of ControlVault Yes
Windows WBF support Support for Windows biometric framework when Fingerprint reader is attached No
FIPS 140-2 level 3 complaint Device complaint with FIPS 140-2 level 3 requirements Yes
FIPS 140-2 level 3 certified Device certified with FIPS 140-2 level 3 requirements Yes

Trusted Platform Module

The following table lists the Trusted Platform Module (TPM) of your Precision 7770.

Table 56. Trusted Platform Module (TPM)

TPM: ST/ST33 HTPH2X32AHD8
SPI interface
TPM 2.0
FIPs 140-2 certificate

System management features

Dell commercial systems come with a number of systems management options that are include by default for In-Band management with our Dell Client Command Suite. In-Band management meaning that the Operating System is functional and the device is connected to a network so that it can be managed. The Dell Client Command Suite of tools can be leveraged individually or with a systems management console like SCCM, LANDESK, KACE, etc.

We also offer Out-of-Band management as an option. Out-of-band management is when the system does not have a functional operating system or is turned off and you still want to be able to manage the system in that state.

Dell Client Command Suite for in-band systems management

Dell Client Command Suite is a free toolkit available for download, for all Latitude Rugged tablets at dell.com/support, that automates and streamlines systems management tasks, saving time, money, and resources. It consists of the following modules that can be used independently, or with a variety of systems management consoles such as SCCM.

Dell Client Command Suite's integration with VMware Workspace ONE Powered by AirWatch, now allows customers to manage their Dell client hardware from the cloud, using a single Workspace ONE console.

Dell Command | Deploy enables easy operating system (OS) deployment across all major OS deployment methodologies and provides numerous system-specific drivers that have been extracted and reduced to an OS-consumable state.

Dell Command l Configure is a graphical user interface (GUI) admin tool for configuring and deploying hardware settings in a pre-OS or post-OS environment, and it operates seamlessly with SCCM and Airwatch and can be self-integrated into LANDesk and KACE. Simply, this is all about the BIOS. Command l Configure allows you to remotely automate and configure over 150+ BIOS settings for a personalized user experience.

Dell Command l PowerShell Provider can do the same things as Command l Configure, but with a different method. PowerShell is a scripting language that allows customers to create a customized and dynamic configuration process.

Dell Command l Monitor is a Windows Management Instrumentation (WMI) agent that provides IT admins with an extensive inventory of the hardware and health-state data. Admins can also configure hardware remotely by using command line and scripting.

Dell Command | Update (end-user tool) is factory-installed and allows admins to individually manage and automatically present and install Dell updates to the BIOS, drivers, and software. Command l Update eliminates the time-consuming hunting and pecking process of update installation.

Dell Command l Update Catalog provides searchable metadata that allows the management console to retrieve the latest system-specific updates (driver, firmware or BIOS). The updates are then delivered seamlessly to end-users using the customer's systems management infrastructure that is consuming the catalog (like SCCM).

Dell Command | vPro Out of Band console extends hardware management to systems that are offline or have an unreachable OS (Dell exclusive features).

Dell Command | Integration Suite for System Center - This suite integrates all the key components of the Client Command Suite into Microsoft System Center Configuration Manager 2012 and Current Branch versions.

Out-of-band systems management

Intel Standard Manageability option must be configured in our factory at the time of purchase, as it is NOT field upgradable. It offers out-of-band management and DASH compliance (Certification Registry).

Color/material and finish

This section details the color, material, and finishes (CMF) specifications of your Precision 7770. See Figures 1-2.
Color and material - Non-WWAN version

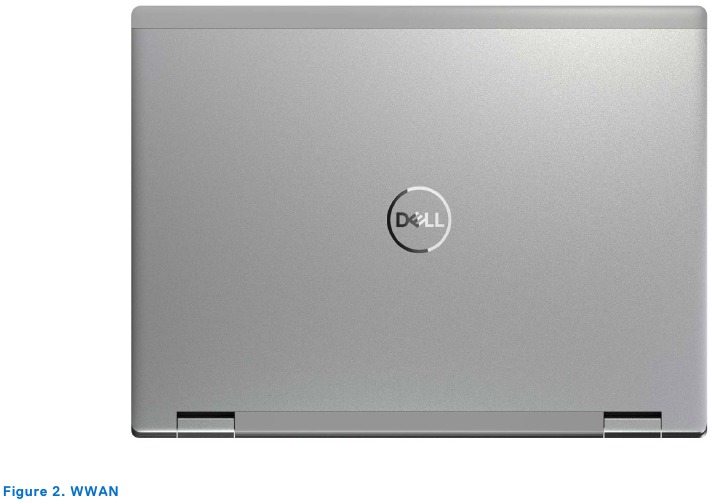

Color and material - WWAN version

Table 57. CMF specifications

A Cover (Top)
  • Material: Aluminum
  • Color: Anodized Titan Gray, beadblast
  • Finish: 11+/-3 GU
B Cover (Touch)
  • Material: Plastic
  • Color: Apollo Dull WUVM
  • Finish: 5.5+/-1.5 GU
B Cover (Non-Touch)
  • Material: Plastic
  • Color: Apollo Dull WUVM
  • Finish: 10+/-2 GU
C Cover (Palmrest)
  • Material: Plastic (Dell standard black, Resin)
  • Color: Apollo velvet WPUST
  • Finish: 5+/-1.5 GU
D Cover (Bottom)
  • Material: Aluminum
  • Color: Anodized Titan Gray, beadblast
  • Finish: MT11005 5+/-1 GU
D Cover (with SSD door)
  • Material: Aluminum
  • Color: Anodized Titan Gray, beadblast
  • Finish: 11+/-3 GU

Keyboard shortcuts

information NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).

However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

information NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 58. List of keyboard shortcuts

Function key Primary behavior
F1 Mute audio
F2 Decrease volume
F3 Increase volume
F4 Microphone mute
F5

Click keyboard backlight.

information NOTE: Toggle to cycle the keyboard backlight status through off, lowbacklight, and high-backlight

F6 Decrease brightness
F7 Increase brightness
F8 Switch to external display Search
F10 Print screen
F11 Home
F12 End

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 59. Secondary behavior

Function key Secondary behavior
Fn + F1 Operating system and application specific F1 behavior
Fn + F2 Operating system and application specific F2 behavior
Fn + F3 Operating system and application specific F3 behavior
Fn + F4 Operating system and application specific F4 behavior
Fn + F5 Operating system and application specific F5 behavior
Fn + F6 Operating system and application specific F6 behavior
Fn + F7 Operating system and application specific F7 behavior
Fn + F8 Operating system and application specific F8 behavior
Fn + F9 Operating system and application specific F9 behavior
Fn + F10 Operating system and application specific F10 behavior
Fn + F11 Operating system and application specific F11 behavior
Fn + F12 Operating system and application specific F12 behavior
Fn + Right Ctrl Open application menu
Fn + Esc Toggle Fn-key lock
Fn + PgUp (Cursor up) Page up
Fn + PgDn (Cursor down) Page down

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 60. Self-help resources

Self-help resources Resource location
Information about Dell products and services Dell Site
Contact Support In Windows search, type Contact Support, and press Enter.
Online help for operating system Windows Support Site
Linux Support Site
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals, and documents.

Your Dell computer is uniquely identified using a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at Dell Support Site.

For more information about how to find the Service Tag for your computer, see Locate the Service Tag on your computer.

Dell knowledge base articles
  1. Go to Dell Support Site.
  2. On the menu bar at the top of the Support page, select Support > Support Library.
  3. In the Search field on the Support Library page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see Dell Support Site.

information NOTE: Availability of the services may vary depending on the country or region, and product.

information NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Dell Precision 7770 (P115F) Manual

Advertisement

Need help?

Need help?

Do you have a question about the Precision 7770 and is the answer not in the manual?

Questions and answers

Table of Contents
