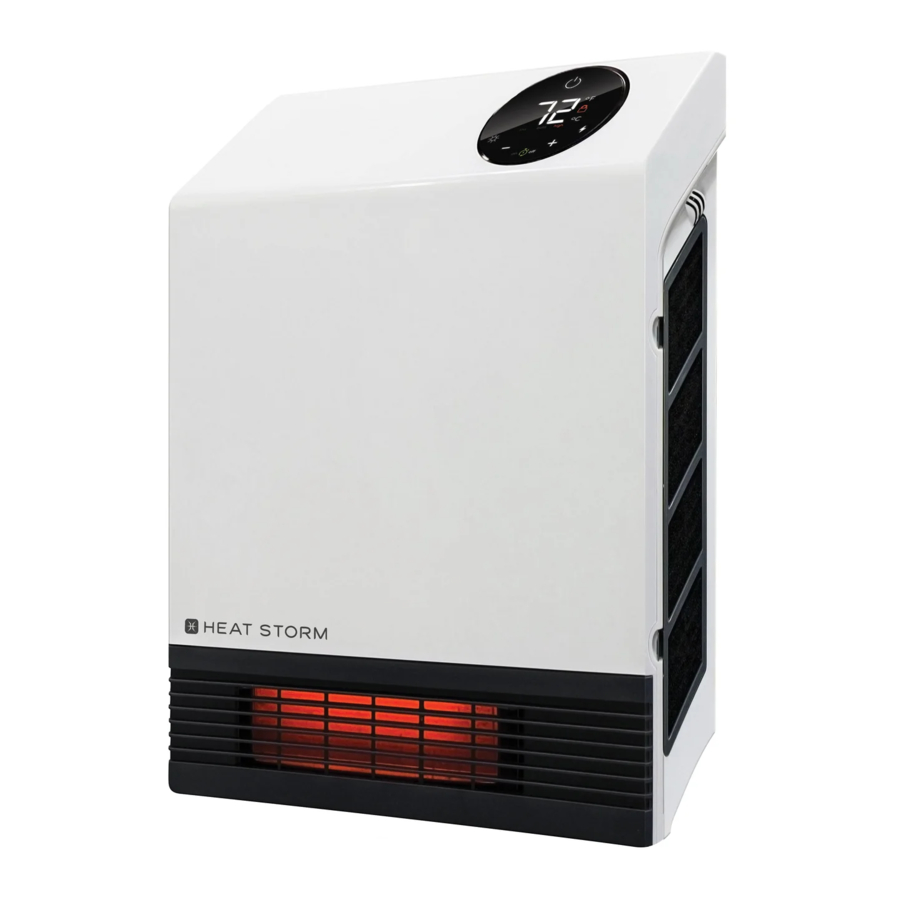

Heat Storm HS-1000-WX-WIFI Manual

Introduction

PLEASE READ THIS MANUAL BEFORE OPERATING THIS APPLIANCE.

IF THE DIRECTIONS IN THIS MANUAL ARE NOT FOLLOWED, AN ELECTRIC SHOCK OR FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER HEATING APPLIANCE.

ANY REQUIRED SERVICE OTHER THAN FILTER MAINTENANCE SHOULD ONLY BE PERFORMED BY AN AUTHORIZED SERVICE REPRESENTATIVE.

ANY OTHER REPAIRS ATTEMPTED BY ANYONE OTHER THAN AN AUTHORIZED SERVICE REPRESENTATIVE WILL VOID THE WARRANTY.

Installation & Instructions

WALL INSTALLATION

THE HEATER MUST BE PROPERLY INSTALLED BEFORE IT IS USED.

YOUR HEATER MUST BE INSTALLED ON A WALL. DO NOT PROP THE HEATER UP AGAINST OBJECTS OR USE THE HEATER WITH THE GRILL PLACED VERTICALLY.

High temperature, risk of fire, keep electrical cords, drapery, furnishings, and other combustibles at least 3 feet (0.9 m) from the front of the heater and away from the side and rear.
To reduce the risk of fire, do not store or use gasoline or other flammable vapors and liquids in the vicinity of the heater.

Tools needed for installation:
3/16" drill bit and a Philips screwdriver

1. Use the included level template to ensure you mark the guide holes correctly
2. Drill holes for included anchors and screws. Insert top 2 screws first
3. Hang the heater onto the top 2 screws
4. Screw in final 2 screws into bottom base anchors holes to secure heater onto wall
5. Wall mounted only
6.
   This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides
7. The heater is not to be used in wet or moist locations

CONTROL EVERYTHING FROM YOUR PHONE

NEED HELP?
call us:
435-752-6611
email us:
cs@heatstorm.com

Operations & Controls

CONNECTING TO WIFI

Prepare your phone and download the App, following the the steps

1. Connect to your phone to a 2.4 GHz wifi network.
   *For some dual band routers, you may need to manually create a network dedicated to 2.4 GHz.

2. Download the Smart Life App and create a free account.

3. While the heater is plugged in and turned on, press and hold the wifi/sun symbol on control screen for 5 seconds. You should hear a beep and see a wifi symbol start blinking in a blue color

4. Enable Wi-Fi and Bluetooth in your phone.


Bluetooth connect

After above steps, the heater will automatically find the wifi and and pop up a window, follow steps below to connect

1. If the APP finds a new heater for connecting, it automatically pops up a window, tap "Go to add"

2. Enter in your wifi network name and password. Each of these fields are case sensitive so be sure to double check each one. Then tap "Next"

3. Your phone will start connecting your heater to your wifi network. Hang tight, it may take a few minutes.

4. Your screen should look like this: If it shows any error notifications, check out our wifi trouble shooting guide online.


If the pop up does not appear, follow the steps below to connect.

1. Tap "Auto Scan" to search the heater.

2. Make sure the wifi and bluetooth function are switched on.

3. Enter in your wifi network name and password. Each of these fields are case sensitive so be sure to double check each one. Then tap "confirm"

4. Your screen should look like this: If it shows any error notifications, check out our wifi trouble shooting guide online.


Manual Connect

Connect by EZ mode

1. Tap "Add Device" then tap "Small Home Appliance" then tap "Heater"

2. Enter in your wifi network name and password. Each of these fields are case sensitive so be sure to double check each one. Then tap "Confirm"

3. Now you can tap "Confirm Indicator Rapidly Blink" icon in the smart life app on your phone or tablet.

4. Your phone will start connecting your heater to your wifi network. Hang tight, it may take a few minutes.

5. Your screen should look like this: If it shows any error notifications, check out our wifi trouble shooting guide online.


Connect by AP Mode

If connection fails with EZ mode, the wifi light will automatically enter into AP mode and wifi icon will start blinking slowly.
You can also enter into AP mode by pressing and holding the "wifi/sun" icon for 5 seconds while the blue light is quickly blinking. (The blue light is slowly blinking while the heater is in AP mode.)

Choose "AP pairing mode" in the Smart Life app to connect heater to wifi in secondary AP mode. Follow in-app prompts to connect heater to wifi.

After the heater connects to Wifi, then you could:

1. You can now rename your heater to match the room it is in.

2. You can also connect multiple heaters for all the cold spots in your house and garage!

3. Now you can control your heater with your phone from anywhere!
   You can adjust temperatures, create schedules, set a child lock and stay warm with a tap of your finger!

4. Enjoy your new Heat Storm Wifi Heater! If you have any questions or concerns, feel free to contact us at:
   435-752-6611 or cs@heatstorm.com


SELECTING CELSIUS AND FAHRENHEIT

By pressing the "+" and "-" icons at the same time, you can set the heater to function and display in Celsius or Fahrenheit.

NOTE: Switching between Celsius and Fahrenheit can only be performed using touch screen on heater or the Smart Life app on wifi models and is not available using the remote control.

SETTING THE TEMPERATURE

When pressing either the "+" or "-" icons the display will enter into temperature setting mode. The heater will indicate that it is in this mode when the numbers begin to blink. Pressing the "+" or "-" icons will change the thermostat by 1°F or 1°C.

• The default set temperature of the heater is 70°F or 21°C.
• After 5 seconds without control input the display will exit temperature setting mode and show the current ambient temperature.

NOTE: After the heater function or power is shutoff the blower will continue to run for several minutes to cool the internal components.

CHILD LOCK FEATURE

Press the ON/OFF icon for 5 seconds to engage child lock.
When the child lock is on, no changes can be made to the settings until the child lock is turned off.

NOTE: Setting the child lock feature can only be performed using the Control Panel on the heater or through the Smart life app on Wi-Fi models, and is not available using the remote control.

THERMOSTAT CALIBRATION

Thermostat readings can vary based on the environment. If desired, the thermostat on the heater can be manually calibrated to match central HVAC system.
NOTE: Thermostat calibration can only be performed using the Control Panel on the heater and is not available using the remote control.

NOTE: Typically Heat Storm Infrared Heater thermostats are more accurate than home central thermostats. Changing your Heat Storm Infrared Heater to match your central system may reduce its efficiency.

NOTE: You may have to attempt thermostat calibration several times to make your heater thermostat match your HVAC system.

1. Press the On/Off button down for 10 seconds to begin calibration. After 5 seconds, you will hear a beep indicating that the child lock is on. Continue to hold the On/Off button down until you hear the second beep. Release the On/Off button.
2. Use the + and - buttons to adjust the thermostat when the numbers begin to flash.
3. After 5 seconds without control input the heater will exit thermostat calibration.

MAINTENANCE

WASHABLE LIFETIME FILTER SYSTEM
Always unplug the heater when it does not use for a long time
Heat Storm Infrared Heaters come equipped with a washable lifetime filter which is easy to clean.
We recommend cleaning the filter regularly, about once or month or more as needed. To do this, follow these steps:

• Locate the filters on your unit. The Wall unit has 2 filters, one on each side of the unit.
• Press both tabs to remove the filter cover and remove the filter, noting which side of the filter receives air flow into the heater.
• Run warm tap water over the filter, the opposite direction of air flow, until water runs clear. The filter might excrete some filtered residue, so be cautious not to drip on any stain-able surfaces such as carpeting. You can also soak the filter in water mixed with a small amount of mild dish soap (remember to rinse well with clean water after soaking filter).
• Shake the filter over a sink until excess water is removed and allow it to drip dry completely before reinstalling.
• DO NOT force or attempt to speed the filter drying process by using any alternative methods.
• ENSURE that the filter is completely dry before inserting back into the air inlet and replacing covers.
• Reinstall the filter and replace cover. OR you can clean the filters with your vacuum.
• Using your vacuum wand, gently run it over the filter cover.

Do not remove the cover or the filter if you choose to clean your heater with the vacuum.

ANY REQUIRED SERVICE OTHER THAN FILTER MAINTENANCE SHOULD ONLY BE PERFORMED BY AN AUTHO- RIZED SERVICE REPRESENTATIVE.

FACTORY RESET

Power off heater and allow time for elements to cool. Unplug and plug in heater. Within 3 minutes of plugging in heater, press and hold timer icon for 10 seconds. This will reset heater to factory settings.

Troubleshooting Guide

When I power the heater ON, it doesn't blow any air at first.
The heater is functioning as it should. The first 15 seconds allows the infrared elements to get hot so that when the fan turns on it moves warm air into the room.

The heater's ambient temperature reading does not match my central heating thermostat reading. Why?
All thermostats vary in their temperature setting. In most cases, the central heating thermostat is not as accurate as your Heat Storm thermostat.

• Also, where the temperature censor is can alter the thermostat reading.
• You can calibrate your heater's thermostat to match your central heating thermostat. Please see the calibration section of the manual.

The heater keeps blowing air when heater is turned off. Why?
The heater is functioning as it should. This is the cool down phase. The heater will run for several minutes (up to 12) to cool down the internal components. This increases the lifespan of the infrared elements.

The unit is not blowing warm air

• Check to see if the air inlet is blocked or the air filter is dirty. If the filter is dirty, clean it.
• The ambient temperature (displayed) is higher than the thermostat setting.
• There is something blocking the air flow. Move the object out of the way of the heater. This is common if the heater is in a closet or under a desk.

Installing the heater near objects may cause the air in your room not to circulate and therefore have widely varying temperatures within the same room.

• Disconnect the unit from the wall outlet for 2 hours. After 2 hours, plug the unit back into the wall outlet. Ifthe problem persists call customer service at 435-752-6611.

The fan clicks on and runs for under a minute and then turns off. Why?

• The fan is turning on to attempt to create air flow within your room. The heater is trying to determine if the ambient temperature in the room has changed.

My device smells like burning plastic

• When you first receive your heater, a light plastic odor is normal. The heater is brand and has never been used before. If smell persists for more than a couple of hours, call customer service at 435-752-6611.

My heater is not showing the temperature, just an error code.
"EE": The temperature sensor (probe) error, when this code shows, the heating element and fan are turned off. Heater needs to unplugged and check the temperature sensor which could be loose or disconnected or damaged.
"EO": Program can not set up to run, Heater needs to be unplugged and plugged in again. If this error is still there after several tries, The PCBA need to be replaced.
"E1": This is a heater tilt-over error. When this code shows, the heater and fan are turned Off. The heater can be turned back on again by touching on/off icon after heater is standing up again.
"UH": Incorrect high voltage power supply error. The heater must be unplugged immediately.
LO - The temperature is less than 16°F (-9°C)
HI - The temperature is greater than 99°F (37°C)

• Unplug the heater for 2 hours, then plug the heater back in.
• Do the factory reset. If the error persists, call customer service.

Questions & Answers

Why does the Blower Fan keep running after I have turned off the unit?
The Blower Fan will continue to run until the heat chamber has cooled down. After a few minutes the fan will shut off automatically. This ensures that the quartz infrared heating elements are cooled properly helping to ensure the longevity of your heater.

Can the heating elements be replaced?
Yes. Contact an authorized repair center, generally, this is the store where you purchased your heater. If you ordered the heater online or have had the heater for longer than one year, contact customer service to order replacement elements.

My cord is getting very hot, especially at the plug. Is that normal?
No. Most likely the problem is that the connection from the wall wiring to the outlet is faulty and is causing the outlet and plug to overheat. Also, make sure there are not too many appliances plugged into outlets on a single circuit. This problem is quite common in older homes. If the problems persist consult a qualified electrician.

The heater's airflow seems to have diminished?
Make sure the air inlet is not blocked and that the filter is clean. For directions on how to clean the filters, see the Washable Lifetime Filter System in the operations & Controls section of the manual.

Once I initially plug the unit in and turn it on, how long will it take to heat my room?
Generally, it takes about a half hour. Please remember that with any type of heating process there are many variables; size of the room, how well the room is insulated, how many doors/windows, how much bare concrete (which acts as a heat sink with any type of heating), the opening and closing of an exterior door, etcetera. Therefore, heating performance will vary in every environment.

Can I use the heater to heat multiple rooms at the same time?
Yes. Keep in mind the heating will vary based on how open your floor plan is and the sizes of the rooms involved. Our suggestion, give it a try and see what works best for you. Please be advised that this heater is good for between 500-600 square feet of supplemental heating.

My Heater never seems to reach the set temperature, it just keeps running.
There are several possible causes. Make sure the filters are clean. If the room is drafty or poorly insulated the thermostat sensor may be taking an inaccurate reading. Make sure to keep doors closed so that the heater can heat the room. Also, ensure that the heater is plugged into an interior wall and is not below a window. Often, when a heater is below a window the cool air from the window is causing an inaccurate temperature reading. If none of the above assist with the problem, your heater may be too small for the room. This heater is good for between 500-600 square feet of supplemental heating and approximately 100 square feet of primary heating. The square footage amounts will vary depending on how well insulated your home is.

My home is not insulated very well, will this heater help me?
Yes, but keep in mind that rooms with little insulation will not retain the heat as efficiently and may result in your heater running longer or more often.

Can I use the heater if I have vaulted or cathedral ceilings?
Yes, but it may take longer to heat the room initially. Once the room has reached the desired temperature it will cycle on and off accordingly.

Will I be able to use the heater in a basement or garage?
Yes, if the basement is finished with drywall and carpet. Otherwise we recommend you use our Heat Storm Outdoor Infrared Heaters for this heating need. For more information visit heatstorm.com or contact customer service.

Can I use more than one heater at a time?
Yes, but make sure they are not on the same electrical circuit. Each heater and appliance should be on its own circuit. If you are on the fence about having 2 heaters in a room, we recommend the second heater. The heaters will work together and spend more time in eco mode. This will prolong the lifespan on your elements, save on power, and ensure that your room warms up faster.

Can I use the heater on a job / construction site?
Our outdoor infrared heaters are recommended for non-insulated or outdoor environments. For more information visit: heatstorm.com

Can I move the heater around while it is operating?
It is not recommended to move any portable heater while it is operating. We recommend turning the heater to the off position and moving the heater once the fan has completely turned off.

What is the life expectancy for the Quartz Elements?
Average element life is 20,000 hours. The Quartz Elements are replaceable by an authorized service dealer.

Can I use the heater and another appliance at the same time?
Yes, as long as they are not on the same electrical circuit. Heat Storm Infrared Heaters are considered to be an appliance. You should not run more than one large appliance on a single circuit Your heater, freezer, refrigerator, microwave oven, washing machine, dryer, and other such appliances should not share a circuit breaker.

Can I use an extension cord, surge protector, or power strip with my heater?
No, we do not recommend to use any extension cord, surge protector, or power strip

What happens if I unplug the unit before the blower has finished it's cooling down cycle?
When heater is unplugged in working status the fan will blow as soon as the heater is plugged in again. When heater is unplugged in standby status the fan will not blow when the heater plugs in again. If the heater did not finish the cooling procedure when it was unplugged, the fan will blow immediately when the heater turns on by pressing on/off icon.

What is Zone Heating?
Zone heating implies that there are multiple areas in any given home or business where climate is best controlled by heaters that generate and deliver heat in each area or zone AND regulate temperature in each area or zone with its own thermostat. Zone Heating is the opposite of central heating which generally relies on a single thermostat to determine climate control for other areas of the house or business. Central heating also requires ducting to deliver heat, which is very inefficient.

Can I use this heater as a primary heat source?
Yes, but the heaters were not designed or advertised for this use. The heater will only be able to heat up about 100 square feet, depending on your insulation. If you are using this heater as a primary heat source and it is constantly running, the heater may not be able to keep up.

1 Year Limited Warranty

Contact the manufacturer by calling customer service department at 435-752-6611. Make sure you have your sales receipt, the location of purchase, and the model of your product.
When you contact customer service, they will attempt to troubleshoot the problem with you over the phone. If troubleshooting does not work, you will be asked to email proof of purchase and a picture of the manufacturer sticker to cs@heatstorm.com

Unit Functionality Chart

Safety & Awareness

IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
Read all instructions before installing or using this heater.

This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides.

Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
Do not operate any heater after it malfunctions. Disconnect power at service panel and have heater inspected by a reputable electrician before reusing.
To disconnect heater, turn controls to off, and turn off power to heater circuit at main disconnect panel.

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT

In order to avoid overheating, do not cover the heater. It cannot be used in a wardrobe.

Whenever the heater is left operating and unattended, caution may be necessary if children or invalids are nearby.

The appliance should not be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Children being supervised should be instructed not to play with the appliance.
Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater, or return to an authorized service facility for examination and/or repair.
If the supply cord is damaged, it must be replaced by the manufacture, its service agent, or similarly qualified persons in order to avoid a hazard.
Any repairs to this heater should be carried out by a qualified service person.
Under no circumstances should this heater be modified. Parts having to be removed for servicing must be replaced prior to operating this heater again.
Do not use outdoors.
Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Place the cord away from high traffic areas. Place cord where it will NOT cause tripping hazard.
To disconnect the heater, turn controls to the off position, wait for the fan to stop blowing to ensure the inside of the heater has been properly cooled, then remove plug.
Connect to proper 2 pin polarized outlets only.

When using electrical appliances, basic precautions should always be followed to reduce risk of fire, electrical shock, and injury to persons.

There is a thermostat limiter inside the heater. When the inner temperature over-heats or abnormal heating occurs, the thermostat protective device will cut off power supply to avoid risk of fire or damage to the heater.

Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock, fire, or damage the heater.

To prevent a possible fire, do not block air intakes or exhaust in any manner.

The heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored.

Use this heater only as described in the manual. Any other use is not recommended by the manufacturer because it may cause fire, electric shock or injury to persons.
Always plug heaters directly into a wall outlet/receptacle.
Never use with an extension cord or relocatable power tap (outlet/ power strip). This heater is for use on 120 volt standard outlets.

HEATER LOCATION
When choosing a location for your new heater, ensure that the general instructions are followed. For best effect, install the heater out of direct sunlight. Cold climate installation recommendation: when installing this unit against a non-insulated exterior wall or chase, it is mandatory that the outer walls be insulated to conform to applicable insulation codes. If you choose to place the unit underneath a window or on a poorly insulated exterior wall, please be advised that the heater may read a colder ambient temperature then what the actual ambient temperature of the room is.

Do not exceed the current rating of the current tap. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/ power strip).

CLEARANCE TO COMBUSTIBLES
Keep electrical cords, drapery, furniture and other combustibles at least 3 feet (0.9M) from the front of the heater and away from the sides.

Make sure the power is turned off before proceeding. Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national and local codes. If repairing or replacing any electrical component or wiring, the original wire routing, color coding and securing locations must be followed.

Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire, electrical shock and injury to persons.

Do not use this heater if any part of it has been under water. Immediately call a qualified service technician to inspect the heater and replace any part of the electrical system.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electrical shock or personal injury.

During any service of this appliance, the power to the unit must be turned off. First turn the main power switch to the "OFF" position, wait for the fan to stop blowing to ensure the inside of the heater has been properly cooled. Then remove the electrical plug from the wall outlet.

Voltage protection: If heater is plugged in a 240V outlet by mistake, the PCBA will cut off the heating and fan immediately, it will show a "UH" error code, and the heater must be unplugged. The heater will function properly when plugged in the right voltage.

Save these instructions

NEED HELP?
call us:
435-752-6611
email us:
cs@heatstorm.com

Visit us at: heatstorm.com for more product information

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Heat Storm HS-1000-WX-WIFI Manual
