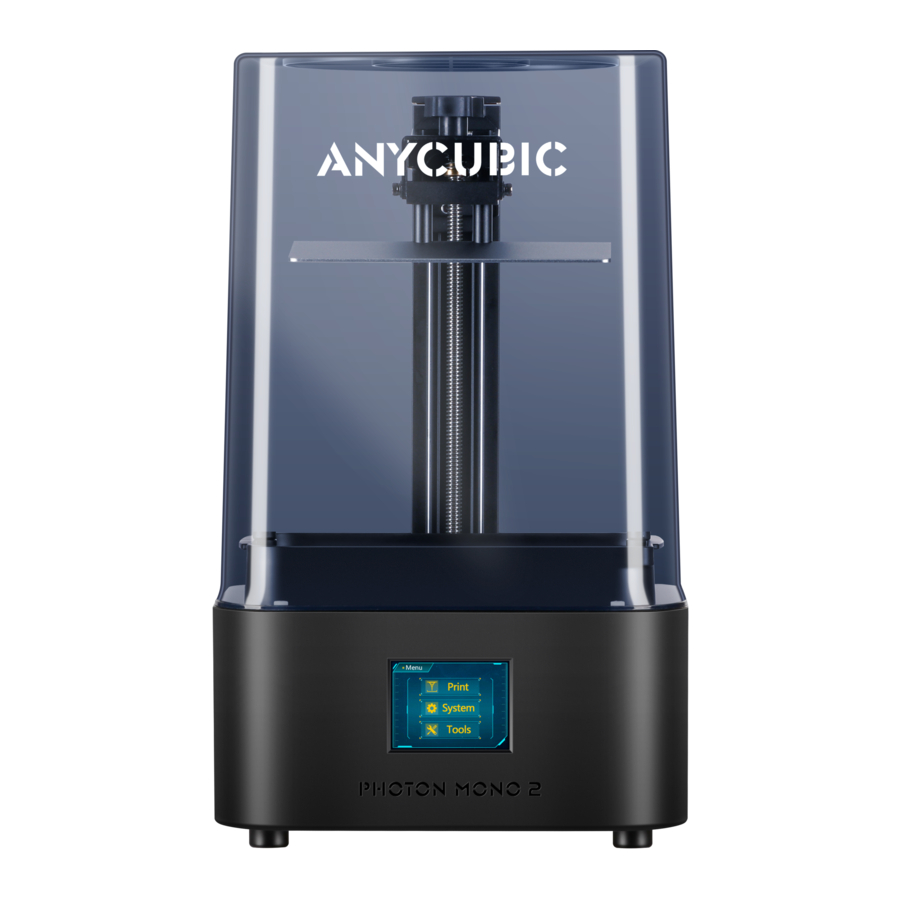

ANYCUBIC Photon Mono 2 Manual

Product Overview

In the Box

Technical Specification

Recommended Print Parameters

-The data above root in Anycubic lab, only for reference.

Menu Directory

Home menu

Print

System

Language: Switch to English/Chinese

Tools

Horn icon: Turn on/off the screen sound

Preparations

1. Plug in power and turn on the machine. Raise Z axis by 100mm.

2. Install the screen protector.
   1. Clean the LCD screen with tool kit

   2. Peel off the film

   3. Press and squeeze out the bubbles

   4. Peel off the film

3. Install the print platform.
   1. Loosen the four screws on the platform

   2. Push the platform onto the platform carrier

   3. Tighten the knob

4. Leveling.
   1. Place the leveling paper on the curing screen

   2. Click "HOME"

   3. Press the platform gently, tighten the four screws

5. Set the zero position.

6. Choose an exposure image to test after the platform stops moving.

7. Install the resin vat.
   1. Put the resin vat with its feet stuck in locating holes

   2. Tighten two knobs


Print Test

*The release film on the resin vat is consumable. Please pay attention to the status of release film on the touch screen and replace the film timely.

Please check the release film carefully before and after every printing. If the film is broken, replace it immediately to avoid further damage to the machine.

1. Make sure you wear masks and gloves (to avoid direct skin contact with resin), slowly pour resin into the vat with resin level not exceeding the vat's maximum scale.

2. Put on the cover. Then, insert the USB drive and print the test file.

3. When the printing is finished, resin may be cured partly in the vat. Please set to Vat Cleaning and remove the residue.


Notes:

1. It's recommended that use the USB drive we provide. Otherwise, please use a USB drive whose memory size does not exceed 32G and ensure that it's formatted to FAT/FAT 32.
2. The print files should be placed at the root directory of USB drive to avoid read errors.

TIPS for slice settings
To improve the success rate of printing, the bottom exposure time is always longer. The longer exposure time makes the bottom of print object thicker. To avoid the thick bottom of print object, please rise the model by 5 mm before you add supports or raft to it in the slice software.
Anycubic Photon Workshop slice software instructions is saved in USB drive.

Finishing

• After printing, remove the platform when resin stop dropping from the platform. Remove the model by metal scraper and then wash it with 95% alcohol or other detergent. It may need post-curing to achieve better hardness by being exposed directly to sunlight or a UV-curing machine.

• After printing, there might be some cured resin left in the vat. Please clean the vat timely, and filter the remaining resin by a funnel. Otherwise, it may cause damage to the release film or LCD screen. If you do not use the resin now, it is recommended to store it in an airtight container away from light.


Resin Exposure Range Finder

"R_E_R_F" is an abbreviation for "Resin Exposure Range Finder". This function is used to find out the optimal exposure parameters for different resins.

1. Import the R_E_R_F file which is saved on USB drive into the slicing software. There are eight models in the file. The exposure time for model 1 is equal to "normal exposure time (s)" of the file, and the exposure time for other models will be increased by an increment of 0.25 s.

2. According to the personal requirement, adjust the exposure time of the models by modifying "normal exposure time (s)" of the file. When exposure time for Model No. 1 is changed, the exposure time for other models will be increased by an increment of 0.25 s.
   For example, when normal exposure time is set to 1.5 s, the exposure time for Model No.1-8 is: 1.5 / 1.75 / 2/ 2.25 / 2.5 / 2.75 / 3/ 3.25 s.
3. After printing, remove and clean the models. Compare the print effect of models and choose the model's exposure time that meets your needs as the print parameter. Take a comparison of model A&B as an example.

   • Model A has more holes and fewer cylinder. If you print by the parameter of model A, more details of model can be printed with high risk of failure.
   • Model B has fewer holes and more cylinder. If you print by the parameter of model B, model may be printed successfully yet with some details lost.

In addition, you can compare the bridges, needles or other parts to choose a proper model and find the parameter. If none of them can be chose, adjusting the "normal exposure time (s)" is suggested.

Notice: DO NOT change the file name of "R_E_R_F", because Anycubic 3D printer can only recognize THIS file name to run this function. Also, do not name other file as "R_E_R_F".

FAQ

Model do not stick to platform

• Bottom exposure time is insufficient. Please increase the exposure time.
• Contact area between the model and platform is small. Please add a raft.
• Bad leveling.

Layer separation or splitting

• The machine is not stable during printing.
• The release film is not tight enough or needs a replacement.
• The printing platform or resin vat is not tightened.
• The lift speed is too fast.
• The model is hollowed without punching.

Layer shift

• Add supports.
• Reduce the lift speed.

Floccules left in resin vat or attached to models

• The exposure time is too long. Reduce the normal exposure time and bottom exposure time.

Maintenance

Resin vat maintenance

• Remove the cured resin from release film: Click Vat Cleaning and then remove the cured resin sheet to protect the film. Do not use sharp objects to scrape off the residues on the film.

• Release film replacement: The statistics of print times and print layers are shown in Status interface. Please check them and replace release film timely to avoid print failure or even the damage to printer.

• If you do not use the resin for over two days, store it in an airtight container away from light.

Z axis maintenance

If Z axis makes a noisy sound, please apply lubricant to Z lead screw.

Safety Instructions

Always follow the safety instructions during assembly and usage, to avoid unnecessary damage to the 3D printer or individual injury.

Please contact our Customer Service if you have any issues after receving the products.

Be cautious when using the scraper. Never direct the scraper towards your hands.

In case of emergency, please immediately cut off the power of the 3D printer and contact our technical support.

Anycubic 3D printer includes components that can cause injury.

Keep the Anycubic 3D printer and its accessories out of the reach of children.

Vapors or fumes may be irritating at operating temperatures. Always use the Anycubic 3D printer in an open and well ventilated area.

Do not expose Anycubic 3D printer to any water or rain environment.

Use Anycubic 3D printer in an environment with a temperature of 8°C- 40°C and a humidity of 20%-50%. For optimal performance, do not exceed this range. Also, avoid direct sunlight exposure.

Do not disassemble Anycubic 3D printer, please contact technical support if you have any questions.
