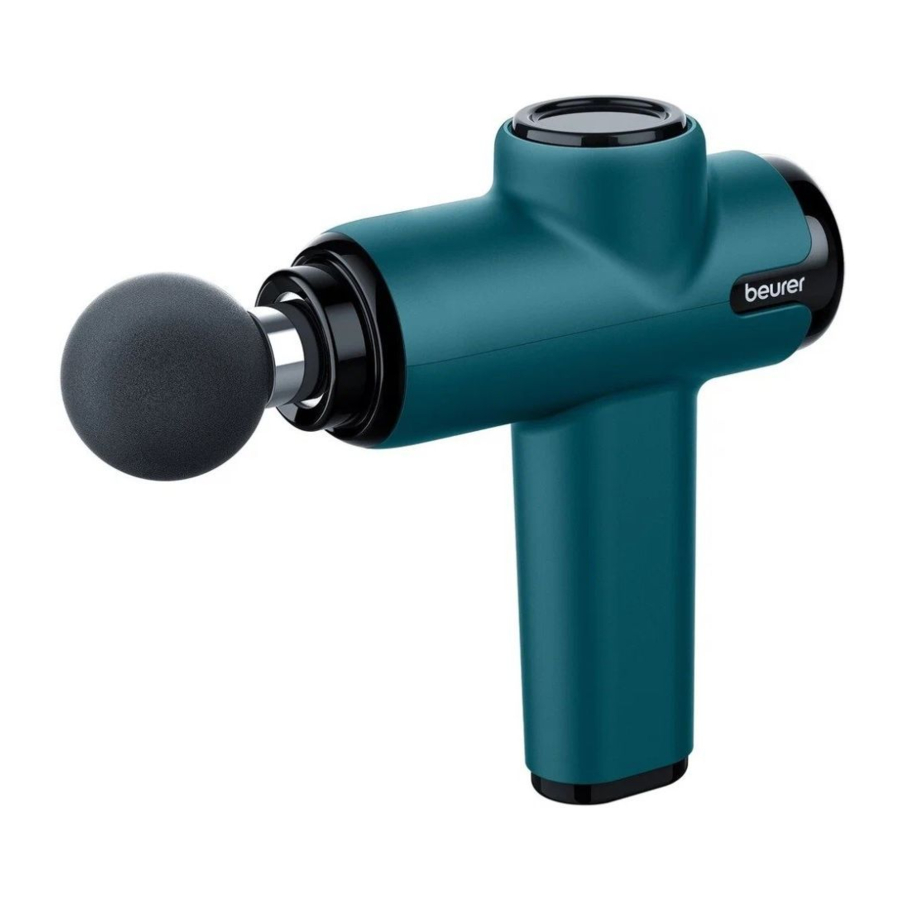

beurer MG 99 Manual

Getting to Know your Instrument

Using this Mini Massage Gun, you can provide yourself or others with a soothing, effective trigger point massage with no help required. Trigger point massages can relax the muscles or be stimulating and work effectively to relieve strained muscles, aches, and fatigue. The portable Deep Tissue Percussion Muscle Massager provides a powerful, intensive massage for the thighs, calves, shoulders, arms and back region (excluding the spine).

Package Contents

Check that the exterior of the delivery cardboard packaging is intact and make sure that all components are present. Before use, ensure that the device and accessories show no visible damage and all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.

1. Attachment Head (four massage heads included)
2. Intensity level display (5 LEDs, starting from the left and increasing from left to right)
   Intensity level 1 (one LED lights up): 1800rpm/30Hz
   Intensity level 2 (two LEDs light up): 2100rpm/35Hz
   Intensity level 3 (three LEDs light up): 2400rpm/40Hz
   Intensity level 4 (four LEDs light up): 2700rpm/45Hz
   Intensity level 5 (five LEDs light up): 3000rpm/50Hz
3. Power Button
4. LED Battery Level Indicator
   Left LED flashes = low battery charge level (approx. 15-30%)
   Middle LED flashes = medium battery charge level (approx. 30-70%)
   Right LED flashes = high battery charge level (approx. 70-100%)
5. Power Switch
6. AC Adapter Port
7. Handle
8. AC Adapter

Attachment Heads

	Ball Head For treating large areas and large muscle groups
	Bullet Head For treating deep muscle tissue and for targeted spot massages, such as the soles of your feet
	Fork Head For treating deep muscle tissue in the lower back area (excluding the spine) and Achilles tendons
	Flat head For massaging large areas of the body

To Set Up

Before using the Mini Massage Gun for the first time, charge it first for a minimum of 3 ½ hours. To do so, proceed as follows:

1. Remove the Massager and all attachments from the packaging.
2. Check the massager, power adapter, and attachment heads for damage.
3. Ensure device is switched off and then attach the AC Adapter to the jack on the bottom of the handle. Plug the AC Adapter into a standard 100 - 240 VAC electrical outlet.

4. Route the power cord safely so that there is no risk of anyone tripping over it.
5. During charging, the battery charge level is indicated by the applicable LED; the left LED indicates a charge level up to 30%, the middle LED indicates a charge level of 30-70%, and the rightmost LED indicates a charge level of 70-99%. When 100% charged, all three LEDs will illuminate steadily. A full charge will last about four hours. Charge the Massager again when the left LED flashes.

NOTE: Please note you can't use the device while charging

To Use

Massage treatment should feel pleasant at all times. Some redness underneath the skin may occur, which is a positive therapeutic effect; deep tissue massage can increase blood flow in treated areas. In rare instances, areas of redness may also occur on the skin. If you experience excessive skin irritation, stop using the Mini Massage Gun and consult a doctor. Depending on how tense/tight your muscles are, we recommend using the device for approx. 10 minutes on the area you wish to treat (legs, shoulders, arms and back).

Choosing an Attachment

Refer to the "Parts and Controls" section to select an appropriate Attachment Head. If a different Attachment Head is already in place on the Massager, pull it straight out of the socket to remove. Press the selected Attachment Head firmly onto the Massager until it clicks into place. Be sure to replace the attachment head only when the gun is turned off.

1. Slide the Power Switch to the "ON" position. The battery level indicator will illuminate.
2. Press the Power Button once to activate the massager. The intensity level display will illuminate and the massager will start at intensity level 1.
3. To increase intensity levels, press the Power Button. If the Massager is on the highest setting, pressing the Power Button again will shut the Massager off.
4. To shut the Massager off at anytime, press and hold the Power Button for about two seconds. The Battery Level Indicator and massager will shut off.
5. This device has an auto shut off feature, which will shut the massager off after 10 minutes of use. To reactivate, press and hold the Power Button after allowing the massager to cool for at least 15 minutes.

Stop the massage or change the position of the massage device if you find it is painful or unpleasant.

NOTE: Do not use the massage device right before going to bed. The massage can have an invigorating effect and may cause difficulties in falling asleep.

Usage Examples

• Legs


• Shoulders, Arms, and Back
  NOTE: Do not massage directly over bones.


Care, Maintenance and Disposal

Always switch off the device before cleaning it. Set the Power switch on the underside of the handle to the "OFF" position. Wipe exterior with a soft, damp cloth. Clean attachments with water and a mild detergent solution.

• Do not clean the device while charging.
• Only clean the appliance in the manner specified. Liquids must never be allowed to enter the device or accessories.
• Do not use the device until it is completely dry.
• Do not clean the device in the dishwasher.
• Do not use any abrasive cleaning products or hard brushes.

Storage: Keep the massage device in a cool and dry place out of the reach of children. When possible, store the device in its original packaging in a dry, climate-controlled environment out of direct sunlight.

Troubleshooting Guide

Problem	Solution
The Massager stops during use.	Make sure that you do not exert too much pressure on the Mini Massage Gun when using it. If you exert too much pressure, the device will stop briefly.

Technical Specifications

Power Supply: GQ12-050200-AU Input: Output:	100-240 V~, 50/60 Hz, 0.4 A 5.0 V 2.0 A, 10.0 W
Average efficiency during operation	≥ 81.30%
No-load power consumption	≤ 0.082 W
Dimensions	6.5 x 2.3 x 7.2 inches (16.4 x 5.8 x 18.4 cm)
Weight	21.8 oz (620 g)
Battery: Capacity Nominal Voltage Type	2400 mAh 7.4 V Lithium-ion

For more information regarding our product line in the USA, please visit: www.beurer.com

IMPORTANT SAFETY NOTES

Signs and symbols

Whenever used, the following signs identify safety and property damage messages and designate a level of hazard or seriousness.

READ THIS ENTIRE MANUAL, THE SAFETY SECTION AND ALL INSTRUCTIONS AND WARNINGS COMPLETELY AND CAREFULLY BEFORE USING THIS PRODUCT. FOLLOW ALL SAFETY INSTRUCTIONS AND WARNINGS TO AVOID HAZARDOUS SITUATIONS AND TO MAKE CORRECT USE OF THIS PRODUCT.

	This is the safety alert symbol. It alerts you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
	Indicates a potentially hazardous situation, which, if not avoided, may result in minor/moderate injury.
NOTICE	Addresses practices not related to personal injury, such as product and/or property damage.
	Direct current
	Only use indoors.
	Polarity
	Energy efficiency level 6
	Do not use the Massage Gun on people with implanted electrical devices (e.g. a pacemaker)

To reduce the risk of fire, electric shock, or serious personal injury:

• This device is intended solely for indoor domestic/private use; it is not intended for commercial use.
• Children must not play with the device.
• Keep packaging material and attachments away from children to avoid danger of suffocation.
• Under no circumstances use the device for massaging the area around the heart.
• Do not use massager on children under 8, animals, or on persons suffering from a herniated disk or other spinal problems, on skin that has been affected by illness or is near an injury in the area of the body that is to be massaged (e.g. slipped disc, open wound).
• This device may be used by children over the age of eight and by people with reduced physical, sensory, or mental skills or a lack of experience or knowledge, ONLY if they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
• Always consult a doctor before using the massager on other parts of the body of a person with a pacemaker.
• Never use the massager on swollen, burned, inflamed, or damaged skin or body parts.
• Do not use the massager on the head.
• Do not use the massager on the spine.
• Do not use the massager in a car.
• Do not use the device on cuts, capillaries, acne, couperose, herpes or other skin diseases.
• Do not use massager while pregnant.
• Do not use the massager on the face (eyes), on the larynx or on other particularly sensitive parts of the body.
• Never use the massager after taking medication or consuming alcohol (reduced levels of awareness).
• Consult your doctor before using the massager if you suffer from:
  • A serious illness or are recovering from an operation,
  • Any of the following: Cold accompanied by a fever, varicose veins, thrombosis, phlebitis, jaundice, diabetes, nervous system diseases (e.g. sciatica) or acute inflammation.
• The device is intended solely for the purpose described in these operating instructions. The manufacturer cannot be held liable for damage occurring as a result of inappropriate or careless use.
• Use only with power supply as specified on the device.
• Only use the device with the supplied accessories.
• Never use the device if you notice any damage to the massager or any attachments.
• Do not charge the device during a thunderstorm.
• Keep the cables away from hot surfaces.
• Never use the device near petrol or other highly flammable substances.
• If the adapter of the device is damaged, it must be replaced by the manufacturer or an authorized customer service technician.
• Make sure that the massage device, the plug and the cable do not come into contact with water or other fluids.
• Do not operate massager with wet hands, in the bathtub or shower, or in or near a swimming pool or the like.
• If the massager falls into water while charging, do not try to retrieve it. Immediately disconnect the adapter from the electrical outlet.
• Only operate the massage device for a maximum of 10 minutes continuously. After 10 minutes of operation, shut it off and let it cool for at least 15 minutes before resuming.
• Never leave the device unsupervised, particularly if children are around.
• Never use the device under covers, such as blankets or pillows.
• Cleaning and user maintenance must not be performed by children unless supervised.
• Do not disassemble, repair, and transform this product, or it might cause malfunction or electric shock.
• Do not insert any objects into the opening in the device or into the moving parts. Ensure that the moving parts can move freely at all times.
• Do not force or jam any part of your body, in particular your fingers, between the moving massage elements or their holder in the device.

To reduce the risk of personal injury or product/property damage:

• Switch the device off after every use and before cleaning. Do not clean the device while charging.
• If the device has been dropped or has suffered any other damage, it must no longer be used.
• Keep hair, jewelry, and loose clothing away from the massage head.
• Avoid contact with sharp or pointed objects.
• Make sure that the device is not too close to heat sources such as ovens, radiators, or direct sunlight.

Notes on electromagnetic compatibility

• The use of the device may be limited in the presence of electromagnetic disturbances. This could result in issues such as error messages or the failure of the display/device.
• Avoid using this device directly next to other devices or stacked on top of other devices, as this could lead to faulty operation. If, however, it is necessary to use the device in the manner stated, this device as well as the other devices must be monitored to ensure they are working properly.
• The use of accessories other than those specified or provided by the manufacturer of this device can lead to an increase in electromagnetic emissions or a decrease in the device's electromagnetic immunity; this can result in faulty operation.
• Failure to comply with the above can impair the performance of the device.

Battery Handling Safety Precautions

• Protect batteries from excessive heat.
• Do not dispose of batteries in fire, batteries may explode or leak.
• If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
• Keep batteries away from children and pets. Batteries may be harmful if swallowed. Should a child or pet swallow a battery, seek medical assistance immediately.
• Do not disassemble, split or crush the batteries.
• Only use chargers specified in the instructions for use.
• Only charge the device using the supplied AC adapter.
• In order to achieve as long a battery service life as possible, fully charge the battery at least 2 times a year.
• Always switch the device off before charging.
• Batteries must be charged correctly prior to use. The instructions from the manufacturer and the specifications in these instructions for use regarding correct charging must be observed at all times.
