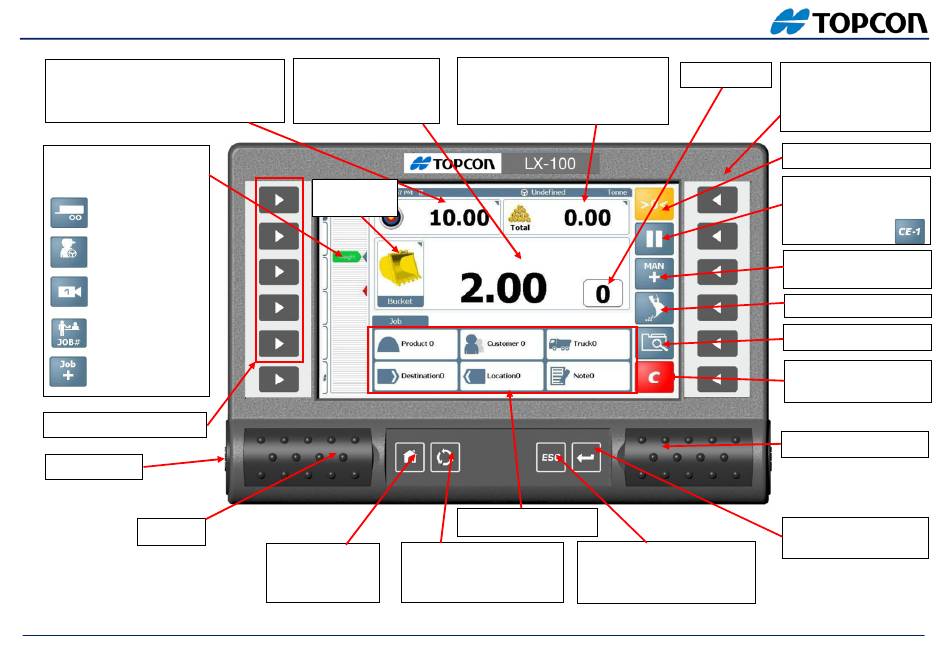

LX-100 – QUICK REFERENCE GUIDE
Target load / Weight left to load
This is the weight you want to load on the
vehicle. As you load, the figure will decrease to
show how much is left to load.
Boom Height Indicator
(Touch any part of this box to
display extra button functions)
Split Loading (Trailer)
Select Driver
Reversing Camera
View Job List
Create New Job
Select Preset Jobs 1 - 5
Power ON/OFF
SD Card
UK761150.DOCX : ISSUE 1.5 : 12.06.23
Weight in bucket
This shows the individual
bucket weight.
Select
Attachment
'SETUP'
'HOME'
Go to Setup Menu e.g. for
Return to Home
Weight Calibration
Screen
PT NO. S/DC500-10-761
Total loaded so far
This shows the total loaded, starting at
0.00 and increasing as you load, to show
how much has been loaded so far.
Select Store references
'ESCAPE'
Return to the previous screen /
Delete the Last Weight Entry
NOTE: The "Hard Keys" may
Number of lifts
be used instead of the
adjacent touchscreen
'buttons'
Zero Lift Routine
Pause weighing routine
or alternatively ('Clear Last
Weight Entry")
Automatic / Manual Weight
Entering
"Live Static" Tip off Select
Search/Select Job Report
Clear Home Screen Totals
and Reset for next Load
USB Port
Accept Load Entry (or use
Remote Enter Button)
1
