Topcon OS-101 Instruction Manual

Os series, onboard station
Hide thumbs
Table of Contents

Advertisement

Quick Links

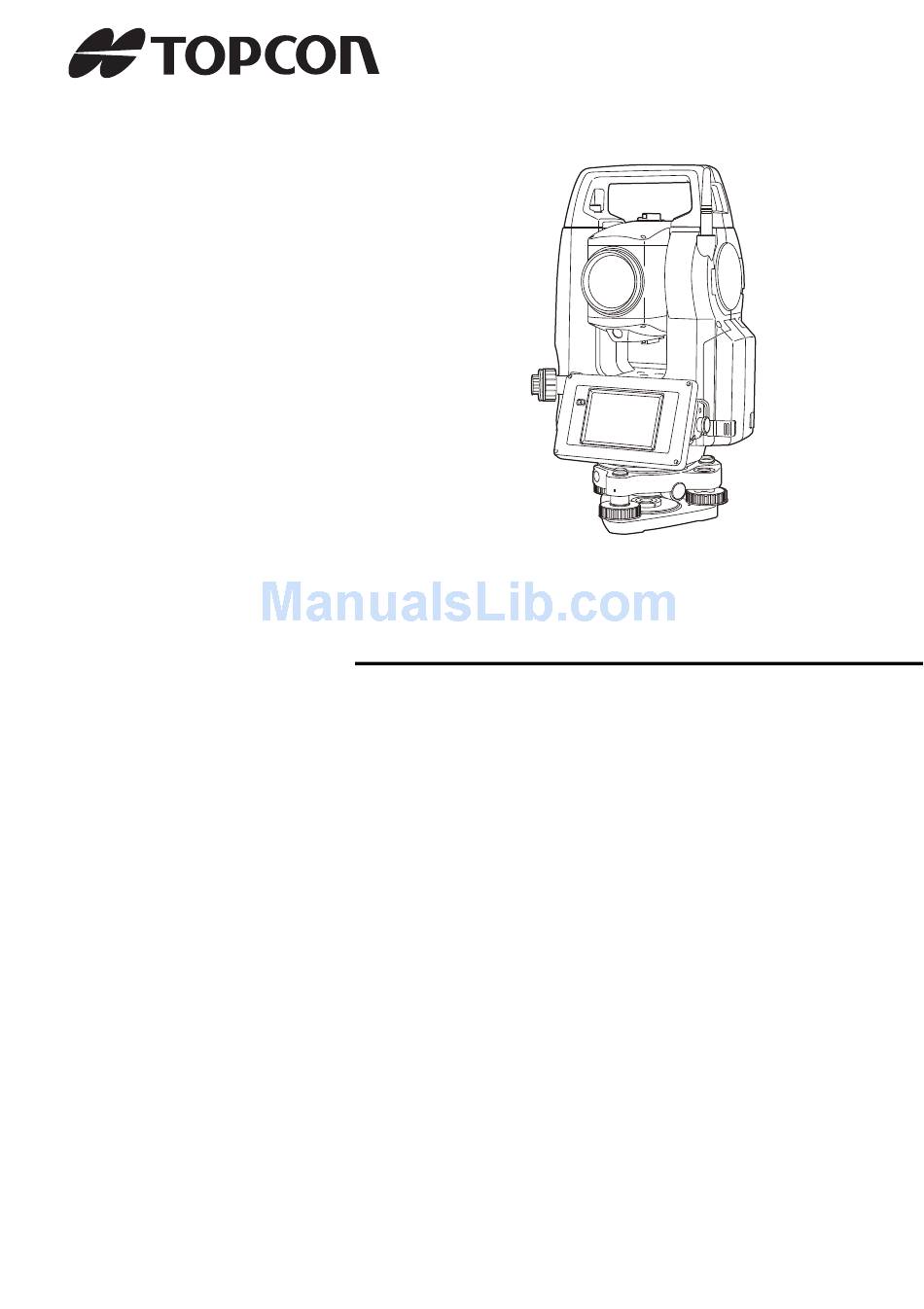

SURVEYING INSTRUMENTS
INSTRUCTION MANUAL
Onboard Station
OS series
OS-101
OS-102
OS-103
OS-105
OS-107
21406 99028

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OS-101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Topcon OS-101

Summary of Contents for Topcon OS-101

  • Page 1 SURVEYING INSTRUMENTS INSTRUCTION MANUAL Onboard Station OS series OS-101 OS-102 OS-103 OS-105 OS-107 21406 99028...
  • Page 2 HOW TO READ THIS MANUAL Thank you for selecting the OS-101/102/103/105/107. • Please read this instruction manual carefully, before using this product. • OS has a function to output data to a connected host computer. Command operations from a host computer can also be performed.
  • Page 3 HOW TO READ THIS MANUAL Notes regarding manual style • Except where stated, “OS” means OS-101/102/103/105/107 in this manual. • The OS Series is available in "standard", and "Low Temperature" models. Users with a "Low Temperature Model" should read the additional precautions specific to use under low temperatures.

  • Page 4: Table Of Contents

    CONTENTS 1. PRECAUTIONS FOR SAFE OPERATION......1 2. PRECAUTIONS ..............4 3. LASER SAFETY INFORMATION ........8 4. PRODUCT OUTLINE............10 Parts of the Instrument .............. 10 Mode Structure ................14 Bluetooth Wireless Technology ..........15 5. BASIC OPERATION ............17 Basic Key Operation ..............
  • Page 5 13. DISTANCE MEASUREMENT........... 56 13.1 Returned Signal Checking ............56 13.2 Distance and Angle Measurement ..........58 13.3 Distance Measurement and Outputting the Data ...... 59 13.4 REM Measurement ..............60 14. COORDINATE MEASUREMENT........62 14.1 Entering Instrument Station Data ..........62 14.2 Azimuth Angle Setting ...............
  • Page 6 20.11 Restoring Default Settings ............125 21. WARNING AND ERROR MESSAGES......126 22. CHECKS AND ADJUSTMENTS........129 22.1 Circular Level ................129 22.2 Tilt Sensor ................130 22.3 Collimation ................133 22.4 Reticle ..................134 22.5 Optical Plummet ..............136 22.6 Additive Distance Constant .............

  • Page 7: Precautions For Safe Operation

    1. PRECAUTIONS FOR SAFE OPERATION For the safe use of the product and prevention of injury to operators and other persons as well as prevention of property damage, items which should be observed are indicated by an exclamation point within a triangle used with WARNING and CAUTION statements in this operator’s manual. The definitions of the indications are listed below.
  • Page 8 1. PRECAUTIONS FOR SAFE OPERATION Do not place the instrument in a case with a damaged catch, belt or handle. The case or  instrument could be dropped and cause injury.  Do not wield or throw the plumb bob. A person could be injured if struck. Secure handle to main unit with handle locks.
  • Page 9 1. PRECAUTIONS FOR SAFE OPERATION Tripod  Caution When mounting the instrument to the tripod, tighten the centering screw securely. Failure  to tighten the screw properly could result in the instrument falling off the tripod, causing injury. Tighten securely the leg fixing screws of the tripod on which the instrument is mounted. ...

  • Page 10: Precautions

    2. PRECAUTIONS Charging Battery • Be sure to charge the battery within the charging temperature range. Charging temperature range: 0 to 40°C Warranty policy for Battery • Battery is an expendable item. The decline in retained capacity depending on the repeated charging/ discharging cycle is out of warranty.
  • Page 11 2. PRECAUTIONS • Do not press the speaker / luminance sensor / microphone hole using something with a pointed tip. Doing so will damage an internal waterproof sheet, resulting in a degraded waterproof property. Speaker The Lithium Battery • The lithium battery is used to maintain the OS Calendar & Clock function. It can back up data for approximately 5 years of normal use and storage (Temperature = 20°, humidity = about 50%), but its lifetime may be shorter depending on circumstances.
  • Page 12 2. PRECAUTIONS Other precautions • Never place the instrument directly on the ground. Sand or dust may cause damage to the screw holes or the centering screw on the base plate. • Do not perform vertical rotation of the telescope when using the lens hood, diagonal eyepiece, or solar filter.
  • Page 13 2. PRECAUTIONS • Store the instrument in a dry room where the temperature remains fairly constant. • Check the tripod for loose fit and loose screws. • If any trouble is found on the rotatable portion, screws or optical parts (e.g. lens), contact your local dealer.

  • Page 14: Laser Safety Information

    3. LASER SAFETY INFORMATION OS is classified as the following class of Laser Product according to IEC Standard Publication 60825- 1 Ed.3.0: 2014 and United States Government Code of Federal Regulation FDA CDRH 21CFR Part 1040.10 and 1040.11 (Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.) Device Laser class...
  • Page 15 3. LASER SAFETY INFORMATION  Caution • Perform checks at start of work and periodic checks and adjustments with the laser beam emitted under normal conditions. • When the instrument is not being used, turn off the power and replace the lens cap. •...

  • Page 16: Product Outline

    21 Vertical fine motion screw 22  Trigger key 23 Horizontal fine motion screw 24 Horizontal clamp 25 Tribrach clamp 26 Telescope eyepiece screw 27 Telescope focussing ring 28 Sighting collimator 29 Instrument center mark OS-101/102 and low temperature models only...
  • Page 17 4. PRODUCT OUTLINE  Guide light Setting-out measurement etc. can be carried out effectively using the guide light. The guide light is composed of a light that is divided into green and red sections. A poleman can ascertain the present position by checking the guide light color. green red (When seen from the objective lens side while the instrument is in the Face 1 state)
  • Page 18 4. PRODUCT OUTLINE Bluetooth antenna (Models with Bluetooth module only) The Bluetooth antenna allows communication via Bluetooth wireless technology.  • Handle the antenna with care. The antenna may be damaged if struck during operation or while being stored in the carrying case. Handle The carrying handle can be removed from the Handle...
  • Page 19 4. PRODUCT OUTLINE Detaching the instrument from the tribrach 1. Loosen the tribrach locking screw by turning 2 or 3 rotations in the counterclockwise direction. 2. Turn the tribrach clamp counterclockwise to loosen. 3. Lift the instrument to detach. Attaching the instrument to the tribrach 1.

  • Page 20: Mode Structure

    4. PRODUCT OUTLINE Mode Structure The diagram below describes the different modes of the OS and key operations for navigating between them. ●Basic mode Observation mode (switching by tab) Top menu C “5.2 Display Menu mode Functions ”Graphic“ tab” Version C“12.

  • Page 21: Bluetooth Wireless Technology

    Contact your local dealer in advance.  "28. REGULATIONS" • TOPCON CORPORATION is not liable for the content of any transmission nor any content related thereto. When communicating important data, run tests beforehand to ascertain that communication is operating normally.
  • Page 22 Moreover, as wireless devices lose signal strength when close to the ground, perform communication at as high a position as possible.  • TOPCON CORPORATION cannot guarantee full compatibility with all Bluetooth products on the market.

  • Page 23: Basic Operation

    5. BASIC OPERATION Learn basic key operations here before you read each measurement procedure. Basic Key Operation Starkey mode Display unit Illumination key { } { } { } Target type Program mode Input mode SHIFT SHIFT FUNC Switching the page Luminance sensor / Microphone Power ON/OFF ...
  • Page 24 5. BASIC OPERATION Switching target type  Switches between target types Prism/Sheet/N-prism (reflectorless)  "20.3 EDM Settings"  • Changes can also be made by tapping the icon on status bar or in Starkey mode.  "5.2 Display Functions", "5.4 Starkey Mode" Switching the Laser-pointer/Guide light ON/OFF ...
  • Page 25 5. BASIC OPERATION Select/accept the option {ENT} Selecting tabs  Move tab/cursor in tab up/down   {}/{} Display next tab at left/right  Tabs: "5.2 Display Functions" Others  {ESC} Return to previous screen Example: Entering "computer" (lower case) as the name of a new device 1.
  • Page 26 5. BASIC OPERATION 4. Press {}. Press {5}. "m" is displayed. 5. Continue to input letters. Press {ENT} to complete inputting. Example: selecting a reflector type (Method 1) 1. Select [EDM] in the first page of Observation mode or "EDM" in Config mode/Configuration mode.

  • Page 27: Display Functions

    5. BASIC OPERATION (Method 2) 1. Select [EDM] in the first page of Measure mode or "EDM" in Config mode/Configuration mode. 2. Move to "Reflector" using {}/{}/{TAB}. 3. Switch between Prism, Sheet, and N-Prism using {}/{}. 4. Press {ENT} to confirm selection. Display Functions Screens can be selected/operated using the keys on the keyboard or the touch panel.
  • Page 28 5. BASIC OPERATION Displaying and operating screens • To close a screen, tap the cross in the top right corner, or press {ESC}. • Tabs, softkey allocations, displayed tab items, and character sizes can all be changed in accordance with user preferences. ...
  • Page 29 5. BASIC OPERATION (3)Horizontal angle Press [R/L] to switch the display status between HA-R (horizontal angle right)/HA-L (horizontal angle left). The capitalized letter in the softkey indicates the currently selected mode.  Allocating [R/L]: "20.6 Allocating Key Functions"  • Horizontal distance and height difference are also displayed in "SHVdist" tab. Measuring screen ...
  • Page 30 5. BASIC OPERATION The "Graphic" tab display can be modified using the softkeys in the second page. [CNFG]: In <Graphic configuration> the user can specify the orientation of the "graphic" tab display and which point, target or station, to set at the center of the display. [DEF.]: Returns to the original orientation display.

  • Page 31: Starkey Mode

    5. BASIC OPERATION Inputting Characters using the Input Panel α To display <Input Panel>, tap of status bar/Starkey mode or while pressing }. This {SHIFT} press keyboard can be used to input numeric and alphabetic characters as well as symbols. Tap the icon again to close.
  • Page 32 5. BASIC OPERATION (1) (2) (3) (4) (5) (6) (7) (8) (10) (11) 10 and 11 are not allocated when instrument was shipped. Indicates the current status of the instrument. Tapping icons will switch between the relevant options for that item. Tapping and holding will display a list of all available options for that item and, in certain cases, a link to the configuration screen for that item.
  • Page 33 5. BASIC OPERATION (2) Target type icon Selection of target type and configuration of prism constant. : Prism (0mm) : Sheet (0mm) : N-Prism Target information can be edited/recorded in <Reflector setting>.  "20.3 EDM Settings" (3) PPM setting icon Current atmospheric correction factor setting is displayed.
  • Page 34 5. BASIC OPERATION (6) Communication status with external devices icon Selection and configuration of communication status with external devices. This icon is not displayed in Program mode. Bluetooth settings can only be selected when using instruments incorporating the Bluetooth module. : Connection via RS232C cable : Connection via Bluetooth wireless technology (OS set as "Master"...
  • Page 35 5. BASIC OPERATION (9) Config mode icon Switch to Config mode.  "20. CHANGING THE SETTINGS" (10) Touch panel icon De-activate the touch panel temporarily or go to Inst.config. : Touch panel temporarily de-activated.  • This icon cannot be operated during distance measurement, or during data transmission. (11) Disk usage icon Tap and hold disk icon to check the detail of the disk usage.

  • Page 36: Inserting Usb Memory

    6. INSERTING USB MEMORY  • When reading/writing data, do not remove the USB memory. PROCEDURE 1. Open the external interface hatch by sliding its button. External interface hatch 2. Insert the USB memory into the USB port 1. USB Port 1 ...

  • Page 37: Using The Battery

    7. USING THE BATTERY  Types of power source: "23. POWER SUPPLY SYSTEM" Battery Charging The battery was not charged at the factory. Charge the battery fully before using the OS.  • The charger will become rather hot during use. This is normal. •...

  • Page 38: Installing/Removing The Battery

    7. USING THE BATTERY 3. When charging starts, the lamp starts blinking. 4. The lamp lights when charging is finished. 5. Remove the battery and unplug the charger.  • Slots 1 and 2: The charger starts charging the battery mounted first. If you place two batteries in the charger, the battery in slot 1 is charged first, and then the battery in slot 2.
  • Page 39 7. USING THE BATTERY PROCEDURE Mounting the battery 1. Slide down the catches on the battery cover to open. Battery cover 2. Insert the battery in the direction of the arrow on the side of the battery.  • Do not insert the battery inclined. Doing so may damage the instrument or battery terminals.

  • Page 40: Setting Up The Instrument

    8. SETTING UP THE INSTRUMENT  • Mount the battery in the instrument before performing this operation because the instrument will tilt slightly if the battery is mounted after levelling. Centering PROCEDURE Centering with the optical plummet eyepiece 1. Make sure the legs are spaced at equal intervals and the head is approximately level.
  • Page 41 8. SETTING UP THE INSTRUMENT PROCEDURE Centering with the laser plummet (Option) 1. Set up the tripod and affix the instrument on the tripod head.  "8.1 Centering" 2. Press {ON} to power on  "9. POWER ON/OFF" The electric circular level (tilt) is displayed on the screen.

  • Page 42: Levelling

    8. SETTING UP THE INSTRUMENT  • Visibility of the laser spot may be affected when operating in direct sunlight. In this event, provide shade for the survey point. Levelling PROCEDURE 1. Adjust the levelling foot screws to center the survey point in the optical plummet reticle.
  • Page 43 8. SETTING UP THE INSTRUMENT 5. Turn the instrument until the telescope is parallel to a line between levelling foot screws A and B. 6. Set the tilt angle to 0° using foot screws A and B for the X direction and levelling screw C for the Y direction.

  • Page 44: Power On/Off

    9. POWER ON/OFF  • When the power cannot be switched ON or the power is soon turned OFF even though the battery is mounted, there may be almost no battery power remaining. Replace it with a fully charged battery. ...

  • Page 45: Resolving Software Issues

    9. POWER ON/OFF Configuring the Touch Panel When using for the first time, or after performing a cold boot, the screen for configuring the touch panel will be displayed. Follow the instructions on the screen. Tap the cross- hairs at the center of the display with the stylus pen. Tap 5 times.
  • Page 46 9. POWER ON/OFF  Problems Powering OFF When the instrument cannot be powered OFF as normal, depress the reset button with the tip of the stylus pen. • Pressing the Reset button may result in file and folder data being lost. Reset button...

  • Page 47: Connecting To External Devices

    10.CONNECTING TO EXTERNAL DEVICES The OS supports Bluetooth wireless technology, USB and RS232C for communication with data collectors etc. Inputting/outputting data is also possible by inserting a USB memory or by connecting to a USB device. Read this manual in conjunction with the operator’s manual for the relevant external device. ...
  • Page 48 10. CONNECTING TO EXTERNAL DEVICES Set Comms mode in the "Comms setup" tab to "Bluetooth".  • Changing communication settings during Bluetooth communication will cancel the connection. • The status bar icon cannot be tapped in <Communication Setup>. • No changes for the setting' (2) to (4) from the factory setting are necessary as long as connecting to a recommended program on the data collector.
  • Page 49 10. CONNECTING TO EXTERNAL DEVICES 3. Set "Authentication" to "Yes" or "No". If "Authentication" is set to "Yes" for the OS the passkey will also need to be input on the companion device. 4. When "Authentication" is set to "Yes", input the same passkey as that for the intended companion device.
  • Page 50 10. CONNECTING TO EXTERNAL DEVICES 4. Press [SEARCH] in the "Serial" tab to search about communication-ready Bluetooth devices in the immediate vicinity of the instrument. When the search is completed, their device name and address are displayed in a list. Select a device from this list and press [OK] to add to the Link device list.
  • Page 51 10. CONNECTING TO EXTERNAL DEVICES 6. Set "Mode" in the "Bluetooth" tab to "Master". 7. Select a companion device from among the Bluetooth devices already registered in "Link". 8. Set "Authentication" to "Yes" or "No".  "PROCEDURE Set Bluetooth communication mode to "Slave"" Steps 3 to 9.

  • Page 52: Communication Between The Os And Companion Device

    10. CONNECTING TO EXTERNAL DEVICES 10.2 Communication between the OS and Companion Device  • Bluetooth communication causes OS battery power to be depleted at a rate higher than that for normal operation. • Check that the companion device (data collector, computer, or cellular phone etc.) is turned on and the relevant Bluetooth settings are complete.
  • Page 53 10. CONNECTING TO EXTERNAL DEVICES 2. Start communication When OS is set as the "Master" device, the [Connect] softkey is allocated to the fourth page of Observation mode. When [Connect] is pressed the OS searches for the device selected in "Link" and a connection starts.

  • Page 54: Connecting To Usb Devices

    Connecting to USB devices OS has two different USB ports.  • TOPCON CORPORATION cannot guarantee that all USB devices are compatible with the OS USB ports. • Use a computer WindowsXP/Vista/7 is based and USB connection is capable. USB port 1 USB port 2 Each port is used for connection to different types of devices.
  • Page 55 10. CONNECTING TO EXTERNAL DEVICES Power OFF the OS. Connect the OS and computer using the USB cable.  "9. POWER ON/OFF"  • The computer does not need to be turned OFF before connection. 2. Press { } while pressing {ENT} to display a message box asking whether to boot USB mode, then press [YES].
  • Page 56 10. CONNECTING TO EXTERNAL DEVICES 2. Press { } while pressing {ENT} to display a message box asking whether to boot USB mode, then press [NO]. The synchronous software is effective.  • OS may not be displayed as <Removable Disk>. It depends on Windows settings.

  • Page 57: Connection Via Rs232C Cable

    10. CONNECTING TO EXTERNAL DEVICES 10.4 Connection via RS232C cable PROCEDURE Basic cable settings 1. Connect the cable.  Cables: "25. OPTIONAL ACCESSORIES" 2. Select "Comms" in Config mode. Set communication conditions in the "Comms setup" tab. Set "Comms mode" to "RS232C". 3.

  • Page 58: Focussing And Target Sighting

    11.FOCUSSING AND TARGET SIGHTING  • When sighting the target, strong light shining directly into the objective lens may cause the instrument to malfunction. Protect the objective lens from direct light by attaching the lens hood. Observe to the same point of the reticle when the telescope face is changed. PROCEDURE 1.

  • Page 59: Angle Measurement

    12.ANGLE MEASUREMENT This section explains the procedures for basic angle measurement in Observation mode. • It is possible to allocate softkeys in measurement menus to suit various applications and the ways that different operators handle the instrument.  "20.6 Allocating Key Functions" 12.1 Measuring the Horizontal Angle between Two Points (Horizontal Angle 0°)

  • Page 60: Setting The Horizontal Angle To A Required Value (Horizontal Angle Hold)

    12. ANGLE MEASUREMENT 12.2 Setting the Horizontal Angle to a Required Value (Horizontal Angle Hold) You can reset the horizontal angle to a required value and use this value to find the horizontal angle of a new target. PROCEDURE 1. Sight the first target. 2.

  • Page 61: Angle Measurement And Outputting The Data

    12. ANGLE MEASUREMENT 12.3 Angle measurement and Outputting the Data The following explains angle measurement and the features used to output measurement results to a computer or other external devices.  "10. CONNECTING TO EXTERNAL DEVICES", Cables: "25. OPTIONAL ACCESSORIES", Output format and command operations: "Communication manual"...

  • Page 62: Distance Measurement

    13.DISTANCE MEASUREMENT Perform the following settings as preparation for distance measurement in Observation mode. • Distance measurement mode • Target type • Prism constant correction value • ppm • EDM ALC  "20.2 Instrument Configuration" • It is possible to allocate softkeys in measurement menus to suit various applications and the ways that different operators handle the instrument.
  • Page 63 13. DISTANCE MEASUREMENT PROCEDURE 1. Accurately sight the target. 2. Press [S-LEV] in Observation mode. <Aiming> is displayed.  Allocating [S-LEV]: "20.6 Allocating Key Functions" When [S-LEV] is pressed, a gauge indicating light intensity is displayed. • The more displayed, the greater the quantity of reflected light.

  • Page 64: Distance And Angle Measurement

    13. DISTANCE MEASUREMENT 13.2 Distance and Angle Measurement An angle can be measured at the same time as distance. PROCEDURE 1. Face the OS in the direction of the target Use the sighting collimator to aim the OS and telescope toward the target. ...

  • Page 65: Distance Measurement And Outputting The Data

    13. DISTANCE MEASUREMENT 13.3 Distance Measurement and Outputting the Data The following explains distance measurement and the features used to output measurement data to a computer or external devices.  "10. CONNECTING TO EXTERNAL DEVICES", Communication cables: "25. OPTIONAL ACCESSORIES". Output format and command operations: "Communication manual" PROCEDURE 1.

  • Page 66: Rem Measurement

    13. DISTANCE MEASUREMENT 13.4 REM Measurement An REM measurement is a function used to measure the height to a point where a target cannot be directly installed such as power lines, overhead cables and bridges, etc. The height of the target is calculated using the following formula. Ht = h h2 = S sin x cot...
  • Page 67 13. DISTANCE MEASUREMENT 3. Sight the target and press [MEAS] to start measurement. Press [STOP] to stop the measurement. The measured distance data, vertical angle and horizontal angle are displayed. 4. Sight the object, then press [REM] to start REM measurement is started.

  • Page 68: Coordinate Measurement

    14.COORDINATE MEASUREMENT By performing coordinate measurements it is possible to find the 3-dimensional coordinates of the target based on station point coordinates, instrument height, target height, and azimuth angles of the backsight station which are entered in advance. • It is possible to allocate softkeys in measurement menus to suit various applications and the ways that different operators handle the instrument.

  • Page 69: Azimuth Angle Setting

    14. COORDINATE MEASUREMENT 3. Select "Occupy setup" and enter instrument station coordinates,instrument height (HI) and target height (HR). 4. Press [OK] to set the input values. <Set H angle> is displayed again. 14.2 Azimuth Angle Setting Based on the instrument station coordinates and backsight station coordinates which have already been set, the azimuth angle of the backsight station is calculated.
  • Page 70 14. COORDINATE MEASUREMENT PROCEDURE Entering coordinates 1. Select "Backsight setup" in <Coordinate>. <Set H angle> is displayed. • <Set H angle> can also be displayed from the screen in step 4 of "14.1 Entering Instrument Station Data". 2. Select the "Key in coord" tab and enter the backsight station coordinates.
  • Page 71 14. COORDINATE MEASUREMENT PROCEDURE Entering angle 1. Select "Backsight setup" in <Coordinate>. <Set H angle> is displayed. <Set H angle> can also be displayed from the screen in step 4 of "14.1 Entering Instrument Station Data". 2. Select the "Key in angle" tab and enter the desired angle in "H.ang".

  • Page 72: 3-D Coordinate Measurement

    14. COORDINATE MEASUREMENT 3. Press [OK] to set the input values. <Coord. measurement> is displayed.  Horizontal angle settings Azimuth (set both horizontal and azimuth angles to the same value)/H.ang (input both horizontal and azimuth angles)/None (input azimuth angle only)/0 SET (horizontal angle set to 0°) 14.3 3-D Coordinate Measurement The coordinate values of the target can be found by measuring the target based on the settings of the...
  • Page 73 14. COORDINATE MEASUREMENT PROCEDURE 1. Sight the target at the target point. 2. Select "Coord." in <Coordinate>. Press [MEAS] to start measurement. Press [STOP] to stop the measurement. The coordinates of the target point are displayed. Select the "Graphic" tab to display coordinates on a graph.

  • Page 74: Resection Measurement

    15.RESECTION MEASUREMENT Resection is used to determine the coordinates of an instrument station by performing multiple measurements of points whose coordinate values are known. Registered coordinate data can be recalled and set as known point data. Residual of each point can be checked, if necessary. Entry Output Coordinates of...

  • Page 75: Coordinate Resection Measurement

    15. RESECTION MEASUREMENT 15.1 Coordinate Resection Measurement N, E, Z of an instrument station is determined by the measurement. PROCEDURE 1. Select "Resection" in <Menu>. 2. Select "NEZ" to display <Resection/Known point>. 3. Input the known point. After setting the coordinates and target height for the first known point press [NEXT] to move to the second point.
  • Page 76 15. RESECTION MEASUREMENT 4. Sight the first known point and press [MEAS] to begin measurement. The measurement results are displayed on the screen. • When [ANGLE] has been selected, the distance cannot be displayed. 5. Press [YES] to use the measurement results of the first known point.
  • Page 77 15. RESECTION MEASUREMENT Standard deviation for the northing, easting and elevation coordinates of each point are displayed in the "Detail" tab. 8. If there are problems with the results of a point, align the cursor with that point and press [OMIT]. “OMIT”...
  • Page 78 15. RESECTION MEASUREMENT • Press [ADD] in the second page when there is a known point that has not been observed or when a new known point is added. 10. Press [OK] in <Resection/result> to display <Resection/Set h angle>. 11. Select an angle mode and press [YES] to set the azimuth angle of the first known point as the backsight point and return to <Resection/Menu>.

  • Page 79: Height Resection Measurement

    15. RESECTION MEASUREMENT 15.2 Height Resection Measurement Only Z (height) of an instrument station is determined by the measurement. • Known points must be measured by distance measurement only. • Between 1 and 10 known points can be measured. PROCEDURE 1.
  • Page 80 15. RESECTION MEASUREMENT 4. Sight the first known point and press [MEAS] to begin measurement. The measurement results are displayed on the screen. 5. If measuring two or more known points, repeat procedures 4 in the same way from the second point.
  • Page 81 15. RESECTION MEASUREMENT 7. If there are problems with the results of a point, align the cursor with that point and press [OMIT]. “OMIT” is displayed to the right of the point. Repeat for all results that include problems. 8. Press [RE CALC] to perform calculation again without the point designated in step 7 The result is displayed.
  • Page 82 15. RESECTION MEASUREMENT  Resection calculation process The NE coordinates are found using angle and distance observation equations, and the instrument station coordinates are found using the method of least squares. The Z coordinate is found by treating the average value as the instrument station coordinates. Calculated instrument station coordinates set as hypothetical coordinates...
  • Page 83 15. RESECTION MEASUREMENT  Precaution when performing resection In some cases it is impossible to calculate the coordinates of an unknown point (instrument station) if the unknown point and three or more known points are arranged on the edge of a single circle.

  • Page 84: Setting-Out Measurement

    16.SETTING-OUT MEASUREMENT Setting-out measurement is used to set out the required point. The difference between the previously input data to the instrument (the setting-out data) and the measured value can be displayed by measuring the horizontal angle, distance or coordinates of the sighted point.

  • Page 85: Distance Setting-Out Measurement

    16. SETTING-OUT MEASUREMENT Guide light status and meaning  Indication for positioning target during setting-out measurement Light status Meaning Increased flashing speed (From position of poleman) Move target toward OS Decreased flashing speed (From position of poleman) Move target away from OS Fast flashing Target is at correct distance (From position of poleman) Move target left...
  • Page 86 16. SETTING-OUT MEASUREMENT PROCEDURE 1. Select "Setting out" in <Menu> to display <Setting out>. 2. Select "Occupy setup" to display <Occupy setup>. Enter data for the instrument station and press [OK] to move to Backsight setup.  "14.1 Entering Instrument Station Data" 3.
  • Page 87 16. SETTING-OUT MEASUREMENT 4. Select "SO data setting" In <Setting out> to display <SO data setting>. In the distance mode that conforms to your measurement requirements, enter the included angle between the reference point and the setting-out point in "SO.H.ang", and the distance (slope distance, horizontal distance or height difference) from the instrument station to the position to be set out in "SO.Sdist".
  • Page 88 16. SETTING-OUT MEASUREMENT 6. Position the target on the line of sight and press Arrows indicate direction to move [MEAS] to begin distance measurement. The distance and direction to move the target until the setting out point is located is displayed on the OS.
  • Page 89 16. SETTING-OUT MEASUREMENT 8. Press {ESC} to return to <Setting out>. Set the next setting out point to continue setting out measurement.

  • Page 90: Coordinates Setting-Out Measurement

    16. SETTING-OUT MEASUREMENT 16.3 Coordinates Setting-out Measurement After setting the coordinates for the point to be set out, the OS calculates the setting-out horizontal angle and horizontal distance. By selecting the horizontal angle and then the horizontal distance setting-out functions, the required coordinate location can be set out. •...
  • Page 91 16. SETTING-OUT MEASUREMENT 3. Select "Key in coord" in <Setting out>. Record all the setting-out points (includes setting-out points you will measure from now). Press [ADD] to record new data. • Press [DEL] in the second page to delete the selected setting out point.
  • Page 92 16. SETTING-OUT MEASUREMENT 5. Position the target on the line of sight and press [MEAS] to begin distance measurement. The distance and direction to move the target until the setting out point is located is displayed on the OS. The sighting point measurement results (currently installed position of the target) are displayed.

  • Page 93: Rem Setting-Out Measurement

    16. SETTING-OUT MEASUREMENT 6. Press [OK] to return to <Key in coord>. Set the next setting out point to continue setting out measurement. 16.4 REM Setting-out Measurement To find a point where a target cannot be directly installed, perform REM setting-out measurement. ...
  • Page 94 16. SETTING-OUT MEASUREMENT 3. Select "SO data setting" In <Setting out> to display <SO data setting>. Press [Shvr] until the distance input mode is "SO.Height.". Input height from the surveying point to the position to be set out in "SO.Height". If necessary, input the angle to the point to be set out.
  • Page 95 16. SETTING-OUT MEASUREMENT 6. Press [REM] to start REM measurement. Arrows indicate direction to move The distance (height difference) and direction to move the target until the sighting point and setting out point are located is displayed on the OS. Press [STOP] to stop measuring.

  • Page 96: Offset Measurement

    17.OFFSET MEASUREMENT Offset measurements are performed in order to find a point where a target cannot be installed directly or to find the distance and angle to a point which cannot be sighted. • It is possible to find the distance and angle to a point you wish to measure (target point) by installing the target at a location (offset point) a little distance from the target point and measuring the distance and angle from the survey point to the offset point.
  • Page 97 17. OFFSET MEASUREMENT 2. Select "Offset" in <Menu> to display . 3. Select "Occupy setup" to display <Occupy setup>. Enter data for the instrument station and press [OK] to move to Backsight setup.  "14.1 Entering Instrument Station Data" 4. Set the azimuth angle for the backsight station. Press [OK] to return to <Offset>.

  • Page 98: Angle Offset Measurement

    17. OFFSET MEASUREMENT 6. Sight the offset point and press [MEAS] in the screen of step 5 to start measurement. Press [STOP] to stop the measurement. The measurement results are displayed. • Press [HVD/nez] to switch results for the target point between distance/angle values and coordinate/elevation values.
  • Page 99 17. OFFSET MEASUREMENT 3. Sight the offset point and press [MEAS] to start measurement. Press [STOP] to stop the measurement. 4. Sight the target point and press [H.ANG]. Results for target point • Press [HVD/nez] to switch results for the target point between distance/angle values and coordinate/elevation values.

  • Page 100: Two-Distance Offset Measurement

    17. OFFSET MEASUREMENT 17.3 Two-distance Offset Measurement By measuring the distances between the target point and the two offset points. Install two offset points (1st target and 2nd target) on a straight line from the target point, observe the 1st target and 2nd target, then enter the distance between the 2nd target and the target point to find the target point.
  • Page 101 17. OFFSET MEASUREMENT PROCEDURE 1. Install two offset points (1st target, 2nd target) on a straight line from the target point and use the offset points as the target. 2. Select "Offset" in <Menu> to display <Offset>. Select "5.Offset2D". 3. Press [CNFG] and input the distance from the 2nd target to the target point in "Offset dist.".
  • Page 102 17. OFFSET MEASUREMENT 5. Sight the 2nd target and press [MEAS] to start measurement. Press [STOP] to stop the measurement. The measurement results are displayed. 6. Press [YES] to display results for the target point. Press [HVD/nez] to switch results for the target point between distance/angle values and coordinate/elevation values.

  • Page 103: Missing Line Measurement

    18.MISSING LINE MEASUREMENT Missing line measurement is used to measure the slope distance, horizontal distance, and horizontal angle to a target from the target which is the reference (starting point) without moving the instrument. • It is possible to change the last measured point to the next starting position. •...
  • Page 104 18. MISSING LINE MEASUREMENT 2. Sight the starting position, and press [MEAS] to start measurement. Press [STOP] to stop measurement.  • When measurement data already exists the screen of step 3 is displayed and measurement starts. 3. Sight the next target and press [MLM] to Results for measurement between starting begin observation.

  • Page 105: Changing The Starting Point

    18. MISSING LINE MEASUREMENT 18.2 Changing the Starting Point It is possible to change the last measured point to the next starting position. PROCEDURE 1. Observe the starting position and target following steps 1 to 3 in "18.1 Measuring the Distance between 2 or more Points".
  • Page 106 18. MISSING LINE MEASUREMENT Press [YES] in the confirmation message window. • Press [NO] to cancel measurement. 3. The last target measured is changed to the new starting position. 4. Perform missing line measurement following steps 3 to 4 in "18.1 Measuring the Distance between 2 or more Points".

  • Page 107: Surface Area Calculation

    19.SURFACE AREA CALCULATION You can calculate the area of land (slope area and horizontal area) enclosed by three or more known points on a line by inputting the coordinates of the points Input Output S (horizontal area and slope Coordinates: P1 (N1, E1, Z1) Surface area: area)
  • Page 108 19. SURFACE AREA CALCULATION PROCEDURE Surface area calculation by measuring points 1. Select "Area calc." in <Menu> 2. Press [OBS] to display <Area calculation/ measurement>. Sight the first point on the line enclosing the area, and press [MEAS]. Measurement begins and the measured values are displayed.
  • Page 109 19. SURFACE AREA CALCULATION 3. The measurement results are displayed. Press [YES] to confirm.The value of point 1 is set in "Pt_01". 4. Repeat steps 2 to 3 until all points have been measured. Points on an enclosed area are observed in a clockwise or counterclockwise direction.
  • Page 110 19. SURFACE AREA CALCULATION 5. Press [CALC] to display the calculated area. 6. Press [OK] to return to <Area/key in coord.>.

  • Page 111: Changing The Settings

    20.CHANGING THE SETTINGS This section explains the contents of parameter settings in Basic mode and how to change these settings. Each item can be changed to meet your measurement requirements. <Configuration> can be accessed by pressing the "CONFIG" icon in <Top>. The following chapters provide details of items in Configuration mode.
  • Page 112 No*/Yes V.obs (vertical angle display method) :Zenith*/Horiz./Horiz ±90 Coordinates: N-E-Z*/E-N-Z Sea level crn. (Sea level correction) : Yes/No* Ang.reso. (Angle resolution): OS-101/102: 0.5"/1"* OS-103/105/107: 1"*/5" ppm setting: Press/Temp.*/+Humidity  Hdist The OS calculates horizontal distance using slope distance values. Horizontal distance display can be selected from the following methods.
  • Page 113 20. CHANGING THE SETTINGS  Collimation correction The OS has a collimation correction function that automatically corrects horizontal angle errors caused by horizontal axis and leveling axis errors. Normally set this item to "Yes".  Sea level correction The OS calculates horizontal distance using slope distance values. As this horizontal distance does not take height above sea level into consideration, performing spherical correction is recommended when measuring at high altitudes.

  • Page 114: Instrument Configuration

    20. CHANGING THE SETTINGS 20.2 Instrument Configuration Items set and options (*: Factory setting) Power off : No/5min./10min./15min./30min.* Backlight (Reticle On) : 0 to 8 (1*) (Brightness level on pressing {}) Backlight (Normal) : 0 to 8/Auto (Auto*) Backlight Off : No*/30sec/1min./5min./10min.
  • Page 115 20. CHANGING THE SETTINGS  Adjusting backlight brightness/turning the reticle illumination and key backlight ON/OFF Pressing { } switches the brightness level of the backlight in conjunction with the ON/OFF status of the reticle illumination/key backlight. When the OS is powered ON the brightness level is set to "Backlight (Normal)". "Backlight (Normal)"...

  • Page 116: Edm Settings

    20. CHANGING THE SETTINGS  EDM ALC Set the light receiving status of the EDM. While carrying out continuous measurement, set this item according to the measurement conditions. • When EDM ALC is set to "Free," the instrument’s ALC will be automatically adjusted if an error occurs as a result of the amount of light received.
  • Page 117 20. CHANGING THE SETTINGS • The setting for "Fine AVG" distance measurement mode can be increased/decreased using the [ + ]/[ - ] softkeys. • Target information can be edited and recorded.  "PROCEDURE Recording and editing target information" • "Prism constant" will not be displayed when "N-Prism" is selected in "Reflector". •...
  • Page 118 20. CHANGING THE SETTINGS  Atmospheric correction factor The velocity of the light beam used for measurement varies according atmospheric conditions such as temperature and air pressure. Set the atmospheric correction factor when you wish to take this influence into account when measuring. •...
  • Page 119 20. CHANGING THE SETTINGS Humidity h Humidity h • If the weather correction is not required, set the ppm value to 0. PROCEDURE Recording and editing target information The [LIST] softkey is displayed when either "Reflector" or "Prism const." is selected in the "EDM" tab of <EDM configurations>.

  • Page 120: Allocating User-Defined Tabs

    20. CHANGING THE SETTINGS 2. To edit a target, select the desired target and press [EDIT]. <Reflector/edit> is displayed. Select/input relevant information for the target. Reflector: Prism/Sheet/N-Prism Const.: -99 to 99 mm • When selecting "N-Prism" in "Reflector", prism constant correction values are set to "0" automatically.
  • Page 121 20. CHANGING THE SETTINGS • Setting out Coord. Factory settings User-definable tabs Graph1 Graph2  • Graphic tab cannot be deleted. PROCEDURE Allocating tabs 1. Select "Customize" to display <Customize/Select screen>. Select the measurement mode in which you want to allocate a tab. Select "Tab page".

  • Page 122: Customizing Screen Controls

    20. CHANGING THE SETTINGS 2. Use the softkeys ([ADD], [DEL] etc.) in <Customize tab page> to allocate the desired tab page layout. • Press [ADD] to add the selected tab at the right- hand side of the screen. • Press [INS] in the second page to insert the selected tab in front of the current tab.
  • Page 123 20. CHANGING THE SETTINGS PROCEDURE Customizing screen controls 1. Select "Customize" to display <Customize/Select screen>. Select the measurement mode in which you want to customize screen controls. Select "Control". 2. Press [ADD] to add a control drop-down list. • Press [DEL] to delete the selected control. ...

  • Page 124: Allocating Key Functions

    20. CHANGING THE SETTINGS 4. Press [CNFG] to set the size, thickness, color and spacing of the font. 5. Repeat steps 2 to 4 to customize more screen controls. 6. Press {ESC} to finish customizing screen controls. The modifications are stored in memory and <Customize>...
  • Page 125 20. CHANGING THE SETTINGS 3. "SHV" and "NEZ" tabs of <Set out Coords> Page 1 [ OK ] [ --- ][CNFG] [MEAS] Page 2 [ --- ] [ --- ] [ --- ] [ --- ] Page 3 [ --- ] [ --- ] [ --- ] [ --- ] The following functions can be allocated to the softkeys.
  • Page 126 20. CHANGING THE SETTINGS PROCEDURE Allocating a softkey 1. Select "Customize" to display <Customize/Select screen>. Select the measurement mode in which you want to allocate a softkey. Select "Softkey". 2. Select the desired tab. All softkeys currently allocated to each page of that tab are displayed. 3.

  • Page 127: Changing Starkey Mode Icons

    20. CHANGING THE SETTINGS 4. Select the desired softkey from <Softkey list> to allocate to the position specified in step 3. 5. Repeat steps 3 to 4 to perform further key allocations. 6. Press [OK] to finish allocating keys. The allocated keys are stored in memory and <Customize>...
  • Page 128 20. CHANGING THE SETTINGS PROCEDURE Changing icon allocations 1. Select "Customize" to display <Customize/Select screen>. Select "Starkey mode". 2. Select the icon (in the Starkey mode) you wish to re-allocate. Tap the icon to display <Starkey list>. 3. Select the new icon from <Starkey list>. The icon is allocated in the selected icon position.

  • Page 129: Units

    20. CHANGING THE SETTINGS 20.8 Units Items set and options (*: Factory setting) Temperature: Celsius*/Fahrenheit Pressure: hPa*/mmHg/InchHg Angle: Degree (DDD.MMSS)*/Gon/Mil Distance: Meter*/Feet/Inch Feet (only displayed when "Feet" or "Inch" selected above): International*/US  Inch (Fraction of an inch) “Fraction of an inch” is the unit used in the United States and expressed like the following example.

  • Page 130: Changing Password

    20. CHANGING THE SETTINGS 20.9 Changing Password Setting a password allows you to protect important information such as measurement data. No password was set when the OS was shipped. When setting a password for the first time, leave the "Old password" box blank. When a password has been set, the password screen will appear when the OS is powered ON.

  • Page 131: Date And Time

    20. CHANGING THE SETTINGS 20.10 Date and Time Items set Date: Manually input date or select from the drop-down calendar by tapping . Time: Manually input time or set using []/[]. Pressing {SPACE} will increment the selected section by 1. ...

  • Page 132: Warning And Error Messages

    21.WARNING AND ERROR MESSAGES The following is a list of the error messages displayed by the OS and the meaning of each message. If the same error message is repeated or if any message not shown below appears, the instrument has malfunctioned.
  • Page 133 21. WARNING AND ERROR MESSAGES Need base pt. obs During REM measurement, the observation of the target was not completed normally. Reset and sight the prism and perform measurement again. New password Diff. During new password setting, the passwords input twice are different. Input new password twice correctly.
  • Page 134 21. WARNING AND ERROR MESSAGES Time out !! Measurement is not carried out in the allotted time. Reset and sight the prism and perform measurement again.

  • Page 135: Checks And Adjustments

    22.CHECKS AND ADJUSTMENTS OS is a precision instrument that requires fine adjustments. It must be inspected and adjusted before use so that it always performs accurate measurements. • Always perform checking and adjustment in the proper sequence beginning from "22.1 Circular Level"...

  • Page 136: Tilt Sensor

    22. CHECKS AND ADJUSTMENTS 4. Adjust the adjusting screws until the tightening tension of the three screws is the same to align the bubble in the middle of the circle. 22.2 Tilt Sensor If the tilt angle shown on the display shifts from tilt angle 0° (zero point), the instrument is not correctly levelled.
  • Page 137 22. CHECKS AND ADJUSTMENTS 4. Level the instrument until the X/Y tilt angles are ±1’. Wait a few seconds for the display to stabilize, then read the current tilt angle in the X (sighting) direction and Y (horizontal axis) direction. 5.
  • Page 138 22. CHECKS AND ADJUSTMENTS PROCEDURE Rechecking 10. Select "Tilt offset". 11. Wait a few seconds for the display to stabilize, then read the automatically compensated angles X3 and Y3. 12. Press [OK] and rotate the top of the instrument and telescope through 180°. 13.

  • Page 139: Collimation

    22. CHECKS AND ADJUSTMENTS 22.3 Collimation With this option you can measure collimation error in your instrument so that the instrument can correct subsequent single face observations. To measure the error, make angular observations using both faces.  • Perform adjustment in weak sunlight and no scintillation. PROCEDURE Adjusting 1.

  • Page 140: Reticle

    22. CHECKS AND ADJUSTMENTS 6. While the telescope is in Face 2, sight the center of the target correctly and press [OK]. 7. Press [YES] to set the constant. • Press [NO] to discard the data and return to the screen in step 5.
  • Page 141 22. CHECKS AND ADJUSTMENTS 3. Use the fine motion screws to align the target to point B on a vertical line. If the target moves parallel to the vertical line, adjustment is unnecessary. If its movement deviates from the vertical line, have our service representative adjust it.

  • Page 142: Optical Plummet

    22. CHECKS AND ADJUSTMENTS 5. Do the calculations: A2-A1 and B2+B1 If A2-A1 is within 180°±20″and B2+B1 is within 360°±20″, adjustment is unnecessary. Example:A2-A1 (Horizontal angle) =198° 34' 20"- 18° 34' 00" =180° 00' 20" B2+B1 (Vertical angle) =269° 30' 00" + 90° 30' 20" =360°...

  • Page 143: Additive Distance Constant

    22. CHECKS AND ADJUSTMENTS 4. Remove the optical plummet reticle cover. 5. Use the 4 adjusting screws of the optical plummet 1 (2) to adjust the remaining half of the deviation as shown below. When the survey point is on the lower (upper) part of the illustration: Loosen the upper (lower) adjusting screw slightly, and tighten the upper (lower) adjusting screw the...
  • Page 144 22. CHECKS AND ADJUSTMENTS PROCEDURE Checking 1. Find an area of flat ground where two points 100m apart can be selected. Set up the Instrument at point A and the reflective prism at point B. Establish a point C half way between points A and B.

  • Page 145: Laser Plummet (Option)

    22. CHECKS AND ADJUSTMENTS 22.7 Laser Plummet (Option) Checks and adjustments are performed using an adjustment target. Make an enlarged or reduced copy of it. PROCEDURE Checking 1. Level the instrument and emit the laser plummet beam.  8.2 Levelling 2.
  • Page 146 22. CHECKS AND ADJUSTMENTS 4. Turn the upper part of the instrument horizontally through 180° and note the new position (y) of the laser beam. Desired final position Adjustment will bring the laser beam to a point midway along a line drawn between these two positions.
  • Page 147 22. CHECKS AND ADJUSTMENTS 8. Turn the upper part of the instrument horizontally and check that the laser beam is now aligned with the target center. 9. Re-attach the laser plummet adjustment cap.  • Tightening each of the fine adjustment screws moves the laser plummet beam in the directions shown below.

  • Page 148: Power Supply System

    23.POWER SUPPLY SYSTEM Operate your OS with the following combinations of power equipment.  • When using an external battery, mount the BDC70 in place to maintain the balance of the instrument. • Never use any combination other than those indicated below. If you do, the OS could be damaged. Those indicated by * are standard accessories.

  • Page 149: Prism System

    24.PRISM SYSTEM Arrangement according to your needs is possible. Target pole-2 Prism-2 Tilting prism holder-2 Tilting prism Single prism with target plate-2 holder-3 holder-2 Plug-4 Tribrach Tribrach adaptor-2 adaptor-S2 Pole adaptor- A Pole adaptor- F2 Optical plummet tribrach Tribrach TR-112 TR-102 Tilt single prism unit Tripod...

  • Page 150: Optional Accessories

    25.OPTIONAL ACCESSORIES The following are optional accessories which are sold separately from the OS.  Power supply and target optional accessories: "23. POWER SUPPLY SYSTEM", "24. PRISM SYSTEM". Plumb bob  The plumb bob can be used to set up and center the instrument on days when there is little wind.
  • Page 151 25. OPTIONAL ACCESSORIES Diagonal eyepiece (DE27)  The diagonal eyepiece is convenient for DE27 observations near the nadir and in narrow spaces. Magnification: 30X After removing the handle from the OS loosen the attachment screw to remove the telescope eyepiece. Then screw the diagonal lens into place. ...

  • Page 152: Specifications

    Except where stated, the following specifications apply to all OSs. Telescope Length 171mm Aperture 45mm (1.8 inch) (EDM: 48mm (1.9 inch)) Magnification Image Erect Resolving power OS-101/102/103/105: 2.5" OS-107: 3.5" Field of view 1°30' (26m/1,000m) Minimum focus 1.3m (4.3ft) Focussing screw 1 speed...
  • Page 153 26. SPECIFICATIONS Distance measurement Measuring method Coaxial phase-contrast measuring system Signal source Red laser diode 690nm Class 3R (IEC60825-1 Ed. 3.0: 2014/FDA CDRH 21CFR Part1040.10 and 1040.11 (Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.)) (When target (reflector) is set to prism or reflective sheet, the output is equivalent to Class 1)
  • Page 154 26. SPECIFICATIONS Rapid measurement: (6 + 2ppm X D) mm (0.3 to 200m) (8 + 10ppm X D) mm (over 200 to 350m) (15 + 10ppm X D) mm (over 350 to 500m) (Reflectorless (Gray)) Fine measurement (3 + 2ppm X D) mm (0.3 to 100m) (5 + 10ppm X D) mm (over 100 to 170m) (10 + 10ppm X D) mm (over 170 to 220m) Rapid measurement:...
  • Page 155 26. SPECIFICATIONS Guide Light Light source LED (red 626 nm/green 524 nm) Distance 1.3 to 150m Visible range Right and Left/Upward and Downward: ± 4° (7m/100m) Resolving power at center area (width) 4’ (about 0.12/100m) Brightness 3 levels (bright/normal/dim) Internal memory Capacity 500 MB (includes memory for program files) External memory...
  • Page 156 26. SPECIFICATIONS Charging time per battery (at 25°C): BDC70: about 5.5 hours (Charging can take longer than the times stated above when temperatures are either especially high or low.) Charging temperature range: 0 to 40°C Storage temperature range: -20 to 65°C Size: 94 (W) X 102 (D) X 36 (H) mm Weight:...

  • Page 157: Explanations

    27.EXPLANATIONS 27.1 Manually Indexing the Vertical Circle by Face 1/2 Measurement The 0 index of the vertical circle of your OS is almost 100% accurate, but when it is necessary to perform particularly high precision angle measurements, you can eliminate any inaccuracy of the 0 index as follows.

  • Page 158: Correction For Refraction And Earth Curvature

    27. EXPLANATIONS 27.2 Correction for Refraction and Earth Curvature The instrument measures distance, taking into account correction for refraction and earth curvature. Distance Calculation Formula Distance Calculation Formula; with correction for refraction and earth curvature taken into account. Follow the Formula below for converting horizontal and vertical distances. Horizontal distance D = AC(α) Vertical distance Z = BC(α) D = L{cosα...

  • Page 159: Regulations

    OS series Trade Name: TOPCON CORPORATION Manufacture Name: TOPCON CORPORATION Address: 75-1, Hasunuma-cho, Itabashi-ku, Tokyo, 174- 8580 JAPAN Country: JAPAN U.S.A. Representative Responsible party: TOPCON POSITIONING SYSTEMS,INC. Address 7400 National Drive Livermore, CA94551, U.S.A Telephone number: 925-245-8300 California, Proposition U.S.A.
  • Page 160 28. REGULATIONS Region/ Directives/ Labels/Declarations Country Regulations Perchlorate California, Material U.S.A. (CR Lithium Battery) California Recycling and NY, Batteries U.S.A. This Class A digital apparatus meets all requirements of Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la Class A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
  • Page 161 EMC-Class B Name: TOPCON CORPORATION R&TTE-Class Address: 75-1, Hasunuma-cho, Itabashi- ku, Tokyo, 174-8580 JAPAN Europe Representative Name: Topcon Europe Positioning B.V. Representative Director: Jim Paetz Address: Essebaan 11, 2908 LJ Capelle a/d IJssel, The Netherlands 　 WEEE Directive WEEE Directive This symbol is applicable to EU members states only.
  • Page 162 28. REGULATIONS Region/ Directives/ Labels/Declarations Country Regulations EU Battery Directive Battery This symbol is applicable to EU members states only. Directive Battery users must not dispose of batteries as unsorted general waste, but treat properly. If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration.
  • Page 163 28. REGULATIONS Region/ Directives/ Labels/Declarations Country Regulations Chinese China Environment al Directive Republic KC:Class A of Korea Taiwan...

  • Page 164: Index

    29.INDEX Ack mode ...........................42 Adjusting backlight brightness/turning the reticle illumination and key backlight ON/OFF ..109 Atmospheric correction factor ....................112 Automatic tilt angle compensation mechanism ................106 Bluetooth connections ........................41 Bluetooth device address ......................45 Cold boot ............................39 Collimation correction .......................107 Date and Time ..........................125 EDM ALC ..........................110 Eliminating parallax ........................52 Guide light ..........................11...
  • Page 165 Please see the attached address list or the following website for contact addresses. GLOBAL GATEWAY http://global.topcon.com/ © 2012 TOPCON CORPORATION ALL RIGHTS RESERVED...
