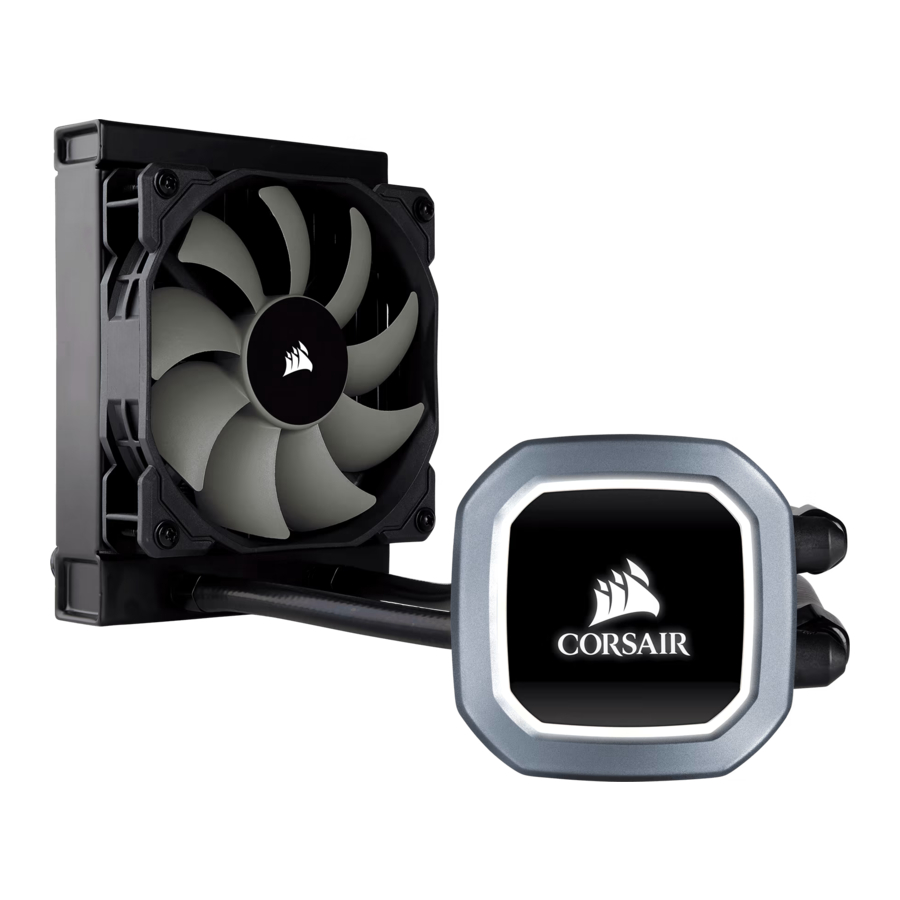

CORSAIR HYDRO H60 Manual

IMPORTANT INFORMATION

Note: Most newer PC cases include a CPU cutout to allow access to the bottom of the motherboard. If your case does not include a cutout, you will need to remove your motherboard from the case before installation.

INTEL

Included Hardware

Highlighted parts for Intel installation only

Note: The H60 comes with Intel mounting bracket pre-installed on the pump for quick installation.

Intel Installation

  1. Installing the Intel Backplate
    Note: Intel LGA 2011 and LGA 2066 does not require backplate installation. Proceed to step 2.
    Intel Installation - Step 1 - Install Backplate
  2. Installing the Intel Stando Screws
    Intel Installation - Step 2
    • Attach the provided Intel stando.
    • Use (B) for LGA 115X/1366, or (C) for LGA 2011/2011-3/2066.
    • Tighten all four screws until firmly secure.
  3. Install the Fan and Radiator
    Mount the radiator and fan to your case's rear 120mm fan opening.
    Note: For best cooling performance, we recommend mounting the fan as an air intake to your PC case.
    Intel Installation - Step 3 - Install fan/radiator
  4. Installing the Pump Unit
    Intel Installation - Step 4 - Install pump unit
    • Align the bracket and pump over the stando screws as shown.
    • Tighten the thumbscrews until all four corners are firmly secured.
  5. Connect Power to the Fan and Pump
    • Connect pump power cable to an available SATA power plug (figure 1).
    • Connect pump tach cable to the CPU_FAN header on your motherboard (figure 2).
    • Connect fan tach cable to a 4 pin header on your motherboard (figure 3).

AMD

Included Hardware

Highlighted parts for AMD installation only

AMD Installation

  1. Installing the AMD Mounting Bracket
    Note: It is important that the AMD retention bracket be evenly secured on all sides before installation.
    • Remove the integrated Intel mounting bracket (figure 1).
      AMD Installation - Step 1 - Install the bracket
    • Install the AMD bracket by pushing both sides into the slot on the pump until secure (figure 2).
  2. Install the Fan and Radiator
    Mount the radiator and fan to your case's rear 120mm fan opening.
    Note: For best cooling performance, we recommend mounting the fan as an air intake to your PC case.
    AMD Installation - Step 2 - Install fan & radiator
  3. Prepare the Mounting Bracket
    Insert the AMD screw clips and secure with the screws as shown. Do not tighten the thumbscrews all the way.
    AMD Installation - Step 3
  4. Install the Pump Unit
    Align the bracket with the Stock AMD mounting clips as shown. Tighten the thumbscrews until secure.

    AMD Installation - Step 4 - Install the Pump Unit
  5. Connect Power to the Fan and Pump
    • Connect pump power cable to an available SATA power plug (figure 1).
    • Connect pump tach cable to the CPU_FAN header on your motherboard (figure 2).
    • Connect fan tach cable to a 4 pin header on your motherboard (figure 3).

FAQ

  1. How do I know the direction of the air flow of the fan?
    An arrow located on the side of the fan indicates the direction of air flow.
  2. Can I reuse the pre-applied thermal paste on the H60 for a re-installation?
    Re-installation of the H60 cooler will require you clean o the pre-applied thermal paste and apply an aftermarket paste.
  3. Where can I purchase additional radiator screws for push-pull configuration?
    Additional screws can be purchased from www.corsair.com

Please visit: corsair.com to download a detailed user guide or to obtain technical support.

WEB: corsair.com
PHONE: (888) 222-4346
SUPPORT: support.corsair.com
BLOG: corsair.com/blog
FORUM: forum.corsair.com
YOUTUBE: youtube.com/corsairhowto
