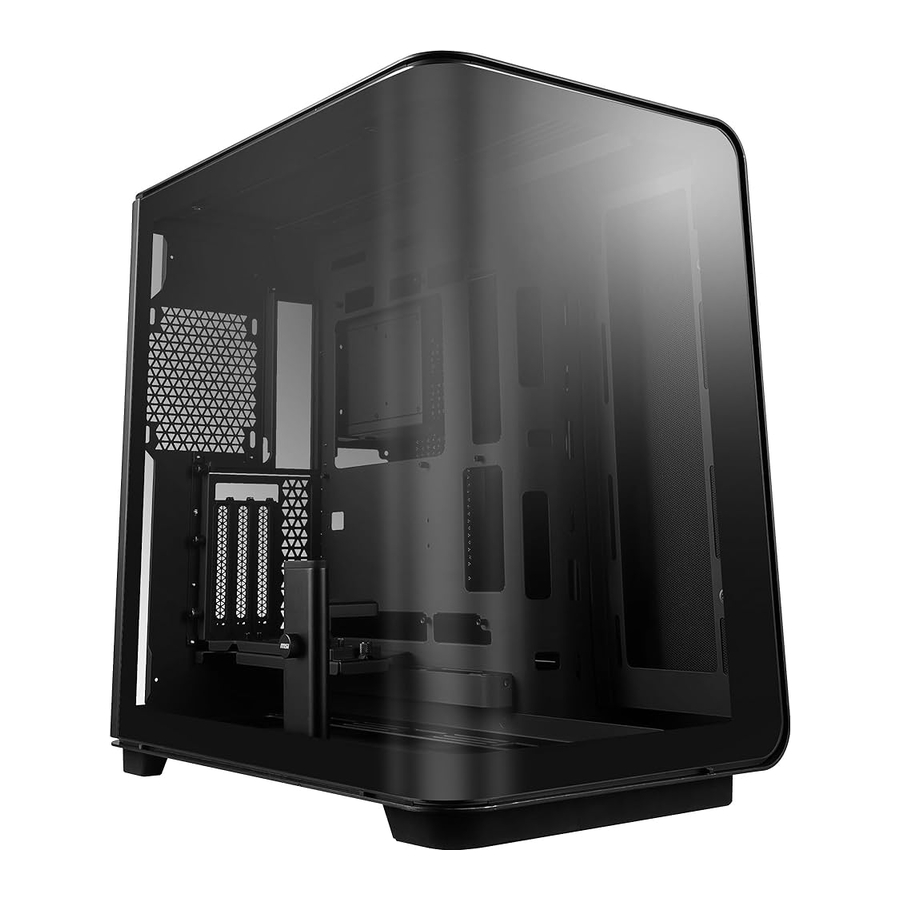

MSI MEG Series, MEG MAESTRO 700L PZ Manual
Specifications
Basic Information
| Product Name | MEG MAESTRO 700L PZ |
| Color | Black |
| Case Type | Mid Tower |
| Dimensions (DxWxH) | 470 x 300 x 474 mm |
| Supported Motherboard | EATX, ATX*, Micro-ATX, Mini-ITX * Supports ATX back-connect motherboard |
Cooling Fan Support
| Top | 3 x 120mm or 3 x 140mm |
| Front | No |
| Rear | 1 x 120mm |
| Side | 3 x 120mm |
| Bottom | 3 x 120mm or 3 x 140mm |
Expansion Slots
| Horizontal GPU Bracket | 7 slots |
| Vertical GPU Bracket (pre-installed) | 3 slots |
Drive Bays
| 2.5" SSD or 3.5" HDD | 2 |
I/O Ports and Buttons
| USB Ports | 2 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen 2x2 Type-C |
| Audio Ports | 1 x Audio/Microphone combo jack |
| Buttons | 1 x Power button 1 x Reset button |
Chassis Clearances
| Maximum CPU Cooler Height | 170 mm |
| Maximum GPU Length | 430 mm |
| Top Radiator Support | 360 mm |
| Rear Radiator Support | 120 mm |
| Side Radiator Support | 360 mm |
| Bottom Radiator Support | 360 mm |
| PSU Support | 230 mm |
Materials
| Metal Specification | SPCC + Aluminum |
| Front Bezel Material | Aluminum + Tempered Glass |
| Left Side Panel | 4mm tempered glass |
| Right Side Panel | Aluminum |
| Top Bezel | Aluminum |
| Dust Filter | Top: Metal filter Bottom: Metal filter |
| GPU holder | Aluminum + Steel |
Accessory Box 1
Accessory Box 2
Case Features
Side and Front View
I/O and Buttons
| Item | Description |
| 1 | Audio/Microphone combo jack |
| 2 | USB 3.2 Gen 2 Type-C port |
| 3 | USB 3.2 Gen1 Type-A port |
| 4 | Reset button |
| 5 | Power button |
Glass Cover Removal
Side Panel Removal
Motherboard Installation
Vertical Graphics Card Installation
Vertical Graphics Card Bracket Removal
Horizontal Graphics Card Installation
GPU Holder Installation and Adjustment
SSD & HDD Installation
PSU Installation
Fan Compatibility and Setup
Radiator Compatibility and Setup
Top Panel I/O Connection
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
