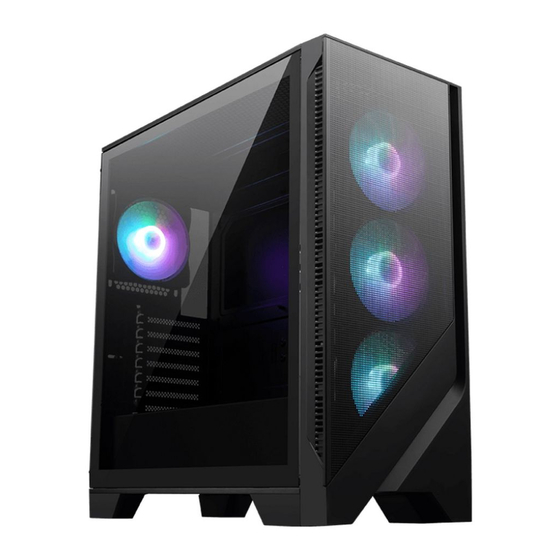

- Page 1 MAG Series PC Case MAG FORGE 320R AIRFLOW MAG FORGE 120A AIRFLOW User Guide...
-
Page 2: Table Of Contents
Contents Specifications .....................3 Accessories ......................5 Case Features (320R) ..................6 Case Features (120A) ..................7 Side and Front View ...................8 I/O and Buttons (320R) ..................9 I/O and Buttons (120A) ..................10 Side Panel Removal ..................11 Front Bezel Removal ..................12 Motherboard Installation .................13 Graphics Card Installation ................14 SSD &... -
Page 3: Specifications
Specifications Comparison of Key Differences MAG FORGE 320R MAG FORGE 120A Product Name AIRFLOW AIRFLOW Dimensions (DxWxH) 472.5 x 210 x 498 mm 411.6 x 210 x 498 mm 120 / 140 / 240 / 280 / 360 Top Radiator Support 120 / 240 mm Top: 2 x 120mm Auto- Top: No... - Page 4 Expansion Slots PCIe Slots 7 slots I/O Ports and Buttons USB Ports 2 x USB 3.2 Gen1 Type-A 1 x Audio jack Audio Ports 1 x Micphone jack 1 x Reset button (120A / 320L) Buttons 1 x Power button 1 x LED switch button (120A / 320R) Chassis Clearances Maximum CPU Cooler Height...
-
Page 5: Accessories
Accessories Item Name / Q’ty Used for Cable ties Cable management Screw #6-32 10mm Securing drive tray Stand-off #6-32 6.5mm Motherboard Stud Screw M3 5mm Motherboard / SSD Screw #6-32 6mm Securing PSU / PCIe Card Screw #6-32 5mm 3.5” HDD PCIe slot cover PCIe slot protection 1 to 4 fan splitter cable... -
Page 6: Case Features (320R)
Case Features (320R) -
Page 7: Case Features (120A)
Case Features (120A) -
Page 8: Side And Front View
Side and Front View 320R 472.5mm 210mm 120A 411.6mm 210mm... -
Page 9: I/O And Buttons (320R)
I/O and Buttons (320R) Item Description USB 3.2 Gen 1 5Gbps Type-A port Microphone jack Audio jack LED switch button Power button... -
Page 10: I/O And Buttons (120A)
I/O and Buttons (120A) Item Description LED switch button USB 3.2 Gen 1 5Gbps Type-A port Microphone jack Audio jack Reset button Power button... -
Page 11: Side Panel Removal
Side Panel Removal... -
Page 12: Front Bezel Removal
Front Bezel Removal... -
Page 13: Motherboard Installation
Motherboard Installation... -
Page 14: Graphics Card Installation
Graphics Card Installation... -
Page 15: Ssd & Hdd Installation (320R)
SSD & HDD Installation (320R) -
Page 16: Ssd & Hdd Installation (120A)
SSD & HDD Installation (120A) -
Page 17: Psu Installation
PSU Installation... -
Page 18: Top Panel I/O Connection
Top Panel I/O Connection HD AUDIO F_PANEL JUSB JAUD1 JFP1 (USB 3.2 Gen1) -
Page 19: Control Board Connection (320R)
Control Board Connection (320R) LED Switch button ARGB LED ARGB LED Motherboard ARGB connector Power supply’s SATA connector Addressable RGB LED Strip Connection ARGB extension cable ARGB strip ARGB connector Addressable RGB LED Fan Connection ARGB connector Motherboard’s Fan connector ARGB Fan ARGB ARGB... - Page 20 ⚠ IMPORTANT ∙ Please always turn off the power supply and unplug the power cord from the power outlet before installing or removing the ARGB LED Strip. Supports a maximum of 128 LEDs. Exceeding this limit may result in overheating, ∙...
-
Page 21: Control Board Connection (120A)
Control Board Connection (120A) LED Switch button Auto-RGB Fan Auto-RGB Fan Power supply’s SATA connector 5V G 12V ⚠ IMPORTANT The control board’s fan header is a special specification and is not compatible with ∙ standard ARGB and RGB fans. ∙... -
Page 22: General Information
Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied.
