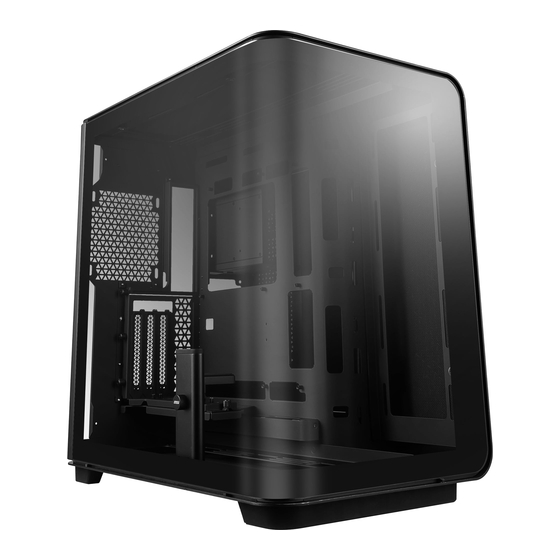

- Page 1 MEG Series PC Case MEG MAESTRO 700L PZ User Guide...
-
Page 2: Table Of Contents
Contents Specifications .....................3 Accessory Box 1 ....................5 Accessory Box 2 ....................6 Case Features ....................7 Side and Front View ...................8 I/O and Buttons ....................9 Glass Cover Removal ..................10 Side Panel Removal ..................11 Motherboard Installation .................12 Vertical Graphics Card Installation ..............13 Vertical Graphics Card Bracket Removal............14 Horizontal Graphics Card Installation .............15 GPU Holder Installation and Adjustment ............16 SSD &... -
Page 3: Specifications
Specifications Basic Information Product Name MEG MAESTRO 700L PZ Color Black Case Type Mid Tower Dimensions (DxWxH) 470 x 300 x 474 mm EATX, ATX*, Micro-ATX, Mini-ITX Supported Motherboard * Supports ATX back-connect motherboard Cooling Fan Support 3 x 120mm or 3 x 140mm Front Rear 1 x 120mm... - Page 4 Chassis Clearances Maximum CPU Cooler Height 170 mm Maximum GPU Length 430 mm Top Radiator Support 360 mm Rear Radiator Support 120 mm Side Radiator Support 360 mm Bottom Radiator Support 360 mm PSU Support 230 mm Materials Metal Specification SPCC + Aluminum Front Bezel Material Aluminum + Tempered Glass...
-
Page 5: Accessory Box 1
Accessory Box 1 Item Name / Q’ty Used for Cable ties Cable management Screw M3 5mm Motherboard / SSD Screw #6-32 6mm Securing PSU / PCIe Card Stand-off #6-32 6.5mm Motherboard Stud Stand-off Mounting Tool Securing motherboard / PCIe riser cable Screw #6-32*8*12mm 3.5”... -
Page 6: Accessory Box 2
Accessory Box 2 Item Name / Q’ty Used for Spare silicone pad Graphics card bracket Screw label Installing in the GPU holder screw Screw #6-32*6 Securing the graphics card bracket GPU holder Supporting the horizontal graphics card... -
Page 7: Case Features
Case Features... -
Page 8: Side And Front View
Side and Front View 470mm 300mm... -
Page 9: I/O And Buttons
I/O and Buttons Item Description Audio/Microphone combo jack USB 3.2 Gen 2 Type-C port USB 3.2 Gen1 Type-A port Reset button Power button... -
Page 10: Glass Cover Removal
Glass Cover Removal... -
Page 11: Side Panel Removal
Side Panel Removal... -
Page 12: Motherboard Installation
Motherboard Installation... -
Page 13: Vertical Graphics Card Installation
Vertical Graphics Card Installation... -
Page 14: Vertical Graphics Card Bracket Removal
Vertical Graphics Card Bracket Removal... -
Page 15: Horizontal Graphics Card Installation
Horizontal Graphics Card Installation... -
Page 16: Gpu Holder Installation And Adjustment
GPU Holder Installation and Adjustment... -
Page 17: Ssd & Hdd Installation
SSD & HDD Installation... -
Page 18: Psu Installation
PSU Installation... -
Page 19: Fan Compatibility And Setup
Fan Compatibility and Setup 140mm x 3 120mm x 3 140mm x 3 120mm x 3... -
Page 20: Radiator Compatibility And Setup
Radiator Compatibility and Setup 280/360mm 280/360mm... -
Page 21: Top Panel I/O Connection
Top Panel I/O Connection HD AUDIO F_PANEL JUSB JUSB JAUD1 JFP1 (USB 3.2 Gen2) (USB 3.2 Gen1) -
Page 22: General Information
Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied.
