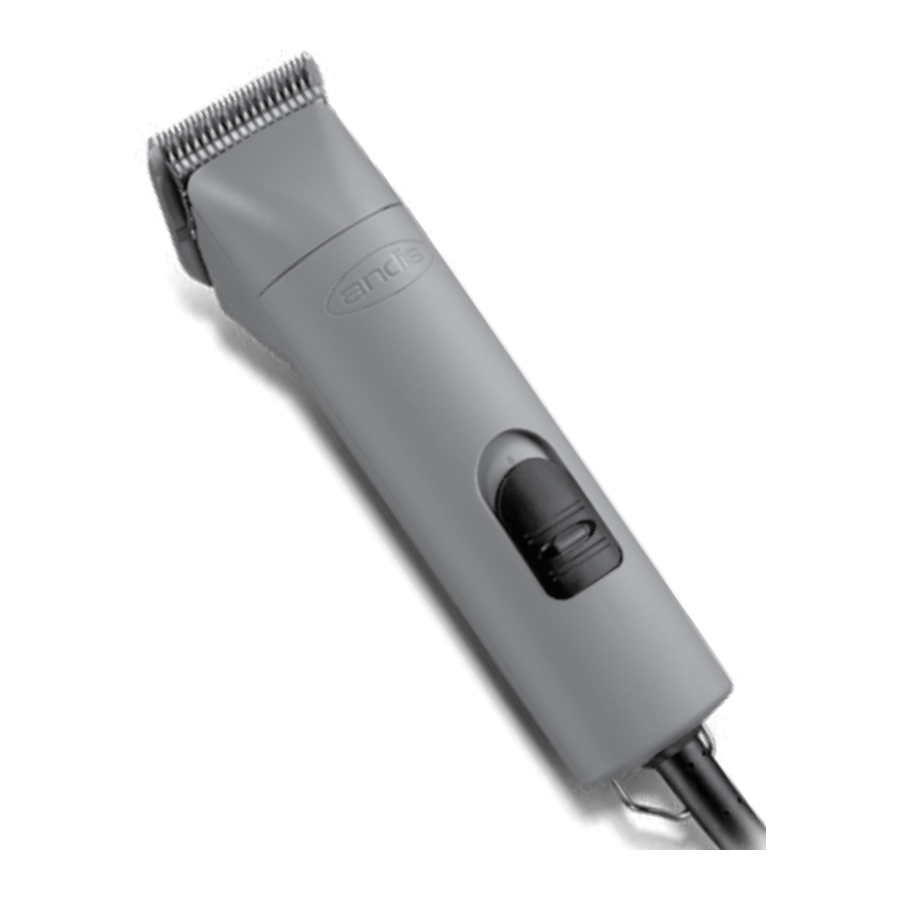

Andis AGCB Manual

OPERATING INSTRUCTIONS

Plug cord into electrical outlet, operate 100-240 volt, 50-60 cycle AC electrical current or as noted on unit.

UNIVERSAL AC/DC POWER ADAPTER
The unit is equipped with a universal AC/DC power adapter

Interchangeable input plugs are included for use in most countries around the world (Included plugs may vary by model).

INSERTING INPUT PLUG:

1. Unplug AC/DC power adapter from wall outlet.
2. Insert tabs on top of plug into slots on power adapter.

3. Push lower half of plug towards power adapter until it snaps into place.

REMOVING INPUT PLUG:

1. Unplug AC/DC power adapter from wall outlet.
2. Push up on tab on bottom of plug until plug releases from adapter.

2-SPEED OPERATION
Your Andis clipper is equipped with two cutting speeds. The speeds are adjusted using the slide switch actuator on the top of the unit (Figure H). Setting "O" indicates the off position, Setting "1" is low speed and Setting "2" is high speed. After using your Andis clipper, rewrap cord and store in a safe place.

REMOVING BLADE SET

To remove blade set, first make sure your clipper motor is switched "Off". Push blade release mechanism under blade hinge (Figure I). While holding down the blade release mechanism, push down on blade, then gently pull the blade forward (Figure J) and slide it off the blade hinge. If your blade hinge should snap closed and is flush with the clipper, use a small standard screwdriver to pry the tongue of the hinge out (Figure K). NOTE: Hair may accumulate in the front cavity of the housing under the blade. If this happens, you can clean out the hair by brushing out the cavity with a small brush or an old toothbrush while the blade is off the clipper.

REPLACING OR CHANGING BLADE SET

To replace or change your blade set, slide the blade bracket onto the hinge of the clipper (Figure L) and with the clipper turned "ON", push the blade towards the clipper to lock into position.

USER MAINTENANCE

Cleaning and user maintenance shall not be made by children without supervision.
The internal mechanism of your motor clipper has been permanently lubricated by the factory. Other than the recommended maintenance described in this manual, no other maintenance should be performed, except by Andis Company, or an Andis authorized service station.
If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

BLADE TEMPERATURE
Due to the high speed nature of Andis clippers, please check for blade heat often, especially on close cutting blades. If blades are too hot, dip the blades only into Andis Blade Care Plus or apply Andis Cool Care Plus and then Andis Clipper Oil. With this detachable blade unit, you can change your blade in order to maintain a comfortable temperature; using multiple blades of the same size is popular among groomers.

CARE AND SERVICING OF YOUR ANDIS CLIPPER BLADES

Blades should be oiled before, during, and after each use. If your clipper blades leave streaks or slow down, it's a sure sign blades need oil. Place a few drops of oil on the front and side of the cutter blades (Figure M). Wipe excess oil off blades with a soft, dry cloth. Spray lubricants contain insufficient oil for good lubrication, but are an excellent clipper blade coolant. Always replace broken or nicked blades to prevent injury. You can clean the excess hair from your blades by using a small brush or worn out toothbrush. To clean the blades, we suggest to immerse the blades only into a shallow pan of Andis Blade Care Plus, while the clipper is running. Any excess hair and dirt that has accumulated between the blades should come out. After cleaning, turn your clipper off and dry blades with a soft, clean, dry cloth and start clipping again.

If upon cleaning your blades you find that the blades will still not cut, there may be a few fine pieces of hair trapped between the upper and lower blade. If this happens, you will need to snap the blade off the clipper. Proceed to slide the upper blade to one side, without loosening the tension spring or moving the upper blade completely out from under the tension spring (See Figure N for position of blade). Wipe the surface between the blades clean with a dry cloth, then place a drop of clipper oil where the upper and lower blades meet and also in the guide slot of the tension spring (Figure N). Now slide the upper blade to the opposite side of the lower blade and repeat this process. After completing this procedure, slide the upper blade, centering it over the lower blade. Handle or store your Andis Clipper with the blades down so excess oil will not run into the clipper case.

CHANGING THE BLADE DRIVE ASSEMBLY

If your clipper blades no longer cut properly (be sure to try more than one blade, since the blade currently being used may be dull), it could be that your blade drive assembly needs replacement.

TO CHANGE THE BLADE DRIVE ASSEMBLY:

1. Remove blade set (Figure J).
2. Remove drive cap.

3. Remove blade drive mounting screws.

4. NOTE: Before removing blade drive assembly, note the way it is positioned (this will help you in reassembly). Remove blade drive assembly.

5. Drive bearing should be at its lowest position, if not, move it with your finger to lowest position.

6. Put on new drive assembly, align screw holes and press down (Figure Q).
7. Reassemble blade drive by mounting screws (Figure P).
8. Replace drive cap (Figure O).
9. Replace blade (Figure L).

FACTORY REPAIR SERVICE

When the blades of your Andis clipper become dull after repeated use, it is advised to purchase a new set of blades available through your Andis supplier or through an Andis authorized service station.

Never handle your Andis clipper while you are operating a water faucet and never hold your clipper under a water faucet or in water. There is danger of electrical shock and damage to your clipper. ANDIS COMPANY will not be responsible in case of injury due to this carelessness.

IMPORTANT SAFEGUARDS

This appliance is designed to be used in commercial areas.
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using the Andis clipper. This product not for use by children.

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately. Never use clipper near water.
2. Do not use while bathing or in a shower.
3. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Always unplug this appliance from the electrical outlet immediately after using. Unplug by holding and pulling on plug, not cord.
5. Unplug this appliance before cleaning, removing, or assembling parts.

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. An appliance should never be left unattended when plugged in.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Andis.
5. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to an Andis authorized service station for examination and repair.
6. Keep the cord away from heated surfaces.
7. Never drop or insert any object into any opening.
8. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
9. Do not use this appliance with a damaged comb or broken blade, as injury to the skin may occur.
10. To disconnect turn control to "Off" then remove plug from outlet.
11.
    During use, do not place or leave appliance where it may be
    1. damaged by an animal or
    2. exposed to the weather.
12. Oil blades frequently. Blades may become hot during use.
13. Keep the appliance dry.
14. The appliance is intended for trimming purposes only.

Andis Company
1800 Renaissance Blvd., Sturtevant, WI 53177 U.S.A.
1-262-884-2600
andis.com
