COMPASS HEALTH TENS 7000 Manual

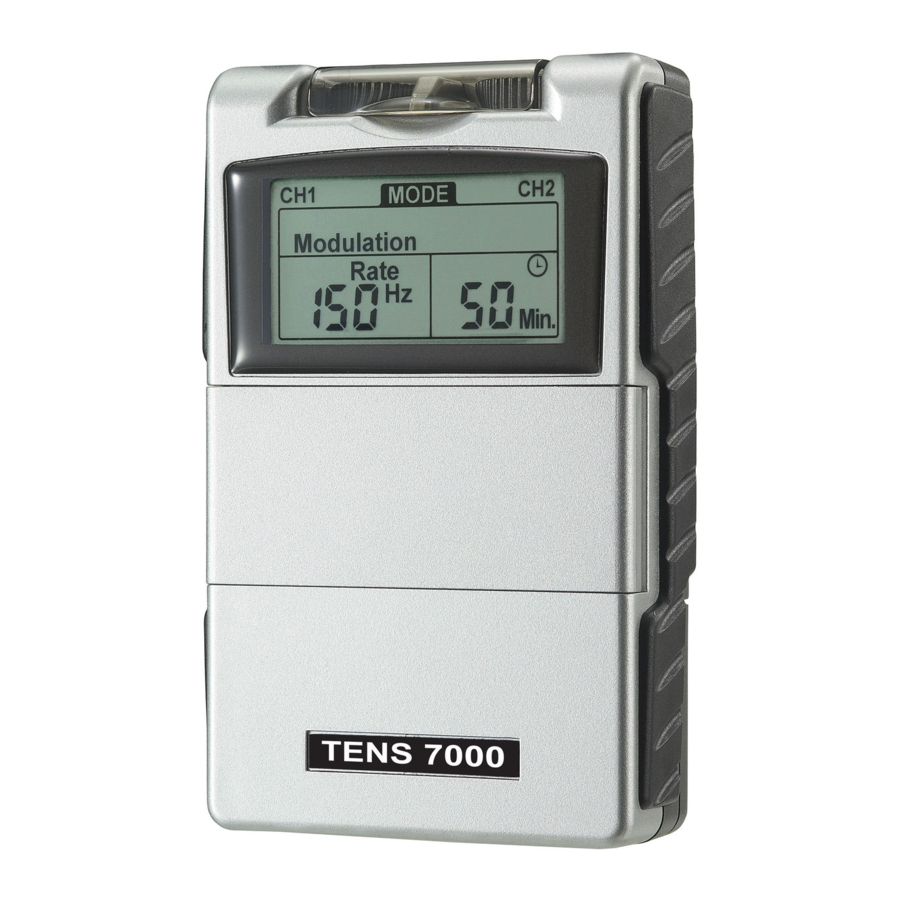

TENS 7000™ UNIT

1. Lead connector sockets - 2 channels
2. On / / intensity dial - 2 channels
3. Panel cover with reference guide
4. Liquid crystal display (LCD)
5. Mode selection button
6. Set selection button
7. Increment control / increase button
8. Increment control / decrease button
9. Protective cover
10. Belt clip

SPECIAL FEATURES

The placement of electrodes can be one of the most important parameters in achieving success with TENS therapy. If the initial results are not positive, speak to your physician about alternative stimulation settings and/or electrode placement. Once desired results are achieved, mark down the electrode sites and settings for future reference. The TENS 7000™ features two protective covers that prevent unintentional changes to settings.
Turn on device by rotating the dial clockwise and select the desired intensity level. Turn off device by turning dial counterclockwise to 0.
Low battery indicator signals when battery is low. Replace battery when stimulation feels weaker.

INSERT BATTERY

Press arrow and slide battery compartment cover open. Insert 9V battery, matching the + and – ends to those in unit.
The battery should be placed on top of the compartment ribbon to allow easy battery removal.

USAGE

Steps 1-3 should be performed with the device turned OFF.
Once the unit has been turned ON, do not remove the belt without first turning OFF the device.

1. CONNECT LEAD WIRES TO ELECTRODES
   Firmly insert the end of the lead wire pin into the electrode connectors.
   Make sure the connection is complete and no bare metal of the pins is exposed.

2. CONNECT LEAD WIRES TO DEVICE
   Select one of the two available channels and insert the lead wire firmly into the socket.

3. PLACE ELECTRODES ON SKIN
   Remove electrodes from protective backing. Keep backing to properly store electrodes after use.
   Before applying electrodes, make sure the skin at the application site is clean and dry.

   See Electrode Placement Guide for more information.
4. TURN DEVICE ON AND SELECT INTENSITY
   By turning the controls clockwise, the appropriate channel is switched on and the indicator of power (CH1 and CH2) is revealed in the LCD.
   The stimulation output will increase as the dial is turned clockwise or to a higher number.
   1 = Weaker
   8 = Stronger

5. SELECT THERAPY MODE
   There are 5 modes available: Burst, Normal, Modulation, SD1 and SD2. Press the MODE button and continue to press until you have reached your desired setting.

6. SELECT PULSE WIDTH
   The pulse width is adjusted from 50us to 300us. Press the SET button to enter this menu, then press the and buttons to adjust the setting.
   Unless otherwise instructed, a setting of 70-120us is suggested.

7. SELECT PULSE RATE
   The pulse rate is adjusted from 2Hz to 150Hz. Press the SET button to enter this menu, then press the and buttons to adjust the setting. Unless otherwise instructed, a setting of 70-120Hz is suggested.

8. SET THE TIMER
   The treatment time is adjustable from 1 to 60 minutes, or Continuous (C). Press the and buttons to adjust the setting. Your settings will be stored permanently unless they are adjusted again.


COMPLIANCE METER

This unit can store 60 sets of operation records. The total treatment time can store up to 999 hours.
To check and/or delete individual records, press the MODE button as you turn on the device. The LCD will show the number of records and operation time. Press the and buttons to check each record. To delete a record, press and hold the SET button for 3 seconds.
To check and/or delete the accumulative record, press the MODE button to switch to this setting. Press the SET button first, the press MODE and hold for 3 seconds; all of the records will be deleted, followed by the sound of a beep.
