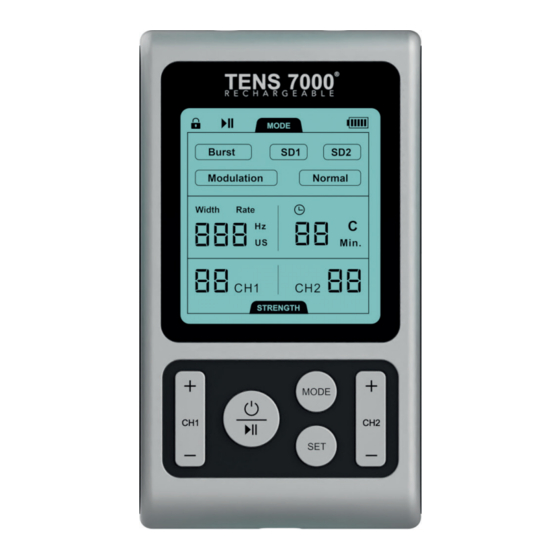

COMPASS HEALTH TENS 7000 Rechargeable User Manual
Hide thumbs
Also See for TENS 7000 Rechargeable:
- Quick start manual ,
- Instruction manual (24 pages) ,
- Quick reference manual (2 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for COMPASS HEALTH TENS 7000 Rechargeable
Summary of Contents for COMPASS HEALTH TENS 7000 Rechargeable
- Page 1 USER MANUAL...
- Page 2 TENS 7000 Rechargeable Device ® This user manual is published by Compass Health Brands Corp. Compass Health Brands does not guarantee its contents and reserves the right to improve and amend it at any time without prior notice. Amendments may however be published in new editions of this manual.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Legal Notice ______________________________________________________ 4 Limited Warranty __________________________________________________ 5 Foreword _________________________________________________________ 7 Indications for Use _________________________________________________ 7 Symbols __________________________________________________________ 8 Precautionary Definitions ___________________________________________ 9 Warnings and Cautions _____________________________________________ 10 Product Description ________________________________________________ 14 Contraindications __________________________________________________ 14 Technical Specifications _____________________________________________ 15 Mode Description / Parameters _____________________________________ 16 Device Inspection __________________________________________________ 17 Device Construction________________________________________________ 17... -
Page 4: Legal Notice
(or excepts thereof) are prohibited without the prior consent of Compass Health Brands Corp. Compass Health Brands Corp reserves the right to change the software and associated data without notice. All other rights reserved. For questions about your TENS 7000 Rechargeable Device: ®... -
Page 5: Limited Warranty
LIMITED WARRANTY Congratulations on the purchase of your TENS 7000 Rechargeable Device. ® Compass Health Brands Corp, warrants that your TENS 7000 Rechargeable ® Device is free of defects in material and workmanship. This warranty shall remain in effect for one (1) year* from the date of the original end user purchase. - Page 6 To obtain replacement parts, service or a replacement device under this warranty: A claim must be made within the warranty period directly to Compass or the company from whom you purchased the device. 2. An RMA number must be obtained from Compass in order to receive replacements parts and/or return defective product under the warranty.
-
Page 7: Foreword
FOREWORD This manual has been written for the owners and operators of the TENS 7000 ® Rechargeable. It contains general information on the instructions for safety, intended use, working principle, operation, maintenance, trouble shooting, and warranty. In order to maximize the use, efficiency, and working life of your unit, please read this manual thoroughly and become familiar with the controls, as well as the accessories, before operating the unit. -
Page 8: Symbols
SYMBOLS Symbols on the device and throughout the manual: Manufactured for: Correct Disposal of This Product (Waste Electrical & Electronic Equipment) Statement: Contact the local authorities to determine the proper method of Medical Device disposal of potentially bio-hazardous parts and accessories. Medical Device Type BF applied part complying with IEC 60601-1 This symbol indicates that this device is a Class II equipment according to... -
Page 9: Precautionary Definitions
PRECAUTIONARY DEFINITIONS The precautionary instructions found in this section and throughout this manual are indicated by specific symbols. Understand these symbols and their definitions before operating this equipment. The definition of these symbols is as follows: CAUTION Text with a “CAUTION” indicator will explain possible safety infractions that could have the potential to cause minor to moderate injury or damage to equipment. -
Page 10: Warnings And Cautions
WARNINGS AND CAUTIONS Please read the user manual entirely before using the TENS 7000 ® Rechargeable and take care of what follows: WARNING Read, understand, and practice the precautionary operating instructions. Know the limitations and hazards associated with using the TENS 7000 ®... - Page 11 • DO NOT apply pulsed electrostatic fields while the patient is driving, operating machinery, or during any activity in which pulsed electrostatic fields can put the patient at risk of injury. • DO NOT use this device if you have a cardiac pacemaker, implanted defibrillator, or other implanted metallic or electronic device.
- Page 12 • If the unit is not functioning properly or you feel discomfort, immediately stop using the unit. If you feel any discomfort with your body or skin, consult the doctor and follow his/her instructions. • The adhesive electrodes are for single patient use only, DO NOT use on another patient, to prevent infection.
- Page 13 • Handle the device with care. DO NOT drop, knock, or shake the device. Rough handling can damage internal circuit boards. • DO NOT press, bend or damage the electric cable. • Please charge the device at least every three months during long-term storage.
-
Page 14: Product Description
PRODUCT DESCRIPTION The TENS 7000 Rechargeable device is a powerful non-invasive alternative ® for safe and effective pain relief. It was designed with 5 different advanced modes to relieve your pain when you need it the most. All the parameters are adjustable on the easy to read large digital display screen, that uses tiny electrical pulses through electrodes attached to the skin, to decrease the perception of pain. -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS GENERAL Product Name TENS 7000 Rechargeable ® Product Model DT7303 Device Dimensions 110 x 62 x 20 mm Screen Size 44 x 48 mm PERFORMANCE Channels Output Waveform Symmetrical Biphasic Pulse Output Voltage Adjustable, 0-100mA(p-p), at 1000 ohm load Device Intensity 50 levels Pulse Width... -
Page 16: Mode Description/Parameters
MODE DESCRIPTION/PARAMETERS Pulse Width and Pulse Rate are 1) Timing: adjustable. This mode creates 10~90 minutes continuous stimulation based on the setting value. Normal 2) Frequency: Mode 2-150Hz 3) Pulse width: 50-300μS Burst Rate: Adjustable from 0.5-5Hz Pulse Width: 50-300us 1) Timing: Frequency fixed: When 0.5-1hz, adjust 10~90 minutes... -
Page 17: Device Inspection
DEVICE INSPECTION Item Description Item # TENS 7000 Rechargeable device DT7303 Each ® Black Carrying Case CC7303 Each 45” Black lead wires WW3005 Pack USB Charging Cord DT7303X Each TENS 7000 Electrodes (2”x 2” White Cloth) DT7202-PK1 Pack ® Instruction Manual Each DEVICE CONSTRUCTION 1. -
Page 18: Accessories
Place the electrodes on the liner and Shape: Square remove the lead wire by twisting and Qty: 4/pk pulling at the same time. Manufactured for: Compass Health Brands Corp. Care and Storage Middleburg Heights, OH 44130 Between uses, store the electrodes in the SAMPLE UDI resealable bag in a cool, dry place. -
Page 19: Set Up Instructions
SET UP INSTRUCTIONS Prepping the Treatment Area Proper preparation of the treatment area, covered by the electrodes, allows more stimulation to reach targeted tissues, prolongs electrode life, and reduces the risk of skin irritation. After connecting the lead wire(s) to the stimulator, use the following steps to prepare your skin at the electrode placement sites: Determine the placement sites for the electrodes. -
Page 20: Setting Treatment
Setting Treatment NOTE: DO NOT turn the unit on until all electrodes (2 or 4) and lead wires are properly attached. Turn on the unit by pressing the Selecting the Mode This device includes five treatment modes to choose from: •... -
Page 21: Adjusting Therapy Intensity Level And Start Treatment
Adjusting Therapy Intensity Level and Start Treatment Once all the parameters have been set, gradually increase the intensity on CH1 by pressing the + button for the corresponding lead wire and electrode connected, at the top of the device, until a comfortable stimulation is felt. -
Page 22: Maintenance And Storage
MAINTENANCE AND STORAGE INSTRUCTIONS 1. Alterations and repairs Any repairs or modifications to the device, attempted by anyone other than the manufacturer, will immediately void the warranty. DO NOT attempt repairs or modifications on the the device, as it can negatively affect the safety and performance of the device, as well as cause harm to the individual using the device. -
Page 23: Storage
3. Never apply the electrodes to any other surface other than your skin. If the electrodes become soiled or dirty, the adhesive quality may decrease. In this case, moisten the surface of the electrode with one tiny drop of water and wipe away the dirt. This may allow one additional use of the electrode, only if the electrode is completely adhered to the treatment area with no lifting. -
Page 24: Technical Checks
4. Technical checks Technical checks on the device should be performed every 24 months. These include: 1. Checking the device for completeness. 2. Visual check: • for mechanical damage • or damage to all cables and connections 5. Disposal of the Unit To dispose of the unit, its accessories and packing materials, take appropriate actions in accordance with the rules and regulations in force in your area to prevent adverse ecological effects. -
Page 25: Troubleshooting
Were the pads stored under Replace the pad. high temperature, high humidity, or direct sunshine? If the above measures are not effective, please contact your distributor or Compass Health Brands Tech Support at Tel: 800-376-7263 Option 2; WEB: www.compasshealthbrands.com... -
Page 26: Electromagnetic Compatibility
Electromagnetic Compatibility Important information regarding Electro Magnetic Compatibility (EMC) With the increased number of electronic devices such as PC and mobile (cellular) telephones, radio transceivers, mobile radio transmitters, radio- controlled toys, and so on, Medical devices in use may be susceptible to electromagnetic interference from other device. - Page 27 There is no guarantee that interference will not occur in a particular installation. Radiated or conducted electromagnetic signals can cause: 1) As to devices: • Deviation of the values of pulse duration, amplitudes, and repetition frequencies, may impair the unit’s essential performance. The device has passed EMC highest interference level test, and the parameters do not deviate the essential performance requirement.
- Page 28 Manufactured for: Compass Health Brands Corp. 6753 Engle Road, Middleburg Heights, OH 44130 Ph: 800-376-7263 www.compasshealthbrands.com Made in China 3571.22.08.A ©2022 Compass Health Brands Corp.
Need help?
Do you have a question about the TENS 7000 Rechargeable and is the answer not in the manual?
Questions and answers
Tens 7000 continues to run after the therapy cycle completes but the screen does not show any display. Unable to switch off when the on/off button is pressed. What do I do?
If the COMPASS HEALTH TENS 7000 Rechargeable continues to run after the therapy cycle and the screen is blank, manually turn off the device by pressing and holding the On/Off switch until the display goes blank and the device powers off. In an emergency, pull the connector(s) from the device and remove the electrode pads, but only after the device is turned off to avoid electric shocks.
This answer is automatically generated

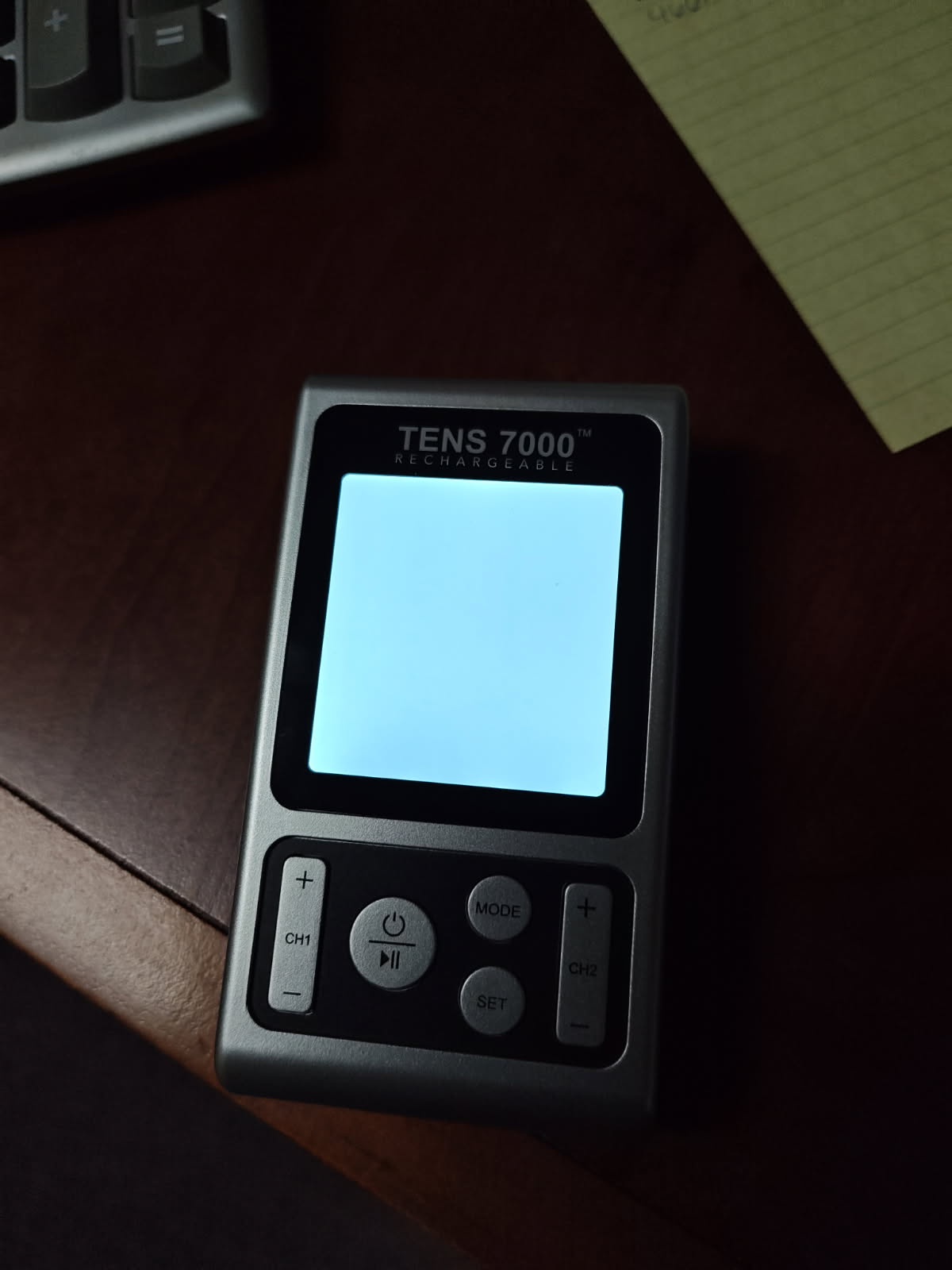

The screen on my unit is lit up but there is no display. I cannot turn it on or off. It is fully charged and was working great, then it stopped and is acting as described
Tens 7000 will not power down. Screen fully lit but blank
