INSTRUCTION MANUAL
- for the -
DT7310 TENS 7000
®
SPORT MASSAGE + EMS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TENS 7000 and is the answer not in the manual?

Questions and answers

Related Manuals for COMPASS HEALTH TENS 7000

Summary of Contents for COMPASS HEALTH TENS 7000

  • Page 1 INSTRUCTION MANUAL - for the - DT7310 TENS 7000 ® SPORT MASSAGE + EMS...
  • Page 2 TENS 7000 SPORT MASSAGE + EMS This instruction manual is published by Compass Health Brands Corp. Compass Health Brands Corp. reserves the right to improve and amend it at any time without prior notice. Amendments may however be published in new editions of this manual.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Glossary of Symbols ..........4 2. Introduction............. 6 2.1 Explanation of TENS........6 2.2 Explanation of EMS......... 6 2.3 Explanation of MASSAGE ....... 6 2.4 Indications for Use ........... 6 3. Important Safety Precautions and Warnings............7 3.1 Prohibited Conditions........

  • Page 4: Glossary Of Symbols

    1. Glossary of Symbols Symbols Meaning Caution Warning Type BF Applied Part Electrical devices are recyclable material and should not be disposed of with household waste after their useful life! Help us to protect the environment and save resources and take this device to the appropriate collection points.
  • Page 5 Symbols Meaning Made in China Serial Number Item Number This device complies with part 15 of the FCC Rules. Transportation and storage 40°C temperature from 32°F to 104°F (0°C - 40°C) 0°C Transportation and storage humidity limits from 10% to 90% 1060hPa Transportation and storage atmospheric pressure limits from...

  • Page 6: Introduction

    2. Introduction 2.1 Explanation of TENS Transcutaneous Electrical Nerve Stimulation (TENS) is a non-invasive, drug-free method of pain control. TENS uses tiny electrical impulses sent through the skin to nerves to modify your pain perception. 2.2 Explanation of EMS Neuromuscular Electrical Stimulation (EMS) sends electronic pulses to the muscle needing treatment, causing the muscle to exercise passively.

  • Page 7: Important Safety Precautions And Warnings

    Important Safety Precautions and Warnings 3.1 Prohibited Conditions ●The wire is broken. ●The electrode pads are NOT sticky, deformed or damaged. ●The lead wire connection port is broken. 3.2 Prohibited Individuals ● Pregnant women, infants and children. ● People who DO NOT have the ability to express their thoughts or intentions.

  • Page 8: Prohibited Activities

    ● Sites on or near cancerous lesions. ● Skin that lacks normal sensation. ● DO NOT use the electrode pads in the following two areas at the same time because the current may cause heart rhythm disorders or even cause death. a.
  • Page 9 broken, excessively swollen and red, infected and inflamed, or rash skin (e.g. phlebitis, thrombophlebitis, varicose veins). ● DO NOT apply ointment or solvent to the electrode pads or the treatment area. ● The electrode pads should NOT touch metal objects like belt buckles, necklaces, or other metal worn under clothes.

  • Page 10: Package Contents

    ● Keep electrode pads out of the reach of children or pets. 4. Package Contents ● TENS 7000 SPORT MASSAGE + EMS Device x 1 ● Electrode Pads (40*40mm) x 4 ● Pad Holder x 1 ● Lead Wires x 2 ●...

  • Page 11: Device Display

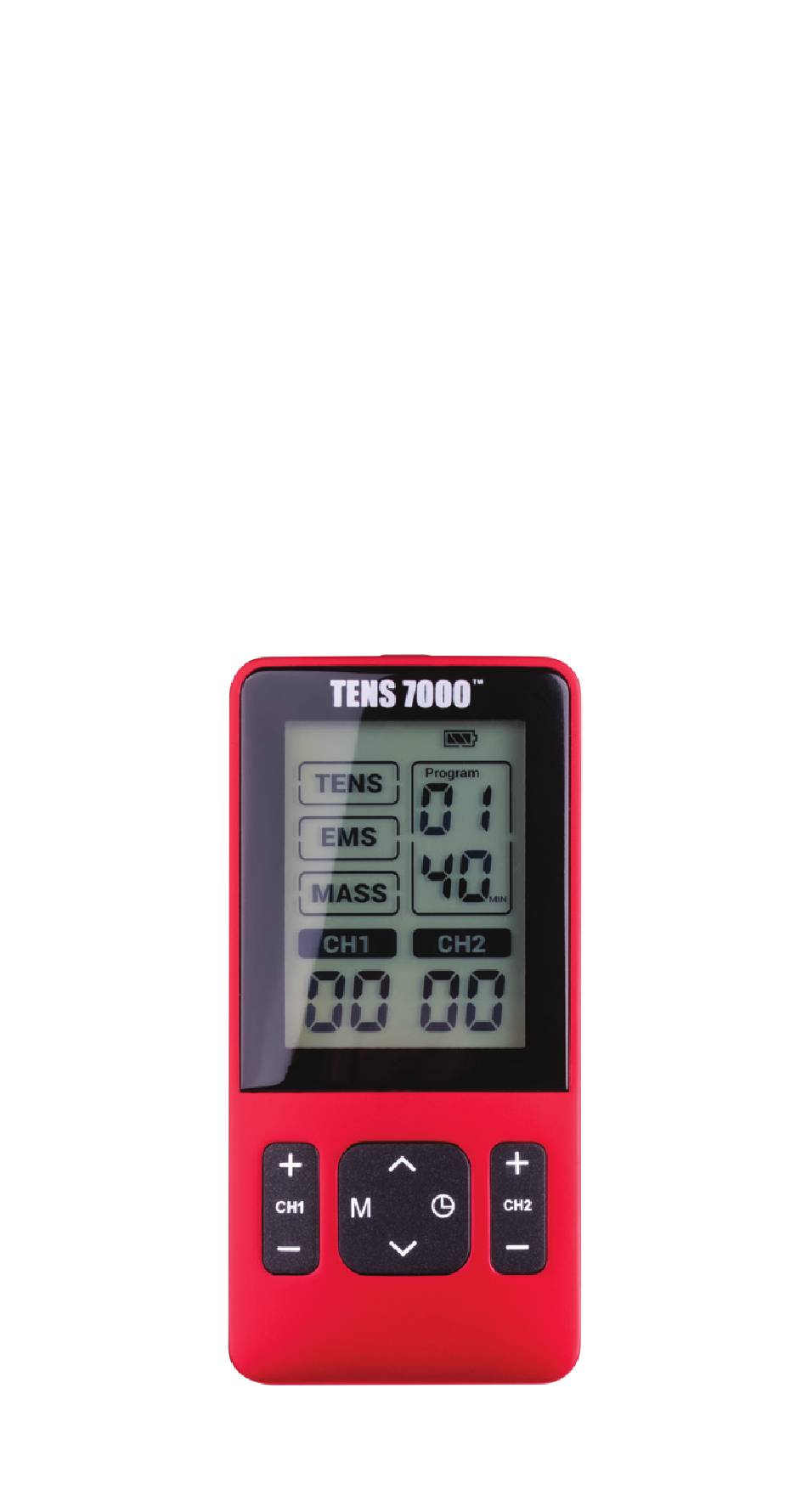

    5. Device Display Power on/off and Intensity increase(+) ⑧ ① lock/unlock button /decrease(-)—CH1 ② Lock indicator ⑨ Intensity increase(+) /decrease(-)—CH2 ③ Mode indicator ⑩ Mode selection ④ Intensity levels(CH1/CH2) ⑪ Time selection ⑤ Battery indicator Program selection ⑫ ⑥ Program indicator USB-C port ⑬...

  • Page 12: Specifications

    6. Specifications 6.1 Technical Information Mechanism Technical Description Model DT7310 Waveform Symmetrical Bi-Phasic Square Pulse Voltage 0-140V (Load: 1000 ohm) Power source 250mAh lithium battery Size 10.7cm(L)x5.2cm(W)x1.4cm(H) Weight 5°C-40°C (41°F-104°F) with a O p erating relative humidity of 30%-75%, atmospheric pressure from Condition 700-1,060 hPa 0°C –...

  • Page 13: Mode And Program Information

    6.2 Mode and Program Information...

  • Page 14: Operating Instructions

    7. Operating Instructions 7.1 Charging the Battery Insert the USB-C Cable into the charging port of the device. Then connect the standard USB plug of the cable to the appropriate power supply device which can output max. 5V/2A. When the battery indictor stops rolling and is at full status, remove the USB-C Cable from the charging port of the device.

  • Page 15: Note Before Use

    Note Before Use ● DO NOT use this device during charging. ● The backlight of the screen will automatically come off after 30 seconds of no operation; the machine will automatically shut down when the set time is over. ● You may experience tingling, trembling, or muscle pulling when using the device, so please try out all the modes and select the one that's most comfortable for you.

  • Page 16: Using Your Device

    7.3 Using Your Device 1. Clean and dry the application area. DO NOT attach electrode pads to hairy and broken skin. NOTE: Use the electrode pads on hairless, clean skin with no oil or sweat present, as these will reduce electrode pad adhesion. 2.
  • Page 17 3. Grab the corner of the electrode pad and peel it off the protective film. DO NOT pull the wire directly. Attach one pair of electrode pads to the massage area and press the edge of the electrode pads firmly on your skin to make sure there is full contact.
  • Page 18 5. Mode selection: Select a mode by pressing the [M] button. There are 3 modes (TENS, EMS, MASS) to choose from. NOTE: The intensity of the channel will revert to the lowest setting with each mode selection. 6. Program selection: Select a program by pressing the [ and [ ] buttons.
  • Page 19 8. Lock and unlock the screen by pressing the [ ] button. In lock status, the lock icon ] displays at the top left of the LCD. The intensity and mode can't be adjusted when the device is locked. In the stimulation state, you can also press the intensity decrease (-) buttons to unlock the device.

  • Page 20: Electrode Placement Guide

    8. Electrode Placement Guide This guide gives tips and practical advice on how to use the device on body parts and muscles. For each indication, the guide gives suggestions on where to place the electrode pads. The placement of electrode pads can be one of the most important parameters in achieving success with therapy.
  • Page 21 • any area of your head (including your temples, mouth, or eyes).* • directly over your heart. • your chest and upper back at the same time. • both legs, feet, arms or hands at the same time. • reproductive organs.* •...
  • Page 22 Wrist / Hand Elbow Lower Back / Lumbar Calf Knee / Joint Ankle / Foot...
  • Page 23 RECOMMENDED MASSAGE PLACEMENT SHOULDER BACK...

  • Page 24: Electrode Pads & Pad Holder

    9. Electrode Pads & Pad Holder 9.1 Features The Electrode Pad Holder is made of high- quality ABS to ensure it is used safely. T h e s a l i e n t p o i n t s o f t h e p a d h o l d e r a r e designed specially to lessen damage to the electrode pads.

  • Page 25: Cleaning And Maintenance

    Step 4 Store the electrode pads in the storage bag. 10. Cleaning and Maintenance 10.1 Cleaning the Unit Turn unit off and disconnect the lead wires from the unit. Clean the device after use with a soft, slightly moistened cloth and wipe gently. ●...

  • Page 26: Storing Device, Electrode Pads, And Lead Wires

    more use prior to replacing with new electrode pads. See below for instructions on how to reconstitute electrode pads. ● Place a small drop of water on your cleaned fingertip and rub the water across the entire gel part. Place the electrode gel part face up and let it air dry until the water is absorbed and reconstituted.

  • Page 27: Disposal

    ● Organize the lead wires and charging cable with the cable ties and store all of them in the pouch. ● Place the device, electrode pads, and wires back into the case. Store in a cool, dry place ranging from 32°F~104°F (0°C ~ 40°).

  • Page 28: Troubleshooting

    12. Troubleshooting If your device is not operating properly, please check below for common problems and suggested solutions. Problem Possible Cause Possible Solution The intensity is Try to increase the not increased intensity for the right for the right channel and wait for channel.
  • Page 29 Problem Possible Cause Solution Different body Try to change the areas react position of the One pad differently. electrode pads. feels Poor wire con- Plug the wire into the stronger nection. output port complete- than the ly. If it does not work, other.
  • Page 30 Electrode pads Ensure the electrode are not adhered pads are securely to the skin adhered to the skin. properly. The electrode Replace with a new pad surface is electrode pad. worn out. The buttons are If there’s a lock icon locked.

  • Page 31: Limited Warranty

    13. Limited Warranty All TENS 7000 models carry a limited warranty of one year from the date of delivery. The limited warranty applies to the stimulator only and covers both parts and labor relating thereto. The limited warranty does not apply to damage...
  • Page 32 4) Liability for direct or indirect consequential losses caused by the device is excluded even if the damage to the device is accepted as a limited warranty claim. Manufactured for: Compass Health Brands Corp. 6753 Engle Rd Middleburg Heights, OH 44130 www.compasshealthbrands.com 800.871.7858 Made in China ©2025...
