ProtoArc EM01 Manual

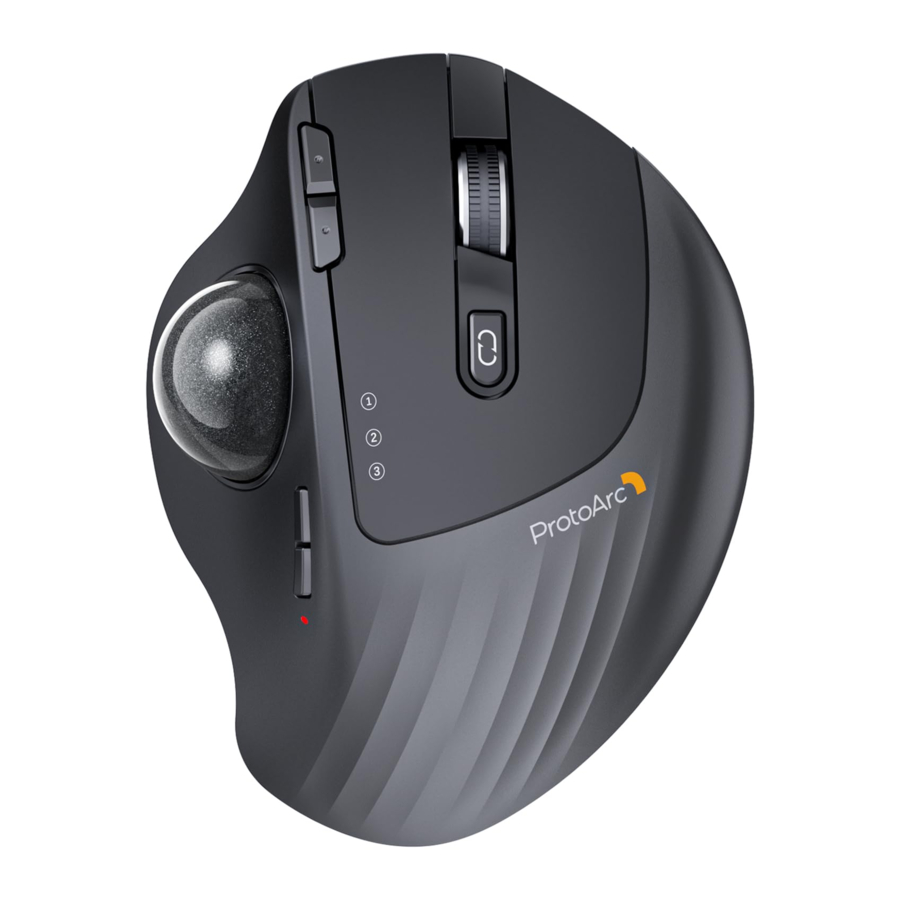

Product Features

1. Left Button
2. Right Button
3. Forward Button
4. Backward Button
5. Trackball
6. Led Rim Light
7. Light Switch Button
8. DPI Button
9. Charging/DPI Indicator
10. Scroll Wheel
11. Switch Device Button
12. 2.4G Indicator
13. Wireless 1 Indicator
14. Wireless 2 Indicator
15. TYPE-C Charging Port
16. Power Switch
17. USB Receiver

Light switch button: Press lightly to switch lights, long press for three seconds to turn off the light effect.
Light mode:

1. Streamer mode (Default)
2. Breathing mode
3. Mixed color breathing mode
4. Neon mode

Adjustable mouse grip angle

2.4G USB Connection

1. Turn on the power switch to ON.

2. Take out the receiver.

3. Press the mode switch button until the white light is on and enter 2.4G mode.

4. Insert the usb receiver into your computer's usb port.


Bluetooth Connection

1. Turn on the power switch to ON.

2. Press the mode switch button and switch to or mode, the white light flashes slowly.

3. Press and hold the mode switch button for 3~5 seconds until the white light flashes quickly, then the mouse enters the Bluetooth pairing mode.


Windows 10 System

4. Click "Bluetooth device"

5. Click "Add or remove a Bluetooth device"

6. Your computer will automatically search for "ProtoArc EM01" and then click "pair"

7. "ProtoArc EM01" is connected and can be used normally


Mac OS System

Please complete the Bluetooth mode installation step 123 before pairing.

4. Click "System Preferences" on Mac

5. Click "Bluetooth" in "System Preferences"

6. Your computer will automatically find "ProtoArc EM01", then click "pair", and you can use it after installation.


iOS System

Only the system above iOS 13 supports the mouse function.
Please complete the Bluetooth mode installation step 123 before pairing.

4. Click Settings on your device, then turn on Accessibility

5. Click Touch

6. Turn on Assistive Touch

7. Click Settings on the device, then turn on Bluetooth

8. Your computer will automatically find "ProtoArc EM01", then click "Pair", complete pairing

9. "ProtoArc EM01" is connected and can be used normally


Android system

Please complete the Bluetooth mode installation step 123 before pairing.

4. Click Settings on the device, then turn on Bluetooth

5. Your computer will automatically find "ProtoArc EM01", then click "pair", complete pairing.

6. "ProtoArc EM01" is connected and can be used normally


Charging Function Guide

When the power is insufficient, the charging indicator and the corresponding channel indicator flash until it is turned off. Please connect the power supply for charging in time, and use the USB cable to connect the TYPE-C charging Port.

Connect the charging cable to the USB port of the computer, the charging indicator is always on during charging, the charging time is about 1-3.5 hours and the indicator light turns off when charging is complete.

How to switch connection mode

After BTI, BT2 and 2 4G USB mode is connected, press the mode switch button on the top Of the mouse to switch between multiple devices.

Press the mode switch button on the top of the mouse to switch between 3 devices

Data parameters

Basic parameter:
Chip: Nordic NRF51802W
Movement Detection Technology: Optical
Lithium battery Capacity: 900mA
DPI: 1000-1600-2400
Click life: 3 million+
Dimension: 133* 101*51mm
Weight: 190g

Bluetooth transmission parameters:
Transmission distance: 10m
Working Voltage: 3.7V
Working current: 4mA
Reaction rate: 125Hz
System requirement:
Bluetooth-enable device
Windows 8, Windows 10 or higher version
Mac OS x 10.10 or higher version
Android 4.3 or higher version

2.4G transmission parameters:
Transmission distance: 20m
Working Voltage: 3.7 V
Working current: 5.5mA
Reaction rate: 250Hz
System requirement:
An available USB port
Windows XR Windows 7, Windows 8, Windows 10 or higher version Mac OS x 10.10 or higher version

What's in Package

• 1 x Wireless Mouse
• 1 x USB Receiver
• 1 x Type C Charging Cable
• 1 x User Manual
