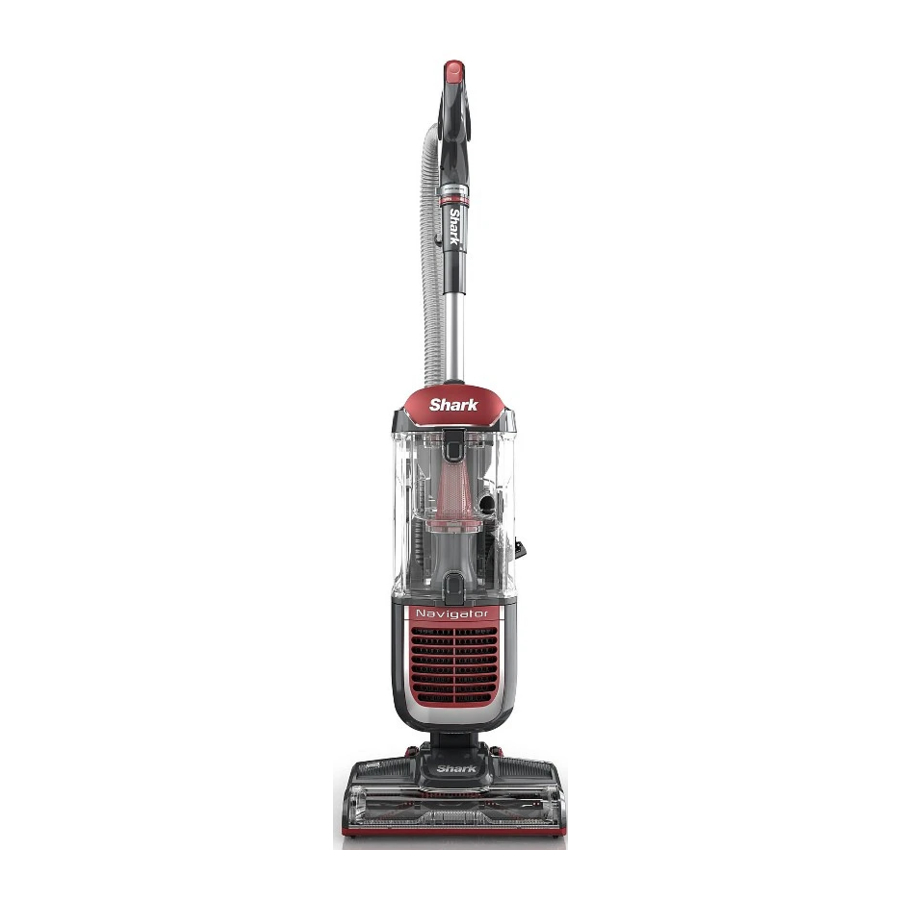

Shark Navigator Swivel Pro Complete, NV181 - Upright Vacuum Manual

ASSEMBLY

1. Insert the Wand into the Pod.
2. Insert the Handle into the top of the wand.
3. Connect the Hose to the back of the pod.
4. Insert the C-clip into the back of the pod.
5. Insert the hose into the C-clip and the hose holder.
6. Store Accessories on the Tool Storage Posts.

For proper operation, ensure all parts are firmly clicked into place.

Use cord holder on the side of wand to hold cord in place while vacuuming.

WHOLE-HOME CLEANING

SETTINGS

BRUSHROLL INDICATOR LIGHT

WHAT DOES THE BRUSHROLL INDICATOR LIGHT MEAN?

Solid Green: The brushroll is spinning and working as intended.

Solid Red: There is a jam in the brushroll area. Turn off and unplug the vacuum and remove any blockages in the nozzle.

Flashing Red: The motorized floor nozzle is overheating. Turn the vacuum off and wait a minimum of 60 minutes for the unit to cool down. See Troubleshooting section for more information.

CLEANING MODES

To engage Brushroll, turn on the power, step on the floor nozzle, and tilt handle back.

Press the Handle Release button and pull up on the handle to detach it from the wand. Attach an accessory to the handle.

Press the Wand Release button and pull up on the wand to detach it from the pod. Attach an accessory to the wand.

EMPTYING THE DUST CUP

Unplug the power cord before performing any maintenance. Empty the dust cup each time you vacuum and periodically during cleaning, when debris in the dust cup reaches the MAX fill line.

To remove Dust Cup, slide up the release button on the dust cup handle. Tilt dust cup forward, then lift to remove.

To remove collected debris from Lint Screen, press the top release button and lift the handle to open the dust cup. Gently brush lint screen to clean.

Press the release button to open bottom of dust cup.

To reinstall, place the bottom of dust cup onto the pod and then tilt until it clicks into place.

CLEANING AND REPLACING THE FILTERS

CLEANING FILTERS

Regularly rinse and replace the filters to maintain your vacuum's suction power.

To prevent damage from cleaning chemicals, rinse filters with cold water only. Allow all filters to air-dry for at least 24 hours before reinstalling them to prevent liquid from being drawn into electronic parts.

DO NOT use soap when cleaning the filters.

RINSE PRE-MOTOR FILTERS
EVERY MONTH
Remove Dust Cup, then lift out Filters.

RINSE HEPA FILTER
EVERY YEAR
Remove dust cup, tilt Filter Door and firmly pull it off. Press tab at top of HEPA Filter and pull out filter. To reinstall, insert HEPA filter into unit and replace the filter door.

REPLACING FILTERS

Follow the previous instructions for removing filters. The Pre-Motor Filter should be replaced every month. The HEPA Filter should be replaced every year.

Replacement Pre-Motor Foam & Felt Filter Kit 1239FT60

Replacement HEPA Filter 1238FT60

MAINTENANCE

CLEANING THE BRUSHROLL

Using a coin, turn locks counterclockwise, then lift the cover to access brushroll.

DEBRIS WRAPPED AROUND BRUSHROLL

Clean off any debris on the bristles.

DEBRIS BEHIND BRUSHROLL

If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught behind the brushroll. Clear away any dust, dirt, or blockages in Debris Intake.

To close the cover, push down until it clicks into place. Close the locks by using a coin to turn them clockwise.

CORD MAINTENANCE

To minimize the risk of power cord damage, DO NOT run the vacuum over the power cord. If this occurs, immediately shut off power to the vacuum and remove the cord from the brushroll or nozzle.

1. DO NOT pull or carry vacuum cleaner by the cord or use cord as a handle.
2. D O NOT unplug by pulling on the cord. Grasp the plug, not the cord.
3. DO NOT close the door on the cord.
4. DO NOT pull the cord around sharp corners.
5. DO NOT leave the cord near heated surfaces.

CHECKING FOR BLOCKAGES

Detach hose from vacuum pod, and check hose and opening on back of pod for blockages.

Detach wand from pod, and check opening for blockages.

Detach dust cup from vacuum pod. Empty dust cup, remove debris from lint screen, and check for blockages.

Detach wand from pod and handle, and check both ends for blockages.

Detach handle from wand and hose from the vacuum pod, and check openings for blockages.

AVAILABLE ACCESSORIES

1. Crevice Tool
   This slender tool offers extended reach to access corners, baseboards, tight spaces, and ceilings.
2. Upholstery Tool
   Picks up hair, dust, and large debris from mattresses, couches, curtains, lampshades, and other delicate upholstered fabrics.
3. Pet Power Brush
   The turbine brush loosens and removes pet hair and debris from carpets, and powerfully deep-cleans dander out of upholstery and other surfaces.
4. Duster Crevice Tool
   Two cleaning tools in one. The crevice tool gives you extended reach to clean in tight spaces, while the soft brush is ideal for dusting delicate surfaces.
5. Dusting Brush
   This brush dusts and cleans delicate surfaces. Great for use on fans, blinds, lampshades, and keyboards.
6. Pet Multi-Tool
   A single convertible tool for cleaning tough pet messes two ways: use the stiff bristle brush to clean stuck-on debris, or take off the bristles to reveal an upholstery tool perfect for removing stubborn pet hair and large piles of debris.
7. Under-Appliance Wand
   Clean under and behind hard-to-move appliances and furniture with this adjustable 36" tool. Flip the extension piece over to clean the underside of appliances.
8. Anti-Allergen Dust Brush
   This brush features nylon fiber bristles specifically designed for removing fine dust and allergen particles from the most delicate surfaces.
9. Home & Car Detail Kit
   Deep-clean your car like a professional detailer, or clean hard-to-reach areas in your home. Micro-sized tools let you clean around delicate objects and access the tightest spaces like car vents and computer keyboards.
   J Accessory Bag
   This convenient accessory storage bag measures 32 cm x 70 cm and fits the UnderAppliance Wand. Smaller size available at sharkaccessories.com.

TROUBLESHOOTING

Power cord caught in brushroll or floor nozzle

• To minimize the risk of power cord damage, DO NOT run the vacuum over the power cord. If this occurs, immediately shut off power to the vacuum and remove the cord from the brushroll or nozzle.
• Inspect power cord and plug for any damage before use. DO NOT use vacuum cleaner with a damaged cord or plug. Turn off all controls before plugging in or unplugging the vacuum cleaner. Store your vacuum cleaner with the power cord secured around the two cord hooks.Vacuum is not picking up debris. No suction or light suction.
• Check filters to see if they need cleaning. Follow instructions for rinsing and air-drying the filters before reinstalling.
• Dust cup may be full; empty dust cup.
• Clear any blockages in the hose, hose connections, nozzle, wand, pod, or accessories. See Checking for Blockages section for more information.

Vacuum lifts area rugs

• Make sure Power/Surface switch is set to Hard Floor (setting I).
• Suction is powerful. Take care when vacuuming area rugs or rugs with delicately sewn edges.
• To minimize suction, set the suction control slider to MIN. See the Suction Control section for more information.

Brushroll does not spin

• If thebrushroll indicator light turns red, immediately turn off and unplug the vacuum. Remove pod from floor nozzle and clear any blockages. Reconnect nozzle, plug in vacuum, and turn on power.
• With the power on, recline the handle, which will automatically turn on thebrushroll.
• Check hose, hose connections, nozzle, wand, pod, and accessories for blockages. Clear any blockages found. (Refer to Checking for Blockages section for more information.)

Vacuum turns off on its own

Indicator light flashes red

If your vacuum overheats, the thermostat will automatically turn off the motor. Follow these steps to restart:

1. Turn vacuum off and unplug it.
2. Empty dust cup and clean filters (see Emptying the Dust Cup and Cleaning the Filters).
3. Check for blockages in hose, wand, nozzle, accessories, and inlet openings.
4. Allow unit to cool for a minimum of 60 minutes.
5. Plug in vacuum and turn it on.

For all other issues, please visit our website at sharkclean.com/support.

How to get service

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, visit sharkclean.com/support for product care and maintenance self-help. Our Customer Service Specialists are also available at 1-800-798-7398 to assist with product support and warranty service options, including the possibility of upgrading to our VIP warranty service options for select product categories.

How to initiate a warranty claim
You must call 1-800-798-7398 to initiate a warranty claim.

REGISTER YOUR PURCHASE

Scan QR code using mobile device

registeryourshark.com

Benefits of registering your product and creating an account:

• Get easier, faster product support and access to warranty information
• Access troubleshooting and product care instructions
• Be among the first to know about exclusive product promotions

TIP: You can find the model and serial numbers on the QR code label on the bottom of the back of the vacuum pod.

TECHNICAL SPECIFICATIONS
Voltage: 120V,~ 60Hz
Watts: 700W
