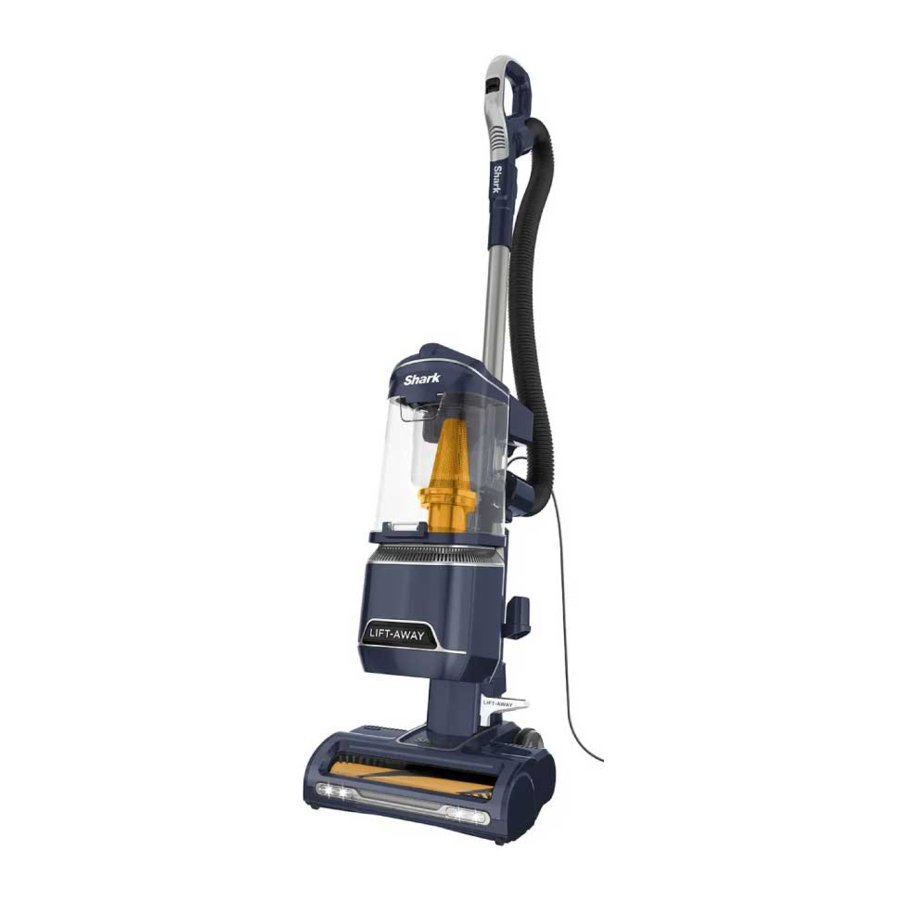

Shark NZ690UK Series, NZ691UK Manual

TIP: You can find the model and serial numbers on the QR code label located on the back of your unit.
TIP: You can locate the date code on one of the prongs of the power cord plug.

REGISTER YOUR PURCHASE
TO BENEFIT FROM YOUR PRODUCT'S EXTENDED GUARANTEE, SIMPLY REGISTER YOUR PURCHASE AT:
sharkclean.co.uk/register-guarantee
0800 862 0453
Scan QR code using mobile device

Please note, products purchased directly from Shark® are automatically registered.
Benefits of registering your product and creating an account:

• Get easier, faster product support and access to guarantee information
• Access troubleshooting and product care instructions
• Be among the first to know about exclusive product promotions

RECORD THIS INFORMATION
Model Number:
Serial Number
Date Code:
Date of Purchase (Keep receipt):
Store of Purchase:

TECHNICAL SPECIFICATIONS
Voltage: 220-240V~, 50-60Hz
Body Motor Watts: 750W
Nozzle Watts: 80W

PLEASE READ CAREFULLY
AND KEEP FOR FUTURE REFERENCE
This instruction manual is designed to help you get a complete understanding of your new Shark® Corded Upright Vacuum with Lift-Away® Technology & Anti Hair Wrap Brush-Roll
If you have any questions, please call the customer service line on 0800 862 0453

Use this instruction manual to learn about your new vacuum's great features. From assembly to use to maintenance, you will find it all in here.

MAIN UNIT

1. Suction Control Slider
2. Handle
3. Hose
4. Handle Release Button
5. Power Switch
6. Wand Release Button
7. Wand
8. Dust-Cup Release Latch
9. Lift-Away Pod
10. Dust-Cup Empty Buttons
11. Lift-Away Pod Button
12. Motorised Floor Nozzle
13. Brush-Roll Indicator Light
14. Headlights
15. Anti-Hair Wrap Brush-Roll

ASSEMBLY

1. Insert Wand into pod
2. Insert Handle into wand
3. Attach Hose to back of vacuum pod
   NOTE: Ensure all parts firmly CLICK into place before operating

POWER CORD
UPPER CORD
HOOK For cord access, rotate upper hook down and remove cord

CORD HOLDER
Use cord holder on the side of wand to hold cord in place while vacuuming

SETTINGS

POWER/SURFACE SWITCH

Select surface setting:
O Power Off
I Hard Floor
For hard floors, small area rugs or delicate carpets - the brush-roll will spin but at a slower speed
II Carpet For carpets

SUCTION CONTROL

The Suction Control Slider located on the handle allows you to adjust the suction depending on the floor type
MIN: to reduce suction and increase manoeuvrability on carpets
MAX: to increase suction on hard floors
NOTE: Brush-Roll will continue to spin in all modes

BRUSH-ROLL INDICATOR LIGHT
INDICATOR LIGHT

WHAT DOES THE BRUSH-ROLL INDICATOR LIGHT MEAN?
Solid Green: The brush-roll is spinning and working as intended
Solid Red: There is a jam in the brush-roll area Turn off and unplug the vacuum and remove any blockages in the nozzle
Flashing Red: The motorised floor nozzle is overheating Turn the vacuum off and wait a minimum of 60 minutes for the unit to cool down

CLEANING MODES

To engage brush-roll, step on floor nozzle and tilt handle back firmly

Step on the pedal on the floor nozzle to lift off the pod

Press the Handle Release button and pull up on the handle to detach it from the wand

Press the Wand Release button and pull up on the wand to detach it from the pod

Attach an optional cleaning accessory to handle or wand

NOTE: All accessories are compatible with both the wand and the handle Included accessories will vary by model

EMPTYING THE DUST CUP

Unplug the power cord before performing any maintenance

To remove Dust Cup, pull up on the release button located on the side of dust cup handle. Tilt dust cup forward, then lift to remove.

Hold the dust cup over the bin and press the release button to open bottom of dust cup

To remove collected debris from Lint Screen, lift the tab at the top of the dust cup to open the lid Remove debris from lint screen to clean

To reattach, place the bottom of dust cup onto the pod and then tilt until it clicks into place

MAINTENANCE

CLEANING THE FILTERS
Regularly rinse the filters to maintain your vacuum's suction power.
Rinse filters with cold water only Allow all filters to air-dry for at least 24 hours before reinstalling them to prevent liquid from being drawn into electronic parts

DO NOT use soap when cleaning the filters

RINSE PRE-MOTOR FILTERS EVERY MONTH

1. Pre-Motor (foam and felt): With the dust cup removed, take out the foam and felt filters, and rinse with water. Tap loose dirt off filters between washes as needed.

RINSE POST-MOTOR FILTER EVERY YEAR

To remove the Post-Motor Filter, first pull the tab on the bottom of the filter door, then lift off the door. Press the tab on the side of the Post-motor filter.
To reattach the door, align the top first, then press in the bottom until it clicks into place.

NOZZLE MAINTENANCE
ANTI HAIR WRAP BRUSH-ROLL
If any hair is wrapped around the brush-roll, continue vacuuming using Carpet/Low Pile mode on a bare floor surface, a low-pile carpet, or a small area rug in MAX suction mode This will allow the Anti Hair Wrap brush-roll to remove the hair wrap and send it to the dust cup
If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught in the brush-roll
If some fibres remain wrapped around the brush-roll after continued use, clear them from the brush-roll

CHECKING FOR BLOCKAGES

Unplug the cord before performing any maintenance

Check the opening at the top of the nozzle for any blockages

Detach hose from handle by pressing on the release button at the top of the hose Detach the hose from the pod, and check openings for blockages

Detach wand from pod and handle, and check both ends for blockages

Detach hose from handle by pressing on the release button at the top of the hose. Detach the hose from the pod, and check openings for blockages.

Detach handle from wand and check openings for blockages.

NOTE: Torch not included

AVAILABLE ACCESSORIES

1. Crevice Tool
   Clean tight spaces, reach skirting boards and ceilings with this slim crevice tool

2. Upholstery Tool
   Remove pet hair and dust from curtains and other delicate fabrics and upholstery

3. Dusting Brush
   Dusts and cleans a multitude of delicate surfaces

4. 2 in 1 Duster Crevice Tool
   Two cleaning tools in one—the crevice tool gives you extended cleaning reach for small spaces, while the soft dusting brush cleans a multitude of surfaces

5. Pet Power Brush
   Picks up pet hair and loose debris, and powerfully deep cleans dander out of upholstery and other surfaces

6. Multi Surface Tool
   A single convertible tool for cleaning tough pet messes two ways: use the stiff bristle brush to clean stuck-on debris, or take off the bristles to reveal an upholstery tool perfect for removing stubborn pet hair and large piles of debris


NOTE: Not all accessories come with all units Please refer to the packaging panels for your unit's configuration To order additional accessories, visit sharkclean.co.uk

TROUBLESHOOTING GUIDE

To reduce the risk of shock and unintended operation, turn power off and unplug unit before servicing

Power cord caught in brush-roll or floor nozzle

• To minimise the risk of power cord damage, DO NOT run the vacuum over the power cord. If this occurs, immediately shut off power to the vacuum and remove the cord from the brush-roll or nozzle.
• Inspect power cord and plug for any damage before use. DO NOT use vacuum cleaner with a damaged cord or plug. Turn off all controls before plugging in or unplugging the vacuum cleaner. Store your vacuum cleaner with the power cord secured around the two cord hooks.

Vacuum is not picking up debris

No suction or light suction

(Refer to Maintenance section for more information)

• Check filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting back into the vacuum.
• Dust cup may be full; empty dust cup.
• Check hose, hose connections, nozzles, and accessories for blockages; clear blockages if required.
• Remove any string, carpet fibres or hair that may be wrapped around the brush-roll.

Vacuum lifts area rugs

• Turn off the unit to disengage the brush-roll and restart with the POWER button for suction only cleaning.
• Suction is powerful. Take care when vacuuming area rugs or rugs with delicately sewn edges.
• Turn off the unit and disengage the area rug from the brush-roll and restart the unit.

Brush-roll does not spin

• If brush-roll indicator light on the floor nozzle turns red, the brush-roll has stopped spinning. Immediately turn off and unplug vacuum, disconnect the nozzle and remove blockage before reconnecting and turning vacuum back on.
• Pull the handle toward you and release the floor nozzle to disengage the auto-off feature.
• Immediately turn off and unplug vacuum, disconnect the nozzle and remove blockage before reconnecting and turning vacuum back on.

Vacuum turns off on its own or brush-roll Indicator Light flashes red
This vacuum cleaner is equipped with a motor protective thermostat. If for some reason your vacuum overheats, the thermostat will automatically turn the suction motor off. Should this occur, perform the following steps to restart the thermostat:

1. Turn the unit off.
2. Unplug the vacuum.
3. Empty the dust cup and clean filters (see page previous page)
4. Check for blockages in hose, accessories and inlet openings.
5. Allow the unit to cool for a minimum of 45 minutes.
6. Plug in the vacuum.
7. Restart the unit by turning the power on.
   Note: If vacuum still does not start, visit sharkclean.co.uk/customer-care or contact customer service on: 0800 862 0453.
