Parkside PAMT 20-Li A1 - Cordless Mower & Trimmer Manual

Introduction

You have chosen a high-quality device. This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device.

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly. Use the device only as described and for the stated fields of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use
This device is only intended for the following use:

• Cutting grass in gardens and along bed edges.
  Do not use the device for cutting hedges or shrubs.
  Use of the device in the rain or a damp environment is prohibited.
  The device is intended for use by adults. Children under the age of 16 may not use the device, except under supervision. Any other use that is not expressly permitted in this instruction manual may pose a serious hazard to the user and result in damage to the device. The operator or user of the machine is responsible for any accidents or personal injury and/or material damage to third parties or their property. The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect operation.
  The device is part of the X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.

Scope of delivery/ accessories
Unpack the device and check that everything is present.
Dispose of the packaging material properly.

• Cordless Mower & Trimmer
• Protective cover
• Auxiliary handle
• 2× Spool
• Phillips screwdriver
• Trimmer cart
• Translation of the original instructions

The rechargeable battery and charger are not included in delivery.

Overview
The illustrations for the device can be found on the front and back fold-out page.

1. Switch lock
2. Handle
3. On/Off switch
4. Battery holder
5. Grip screw
6. Battery
7. Battery release
8. Button (Charge level indicator)
9. Charge level indicator
10. Holder for auxiliary handle
11. Telescopic guide rail
12. Screw sleeve
13. Telescopic tube
14. Locking mechanism (Motor head)
15. Locking button (Angle of tilt)
16. Motor head
17. Protective cover
18. Spool
19. Line outlet loop
20. Spool cap
21. Spacer (flower protection)
22. Holder for spare spool
23. Auxiliary handle
24. Charger
25. Trimmer cart
26. Locking mechanism (Trimmer cart)
27. Guide (Trimmer cart)
28. Phillips screwdriver
    Fig. A
29. Screw (Protective cover)


Fig. B

30. Release (Spool cap)
31. Spool cover
32. Line cutter

Description of functions

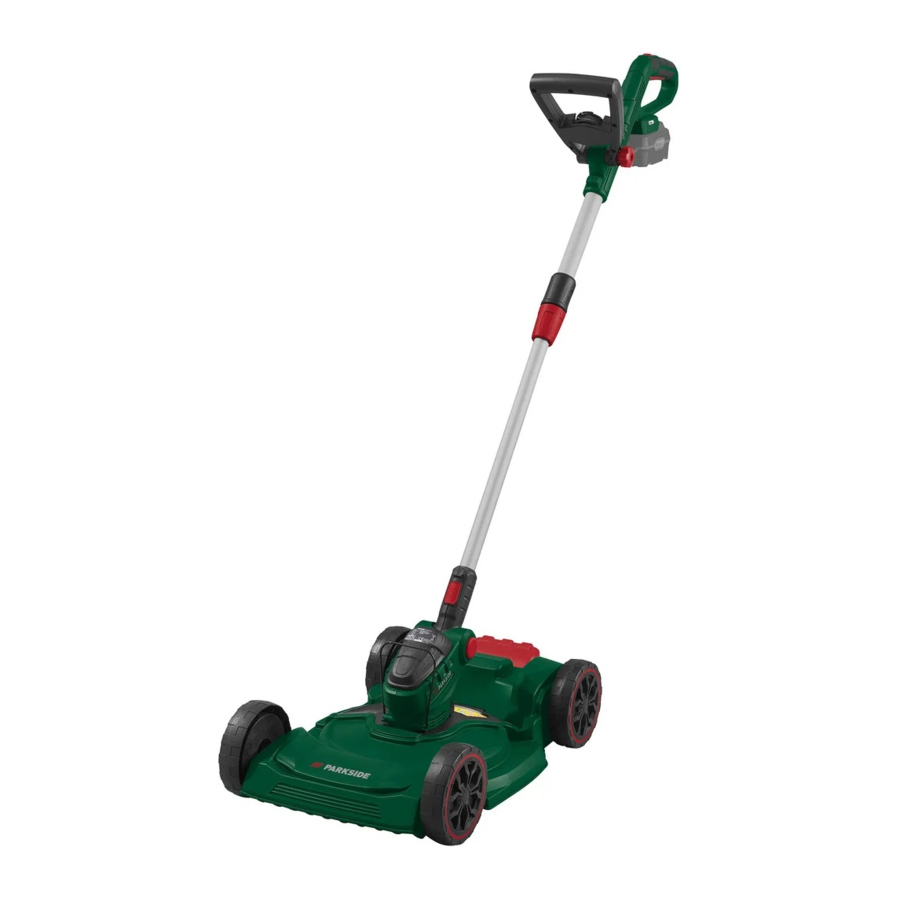

The battery-powered multi-trimmer has a spool as the cutting unit. In addition, the device is equipped with:

• Spool cutting system
• Adjustable aluminium telescopic tube
• Swivel/rotatable motor head
• Protective cover with line cutter
• Spacer
• Trimmer cart

In combination with the trimmer cart, the battery-powered multi-trimmer can be used as a city lawnmower. Please refer to the following descriptions for the function of the controls.

Technical data
Cordless Mower & Trimmer PAMT 20-Li A1
Rated voltage U 20 V ⎓
Weight with accessories ≈2 kg
No-load rotation speed n₀ 8000 min⁻¹
Cutting circle Ø 280 mm
Spool

• Line thickness Ø 1.6 mm
• Line length 5 m

Sound pressure level (L_pA) 74.5 dB; K_pA=3 dB
Sound power level (L_WA)

• Measured 85.5 dB; K_WA=2.88 dB
• Guaranteed 96 dB

Vibration (a_h)

• Handle 1.563 m/s²; K < 2.5 m/s²
• Auxiliary handle 1.419 m/s²; K < 2.5 m/s²

Battery Li-Ion
Temperature ≤50°C

• Charging 4 – 40°C
• Operation -20 – 50°C
• Storage 0 – 45°C

PARKSIDE Performance Smart battery Smart PAPS 204 A1/Smart PAPS 208 A1

• frequency band 2400–2483.5 MHz
• transmitted power ≤ 20 dBm

Trimmer cart
Weight ≈3.3 kg
Cutting height adjustment (2-stage) 35/55 mm
Vibration (a_h)

• Handle 1.331 m/s²; K < 2.5 m/s²
• Auxiliary handle 1.254 m/s²; K < 2.5 m/s²

Levels of noise and vibration were determined according to the standards and regulations in the declaration of conformity. The specified total vibration value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another. The specified total vibration value and the stated specified noise emission value can also be used for a provisional assessment of the load.

The vibration and noise emissions may deviate from the specified values during actual use of the power tool, depending on how the power tool is being used. Try to keep the exposure to vibrations as low as possible. An example of a measure to reduce vibration exposure is limiting the working hours. All parts of the operating cycle have to be considered while doing so (for example, times when the power tool is switched off and times when it is switched on but running without any load).

Charging time
The device is part of the X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.
We recommend that you operate this appliance with the following batteries only: PAP 20 B1, PAP 20 B3, Smart PAPS 204 A1, Smart PAPS 208 A1
We recommend charging these batteries with the following chargers: PLG 20 A3, PLG 20 A4, PLG 20 C1, PLG 20 C2, PLG 20 C3, PLG 201 A1, PDSLG 20 A1, PDSLG 20 B1, Smart PLGS 2012 A1 Rechargeable battery and charger technical data: See separate manual. The charging time is influenced by factors such as the temperature of the environment and the battery, as well as the mains voltage applied, and may therefore deviate from the specified values.

Safety information

The following basic safety precautions must be observed while using electrical devices to protect against electric shock, injury and risk of fire.

Injury and property damage due to improper handling of battery. Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the series X 20 V TEAM. A detailed description of the charging process and further information can be found in these separate operating instructions.

Meaning of the safety information

If you do not observe this safety instruction, an accident will occur. The result of which is severe bodily injury or death.

If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death.

If you do not observe this safety instruction, an accident will occur. The result of which is likely minor or moderate bodily injury.
NOTICE! If you do not observe this safety instruction, an accident will occur. The result of which is possible damage to property.

Pictograms and symbols
Symbols on the device

The device is part of the X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.

	Attention!
	Read the instruction manual
	Cutting circle
	of electric shock!
	Keep other people away. You could be injured by ejected foreign bodies.
	The cutting unit will keep rotating for a few seconds after the device has been switched off. Keep hands and feet at a safe distance.
	Use hearing protection/ Use eye protection
	Use of the device in the rain or a damp environment is prohibited.
	The use of blades is prohibited.
	Remove the battery before maintenance work.
	Guaranteed sound power level L WA in dB(A)
	Keep persons in the vicinity away from the device
	Risk of injury due to ejected parts!

Symbols on the trimmer cart

	Attention!
	Read the instruction manual
	Sharp cutting unit! Keep away from feet and hands.
	Attention! Overtravel of the cutting unit

Symbols used in the instruction manual
Attention!

Safe operation of lawn trimmers
General Information

• Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly.
• This device is not intended for use by children, individuals with limited physical, sensory or mental capabilities, those with insufficient experience or knowledge or individuals who are not familiar with the instructions. Children should be supervised to ensure that they do not play with the device. Cleaning and maintenance must not be carried out by children.
• Local regulations may specify an age limit for the user.
• The machine must not be used at altitudes over 2000 m.
• Note that the user is responsible for any accidents or risks to others and their property.
• Observe noise protection rules and other local regulations.

• Never use the device if there are people, in particular children, or animals nearby.

Preparation

• Never use the device with damaged or missing guards or protective covers.
• Before using the device, always perform a visual check for damaged, missing or incorrectly installed safety devices and protective covers.
• Before operating the machine and after any impact, check the device for signs of wear or damage and have any necessary repairs carried out.

Operation

• Wear eye protection, long trousers and sturdy shoes throughout the period of machine use.
• Pay attention, be aware of what you are doing and take the utmost care when working with the device. Do not use the device if you are tired or you are under the influence of drugs, alcohol or medication.
• Use the machine only in daylight or with good artificial lighting.
• Operation of the device in bad weather is to be avoided, especially if there is a risk of lightning.

• Avoid operating the device when the grass is wet.
• Do not work on overly steep slopes.
• Always keep your hands and feet away from the cutting equipment, especially while starting the motor.
•
  Do not touch moving dangerous parts until the battery has been removed and the moving dangerous parts have come to a complete stop.
• Never replace the non-metallic cutting unit with a metallic cutting unit.
• Avoid an abnormal body posture. Ensure secure footing at all times to maintain balance when working on slopes.
• Go slowly. Do not walk with the device in your hand.
• Make sure to keep the ventilation openings free of foreign objects.
• Switch off the device and remove the battery (6). Make sure that all moving parts have come to a complete stop
  • when leaving the device,
  • before removing obstructions or loosening blockages,
  • before checking the device, cleaning it or performing maintenance work on it.
  • After contact with a foreign object,
  • if the machine begins to vibrate in an unusual way.

• If the device starts to vibrate abnormally, an immediate check is required, remove the battery and:
  • examine for loose parts and tighten these,
  • search for signs of damage,
  • replace damaged parts. contact the service centre.
• If an accident or malfunction occurs during operation, switch off the device immediately. Injuries must be properly treated or medical assistance sought. Read the "Troubleshooting" section to correct any malfunctions or contact our Service Centre.
• Only use accessories recommended by PARKSIDE. Unsuitable accessories may cause electric shock or fire.

Cleaning, maintenance and storage

• Switch off the drive and remove the battery. Wait until all moving parts have stopped and allow the device to cool down when the device is stopped for maintenance, repair, storage or replacement of an accessory.
• Replace worn or damaged parts in the interests of safety. Use only original spare parts and accessories. Using externally produced parts results in the immediate loss of any warranty claim.
• Check and maintain the machine regularly. Only have the machine repaired at an authorised workshop.
• Store the device out of reach of children.

Residual risks
There will always be residual risks even if you operate this power tool according to the instructions. The following hazards may occur in connection with the type and design of this power tool:

• Eye damage if no suitable eye protection is worn.

• Hearing damage if suitable ear protection is not worn.
• Health injuries resulting from the effect of hand/arm vibration in the event that the tool is used over a longer period of time or is not used and maintained properly.
• Cutting injuries

Danger due to electromagnetic field generated while the tool is in operation. Under certain circumstances, this field may negatively affect active or passive medical implants. In order to reduce the danger of serious or fatal injuries, we recommend that individuals who wear medical implants should consult their doctor and the manufacturer of the implant before operating the machine.

Preparation

Risk of injury due to unintentional start-up. Only insert the rechargeable battery into the device once the device is fully prepared for use.

Control elements
Familiarise yourself with the operating elements before using the device for the first time.

• Switch lock (1)
  • Locks the on/off switch against unin-tentional operation.
  • Unlocking: Press
• On/Off switch (3)
  • Switching on: Press
  • Switching off: Release
• Grip screw (Fig. C.1)
  The grip screw (5) unlocks/locks the angle adjustment of the auxiliary handle (23).
• Screw sleeve (Fig. C.2)
  The screw sleeve (12) unlocks/locks the length adjustment of the telescopic tube (13).
• Locking mechanism Motor head (Fig. C.3)
  The lock (14) unlocks/locks the position adjustment of the motor head (16).
• Locking button (Fig. C.4)
  The locking button (15) unlocks/locks the angle adjustment of the telescopic tube (13).

Assembly

Risk of injury due to unintentional start-up. Do not insert the rechargeable battery into the device until the device is fully prepared for use.

Attaching the telescopic tube

1. Push the telescopic guide bar (11) and the telescopic tube (13) together as far as they will go. Only one position is possible.
2. Fix both parts using the screw sleeve (12).

Attaching the protective cover (Fig. A)
Tools required

• Phillips screwdriver (28)

Procedure

1. Place the protective cover (17) on the motor head (16).
2. Screw the protective cover on tightly with the two screws (29).

Attaching the auxiliary handle

1. Loosen and remove the pre-assembled grip screw (5) of the auxiliary handle (23).
2. Slide the auxiliary handle (23) over the holder (10). The holder for the spare spool (22) points upwards.
3. Insert the grip screw (5) through the through-hole of the holder (10) for the auxiliary handle.
4. Screw the auxiliary handle (23) tightly using the grip screw (5).

Adjusting the auxiliary handle
You can move the auxiliary handle (23) to different positions. Adjust the auxiliary handle so that the spool cap (20) is tilted slightly forward as you work (see Cutting grass).

Procedure (Fig. C.1)

1. Loosen the grip screw (5).
2. Adjust the auxiliary handle (23) to the desired position. The latching steps integrated into the holder prevent the handle changing position unintentionally.
3. Tighten the grip screw (5) again.

Adjusting the height on the telescopic tube
The telescopic tube (13) allows you to adjust the device to your individual height.

Procedure (Fig. C.2)

1. Loosen the screw sleeve (12).
2. Adjust the telescopic tube (13) to the desired length.
3. Tighten the screw sleeve (12) again.

Adjusting the position of the motor head

Risk of injury! The protective cover must not face away from the user. Leave the position of the motor head (16) in the 0° position when using the device as a lawn trimmer in cutting angle positions 1 - 4.
The position of the motor head (16) can be rotated 180°. Procedure (Fig. C.3)

1. Press the locking device (14) to release the lock.
2. Turn the motor head (16) until it locks into the desired position. The lock (14) must engage again before you can use the device safely.

Adjusting the cutting angle
Changing the cutting angle also allows you to trim in inaccessible places, e.g. under benches and ledges.

Procedure (Fig. C.4)

1. Press the lock button (15) to change the tilt angle.
2. Tilt the telescopic tube (13) until the desired position is reached. These 5 settings are possible:

   Position	Angle of tilt
   1	15°
   2	30°
   3	45°
   4	60°
   5	75°

Function as a lawn trimmer

• Cutting angle position 1 - 4
• Position of motor head 0°

Function as a lawn trimmer with trimmer cart

• Cutting angle position 1 - 3
• Position of motor head 0°

Function as a lawn edge trimmer

• Cutting angle position 5
• Position of motor head 180°

Adjusting the spacer
The spacer (flower protection) (21) keeps plants and stems that are not to be cut away from the cutting unit.

Procedure (Fig. C.5)

1. Fold the spacer (21) down.
2. Fold the spacer (21) up (resting position) when it is not needed.

Extending the cutting line
The device is equipped with a fully automatic line tracker . The line extends automatically every time the device is switched on. For proper functioning of the automatic line extension mechanism, the spool (18) must have stopped completely before you restart the device. If the lines are initially longer than the cutting circle, they are automatically shortened to the right length by the line cutter (32).

1. Check the nylon lines regularly for damage and make sure the cutting line still has the length specified by the line cutter.
2. If no line ends are visible: Replace the spool (seeReplacing the spool).
3. Adjust the line length manually:
   Remove the battery (6) from the device!
   Pull gently on the line end until the line ends protrude slightly beyond the line cutter (32).

Working with the trimmer cart
The lawn trimmer can be used like a city lawn mower with 2-stage axial cutting height adjustment by engaging it in the trimmer cart (25).

Mounting the lawn trimmer on the trimmer cart (Fig. E)

1. Place the motor head (16) in the guide (27) on the trimmer cart.
2. Push the lawn trimmer backwards at an angle. The protective cover (17) engages at the trimmer cart lock (26).

Dismounting the lawn trimmer from the trimmer cart

1. To remove the lawn trimmer from the trimmer cart (25), press the trimmer cart lock (26).
2. Lift the lawn trimmer at an angle and remove it.

Cutting height adjustment on the trimmer cart
Requirements

• Battery removed
• Lawn trimmer disassembled

Procedure (Fig. D)

1. Turn the trimmer cart (25) over so that both axles are accessible.
2. Pull back the axles and bring them to the same notch on both sides (cutting height notch a = 35 mm, b = 55 mm). To achieve an even cutting height, both axles must be in the same notch.
3. Mount the lawn trimmer on the trimmer cart.

Checking the battery charge level

1. Press the button (8) next to the charge level indicator button (9) on the battery (6).
   The LEDs of the charge level indicator show how much charge remains in the battery.
2. Charge the battery (6) when only the red LED on the charge level indicator (9) is illuminated.

Charging the battery
See also the charger instruction manual.

Notes

• If warm, allow the battery to cool be-fore charging.
• Do not expose the battery to direct sun-light for long periods and do not place it on a radiator (max. 50°C).

Charging the battery

1. Remove the battery (6) from the device.
2. Push the battery (6) into the charging slot of the battery charger (24).
3. Connect the battery charger (24) to a power outlet.
4. After charging, disconnect the battery charger (24) from the mains.
5. Pull the battery (6) out of the battery charger (24).

Control LEDs on the charger (24):

Operation

Working with the device

Risk of injury! Pay attention to the following instructions.

• Do not cut damp or wet grass.
• Before starting the device, make surethat the cutting unit is not in contact with stones, debris or other foreign objects.
• Switch on the device before approach-ing the grass to be cut.
• Avoid over-stressing the device whileworking.
• Avoid any contact with fixed obstacles(rocks, walls, picket fences, etc.). The nylon line on the spool would wear out quickly.
• Avoid using the device in bad weather, especially if there is a danger of lightning!
• Do not try to lock the on/off switch inplace. It must switch off the motor after releasing the switch.

Cutting grass

1. Cut grass by swivelling the device to theright and left.
2. Cut slowly and keep the device tiltedforward by approx. 30° when cutting.
3. Cut long grass in layers from top to bottom.

Lawn edge trimming
Settings
To trim lawn edges, guide the device slowly along the lawn edges.

• Position of motor head: 180° (seeAdjusting the position of the motor head)
• Cutting angle position: 5 (seeAdjusting the cutting angle)
• Spacer in resting position (seeAdjusting the spacer)

Make sure that you are protected from the cutting unit by the protective cover (17) when working. Inserting and removing the battery

Risk of injury due to unintentional start-up. Only insert the rechargeable battery into the device once the device is fully prepared for use.
NOTICE! Risk of damage! An incorrect battery can damage the device and battery.

Inserting the battery

1. Push the battery (6) along the guide into the battery holder (4). You will hear the battery click into place.

Removing the battery

1. Press and hold the battery release (7) on the battery (6).
2. Pull the battery out of the battery holder (4).

Switching on and off

Risk of injury due to unintentional continuous operation of the tool. Before inserting the batteries into the device, check that the on/off switch (3) works properly and returns to the off position when released.

Ensure your stance is stable and hold the device tightly with both hands and away from your body. Before switching the device on, make sure that it is not touching any objects.

Risk of injury due to rerotation of the cutting unit. Allow the cutting unit to come to a complete stop. Keep hands and feet away!

Switching on

1. Insert the rechargeable battery (6) into the tool.
2. Press the switch lock (1).
3. Press and hold the On/off switch (3).
4. Release the switch lock (1).

Switching off

1. To turn it off, release the on/off switch (3).
2. Remove the rechargeable battery (6) from the device if you are leaving the device unattended or if you have finished working.

Transport
Information on transporting the tool:

• Switch off the device and remove thebattery (6). Make sure that all moving parts have come to a complete stop.
• Always carry the device with twohands: one hand on the handle (2) and the other hand on the auxiliary handle (23).

Cleaning, maintenance and storage

Risk of injury due to unintentional start-up. Protect yourself when performing maintenance or cleaning work. Switch off the device and remove the battery (6).
You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

Electric shock! Never spray down the device with water.
NOTICE! Risk of damage. Chemical substances may attack the plastic parts of the machine. Do not use any cleaning agents or solvents.

• Keep the ventilation slits, motor housingand handles of the machine clean. Use a damp cloth or brush to do this.

Risk of injury from dangerous, moving parts! Be careful with the line cutter. It can cause serious lacerations.

• After each use, remove all grass anddirt from the protective cover and the cutting unit.

Maintenance
Replacing the spool
The correct winding direction of the spool (18) is specified in the spool cap (20) and on the spool. The arrows on the spool cover (31) indicate the direction of rotation of the motor.

Procedure (Fig. B)

1. Remove the battery (6) from the device.
2. the spool cap (20) by simultaneously pressing the two releases (30) on the spool cap.
3. Remove the spool cover (31) and take out the old spool.
4. Insert the new spool into the spool cap (20). The side of the spool (18), on which the rotation direction is indicated by arrows, must be visible after insertion.
5. Insert the end of the line through the line outlet loop (19).
6. Put the spool cover (31) back on the spool cap. Make sure that the releases (30) on the cover fit precisely into the recesses on the spool cap. You will hear them snap into place.
7. Pull the line ends until they stick out about 1 cm above the line cutter (32).
8. Check the line cutter.

Never use the device without a line cutter or with a defective line cutter. Contact the service centre if the line cutter is damaged.

Winding up spare line

1. Thread an end of the spare line through the opening of the spool (18).
2. Wind the line in the winding direction of the spool. Pay attention to the arrows on the top of the spool.

Storage
Always store the device:

• clean
• dry
• protected against dust
• out of the reach of children

The storage temperature for the rechargeable battery and the device is between 0°C and 45°C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected. Remove the rechargeable battery from the device before storing the device (see the separate operating instructions for the battery and charger).
Do not lie the device down on the protective cover. It is best to hang it on the upper handle so that the protective cover does not touch any other objects. There is a risk that the protective cover will become deformed, thus changing the dimensions and safety characteristics.

Troubleshooting

Service

Repair service
For repairs that are not covered by warranty, contact the service centre. They will gladly create a cost estimate for you.

• We can only work on devices whichare sent in properly packed and with postage paid. Note: Please send your device cleaned and with an indication of the defect to the address named for the service centre.
• The following are not accepted: devices sent in without prepaid postage, sent as bulky goods, sent as an Express shipment, or devices sent as any other form of special freight.
• We will dispose of defective devicesyou ship to us free of charge.

Service Centre
Service Great Britain
Tel.: 0800 404 7657
E-mail: grizzly@lidl.co.uk
Service Malta Tel.: 80062230
E-mail: grizzly@lidl.com.mt
IAN 439318_2304 Importer
Please note that the address below is not a service address. Contact the service centre named above first. Grizzly Tools GmbH & Co. KG
Stockstädter Str. 20
63762 Großostheim
GERMANY
www.grizzlytools.de

Spare parts and accessories

You can get spare parts and accessories from www.grizzlytools.shop. If you have any problems with your order, contact us via our online shop. If you have any other questions, contact the Service Centre.

Exploded view
