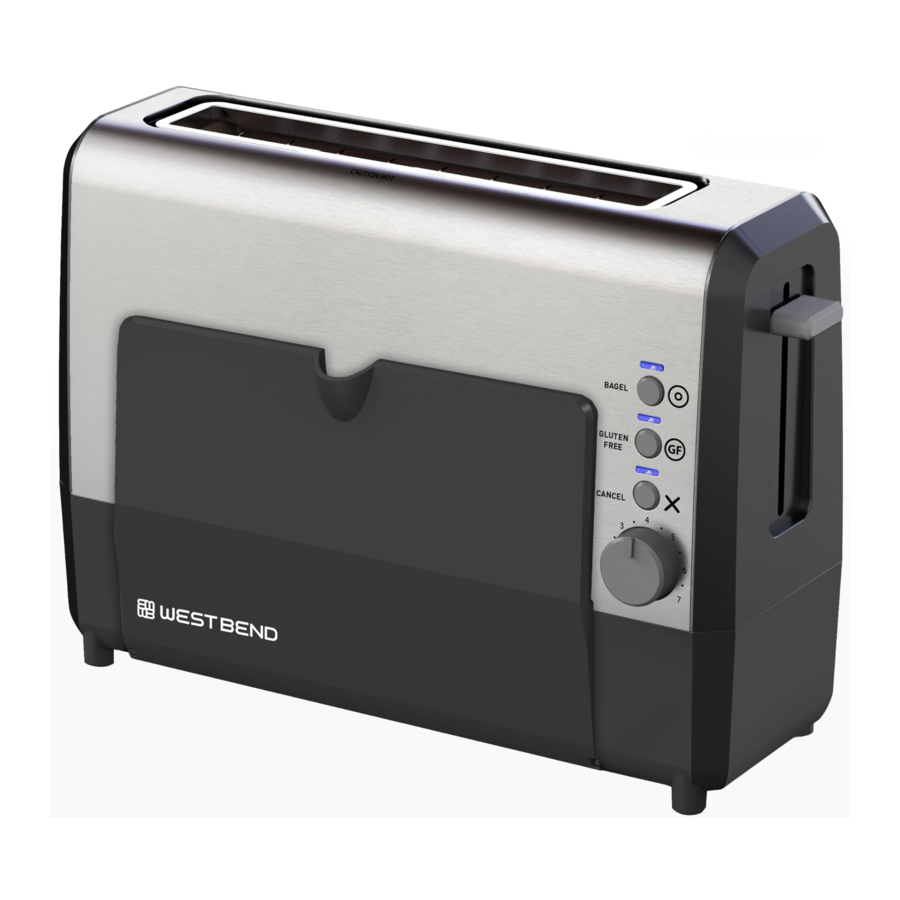

West Bend QUIKSERVE 77222 / 77224 - Toaster Manual

West Bend QUIKSERVE 77222 / 77224 - Toaster Manual

Also See for QUIKSERVE 77222:

Advertisement

West Bend QUIKSERVE 77222 / 77224 - Toaster Manual

Register this and other West Bend products through our website: http://registerproducts.online

Product registration is not required to activate warranty.

PRODUCT DIAGRAM

PRODUCT DIAGRAM

  1. Serving Tray
  2. Toaster Lever
  3. Bagel Button
  4. Gluten Free Button
  5. Cancel Button
  6. Browning Control Knob

BEFORE USE

Please check all packaging material carefully before discarding. Accessory parts may be contained within the packaging material.

Before using, wipe the outside of the toaster with a damp cloth then dry thoroughly. Operate the toaster the first time without any food in the toaster slots and with the browning control knob set to 7.

information Note: The toaster must be plugged in and the serving tray open for the toast lever to lock in place. This will eliminate any residual manufacturing oils.

USING YOUR QUICKSERVE™ TOASTER

This toaster is designed to cook hotter and faster than most toasters. We recommend toasting at a low setting and adjusting from there based on your preference.

  1. Place the toaster on a dry, level, heat-resistant surface, away from any edge or flammable materials.
  2. Plug the cord into a 120 volt, AC outlet only. Open the serving tray. Note: The toaster will not function unless the serving tray is open.
  3. Place a maximum of two slices of bread or bagel into the bread slot. Be sure to place the bagel into the toaster with the cut side to the front.
  4. Select the desired toast color setting. Note: Toaster pastries, tarts, etc. can ignite if overheated. Toast at the lowest setting with constant attention. This toaster is designed to cook hotter and faster than most toasters.
  5. Press the toast lever down until it locks into place. The "CANCEL" light will glow and the toasting cycle will begin.
    information Note: The toaster must be plugged in and the serving tray open for the toast lever to lock in place.
  6. If desired, press "BAGEL" and/or "GLUTEN FREE" button(s). "BAGEL" will toast the front side. "GLUTEN FREE" will toast longer, at a lower power, which produces better results for gluten free breads. These settings can be used simultaneously.
  7. When the selected color is reached, the toast rack will open to the bottom of the toaster and the toast will drop out onto serving tray. The "CANCEL" light and toaster will turn off. The toast cycle can be stopped anytime by pressing the "CANCEL" button. If toasting additional food, always allow a few seconds between toasting for toast rack to close.
  8. When toasting is complete, always unplug the cord from the wall outlet. Do not leave a toaster constantly plugged in.

HELPFUL HINTS

  • A small amount of smoke and/or odor may occur upon heating due to the release of manufacturing oils – this is normal.
  • Some minor expansion/contraction sounds may occur during heating and cooling – this is normal.
  • This toaster is designed to cook hotter and faster than most toasters. We recommend toasting at a low setting and adjusting from there based on your preference.
  • Toasting can be stopped any time by pressing the "CANCEL" button.
  • Use the bread setting when toasting bread, English muffins, waffles, toaster pastries, etc., to toast on both sides.
  • Frozen foods may require a darker setting.
  • While it is not recommended, if you do toast foods with frosting or icing, place the food into the toaster with the frosting side to the front. Toast at the lowest setting with constant attention.
  • Do not cook, warm, or toast fried foods, rice cakes, or non-bread items in the toaster. Do not heat any foods that have been spread with butter, jelly, frosting, syrup, or other spread.
  • Do not cut on serving tray, as damage to tray will occur.
  • Unplug the toaster immediately if fire or smoke is observed.
  • If food becomes lodged inside the toaster, unplug the cord from the wall outlet and allow the toaster to cool completely. Turn the toaster upside down and shake to dislodge.
  • Never insert a metal fork or any other metal objects into the toasting slot.
  • Please note that many variables factor into making toast; moisture content of the bread, thickness, sugars and starches, and grains can all affect the browning of the bread when making toast.
  • Wheat and whole grain breads tend to require longer toasting times.
  • When toasting, you may notice variations in toast color from side to side or top to bottom. This is normal, especially when toasting one slice of bread.
PROBLEM SOLUTION
Toast lever will not lock in place. Toaster must be plugged in and serving tray opened for toaster to start.
Toast rack is not closed. Allow a few seconds for toast rack to close automatically after toasting. Lift toast lever up slightly.
Food does not slide onto serving tray. Uneven or ragged edges can catch on toast rack, trim off ragged edges before toasting.
Crust side of bagel is too dark. Place cut side of bagel to front of toaster.
Toast is too dark. This toaster is designed to toast hotter and faster than standard toasters.

CLEANING YOUR QUICKSERVE™ TOASTER

information Note: Failure to clean the serving tray may result in fire hazard. Do not attempt to dislodge food when the toaster is plugged in.

  1. Unplug the toaster from the outlet and allow to cool completely before cleaning.
  2. Wipe the serving tray and the outside surfaces with a damp cloth to remove crumbs or remove serving tray for cleaning as needed. Wash the serving tray in hot, soapy water, rinse and dry. Note: Do not use any abrasive scouring pads or cleansers on toaster surfaces as scratching will occur. Do not wash the serving tray in an automatic dishwasher, as warping will occur.
  3. Replace and close the tray.

This appliance has no user serviceable parts.

Any servicing beyond that described in the Cleaning Section should be performed by an Authorized Service Representative only. See warranty available online.

If you think the appliance has failed or requires service within its warranty period, please contact the Customer Care Department through our website at www.westbend.com "Support" – > "Contact Us".

Replacement parts, if available, may be ordered online at www.westbend.com.

IMPORTANT SAFEGUARDS

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

  1. Read all instructions before using this product.
  2. This appliance generates heat during use. Do not touch hot surfaces. Use handles or knobs. Always protect your hands with non-slip oven mitts or similar.
  3. To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid.
  4. This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children.
  5. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning. To disconnect, turn any control to OFF, then unplug power cord from outlet. Do not disconnect by pulling on cord. Always grasp the plug and pull to disconnect.
  6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Do not attempt to replace or splice a damaged cord. Return appliance to the manufacturer (see warranty) for examination, repair or adjustment.
  7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
  8. Do not use outdoors or for commercial purposes.
  9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
  10. Do not place on or near wet surfaces, or heat sources such as a hot gas or electric burner, or in a heated oven.
  11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. Always protect your hands with non-slip oven mitts or similar.
  12. Do not use appliance for other than intended use. Misuse can cause injuries. Intended for household countertop use only. Keep 6 inches (152 mm) clear around appliance, and never use under cabinets that may be damaged due to heat from appliance. Always use appliance on a dry, stable, level surface.
  13. Oversize foods, metal foil packages, or utensils must not be inserted in a toaster as they may involve a risk of fire or electric shock.
  14. A fire may occur if toasters are covered, touching or near flammable materials, including curtains, draperies, towels, walls, and the like, when in operation. Do not place any item on top of the appliance when in operation.
  15. Do not attempt to dislodge food when toaster is plugged in.
  16. Do not operate this toaster unattended.
  17. When heating toaster pastries, follow the instructions in the manual for toaster pastries. If no instructions are provided specific to toaster pastries, always use the lightest toast color setting.
  18. To reduce the risk of fire, empty the crumb tray after each use.
  19. Do not use with a programmer, timer, wireless plug adapter or outlet that allows control remotely, or connect to a circuit that is regularly switched on and off by the utility.
  20. Do not use the bread slots to handle or move the appliance.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

POLARIZED PLUG

North American models with polarized plugs:


POLARIZED PLUG
This appliance has a polarized plug, (one blade is wider than the other). As a safety feature to reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature or modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

POWER CORD INSTRUCTIONS:
A short power-supply cord or detachable power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer detachable powersupply cords or extension cords are available and may be used if care is exercised in their use. If a long detachable power-supply cord or extension cord is used on short-cord models:

  1. The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance;
  2. When the product is of the grounded type, the extension cord shall be a grounding type3-wire cord; and
  3. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally. Do not pull, twist or otherwise abuse the power cord.

information NOTICES

  1. Some countertop and table surfaces are not designed to withstand the prolonged heat generated by certain appliances. Do not set the heated unit on a finished wood table. We recommend placing a hot pad or trivet under your toaster to prevent possible damage to the surface.
  2. During initial use of this appliance, some slight smoke and/or odor may be detected. This is normal with many heating appliances and will not recur after a few uses.
