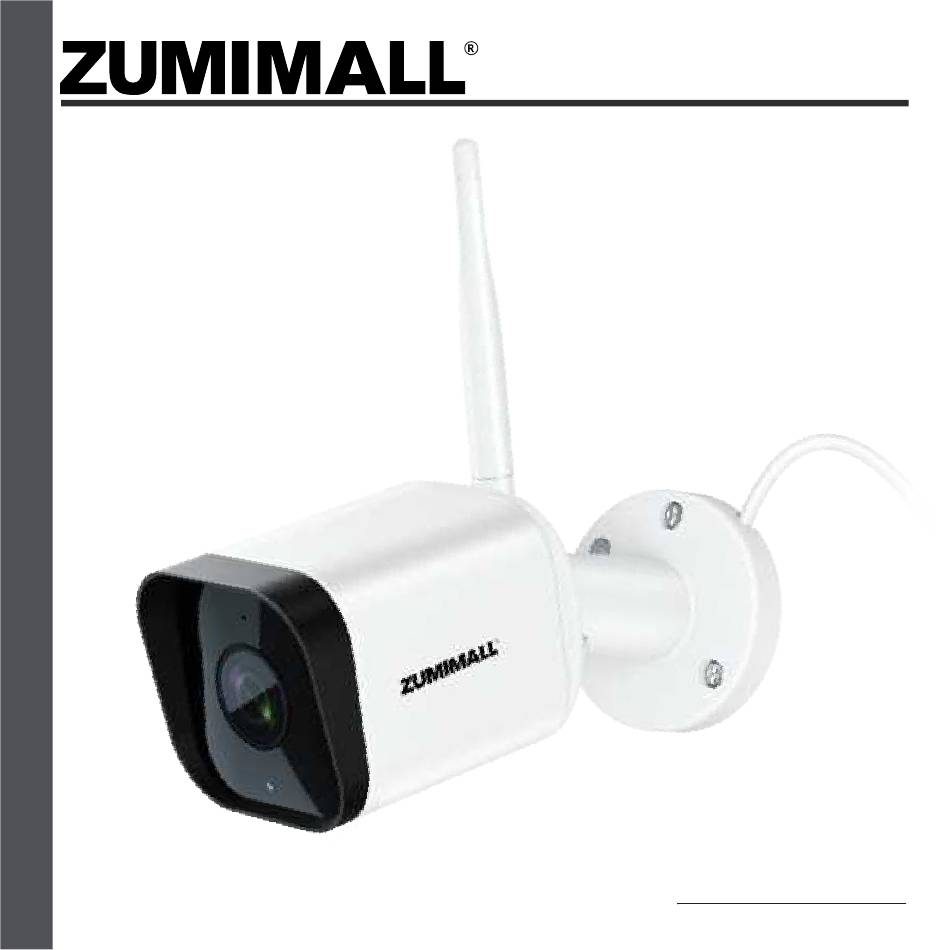

- Page 1 Get Smarter About Your Security USER MANUAL ZM-6S OUTDOOR SECURITY CAMERA cam6s@zumimall.com WIRED丨WIFI丨WATERPROOF丨24/7 LIVE...
- Page 3 E-mail and we will reply to you within 24 hours. We will also appreciate any valuable suggestions. Register via link below to get 3 Years Warranty Extension. http://bit.ly/zuReg Product Services Email: cam6s@zumimall.com Distributor: distributor@zumimall.com Cell/iMessage/SMS/Whatsapp/Wechat: +86 18938687483 More About Us Official Web: www.zumimall.com Facebook: www.facebook.com/zumimalloffice Amazon Office Store: www.amazon.com/zumimall...
-
Page 4: Table Of Contents
INDEX PAGE 1. What's in the Box ----------------------------------------------------------------- -------------P1 2. Camera Diagram ------------------------------------------------------------------------------P2 3. Download & Install App ---------------------------------------------------------------------P3.4 4. Account Registration ---------------------------------------------------------------------------P5 5. Add Camera to App ---------------------------------------------------------------------------P5 5.1 Preparations Before Connection ----------------------------------------------------------P5 5.2 Connect Camera to App -------------------------------------------------------------------P6 6. - Page 5 INDEX PAGE 9. Message Menu --------------------------------------------------------------------------------P20 9.1 Records Playback/Delete -------------------------------------------------------------P20.21 10. Homepage -------------------------------------------------------------------------------P21.22 10.1 Share Pictures & Videos ---------------------------------------------------------------- P22 10.2 Send Your Feedback --------------------------------------------------------------------P23 11. IR Body Detection ---------------------------------------------------------------------------P23 12. Two-Way Audio ------------------------------------------------------------------------------P24 13. Reset ------------------------------------------------------------------------------------------P25 14. Multi-Device Management -----------------------------------------------------------------P25 15.
-
Page 6: What's In The Box
1. What's in the Box： Get Smarter About Your Security USER MANUAL ZM-6S OUTDOOR SECURITY CAMERA cam6s@zumimall.com WIRED丨WIFI丨WATERPROOF丨24/7 LIVE 1 ZM-6S Camera 1 Power Adapter (DC 12V 1A) 1 User Manual 1 Screw Set 1 Hex Key 1 11.5ft Charging Cable... -
Page 7: Camera Diagram
2. Camera Diagram： Antenna SD Card Slot Reset Button Speaker Status Light Charging Port Status Light Camera Status Solid in red Malfunctional Flashing red Waiting Wi-Fi connection Flashing blue Connecting Solid blue Wi-Fi connected, camera working normally... -
Page 8: Download & Install App
3. Download & Install App： Download the ZUMIMALL App from Google Play™ or App Store™. The camera supports Android and iOS systems. OR scan the QR code below using the QR scanner on your phone. NOTE: Google Play™ is the trademark of Google Inc. - Page 9 Turn on both of the following permissions. Allow ZUMIMALL to access mobile cellular data and wireless LAN. Otherwise, it will fail to connect the camera. Allow ZUMIMALL to receive notifications. Otherwise, the phone will not receive alerts when motion is detected.
-
Page 10: Account Registration
4. Account Registration： New user needs to sign up "ZUMIMALL" App with email. Click "Sign up" to create a New Account and follow the steps to complete registration. 5:51 5:51 5:51 Glad to meet you! < < Sign Up Sign Up >... -
Page 11: Connect Camera To App
5.2 Connect Camera to App 5:49 5:49 5:48 5:48 < < Select Device Devices Add Camera Add Camera Get Smarter about your Smart Security Camera Doorbell Battery Camera Please power on the device. Please reset the device. Please place the camera & phone close to your Tap + to add a new device. -
Page 12: Camera Installation
6. Camera Installation: 6.1 Installation Tips Make sure the camera is within Wi-Fi range. Avoid aiming camera towards strong lights/mirror/window/swimming pool. Recommend a distance within 39ft (12m) between camera and motion objects. Keep the camera at least 3ft/1meter away from electronic/electic devices such as microwave, refrigerator, oven, etc. -
Page 13: Device Menu
7. Device Menu： 7.1 Device Page After installing the camera, set up the camera on the ZUMIMALL App. Begin by becoming familiar with the device page first. 5:51 Add a Camera Device List Devices 2020-10-08 14:50:10 Camera ID 060238708... -
Page 14: Live Page
7.2 Live Page Click triangle button on the picture to enter a live view, where you can screenshot a live page, have live talk, record live videos, turn on/off Motion Dection. Camera ID/ Name 5:51 Back (to Device Page ) Camera Settings <... -
Page 15: History Page
7.3 History Page After entering live page, you can easily switch to the history page. 5:51 < 060238708 2020-10-08 15:30:10 Click the Button to Adjust Timeline Interval Time Coordinate 14:00 15:00 16:00 Live History Cloud Click it to Record Previous... - Page 16 7.3.1 SD Card An SD Card or cloud service is essential for storing videos or alert videos won't be saved and cannot be accessed. When the SD Card is full, the video clips recorded in the past will be automatically overwritten. You don't need to delete them manually.
- Page 17 7.3.2 Replay Video Restored in SD Card To replay the video, enter the History Column and follow the steps as below. （For example, to check events around 9 pm on September 14,2020) Step 1 - Click Calendar and choose the 14,Sept...
-
Page 18: Cloud Page
7.4 Cloud Page： 7.4.1 About Cloud Service After 7-day free trial for new users, you can decide whether to subscribe to the cloud storage plan. The subscription fee will be shown on the App when you click on Cloud Storage service. -
Page 19: Multi-User Sharing
2. Scan QR code of other user's account or manually enter other's email account 3. Allow sharing on your phone 4. Accept sharing request on other user's phone Note: Other user need to register on ZUMIMALL App first 5:50 5:50 Option 1: Scan QR <... - Page 20 5:50 5:50 < < Device Share My QR Code yuki 924355665@qq.com yuki Tips 924355665@qq.com YoungCz Requests to share his Allow sharing camera“060552692” device：060552682 to you Reject Accept Scan the QR Code to share the camera with me. Share Select 'Accept'...
- Page 21 8.2 Basic Function 8.2.1 Status Light 5:50 < Status light is default to be ON, showing blue when Basic Function the camera is working. If you want to hide the light, Status light you can turn it off. Night vision light (red) will automatically show up in Rotate View <...
- Page 22 8.2.4 Sleep Mode There are several camera modes: a. Lens ON: Camera will keep working and recording 5:50 < Sleep Mode b. Lens OFF: Camera will be turned off Lens ON c. Privacy Schedule: Camera will work only during Lens OFF a specified time period.
-
Page 23: Alert Settings
8.3 Alert Settings The camera supports both motion detection and noise detection. You can turn on/off detection or adjust sensitivity(3 levels, low to high). Make sure motion detection is turned on if you need to receive motion alerts. (For more details about sensitivity, please refer to... -
Page 24: Sd Card Management
8.4 SD Card Management 5:50 < The camera supports Full-Day Recording and Event Recording. SD Card Management Playback Recording Method Make sure camera mode is LENS ON. Full-Day Recording In Full-Day Recording mode, the camera will record videos all the... -
Page 25: Delete The Device
8.6 Delete the Device If the camera goes offline, delete the device from the App, reset the camera and reconnect it. 9. Message Menu： 9.1 Records Playback/Delete Enter Alarm Messages to check or delete alarm records. You can also enter alarm messages from device menu. -
Page 26: Homepage
Click Recycle 5:51 5:51 Bin to Delete < < Select and 060238708 060238708 Video Delete the 2020-10-12 15:30:10 Select All Video Clips 2020-10-12 15:30:10 Click Triangle Button to Play Motion Detection 2020-10-12 15:30:10 Video Motion Detection 2020-10-12 10:32:12 2020-10-12 15:30:10... -
Page 27: Share Pictures & Videos
5:51 Amanda > 295552475@qq.com > Device Share > Picture & Videos In-App Alert Sound > > Feedback > More Devices Messages 10.1 Share Pictures & Videos All screenshots or manually recorded videos on live/history/cloud page will be saved in Pictures &... -
Page 28: Send Your Feedback
10.2 Send Your Feedback If you like the product, welcome to share your comment. If you have any questions, please feel free to contact us by cam6s@zumimall.com +86 18938687483 email : or phone number: 11. IR Body Detection： IR body detection level is adjustable, you can set motion detection level to Low, Medium or High. -
Page 29: Two-Way Audio
12. Two-Way Audio： Step 1: Activate the audio option. Step 2: Press and hold the intercom button to speak. Step 3: Release the button to listen. Tips: To activate audio function, please allow App to activate the microphone. 5:51 <... -
Page 30: Reset
13. Reset： Step 1: Delete the device from App. (If the camera was added to App) Step 2: Keep pressing reset button for 3-5s until you hear a "Boogu" sound and status light flashes slowly in red. Step 3: Reconnect the camera. -
Page 31: Product Specification
15. Product Specification： Camera Specification Camera Lens 3.0mm@F2.0, Field of view: 130° Image sensor 1/2.9'' 2Megapixel CMOS Effective pixels 1920(H)*1080(V) IR distance Night visibility up to 49ft(15m) Video&Audio Compression H.264 Video resolution 360P ,1080P for option Video bit rate... -
Page 32: Firmware Upgrade
Ingress protection IP65 Waterproof 16. Firmware Upgrade： When your camera is connected on ZUMIMALL App, it will prompt you when the latest firmware is available. You can also manually check the firmware upgrade in Device Version of the App. Do not turn off the power supply during upgrade! 17. - Page 33 Keep pressing the reset button for 3-5 seconds Reset Hear "Boogu" sound Status light flashes slowly in Red Remove the camera in ZUMIMALL App Change to New Network Press the reset button to factory setting Re-connect the camera Ensure you have turned on motion detection and...
- Page 34 Make sure Micro SD card inserted/Cloud No Alarm Video Storage activited Check if the camera is powered off Device Offline Check if the camera is connected Make sure network is steady Phone system version is too low App Flashback...
