Elitech RC-5+ - PDF Temperature Data Logger Manual

How to use

1. Connect the data logger to a computer to set configuration parameters

2. Press and hold the left key for 5 seconds to start recording

3. Quickly click the right key twice to mark the current time and temperature

4. Press and hold the right key for 5 seconds to stop recording

5. Open the data report in the newly created removable disk of your computer and view the data. You can also view the data by operating the data management software.


Note:

Default setting:

Run time: 30 days
Log interval: 2min
Trip ID: 0000001
Time zone: UTC +0:00
Start mode: press button
Alarm setting: no
Start delay: 0 min
Cyclic record: disabled
Temporary report: enable
Multi-start/stop: enabled
Calibration: ±0ºC
Alarm setting: no
Trip description: Temperature recording
Stop mode: press button, via software

In the following two cases, the data logger can also be turned on with the left key not pressed.
Immediate start mode: The data logger is turned on immediately after disconnecting with the computer.
Timing start mode: the data logger starts recording at scheduled time after disconnecting with the computer.

Directly connect the data logger to the computer with no need to stop it, you may view the temporary report.
The logger stops automatically when the set run time elapses.

Data Report

Note: This is only a sample report:

1. Basic information
2. Trip information
3. Configuration information
4. Alarm thresholds and related data
5. Statistics
6. Temperature graph
7. Detailed data

1. File creation time(Record stop time)
2. Alarm indication (The icon indicates alarm has been triggered)
3. The set stop mode
4. Alarm status of the alarm zones
5. Total times of out-of-limits alarms
6. Total duration of out-of-limits alarms
7. Alarm types
8. Alarm threshold and alarm interval division
9. Stop time (Actual stop mode)
10. Temperature unit
11. Alarm threshold lines (Correspond to item L)
12. Alarm threshold
13. Data curve

Note:
Red - above upper temperature
Blue - below lower temperature
Black - within temperature limits

14. File name(serial number + trip ID)
15. Record time rang within the current page
16. The record for two days.(date + temperature)
17. The record for one day.(time + temperature)

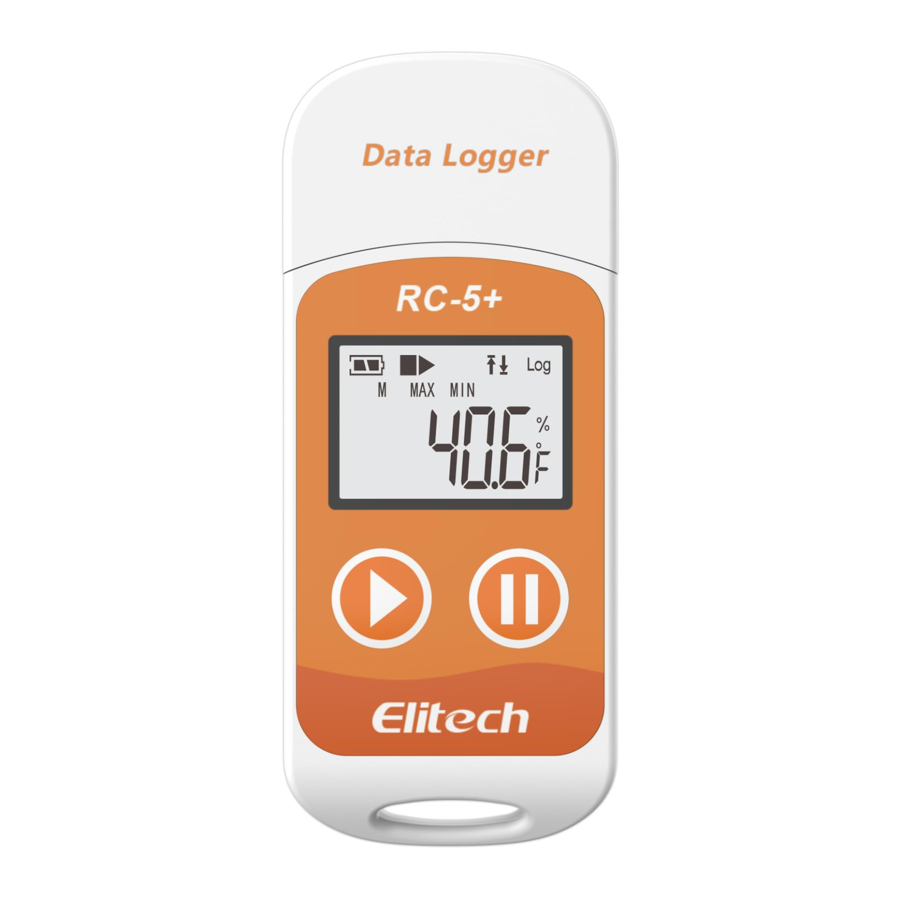

Product Schematic

1. USB protective cover
2. LCD screen
3. Key (left)
4. Key (right)
5. Battery cover

Note:

Left key function

Right key function

Replace the battery with a coin as follows:

1. Turn the battery cover counterclockwise to open it.

2. Put in a new CR2032 button battery, with the negative inward.

3. Turn the battery cover clockwise to close it.


LCD Display

1. Power indicator
2. Stop status
3. Record status
4. Computer connection
5. Alarm: above upper limit
6. Alarm: below lower limit
7. Current readings
8. No alarm/Marked
9. Date - month
10. Maximum temperature
11. Minimum temperature
12. Alarm/Mark failed
13. Alarm/Mark failed

LCD Menu

Press the left key to view the content of each page. Press the right key in any page to return to the first page.

1. Current temperature

2. Number of readings

3. Current time: hour: minute

4. Current date: month - day

5. Maximum temperature

6. Minimum temperature


Application

The data logger is mainly used to monitor the temperature of food, medicine, chemicals and other products in storage and transport. It can be widely applied to all links of warehousing and cold-chain logistics, such as refrigerated containers, refrigerated trucks, cooler boxes, cold storage, laboratories, etc.

Precautions

• Please read the manual carefully before using the logger.
• To synchronize system time, it is recommended to connect the logger to a computer for parameter configuration before it is used for the first time.
• The LCD screen will be off after 15 seconds of inactivity. Press the left key to lighten it.
• Never dismantle the battery. Do not remove it if the logger is running.
• Replace the battery in time for long distance transport if its power remains half.
• Replace old battery with a new CR2032 button cell with the negative inward.

Download Link: http://www.elitechlog.com/softwares
