- Page 1 RCW 400A USER MANUAL Elitech cloud login: www.i-elitech.com. iOS APP Android APP Scan the QR code or Scan the QR code or download on the App Store download on the Google play...
-
Page 2: Speci Cations

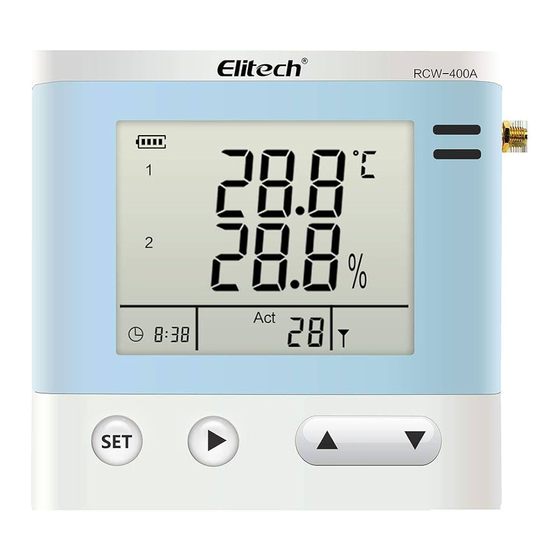

Overview RCW-400A is a 4-channel temperature and humidity data logger that not only has wide temperature measurement ranges, but also provides high precise sensitivity. Its large LCD screen can display time, current working status, memory capacity and recorded data informa- tion etc. -
Page 3: Lcd Display
Channel 4: pin16&17 (5) Date and time (6) Recording status: a. Wait: waiting for recording; b. Act: recording (7) Recorded points (8) GSM network signal strength for SIM card (9) Elitech Cloud platform connecting indicator (10) Humidity unit (11) Temperature unit... -
Page 4: Operation
Apperance Power indicator GSM antenna RCW-400A GSM network indiactor View version number Not used Operation (1) Access the device ID Device GUID (20-digit numbers) RCW-400A GUID: 02365 98563 25476 10354... - Page 5 (2) SIM card installation and replacement RCW-400A Insert your SIM card into the RCW-400A side slot (make sure the logger is o to avoid hot GUID: 02365 98563 25476 10354 (3) Antenna installation GSM antenna connector RCW-400A RCW-400A GUID: 02365 98563...
-
Page 6: Sensors Installation
Sensors Installation (1) Wiring diagram for 2 channel temperature sensors: Channel 1 to pin 8&9, Channel 2 to pin 12&13. Wiring diagram for 2 channel temperature sensors (2) Wiring diagram for 4 channel temperature sensors: Channel 1 to pin 8&9, channel 2 to pin 12&13, channel 3 to pin 14&15, channel 4 to pin 16&17. Wiring diagram for 4 channel temperature sensors (3) Wiring diagram for 4 channel temperature and humidity sensors: 2 channel humidity sensors: One channel to pin 6, 7, 8, 9. - Page 7 Note: The measured values will appear on screen after sensors plugged in for 15 to 20 seconds. Elitech App 1. Download and Login: Please scan the QR code on the front of the manual or search Elitech on App Store or Google Play to download Elitech app. Register and login to your account.
- Page 8 RCW-2000 Elitech Technology, lnc. 1551 McCarthy Blvd Suite 112 Milpitas CA 95035 Sales Support:sales@e-elitech.com Tech Support: info@e-elitech.com http://www.elitechlog.com...
