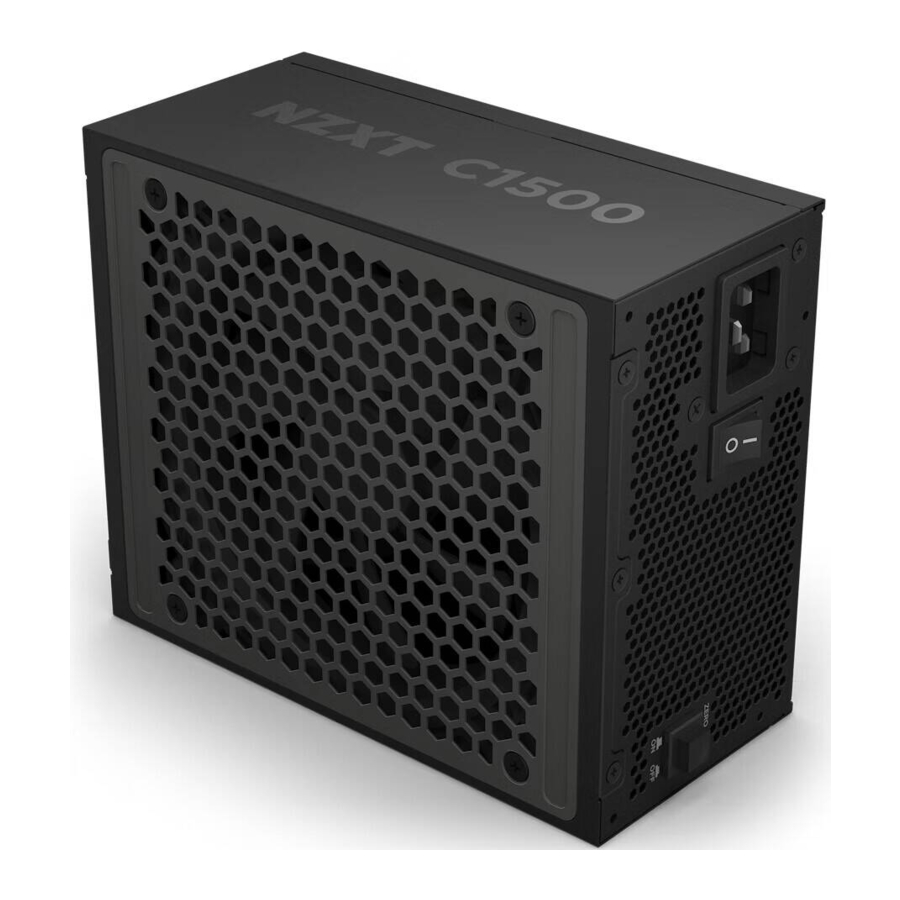

NZXT C1500 PLATINUM - Power Supply Manual

COMPONENT LIST

PINOUT DIAGRAM

INSTALLATION

Install the power supply into the case using the provided screws.
Connect the 24-pin power to the motherboard.
Connect the 8-pin CPU power.
Option 1
Connect the PCI-E power to your graphics card as required.

Option 2
To support Nvidia 40 Series graphics cards
Connect the 16-pin PCI-E power to your graphics card as required.
Connect the SATA and peripheral power as needed.
Connect the AC power cord to the wall and turn on the power switch.

SPECIFICATIONS

Dimensions (WxDxH)	150mm x 180mm x 86mm
Material(s)	Steel, PCB and plastic
Compliance Standard	ATX12V v3.1 / EPS12V v2.92
PF Correction	Active @ 0.99
Regulation & Certification	FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, CP65
AC Input Rating
100 - 240Vac	15A-9A 50Hz-60Hz
200 - 240Vac	9A 50Hz-60Hz
DC Output Rating
Product Type	Switching Power Supply
Model No.	PS-2203
DC Output	+3.3V	+5V	+12V	+5Vsb
Max Load	22A	22A	125A	3A
Max Output Power	120W		1500W	15W
Total Power	1500W(115V-240V~) / 1300W(100V-115V~)
Fan Spec
Dimensions	140 x 140 x 25 mm
Speed	2500 ± 10% RPM
Airflow	125 CFM (Tpy.)
Noise	41.0 dBA max
Bearing	Magnetic Levitation Bearing (ML)
Operation
MTBF	100,000 hours
Temperature	0 - 50°C
Energy Efficiency	80 Plus Platinum
	10% loading: 92% @115Vac
	20% loading: 94% @115Vac
	50% loading: 93.8% @115Vac
	100% loading: 90.8% @115Vac
Protections	OVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection) OTP (Over Temperature Protection), OPP (Over Power Protection), OCP (Over Current Protection)
Cable Specs	24-pin ATX Power Cable: 600 mm with nylon sleeving, 4+4-pin CPU Power Cable: 700 mm with nylon sleeving, 8-pin CPU Power Cable: 700 mm with nylon sleeving, 6+2-pin PCIe Power Cable: 650 mm with nylon sleeving, 16-pin (12+4) 12V-2x6 PCIe Cable: 650 mm with nylon sleeving, SATA Cable: 500 + 150 mm with nylon sleeving, Peripherals Cable: 500 + 150 mm with nylon sleeving
Output Connections	24-pin ATX Power Cable: 1, 4+4-pin CPU Power Cable: 1, 8-pin CPU Power Cable: 1, 6+2-pin PCIe Power Cable: 6, 16-pin (12+4) 12V-2x6 PCIe Cable: 2, SATA Cable: 12, Peripherals Cable: 4
Warranty	10 Years

IMPORTANT SAFETY INFORMATION

ELECTRIC SHOCK HAZARD!

Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may causes serious injury or death.
High voltages are present in the power supply. Do not open the power supply case or attempt to repair the power supply; there are no user-serviceable components.
This product is designed for indoor use only.
Do not use the power supply near water, or in high temperature or high humidity environments.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
Do not insert any objects into the open ventilation or fan grill area of the power supply.
Do not modify the cables and/or connectors included with this power supply.
If this power supply uses modular cables, use only manufacturer supplied cables.
The 24-pin main power connector has a detachable 4-pin connector.
This 4-pin connector is not a P4 or ATX 12V connector. Do not force this cable in the P4 or ATX +12V socket on motherboard.
Failure to comply with any manufacturer instructions and/or any of these safety instructions will immediately void all warranties and guarantees.

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. service@nzxt.com support.nzxt.com
Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, designer@nzxt.com.
Lastly we would like to thank you for your support by purchasing this product. For more information about NZXT, please visit us online. NZXT Website: NZXT.com
