Toyota START+ - Remote Engine Starter Manual

INTRODUCTION

This Remote Engine Starter system is designed to start the engine while you are away from the vehicle.

The system includes a separate accessory remote control exclusively designed for remote engine start/stop operation with long range and engine status feedback capabilities. The long range feature supports remote engine control from the comfort of climate controlled building interiors, while you activate the system through minimum level of physical obstruction such as glass windows and doors. The feedback feature lets you know engine status to confirm system operation.

Alternatively, the original vehicle key fobs can be used for remote engine control. Simply activate the system with a sequence of door lock/unlock signals.
In this case, the operational range is limited to the range of the vehicle's keyless entry system and there is no engine status feedback.

Besides remote engine control, this system can activate the vehicle heating, ventilation and air conditioner system to your preset temperature control, providing you with a comfortable cabin upon your entry. As an added convenience, the remote engine starter can also activate the defogger system.

To ensure your safety and the safety of anyone near the vehicle, the Remote Engine Starter is designed to shut the engine off when it detects any attempt to enter or move the vehicle after a remote engine start.

This Toyota Genuine - Remote Engine Starter system was designed for seamless integration with your vehicle, including perfect synchronization with vehicle immobilizer system. More importantly, the system was validated to meet Toyota safety and reliability standards.

For any questions about the system, please consult your Toyota dealer.

OPERATION (PRIMARY FEATURES)

PARTS AND FUNCTION DESCRIPTION

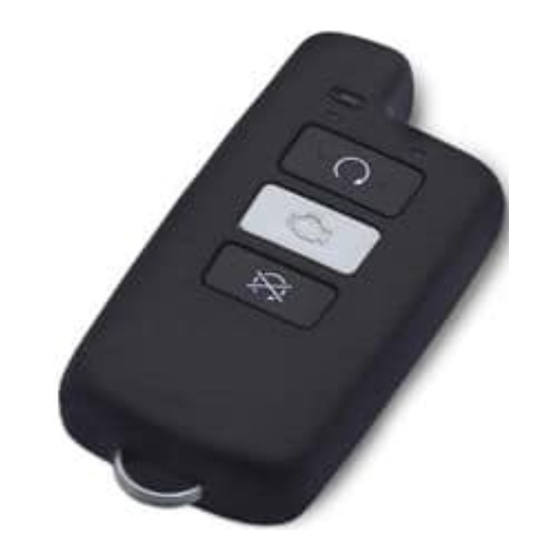

Accessory remote control (TYPE A)

[x1 per accessory kit]	Item	Description	Function
	(1)	Accessory remote control	Only for remote engine start/stop operation
	(2)	Light emitting diode (LED)	Engine status feedback
	(3)	Start button	Start activation
	(4)	Engine button	Enable system
	(5)	Stop button	Stop activation
	(6)	Key ring	Attachment
	(7)	Light emitting diode (LED)	Battery power level indicator
	(8)	Built in antenna	Signal transmission
	(9)	Battery cover	Battery access protection
	(10)	Screw	Battery cover attachment
	(11)	Battery model	Easy identification
	(12)	Serial number label	Identification
	(13)	Certification label	Regulation
	(14)	Battery	Power

NOTE: Maximum number of accessory remote controls to be paired with one antenna: 4 Please contact your Toyota dealer to purchase replacement or extra remote control(s).

Original vehicle key fob (TYPE B)

[x2 per vehicle]	Item	Description	Function
	(1)	Lock button	Sequence of lock signals to activate remote engine control
	(2)	Unlock button	Unlock signals to activate engine stop

NOTE: Actual vehicle keys may be different from illustration above. These vehicle key images are for illustration purpose only. This Remote Engine Starter kit does not include any vehicle key fobs.

Accessory antenna

[x1 per accessory kit]	Item	Description	Function
	(1)	Antenna	Signal transmission
	(2)	Certification and serial number label	Regulation and identification

NOTE: Normally mounted to windshield in the vehicle interior.

Key tag for TYPE A

[x1 in English, x1 in French per accessory kit]	Item	Description	Function
	(1)	Key tag (Black)	Quick operation guide
	(2)	Protection film	Key tag surface scratch prevention

NOTE: The key tags have a thin protection film on both sides. Protection films may be removed for improved key tag appearance.

Key tag for TYPE B

[x1 in English, x1 in French per accessory kit]	Item	Description	Function
	(1)	Key tag (White)	Quick operation guide
	(2)	Protection film	Key tag surface scratch prevention

NOTE: The key tags have a thin protection film on both sides. Protection films may be removed for improved key tag appearance.

Window sticker

[x2 in English, x2 in French per accessory kit]	Item	Description	Function
	(1)	Window sticker	Identification of Toyota Genuine Accessory

REMOTE STARTER FUNCTION OVERVIEW

• ENGINE START / STOP
  Vehicle engine can be remotely started and stopped.
• HVAC AND DEFOGGER CONTROL
  • In most vehicle models equipped with Auto HVAC system, the Remote Engine Starter can activate HVAC controls. Auto mode setting is recommended for improved vehicle temperature pre-conditioning. Additionally, the Remote Engine Starter can activate front and rear defogger systems based on outside temperature level.
  • In vehicles equipped with Manual HVAC system, the Remote Engine Starter will maintain HVAC pre-settings while engine runs in remote start mode.
• DEEP SLEEP MODE
  This function will help prevent vehicle battery from depleting by stopping the Remote Engine Starter system if the vehicle has not been operated for 14 or more consecutive days.
• REMOTE ENGINE START / STOP FEEDBACK
  Vehicle engine start and stop condition will be notified via LED and melody of the accessory remote control.
• LOW BATTERY POWER INDICATOR
  Low battery power condition in the remote control will be notified via LED and melody.
• ENGINE AUTOMATIC SHUTDOWN TIMER
  After the vehicle engine is remotely started: it will automatically stop after the 10 minutes of runtime.

BEFORE LEAVING YOUR VEHICLE

Before using the Remote Engine Starter, please be sure of the following conditions:

NOTE: Conditions indicated with are required for remote engine start. Other conditions are required to preserve vehicle integrity.

LONG RANGE REMOTE ENGINE START (TYPE A)

To remotely start the vehicle engine, press the button, and then press the button within three seconds. The table below describes the complete cycle of start function.

NORMAL OPERATION

NOTE: Once the remote engine control is activated, the cycle of normal operation must be completed before next activation is possible.

MALFUNCTION

In case remote engine start fails, please check table below for further and appropriate action.

NOTE: Number of hazard lights flash depends on vehicle's model and status.

REMOTE ENGINE START (TYPE B)

To remotely start vehicle engine, press and release the LOCK button twice within two seconds, then press and hold the LOCK button for three seconds.

STEP 1.
Press and release the LOCK button on the remote twice within two seconds. The hazard lights will flash each time.

FOLLOWED IMMEDIATELY BY:

STEP 2.
Press and hold the LOCK button on the remote for three seconds. The hazard lights flash once when pressed, then again after three seconds. The engine starts, and the hazard lights flash for 10 seconds.

LONG RANGE REMOTE ENGINE STOP (TYPE A)

To remotely stop the vehicle engine, press the button, and then press the button within three seconds. The table below describes the complete cycle of stop function.

NORMAL OPERATION

NOTE: No buzzer or flashing hazard lights on vehicle when engine stops, but can confirm the engine stop by the LED feedback and buzzer on remote control.

NOTE: When the engine was started with the ignition key or the push start button, the Remote Engine Starter cannot stop the engine.

MALFUNCTION

In case remote engine stop fails, please check table below for further and appropriate action.

REMOTE ENGINE STOP (TYPE B)

There are two methods to remotely shut off the vehicle engine: Either press the UNLOCK button once OR press and hold the LOCK button for two or more seconds.

METHOD 1: Press the UNLOCK button on the remote. The engine stops and the hazard lights flash twice.

1. Press the UNLOCK button.
2. The engine stops.
3. The hazard lights flash twice

Using Method 1, your vehicle will remain unlocked for 30 seconds. Then it automatically relocks if no doors are opened. If your vehicle will not be in plain view for that time, or you have other security concerns, you may wish to use Method 2 (below), which does not unlock the vehicle.

METHOD 2: Press and hold the LOCK button on the remote for two or more seconds.
The engine stops and the hazard lights flash once.

1. Press and hold the LOCK button for two seconds or more.
2. The engine stops.
3. The hazard lights flash once.

NOTE: All doors will remain locked after the engine is shut off.

NOTE: For vehicles equipped with door lock buzzer, the buzzer will chirp every time the lights flash.

AUTOMATIC ENGINE SHUTDOWN

The Remote Engine Starter will automatically shut engine off under the following conditions:

LOW BATTERY POWER INDICATOR (TYPE A)

If the button is pressed when the battery of the accessory remote control has run out of power, the battery LED flashes or switches on.

The table below outlines the remote control operation condition based on LED indicator.

LED indicator	Buzzer sound	Operation condition and recovery method
Off *1	Melody	The remote control can be operated.
Flashing red	Declining melody	Operation is possible, but range and success rate may be affected. It is recommended to replace the batteries with new ones at your earliest convenience.
Solid on and red	Declining melody	Operation may not be possible. Replace the battery. It is recommended to immediately replace the batteries with new ones.
No light (off)	No melody	Operation is not possible. Replace the battery.

^*1 When the battery power level is normal, the battery LED does not turn on or flash, when the button is pressed.

NOTE: Depending on the following usage conditions, the voltage of the battery may drop temporarily, and the battery LED may turn on. This is due to battery performance characteristics and is not considered remote control malfunction.

• When the remote engine control is used in cold conditions.
• When the remote engine control was used continuously for a short time.

NOTE: Depending on the usage or storage conditions of the accessory remote control, the battery LED may not work in the following order: flashing, on, and off.

OPERATION (SECONDARY FEATURES)

HEATING VENTILATED & AIR CONDITIONER (HVAC) AND DEFOGGER CONTROL

VEHICLES WITH AUTOMATIC HVAC SYSTEM

In most vehicle models, the Remote Engine Starter will activate HVAC and Defogger systems based on outside temperature level as indicated in the table below:

User mode (Default)

Outside Temperature	A/C Switch	Temperature (Activated)	Air Flow Direction	Rear Defogger
Below 5°C	OFF	Last user setting	Windshield	ON
	ON	Last user setting	Windshield	ON
Above 5°C	OFF	Last user setting	Last user setting	OFF
	ON	Last user setting	Last user setting	OFF

Alternatively, programming to activate HVAC (AUTO mode) as described in the table below is available. Please contact your Toyota dealer in order to have this optional setting programmed.

NOTE: Programmable features may differ depending on the type of vehicles you own.

Auto mode (Optional)

Outside Temperature	A/C Switch	Temperature (Activated)	Air Flow Direction	Rear Defogger
Below 5°C	OFF	25°C *	Windshield (Front Defogger)	ON
	ON	Last user setting	Windshield (Front Defogger)	ON
In between 5°C and 31°C	OFF	Last user setting	Last user setting	OFF
	ON	Last user setting	Last user setting	OFF
Above 31°C	OFF	25°C *	Auto	OFF
	ON	Last user setting	Last user setting	OFF

*: Depend on vehicle.

VEHICLES WITH MANUAL HVAC SYSTEM

For your comfort and convenience, the vehicle's air conditioning system controls can be preset to operate the HVAC and Defogger systems while the engine runs in remote start mode. The table below contains the settings recommended for best results. Users should preset these before exiting the vehicle. Please see your vehicle's owner's manual for available settings.

	A/C Button	Temperature Selector	Air Flow Direction	Fan Speed Selector
Heat	OFF	WARM	PANEL	HIGH
Cool	ON	COLD	PANEL	HIGH
Defogger	ON	WARM	WINDSHIELD	HIGH

VEHICLES WITH HEATED AND VENTILATED SEATS

For vehicles equipped with Heated and Ventilated front seats these features can also be set before you leave vehicle so that when the vehicle engine runs in remote start mode. When the vehicle is remotely started, these features will provide you with additional comfort upon entering the vehicle.

RUNTIME AND AUTOMATIC ENGINE SHUTDOWN

RUNTIME

Any vehicle started with the Remote Engine Starter can idle for a total of 20 minutes. Automatic engine shutdown occurs after 10 minutes, but the vehicle engine may be remotely started a second time and run for an additional 10 minutes. After 20 minutes of total operation, however, the vehicle engine must be started manually to reset the Remote Engine Starter function.

NOTE: Hazard lights will flash once, when the engine shuts off. For vehicles equipped with door lock buzzer, the buzzer will chirp every time the lights flash.

AUTOMATIC ENGINE SHUTDOWN

The engine will stop automatically after 10 minutes.

OPERATIONAL RANGE

The table below indicates approximate unobstructed range on which the Remote Engine Starter can be effectively operated.

Type of Operation	Unobstructed Range
Via accessory remote control (TYPE A)	800 meters (2,600 feet)
Via original vehicle key fob (TYPE B)	24 meters (80 feet)

Most practical situations in everyday use will have some sort of physical and electrical obstructions between you and your vehicle such as walls, trees, other vehicles, etc. These obstructions might affect the effectiveness of the wireless communication and consequently the remote start/stop performance might be affected.

Therefore, please be advised to consider such possible limitation when choosing location to park vehicle or activating the system from building interior. While inside the building, please look for minimum physical obstruction of building components such as glass windows and doors. Also, try to keep distance from other radio wave emitting devices, or facilities such as radio stations.

Please note that maximum operating range and success rate may vary depending on terrain characteristics, surrounding environment, battery power condition on remote control, radio-frequency interference, etc.

Lastly, the remote control orientation may also affect the wireless wave transmission and reception. Optimal performance is achieved by holding the Accessory remote control vertically.

ACCESSORY REMOTE CONTROL - BATTERY REPLACEMENT

Use two coin-type lithium batteries, Model CR2032.

STEP 1. Using a small Phillips jeweler's screwdriver remove the screw and then the battery cover.

NOTE: Do not lose the removed screw.

STEP 2. Remove the battery cover, and then remove the two batteries.

NOTE: When removing the battery cover, do not damage the hook on the rear surface.

STEP 3. With the (+) mark facing up, insert the two new batteries. Attach the battery cover, and then tighten the screw.

NOTE: Always replace with two new batteries.
Furthermore, to prevent poor contact, wipe the batteries well with a dry cloth before replacement.

STEP 4. Press the button, and make sure that the green LED flashes.

• Keep battery out of reach of children and in original package until ready to use. Dispose of used battery promptly. If it is swallowed, consult a doctor immediately.
• Do not leave the battery near fire or under direct sunlight. A fire, explosion or excessive heat generation may result.
• The lithium battery may explode if incorrectly replaced. Replace only with the same or equivalent type.
• Do not pinch the battery with, for example, metal tweezers. The battery may short and generate heat.

DEEP SLEEP MODE (TYPE A)

This function, when activated, will temporarily disable the remote engine start function.
If the vehicle has not been operated in 14 days or more, the vehicle will not respond to Remote Engine Starter. If this happens, unlock and lock the door, or start the engine with the original vehicle key fob to reset the system.

TROUBLESHOOTING INFORMATION

ACCESSORY REMOTE CONTROL (TYPE A)

The following operation conditions may be considered malfunctions. Check the items on the table first. If problems are not resolved after taking appropriate measures, consult with your Toyota dealer.

Condition 1: The engine will not start by using the Accessory Remote Control (TYPE A) even after numerous attempts.

Possible cause	Remedy
The remote engine start operation was attempted while the accessory remote control was held horizontally.	Perform remote engine start command while holding the accessory remote control vertically. Holding the Accessory Remote Control horizontally weakens the antenna signal transmission.
Accessory remote control was used while the LED was still on or flashing.	Wait for a moment and try again. NOTE: It may not be possible to use the Remote Engine Starter while the LED is on or while previous wireless signal transmission or reception has not been completed.
Location where the remote control was used.	Move to a different location, wait for a while, and then try again. The starter may be affected by radio interference or reflection depending on the location or time.
Accessory remote control was used in a higher location (upper floor of a building) or a place with many obstacles.	Avoid a location with many obstacles as much as possible and move so the starter can be used in a good line of sight. Reflection and other effects may make it difficult for the radio waves to reach the vehicle.

Condition 2: The engine cannot be started using the accessory remote control (TYPE A).

Possible cause	Remedy
The button of the Accessory Remote was pressed under the following conditions. The battery LED is red. The LED is off.	The battery power is low. Please the replace the battery immediately. When the accessory remote control is used in cold weather, the battery LED may light up.
The engine does not start.	Check the conditions of the vehicle. Confirm the requirements for remote engine start are met.
The engine has not been started for 14 days or more.	Start the vehicle engine according to the DEEP SLEEP MODE reset procedure.
When the engine was started, engine cranking was weak and the starter had to run for an extended amount of time.	Check to see if the vehicle battery power is normal. Replace the vehicle battery with a new battery if necessary. The engine may not start when vehicle battery power is low.
None of the above is applicable.	Please consult with your Toyota dealer.

GENERAL SPECIFICATIONS

REMOTE CONTROL

NOTE: Maximum number of accessory remote controls to be paired with one antenna: 4 Please contact your Toyota dealer to purchase replacement or extra remote control.

Working temperature range	-20°C to 60°C (-4°F to 140°F) (Except for the battery)
Battery used	Lithium battery (CR2032 x 2)
Estimated battery life	Approximately 1 year
Size	16.8 mm (H) x 36 mm (W) x 72 mm (L) (0.6 in (H) x 1.4 in (W) x 2.8 in (L))
Weight	35 g (1.2 oz)

NOTE: Operating temperature range may be affected depending on battery performance in extreme temperatures.

ANTENNA

Working temperature range	-30°C to 85°C (-22°F to 185°F)
Consumed electric current	Stand by: 10 mA Max: 130 mA
Size	16 mm (H) x 36 mm (W) x 89 mm (L) (0.6 in (H) x 1.4 in (W) x 3.5 in (L))
Weight	74 g (2.6 oz)

NOTE: Do not remove or relocate antenna in the windshield. In case of an accidental removal of the antenna unit, consult your Toyota dealer.

IMPORTANT INFORMATION ABOUT THIS MANUAL

For safety reasons, this manual indicates items requiring particular attention with the following marks.

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk or injury to yourself and others.

Notice
This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your vehicle and its equipment.

SAFETY PRECAUTIONS

• Due to the complexity of this Remote Engine Starter system, installation of this product must only be performed by an authorized Toyota dealer.
• This product is applicable and particularly designed for your TOYOTA vehicle model specification. Consult your Toyota dealer about vehicle model application and installation. Do not use this product in any other vehicle model specification. Otherwise damage to the unit, damage to the vehicle or injury to people may occur.
• This product is applicable only to vehicles with 12V DC, negative grounding specifications. Do not use in vehicles with 24V specifications. Otherwise, damage to the unit or a fire may result.
• The Remote Engine Starter is for vehicles with automatic transmissions only. Do not use it for manual transmission vehicles.
• Do not allow children to play with remote controls. The doors may be locked or unlocked, and the engine may be started unintentionally.
• If an unusual event occurs, such as liquid spilling onto the product, or the product emitting smoke or strange odors, stop using it immediately and consult the Toyota dealer from whom you purchased it. Continued use of the product before corrective actions are taken may result in an accident, injury, or fire.
• Never pull the plastic bag from the product package over your head. Otherwise, a serious injury or death from suffocation may occur.
• When replacing fuses, be sure to use fuses with the same specified capacity (amperage). Otherwise, damage to the unit or vehicle, fire, or electric shock may result.

Notice

• Do not use this product for applications other than in-vehicle use. An electric shock or injury may result.
• Do not operate the Remote Engine Starter if the engine malfunction indicator lamp stays on and engine service is required.
• Never attempt to disassemble or modify the product. An accident, fire, or electric shock may result.
• All features may not be applicable to all vehicle models.
• Contents subject to change.

Never start the engine in an enclosed area (such as a garage or indoor parking lot) where exhaust gases may accumulate and create a hazardous environment with potential for Carbon Monoxide (CO) poisoning.

Do not start the engine if a child or pet are present in or near the vehicle. Interior power components such as windows and seats can accidentally be switched on and lead to injury.

Do not check the engine while it is still warm after being remotely started. Allow at least five minutes for the engine to cool to avoid being burned.

Do not start the engine near dry foliage, paper, or other flammable substances. The exhaust tube and emissions can create a fire hazard at high temperatures.

Do not use the Remote Engine Starter from a location where the vehicle cannot be seen. Children or small animals should not be near the vehicle.

The Remote Engine Starter may not operate at temperatures below -30°C. Due to multiple variables on vehicle side, this operating temperature may fluctuate.

Do not start the engine with the body cover still on the vehicle. The exhaust tube and emissions are capable of starting a fire at high temperatures.

To help reduce the risk of injury during engine service, the Remote Engine Starter will not function while the hood is open.

When performing vehicle service. Remove the negative cable terminal from vehicle battery and keep the remote control/vehicle key fob in a safe and secure place.

Keep coin-type batteries out of reach of small children. Should a child swallow a battery, consult a physician immediately.

Notice
Always turn off vehicle systems such as the windshield wipers, headlights and radio before leaving the vehicle. If left on, such systems may be damaged or vehicle battery depleted by remote engine start in extreme cold weather. Check that all vehicle windows are closed and all doors locked before leaving the vehicle.

Notice
Only use the Remote Engine Starter when you intend to drive the vehicle; excessive engine starting consumes fuel and battery power.

Notice
Keep remote control(s) away from water, and extreme temperature exposure.

Notice
Keep remote control(s), clean, and stored in safe place away from children.

Notice
Please be aware that vibration of vehicle body at the remote engine start operation may cause a slight downward movement of the unattended vehicle when parked on a steep slope.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Toyota START+ - Remote Engine Starter Manual
