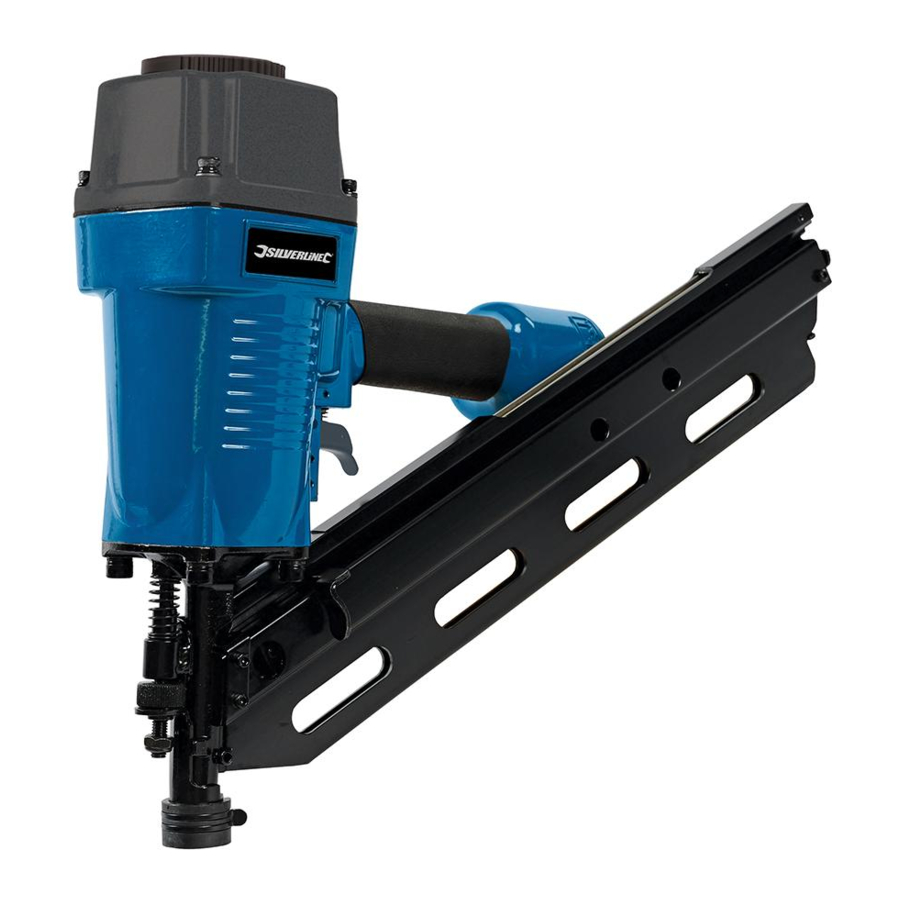

Silverline 282400 - Air Framing Nailer Manual

Assembly Diagram

IMPORTANT NOTE: The parts diagrams supplied in this manual are for reference only. The manufacturer makes no representation or warranty of any kind to the customer that he or she is qualified to make any repairs to the product, or carry out other assembly/disassembly procedures. The manufacturer expressly states that all repairs and part replacements must be undertaken only by a certified technician at an authorised Silverline service centre, and not by the customer. The customer assumes all risk and liability arising through his or her repairs to the original product, replacement of parts or other modification of the original product. Diagrams are for illustration purposes only. Silverline does not supply spare parts for this item.

Introduction

This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the product read and fully understand this manual. Keep these instructions with the product for future reference.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

	Wear hearing protection Wear eye protection Wear breathing protection Wear head protection
	Wear hand protection
	To reduce the risk of injury, user must read instruction manual
	DO NOT use with compressed gas cylinders!

Technical Abbreviations Key

Specification

Maximum operating pressure: 8.3bar (120psi)
Working pressure: 5.5-8bar (80-115psi)
Air consumption: 5L/s (10.7cfm)
Air inlet: ¼" BSP quick connector
Minimum hose diameter: Outer diameter 8mm
Nail capacity: 80 pieces (34° paper collated, clipped head nails)
Nail gauge: 10-12 gauge
Nail head diameter: 6.8-7.2mm
Nail shank diameter: 2.9-3.3mm
Nail length: 50-90mm
Dimensions (L x W x H): 458 x 142 x 365mm
Weight: 4.2kg
As part of our ongoing product development, specifications of Silverline products may alter without notice.

Sound and vibration information:
Sound pressure L_PA : 93.5dB(A)
PA Sound power L_WA : 106.5dB(A)
WA Uncertainty K: 2.5dB
Vibration emission value: 2.99m/s ²
Uncertainty: 1.2m/s ²
The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.

Fastener Tool Safety Warnings

Read and understand the safety instructions before installing, operating, repairing, maintaining, cleaning, changing accessories on, or working near this tool. Failure to do so can result in serious injury.
Save all warnings and instructions for future reference.

This appliance is not intended for use by persons (including children) with reduced physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the tool by a person responsible for their safety. Children must be supervised to ensure that they do not play with the tool.

• Only qualified and trained users should install, adjust, or use the tool.
• Do not modify the tool. Modifications can reduce the effectiveness of safety measures and increase the risks to the user.
• Do not discard the safety instructions; give them to the user.

• Do not use the tool if it has been damaged.
• Inspect the tool periodically to verify that the ratings and markings required by ISO 11148 (detailed in the Description of Symbols) are legibly marked on the tool. The user (and employer if appropriate) should contact the manufacturer to obtain replacement marking labels when necessary.
• Compressed air can cause severe injury.
• Always disconnect the tool from the air supply when not in use.
• Always disconnect the tool from the compressed air supply before changing accessories, making adjustments and/or repairs and when moving away from an operating area to a different area.
• Keep fingers away from trigger when not operating the tool and when moving from one operating position to another.
• Never direct compressed air at yourself, others or animals.
• Whipping hoses can cause severe injury. Always check for damaged or loose hoses or fittings.
• Never carry or drag an air tool by its hose.
• When using air tools, do not exceed the maximum operating pressure.
• Inspect tools and accessories before each use. Do not use if damaged or excessively worn.
• Air tools should only be powered by compressed air at the lowest pressure required by the task to reduce noise and vibration and minimise wear.
• Never use pure oxygen or combustible gases to power an air tool. Air tools are not designed for these power sources and their use creates a fire and explosion hazard.
• Be aware that air tools may become cold during use, affecting grip, control and susceptibility to vibration-related injury.

Even when this tool is used as prescribed it is not possible to eliminate all residual risk factors. If you are in any doubt as to the safe use of this tool, do not use it.

Projectile Hazards

1. Be aware that failure of the workpiece, accessories, or tool itself can generate high-velocity projectiles.
2. Always wear impact-resistant eye protection during operation of this tool. The grade of protection required should be assessed for each use.
3. Assess risk to others when considering projectile hazard risk.
4. Ensure that the workpiece is securely fixed.
5. The fastener driving tool shall be disconnected when unloading fasteners, making adjustments, clearing jams or changing accessories.
6. Ensure that fasteners penetrate material correctly and cannot be deflected/misfired towards operator and/or any bystanders.
7. Be careful when firing fasteners into thin material or at the edge of material. The fasteners may go straight through or miss the material and cause damage or injury to people nearby.
8. During operation, debris from workpiece and fastening/collation system may be discharged.
9. Ensure tool is always safely engaged on the workpiece and cannot slip.

Operating Hazards

1. Ensure users and maintenance personnel are physically able to handle the bulk, weight and power of the tool.
2. Hold the tool correctly; be ready to counteract normal or sudden movements such as recoil. Have both hands available.
3. Maintain a balanced body position and secure footing.
4. Only use lubricants recommended by the manufacturer.
5. Personal protective safety glasses should be used; suitable gloves and protective clothing are recommended.
6. For overhead work, wear a safety helmet.
7. Avoid direct contact with moving parts to prevent injury by pinching or cutting.
8. Be aware that there is a risk of electrostatic discharge if used on plastic and other non-conductive materials. Take appropriate steps to reduce this risk when working with these materials (e.g. using a grounding system).
9. Be aware that certain materials may present fire or explosion risks when being processed. Take appropriate precautions to reduce hazards. Employers should make risks clear to operators.
10. Switch off device / release start-and-stop control if the air / power supply is interrupted.
11. Never operate the tool with the safety mechanism disabled.
12. Never use the tool if defective or operating abnormally. Stop using immediately and have the tool serviced by an authorised service centre.
13. Be careful when handling fasteners, especially when loading and unloading, as the fasteners have sharp points which could cause injury.
14. Incorrect fasteners not designed or the incorrect size for your tool can cause operator injury and damage to the tool.
15. Only wear gloves that provide adequate feel and safe control of triggers and any adjusting devices.

Repetitive Motions Hazards
When using the tool the user may experience discomfort in the hands, arms, shoulders, neck or other parts of the body.

1. Adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balance postures. Change posture during extended tasks; this can help avoid discomfort and fatigue.
2. Symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness should not be ignored. Inform employer if appropriate and consult a qualified health professional.

Accessory Hazards

1. Disconnect the tool from the air supply before fitting or changing the accessory.
2. Avoid direct contact with the accessory during and after use. Accessories are often sharp and may become hot during use.
3. Use only sizes and types of accessories and consumables that are recommended by the manufacturer of the tool; do not use other types or sizes of accessories or consumables.

Work Area Hazards

1. Be aware of slippery surfaces caused by use of the tool and trip hazards caused by the air line. Slips, trips and falls are major causes of injury.
2. Where possible do not obstruct thoroughfares and passageways with air lines or cables. Take appropriate measures to reduce trip risk such as erecting warning signs and fixing cables and air lines in place.
3. Proceed with care in unfamiliar surroundings to minimise risk from hidden hazards such as utility lines.
4. The tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electric power.
5. Ensure that there are no electrical cables, gas pipes, etc., which could cause a hazard if damaged by use of the tool.
6. Keep bystanders away (when working in an area where there is a likelihood of through traffic of people). Clearly mark off your operating area.

Noise Hazards
Exposure to high noise levels can cause permanent, disabling hearing loss and other problems, such as tinnitus (ringing, buzzing, whistling or humming in the ears). Risk assessment and use of appropriate controls for these hazards are essential.

1. Use appropriate controls to reduce the risk of noise-related injury. These can include actions such as damping materials to prevent workpieces from 'ringing'.
2. Use hearing protection in accordance with any employer's instructions and as required by occupational health and safety regulations.
3. Operate and maintain this tool as recommended in the instructions to prevent an unnecessary increase in the noise level.
4. Select, maintain and replace the consumable / accessory as recommended in the instructions, to prevent an unnecessary increase in noise.
5. Where a silencer is available, ensure it is in place and in good working order when the tool is being operated.
6. Take steps to reduce noise in the work area where possible (e.g. by using damping mats).

Vibration Hazards
Exposure to vibration can cause disabling damage to the nerves and blood supply of the hands and arms. Not all vibration hazards can be eliminated by tool design or construction, and some residual risks remain. Check the vibration-emission value (obtained using ISO 28927-3) shown in the specification table. Ensure the risk it represents is assessed and managed. If the risk cannot be managed so that it falls within acceptable limits, then do not use the tool. Take the following steps to reduce risk of vibration-related injury:

1. Wear warm clothing when working in cold conditions. Keep hands warm and dry.
2. If numbness, tingling, pain or whitening of the skin of fingers or hands is experienced, stop using the tool, inform employer (where appropriate) and consult a qualified health professional.
3. Operate and maintain the tool as recommended in the instructions to prevent an unnecessary increase in vibration levels.
4. Where appropriate, support the weight of the tool in a stand, tensioner or balancer.
5. The risk from vibration is generally greater when the grip force is higher. Hold the tool with a light but safe grip, taking account of the required hand reaction forces.
6. Ensure the tool and accessories are properly mounted and in good repair: improperly mounted or damaged tools can cause excessive vibration.

Product Familiarisation

1. Handle
2. Air Inlet
3. Magazine Hex Screw
4. Magazine Loading Point
5. Locking Lever
6. Trigger
7. Magazine Latch
8. Magazine Hex Screw and Nut
9. Safety Catch
10. Depth Adjuster Screw
11. 5mm Hex Key
12. 4mm Hex Key
13. 3mm Hex Key
14. Quick Connector
15. Oil Bottle

Loading the magazine

1. Slide the Magazine Latch (7) to the end of the magazine, until it locks into position (Fig. III).

2. Insert fasteners into the Magazine Loading Point (4) ensuring the points of the fasteners are facing toward the workpiece.
3. To release the Magazine Latch, slide the Latch towards the end of the magazine and simultaneously press the Locking Lever (5) (Fig. IV).

4. Keep hold of the Magazine Latch and slide the Magazine Latch back up the magazine to load the fasteners.

Operation

ALWAYS wear appropriate personal protective equipment, including eye protection, when working with this tool.

Ensure your compressed air supply operates within the pressure range stated in 'Specification'.

Adjusting the depth of penetration

Be aware of the thickness of your workpiece when driving in fasteners. A protruding nail may cause injury.

Always test the fastener will penetrate by the correct amount.

1. Fire a test fastener into a piece of scrap material and examine the penetration depth of the fastener.
2. Loosen the Depth Adjuster Screw (10) (Fig. V).

3. To increase the depth of penetration: Slide the Safety Catch (9) backwards towards the tool body.
4. To decrease the depth of the penetration: Slide the Safety Catch forward away from the tool body.

• If the Depth Adjuster is set to its lowest setting, the driving depth can be further decreased by adjusting the air pressure to the desired level. Reducing the pressure will reduce the depth that the fastener penetrates.
• Where possible, aim to use the lowest air pressure within the specified range (see 'Specification').
  A lower air pressure will result in reduced energy used, less noise and reduced wear to the tool.

Firing nails

Before firing a nail into the workpiece, always test the depth of penetration on a piece of scrap material. See 'Adjusting the depth of penetration' above.

1. Connect the tool to the air supply
2. Hold the tool firmly against the material so that the Safety Catch (9) is depressed (Fig. II).
3. Gently squeeze the Trigger (6) until the fastener is fired.
4. Release the Trigger and remove from the workpiece.
5. Check that the fastener has penetrated the material correctly.

Clearing jams

• Using the Hex Keys (11) and a 10mm spanner (not supplied), the magazine can be disassembled to clear blockages or jams.

1. Unscrew and remove 2 x Magazine Hex Screws (3) either side of the magazine, using the 4mm Hex Key (12) (Fig. VI).
2. Unscrew and remove Magazine Hex Screw and Nut (8) using the 3mm Hex Key (14) and a 10mm spanner (not supplied) (Fig. VI).

3. Slide the magazine out of the nailer (Fig. VII).

4. Clear any obstruction.
5. Reassemble all parts, in reverse order to removal and ensure all screws/nuts are tightened correctly.

Storage

• Store this tool carefully in a secure, dry place out of the reach of children.

Contact

For technical or repair service advice, please contact the helpline on (+44) 1935 382 222
Web: www.silverlinetools.com
UK Address: Toolstream Ltd. Boundary Way Lufton Trading Estate Yeovil, Somerset BA22 8HZ, United Kingdom EU Address: Toolstream B.V. Hogeweg 39 5301 LJ Zaltbommel The Netherlands
