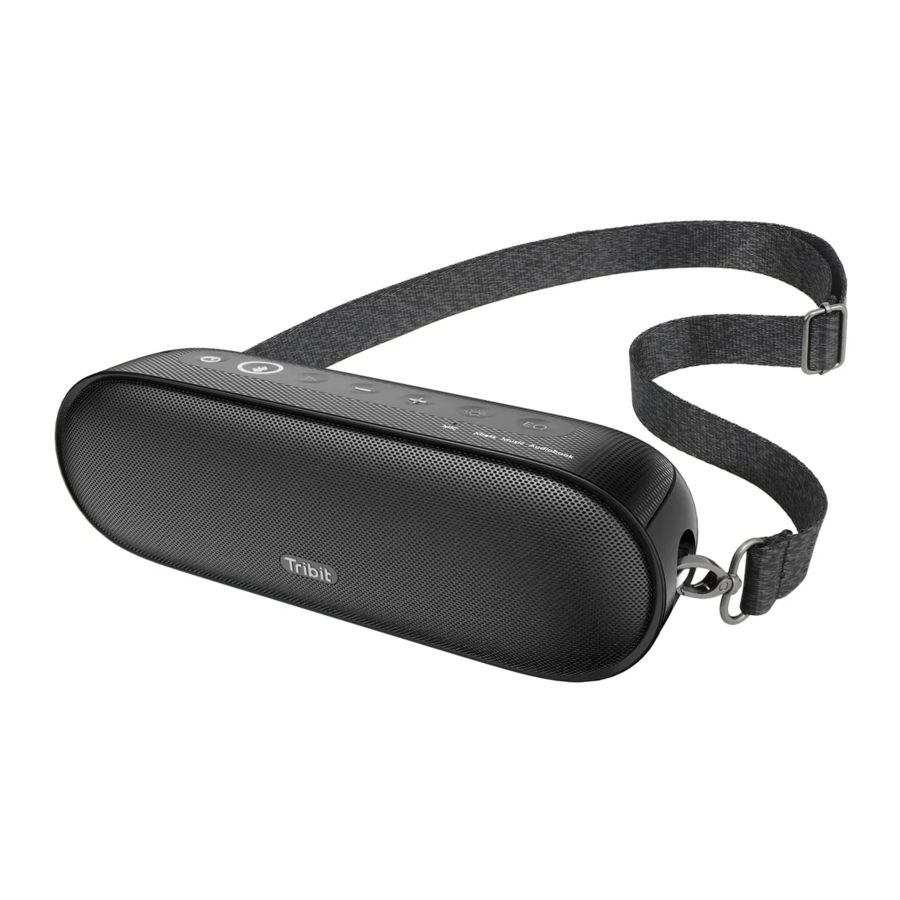

TRIBIT XSound Mega BTS35 - Speaker Manual

What's in the Box

Overview

1. Power Button / Indicator
2. Bluetooth Button / Indicator
3. MFB
4. Volume -
5. Volume +
6. Light Adjustment Button
7. EQ Mode Button
8. EQ Mode Indicators
9. MIC
10. Hanging holes
11. NFC

12. USB-A charging port ( output)
13. AUX-IN port
14. USB-C charging port ( input/output )

Connections

Bluetooth Pairing

Connections

1. Make sure the speaker is on.
2. Open NFC in your phone.
3. The NFCarea on the phone needs to be close to the NFCarea on the speaken. The phone will automatically recognize the speaker and request pairing. Click"agree" to complete pairing.

Broadcast Mode

1. Make sure both speakers are on, and connect speaker A to device;
2. Press the Bluetooth button both speakers for 5s to enter Broadcast pairing mode, and speaker B will connect to speaker A automatically, the Broadcast Mode is on.
3. If you want to connect multiple speakers to the group, press the button 5S, the speaker will connect to speaker A automatically.

Button Controls

Function	Button	Operation
Power ON / OFF		Press the button to turn on / off the speaker
Pair Bluetooth Device		Press the button to manually enter bluetooth pairing mode
Broadcast mode		Press and hold the button 5s to enter Broadcast mode
Disconnect Broadcast mode		Press and hold the button 5s to disconnect Broadcast mode
Play/ Pause		Press once the button
Next track		Double press the button
Previous track		Press the button for 3 times
Voice dial function		Press and hold the button for 2s to activate (your device must support this function )
Answer/end the incoming call		Press once the button
Rejectan incoming call		Press and hold the button for 2s
Volume Down		Press the button to decrease the volume level
Volume Up		Press the button to increase the volume level
Light adjustment		Press the button to switch or turn off the light
EQ mode		Press the button to switch Music mode, Bass mode and Audiobook mode

Indicators

Indicator	Light	Status
Power indicator	White indicator keep sturdily on	Power on
	Red indicator flashes quickly	Battery low
	Red indicator keep sturdily on	Charging ( Red indicator will power off when battery full)
Bluetooth indicator	Blue indicator flashes quickly	Bluetooth pairing mode
	Blue indicator flashes slowly	Bluetooth reconnecting
	Blue indicator keep sturdily on	Connected
	White indicator flashes quickly	Broadcast pairing mode
EQ indicators	Xbass indicator keep sturdily on	Bass mode is on
	Music indicator keep sturdily on	Music mode is on
	Audiobook indicator keep sturdily on	Audiobook mode is

Reset

If this speaker has any problem, you can try to press and hold "Volume +" and "Volume -" buttons simultaneously for 5s to reset this spaeker and remove the old pairing in your Bluetooth device, and then pair again.

Specification

Bluetooth version: 5.0
Support: A2DP,AVRCP, HFP, HSP
Output power: 30W
Frequency response: 60Hz~20KHz
Frequency band: 2.402GHz~2.480GHz
Maximum transmission power: ≤ 6dBm
Battery. (3.65V 4000mAh*2) / 29.2Wh
Music play time: Up to 20hours (varies volume level and music files )
Charge time: 4H @ 5V/2A
Waterproof: IPX7
Dimensions: 250mm x 87mm x 80mm
Weight: 1020g

Safety Precautions

• Avoid dropping.
• Do not disassemble or repair the speaker.
• Avoid extrame temperatures.
• Do not use the device outdoors during thunderstorms.
• Do not use any corrosive cleanser/oil to clean.

Customer Service

• 18-month limited warranty
• For FAQS and more information, please visit:
  Email: support@tribit.com
