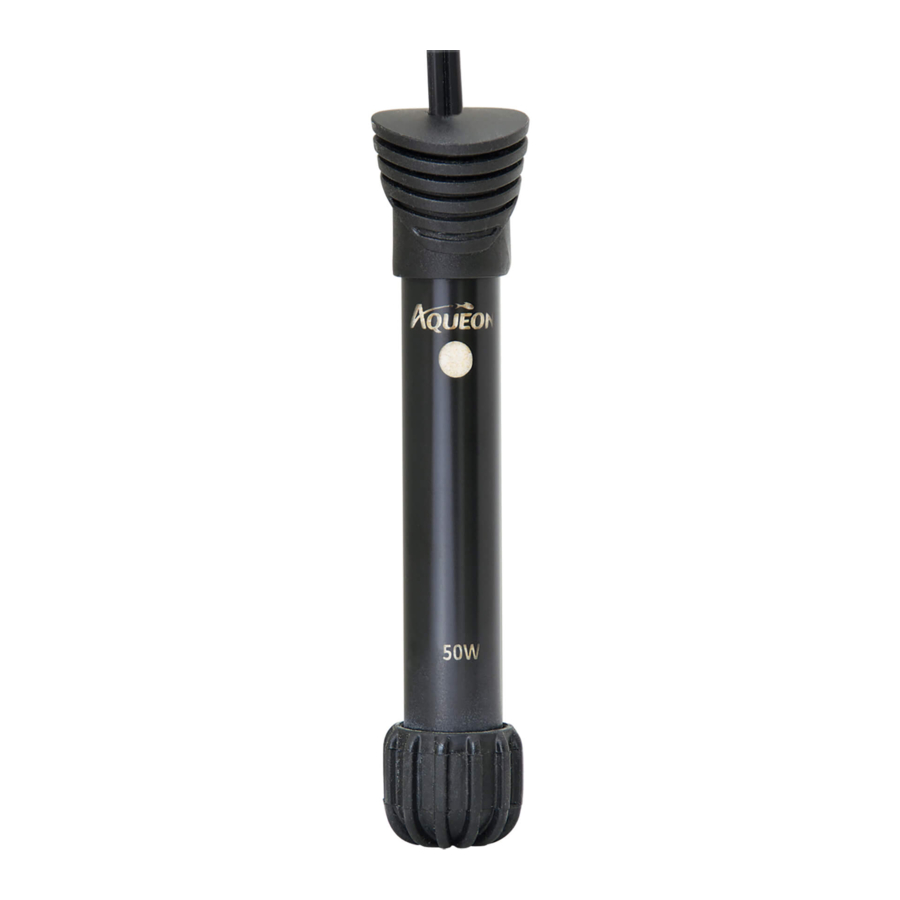

Aqueon Preset Aquarium Heater Manual

Installation & Set-up Guide

Before working with or installing heater, be sure to read and understand all safety instructions and warnings.

1. Attach suction cups: Attach suction cups (C) to heater. (1 suction cup for 50W and 100W models.) Attaching suction cups will ensure proper positioning in your aquarium and will allow adequate water circulation around the heater for even heat distribution.
   Note: DO NOT place suction cups over the heating element portion of the heater.
2. Heater Installation: Install heater in water filled aquarium. The heater works best when installed in the aquarium in the vertical position. The installation of the heater in this position requires that the aquarium must maintain a water level above the MINIMUM WATER LEVEL LINE (A) on the heater, as shown in FIG 2. The heater can be installed in the aquarium in the horizontal position. The installation of the heater in this position requires that the heater be positioned fully submerged in water at all times, as shown in FIG 2.

3. Plug into Electrical Outlet: Allow for heater to be submerged in water for a minimum of 30 minutes prior to powering the appliance. Once heater has been mounted and submerged for the 30 minutes, plug the appliance into an electrical outlet. Once plugged in, the heater will automatically start working. Should your water need heating, the indicator lamp (B) will illuminate showing that the heater is functioning and in heating mode.

NEVER operate heater without rubber protective guard (D).

Appliance Specification

TROUBLESHOOTING PROBLEMS

If problems are encountered:
If the appliance has been installed for 24 hours or more, and the temperature of the water is still much lower than the required temperature, proceed as follows:

• Be sure to use a quality, accurate thermometer to monitor water temperature.
• Make sure that the appliance is plugged in and is receiving power.
• Make sure that the appliance is submerged at least to the "MINIMUM WATER LEVEL" line.
• Make sure the water circulation around the appliance is adequate.
• Make sure that the heater wattage is adequate for the gallon size of the aquarium.
• Make sure that the glass is not covered with lime scale. If necessary remove lime scale after the appliance has been unplugged.

If the temperature is too high, after the appliance has been working for 24 hours or more, proceed as follows:

• Be sure to use a quality, accurate thermometer to monitor water temperature.
• Make sure that the heater wattage is adequate for the gallon size of the aquarium.
• Check whether too much water has evaporated, consequently reducing the volume to such an extent that it no longer falls within the range given on the label. If this is the case, add water immediately.

IMPORTANT SAFETY INSTRUCTIONS

To guard against injury, basic safety precautions should be observed including the following:

To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt to repair yourself; return the appliance to an authorized service facility for service or discard the appliance.

1. 1. If the appliance shows any sign of abnormal water leakage, immediately unplug it from the power source.
   2. Carefully examine the appliance after installation. It should not be plugged in if there is water on the parts not intended to be wet.
   3. Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or if it is dropped or damaged in any manner.
   4. To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium stand and tank to one side of the wall mounted receptacle to prevent water from dripping onto the receptacle or plug. As shown in the figure below, a "drip loop" should be arranged by the user for each cord connecting an aquarium appliance to the receptacle. The "drip loop" is the part of the cord below the level of the receptacle, or the connector if an extension cord is used, to prevent water travel along the cord and coming in contact with the receptacle. If the plug or the receptacles do get wet, DON'T unplug the cord. Disconnect the fuse to the circuit breaker that supplies power to the appliance. Then unplug and examine for the presence of water in the receptacle.

2. Close supervision is necessary when any appliance is used by or near children.
3. To avoid injury, do not contact moving parts or hot parts such as heaters, reflectors, lamp bulbs, etc.
4. Always unplug an appliance from the outlet when not in use, before putting on or taking off parts, and before cleaning. Never yank the cord to pull plug from the outlet. Grasp the plug and pull to disconnect.
5. Do not use an appliance for other than intended use. The use of attachments not recommended or sold by the appliance manufacturer may cause an unsafe condition.
6. Do not install or store the appliance where it will be exposed to the weather or to temperatures below freezing.
7. Make sure an appliance mounted on a tank is securely installed before operating it.
8. Read and observe all the important notices on the appliance.
9. If an extension cord is necessary, a cord with a proper rating should be used. A cord rated for less amperesor watts than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled.
   ONLY FOR POLARIZED ATTACHMENT PLUG APPLIANCES
10. If this appliance has a polarized plug (one blade is wider than the other) as a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Never use with an extension cord unless plug can be fully inserted. Do not attempt to defeat this safety feature.

SAFETY STANDARDS

• This appliance is intended for indoor household use only.
• Appliance MUST be plugged into an outlet that is installed in accordance with all appropriate codes and ordinances.
• ALWAYS disconnect all immersed electrical equipment from power source before placing hands in water.
• ALWAYS maintain adequate water levels as stated in "SET-UP".
• DO NOT use appliance for anything other than its intended use.
• DO NOT use product if either the cord or the product appear damaged.
• DO NOT operate or leave product plugged-in when outside of water.
• DO NOT operate the heater without the rubber guard on the bottom of the heater.
• DO NOT handle plug with wet hands or in wet environment.
• DO NOT remove plug from receptacle by pulling the cord.
