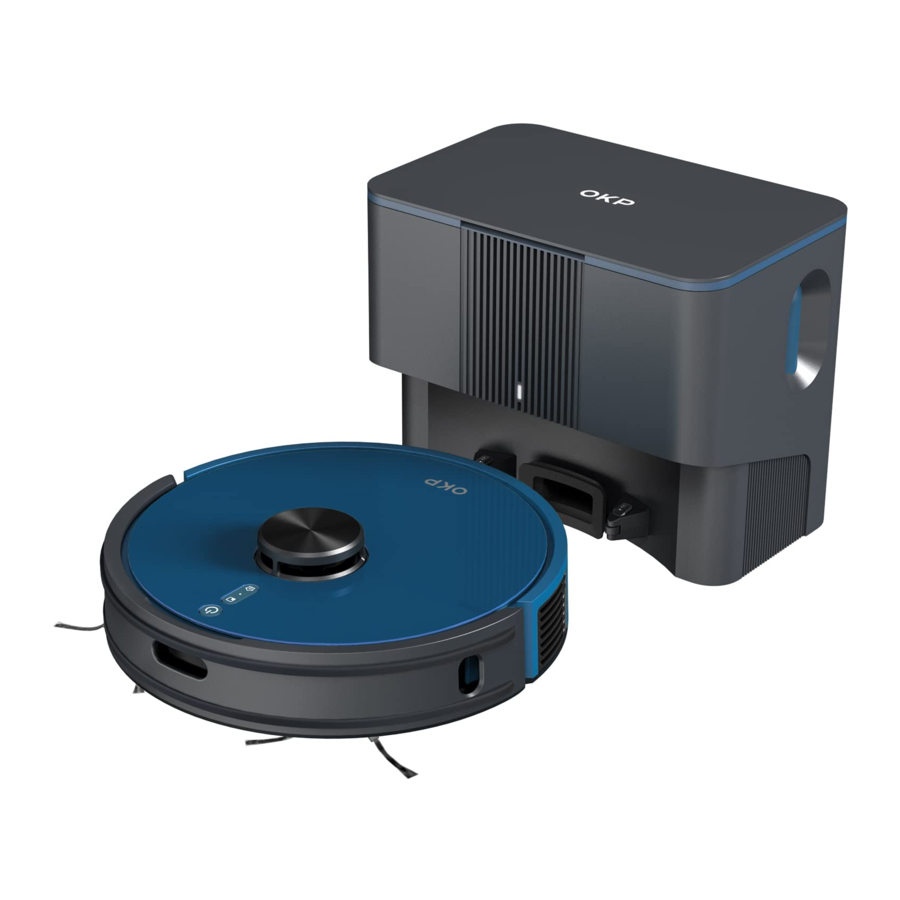

OKP L3 - Robot Vacuum Cleaner Manual

Product introduction

Packing List

Will differ per different configurations

Parts Name

Main Unit

Rear View

Big Dust Box

Self-empty Base

Product Use

Attentions

Check and arrange the area to be cleaned to keep safe. Put furnitures well and remove the obstacles.
Remove or cover the low objects on the ground that may affect the Robot working, such as the scale and the base of the floor fan.
If there are carpet tassels, please put it under the carpet in advance.

If the Robot is cleaning at the entrance of compound stairs and the edge of steps, please place protective fence to ensure its safety and smooth operation.

Remove all objects that may entangle the Robot, such as power cord, rope, etc. In addition, if the step is too high, it may get stuck.

Warm tips:
For the first time use, please follow the Robot during whole cleaning process to help solve some small problems, so that it can clean smoothly. When follow the Robot, please be careful not to stand in front of it.

Preparation

Before using the product, please remove the protective strip and protective film.

1. Remove the protective strip

2. Install side brushes and lock screw (L for L, R for R)


Robot Charging

1. Put the self-empty base in ground against the wall.
   There should be no cliffs/stairs or objects in the area 1m to the left and right and 2m in front; connect to supply power.

   *keep objects with strong reflecting surface such as mirror or glass away *Keep self-empty base away from direct sunlight.
2. Turn on the power switch of the Robot and put it into self-empty base, and connect the charging contacts of them.

   Tips:
   1. Robot cannot be charged when it's power off.
   2. Please put the excess wire into storage slot, power cable can be pulled out at both sides.
3. For first time use, please fully charge it. During the charging, the start button flashes breathing light in white, and it will be off when charging finished. Charging time is about 4-5 hours.


Warm Reminder:

1. During daily use, please put the Robot into the self-empty base. Also ensure self-empty base is connected to the power supply and the Robot power is on.
2. During daily use, pay attention to clean the charging contacts for better charging.
3. If you do not use the Robot for a long time, please fully charge it before turn it off, then store it in a ventilated and dry place. And it is necessary to charge it once a month to protect battery.
4. If the battery is over discharged or not used for a long time, Robot may not be rechargeable. Please contact our after-sales service for maintenance. Do not disassemble it by yourself

Robot Operation

Start

Press the start button of Robot, Robot will build a map based on its scan of the room, then splits each room into squares, cleaning the edges of the square first before covering the inside in a zigzag pattern, finally complete cleaning of all areas.

Pause

When Robot is working, press the pause button of Robot to pause the robot.

Partial Clean

Press partial cleaning button of Robot, Robot will clean a 1.5m*1.5m square area centered on itself.

Recharge

Press recharging button of Robot, Robot will return to Self-empty Base.

Sleep and wake up

Robot will sleep after full charged or without operated for 10 minutes. When Robot is not in self-empty base and sleep for more than 4 hours, it will automatically shutdown.
When Robot sleep, Press the start button of Robot or App to wake it up.

Child lock

Press partial cleaning button of Robot for five seconds, and the robot will enter the child lock mode. Robot Button and smart speaker cannot work at this time. Press for 5S again to exit child lock mode.

Note: App can still operate Robot when in child lock mode.

Collecting dust

1. Robot will automatically return to self-empty base for charging and collecting dust after finishing cleaning.
2. Press Recharge button and Robot will return to self-empty base for charging and collecting dust.
3. During dust collection, press any button to stop.


Use of APP

Connect to the APP

Downloading and installation of the "OKP" app

Method I: Scan the following QR code, and then download and install App as prompted.

Method II: Search "OKP" in the App store, download and install the OKP app.

Tips:
* The robot works with 2.4GHz Wi-Fi networks only.
* Follow the guidance in the OKP app to register, login, and pair the robot.
* Please make sure that the mobile phone is connected to your Wi-Fi network before paring the robot vacuum cleaner.

APP Operation and Functions

Map management

Before use, it is recommended to switch on Map Save Mode to get advanced experience.

1. Map building: selecting Full Cleaning mode, Robot starts cleaning from self-empty base, and returns to self-empty base after finished. It will build a map of partitions according to the layout of your house. You can save the map in APP. It is up to save 4 maps.
2. Map editing: You can split, merge or rename partitions of the map.

Full Cleaning

Robot will build a map based on its scan of the room, then splits each room into squares, cleaning the edges of the square first before covering the inside in a zigzag pattern, finally complete cleaning of all areas.

Room Cleaning

Robot will clean the Rooms selected in App.

Tips:

1. It's necessary to switch on Map Save Mode in APP and save a map before Room Cleaning.
2. Room Cleaning can only be used to customize the cleaning area and not to isolate hazards. Please clear obstacles around the selected rooms.

Zone Cleaning

Robot will clean the Zones drawn in App.

Tips:
Zone cleaning can only be used to customize the cleaning area and not to isolate hazards. Please clear obstacles around the drawn zones.

Pin n go

Specify a point on the map, and Robot will get there automatically.

Breakpoint resume

When the battery is low during the cleaning, Robot will automatically return to Self-empty Base for charging; After charging to 80%, it will continue cleaning from where it left off.

Tips:

1. The robot will not resume cleaning in Do Not Disturb mode;
2. Recharging manually or moving Robot, it will not resume cleaning.

Restricted Area

No-Go Zones, No-Mop Zones and virtual Wall are to prevent robot from access certain areas and rooms. By default, No-Mop Zones will be activate only when Mop holder is in place.

Tips:

1. Restricted areas can be created on a saved or build-ing map.
2. Restricted Areas can only be used to customize cleaning area and not to isolate hazards.
3. Moving the robot or obvious changes of house environment may cause the map to become invalid, and the restricted area may be lost.

Scheduled cleaning

Set cleaning schedules in App. Robot will clean at defined times and return to self-empty Base when finished.

Tips:
Robot will not clean as scheduled when in low battery.

More Functions.

Regular Care & Maintenance

Big dust box

1. Press & hold the release key to pull the big dust box.

2. Open the dust box lock, take out the primary filter, High efficiency filter and filter sponge.

3. Clean the dust on the primary filter with cleaning tool brush. Tap the High efficiency filter to remove dust.

4. Wash the dust box and filter sponge with water. High efficiency filter can't be washed. If it is accidentally soaked in water, please air-dry before use.

5. Air-dry the dust box and filter sponge in shade.


Roller Brush, Side Brush, Driving Wheel & Universal Wheel

Cleaning Roller Brush and Side Brush

1. Pull on the release tabs to unlock the brush guard as shown.

2. Lift the roller brush to remove it.

3. Clean the roller brush with the cleaning tool brush.

4. Clean the side brush with the cleaning tool brush.


Clean the driving wheel

1. Use the cleaning tool brush to remove the hair and garbage on the driving wheel.

2. When the driving wheel is stuck, flip its gear in the opposite direction, trash will fall from the gap.


Clean the universal wheel

Use the cleaning tool brush to clean the hair and garbage on the universal wheel.

Charging Contacts, Anti-drop Sensors&TOF sensor

Clean the Charging contacts of Self-empty Base.

Clean the Robot Charging contacts

Clean the Anti-drop Sensors

Clean TOF sensor

Warm tips:
Charging contacts, Anti-drop sensors and TOF sensors all contain sensitive electronic components. Please use a dry rag when cleaning them, not a wet rag to prevent water damage.

Cleaning Self-empty Base

To ensure the dust collection effect, it is recommended to replace the dust bag in time and clean the filter and air duct regularly.

Replace the dust bag and clean the filter

1. Open the upper cover of Base.

2. Take out the full dust bag.

3. Take out the filter screen and clean it.

4. Install filter and new dust bag


Clean air duct

1. Unscrew the air duct lower housing

2. Remove the air duct shell and clean screws.the air duct.


Troubleshooting

During the use of the product, in case of the following conditions. It can be checked and solved independently by users.

If troubles can't be solved by above guides, please contact the after-sales person.

Fault Elimination

Robot

Self-empty Base

Product Parameter

Robot Vacuum Cleaner
Model No	L3
Robot Size	33*32.5*10CM
Robot Rated Input	19V 0.6A 11.4W
Battery	14.8V/3200mAh Li-ion battery
Charging Time	4-5 Hours
Net Weight	3.0KG
Self-empty Base
Size	30*20*26.2CM
Dust Bag	5L
Power	1000W
Output	19V 0.6A
Net Weight	3.65KG

This equipment should be operated with a minimum distance of 20cm between the radiator and your body.

Factory Default Reset

Long press RESET button on the side of the Robot for 10 seconds until hearing "Start factory default reset" and power on music, Robot will automatically restart, and related settings such as regular cleaning, map and WIFI will be restored to the default.

Important safety instructions

READ THESE INSTRUCTIONS BEFORE USING THIS ROBOT VACUUM CLEANER. IT IS INTENDED FOR HOUSEHOLD USE ONLY. PLEASE KEEP ALERT WHEN USE THIS PRODUCT, AND RESPECT BELOW INSTRUCTIONS.

1. If you don't use it for one month, please turn off the power.
2. After the cleaning is finished, it should be connected with the self-empty base correctly.
3. In view of the problems that may happen during cleaning, please ensure the following is done ahead of time:
   1. Remove the power cord and small objects on the ground to avoid Robot being blocked or items damaged;
   2. Fold the carpet tassels under the carpet and keep the hanging curtains and tablecloths away from the ground;
   3. Remove low and light objects on the ground, such as slippers and small toys, to avoid pushing to the edge corner.
4. If there is a suspended environment such as stairs, please test the Robot first to see if it can detect the edge of the hanging area without falling. Protective fence shall be set at the edge of the suspended area to prevent Robot from falling. Make sure that the protection does not cause tripping.
5. Please place the self-empty base on level ground, and keep it away from open flames, heat sources, water, narrow areas or suspended areas.
6. Please make sure that the robot you use matches the self-empty base, otherwise you will not be able to charge or collect dust.
7. Make sure the supply voltage is in accordance with the voltage marked on the self-empty base.
8. Make sure dust box and filter are installed in place before using the Robot.
9. Before cleaning and maintaining the Robot, please turn it off and pull the plug out of the power socket.
10. Before discarding the product, please turn it off and take out the battery. Please discard the product battery in accordance with local laws and regulations.
11. Robot can't be used by children under 8 years old, or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge. Children shall not play with the Robot. Cleaning and user maintenance shall not be made by children without supervision.
12. Use only in household environment. Do not use in outdoor, commercial and industrial areas.
13. Do not use the product in the room where infants sleep.
14. To avoid danger, please use accessories recommended or sold by the manufacturer it; and accessories must be replaced by the professional personnel of the manufacturer, its maintenance department or similar departments.
15. Please use product according to the user manual. The company shall not be responsible for any loss or injury caused by improper use.

WARNINGS

1. Only applicable to the original self-empty base specially provided by the manufacturer. Users are not allowed to replace the battery without permission. If you suspect that the battery is damaged, please contact the manufacturer, authorized dealer or professionals of similar departments for replacement.
2. It is forbidden to use the damaged self-empty base. When damaged, it must be repaired or replaced by the manufacturer, authorized dealer or professionals from similar departments in order to avoid danger. Do not disassemble, repair or refit the self-empty base yourself.
3. It is forbidden to use the product in the environment with open fire or fragile articles.
4. It is forbidden to use the product in extremely hot (above 40°C) or extremely cold (below 0°C) environment.
5. It is forbidden to use the product on wet ground or ground with accumulated water.
6. It is forbidden to sit or stand on self-empty base; Do not place any object (including children, pets, etc.) or cover any object (including dust cover, sundries, etc.) on the static or working self-empty base.
7. While the Robot is working, keep hair, clothes, fingers and other parts of the human body away from the opening and operating parts of the product.
8. It is forbidden for the product to vacuum anything that may clog the product, such as stones, waste paper, etc.
9. It is forbidden for the product to vacuum any flammable materials, such as gasoline, and toner for printer or copier.
10. It is forbidden to use products in areas with flammables.
11. It is forbidden to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashesIt.
12. It is forbidden to place objects near roller brush. Do not use the product when roller brush is blocked. Clean the dust, cotton wadding, hair, etc. at the roller brush mouth to ensure air circulation.
13. Use the power cord carefully to avoid damage. It is forbidden to use the power cord to drag or lift the product and its self-empty base, to use the power cord as a handle, to clamp the power cord in the crack of the door, and to pull the power cord at sharp corners. It is forbidden to run the product on the power cord, and the power cord should be away from the heat source.
14. It is forbidden to burn the product even if the product has been seriously damaged, or the product battery may cause explosion.
15. Do not use the mop holder module in a carpet environment.
16. Do not wipe or clean the charging contacts with wet cloth or wet hands.
17. It is forbidden to upgrade the software of the Robot under 15% battery capacity if not in charging.

SAVE THESE INSTRUCTIONS

Symbol description

	Class II equipment
	Read operator's manual
	Direct current
	Alternating current
	For indoor use only
