The following signal words and meanings are intended to explain the levels of risk associated with this product. | ||
SYMBOL | SIGNAL | MEANING |
| DANGER: | Indicates a hazardous situation, which, if not avoided, will result in death or serious injury. |
WARNING: | Indicates a hazardous situation, which, if not avoided, could result in death or serious injury. | |
CAUTION: | Indicates a hazardous situation, which, if not avoided, may result in minor or moderate injury. | |
NOTICE: | (Without Safety Alert Symbol) indicates information considered important, but not related to a potential injury (e.g. messages relating to property damage). | |
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product in a better, safer manner. | ||
SYMBOL | NAME | DESIGNATION/EXPlANATION |
| Safety Alert | Indicates a potential personal injury hazard. |
![]() | Read Operator's Manual | To reduce the risk of injury, user must read and understand operator's manual before using this product. |
![]() | Eye Protection | Always wear eye protection with side shields marked to comply with ANSI Z87.1. |
![]() | Wet Conditions Alert | Do not expose to rain or use in damp locations. |
![]() | No Hands | Failure to keep your hands away from blade will result in serious personal injury. |
V | Volts | Voltage |
min | Minutes | Time |
![]() | Direct Current | Type or characteristic of current |
![]() | Alternating Current | Type or characteristic of current |
no | No Load Speed | Rotational speed, at no load |
.../min | Per Minute | Revolutions, strokes, surface speed, orbits, etc. per minute |
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
WORK AREA SAFETY
ELECTRICAL SAFETY
PERSONAL SAFETY
POWER TOOL USE AND CARE
SERVICE

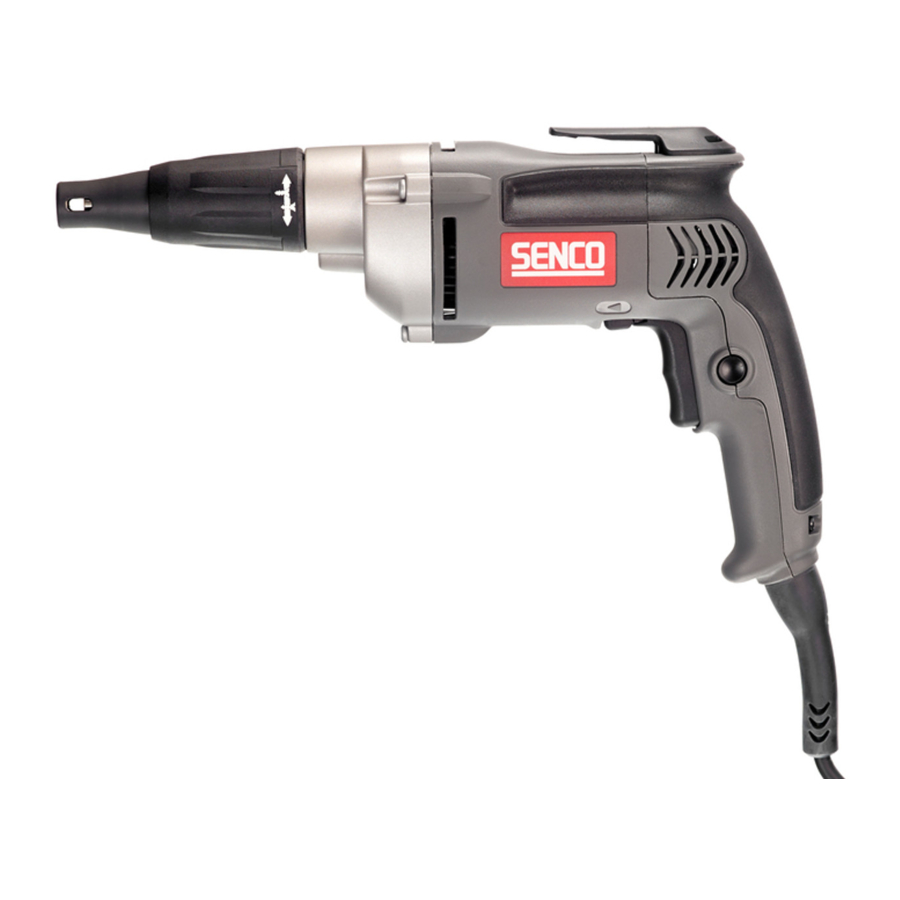

To start tool, depress the trigger switch, shown in Figure 1. To stop tool, release the switch. The variable speed trigger switch permits speed control. The farther the trigger switch is depressed, the higher the speed of the tool.
To lock the switch in the on position for continuous operation, depress the trigger switch and push in the locking button. The tool will continue to run. To turn the tool off, from a locked on condition, squeeze and release the trigger once. before using the tool (each time), be sure that the locking button release mechanism is working freely. be sure to release the locking button release mechanism before disconnecting the plug from the power supply. Failure to do so will cause the tool to start immediately the next time it is plugged in. Damage or injury could result.
The reversing lever is used to reverse the tool for backing out screws. It is located above the trigger, Shown in Figure 1. To reverse the screwdriver, turn it off and push the reversing lever to the right (when viewed from the back of the tool). Turn the tool off and push the lever to the left for forward operation.
Figure 1
REPLACING THE BIT HOLDER AND BIT
Pull the locking sleeve. The locking sleeve and adjusting sleeve come out of the gear casing as a set.
Pull the bit holder straight out. If it is difficult to pull by hand, use pliers. Push a new bit into the holder. Use a new bit holder if necessary. Push the bit holder (with bit) into the hex hole of the spindle until the ball lock snaps into the groove on the bit holder shank. Attach the locking sleeve (with adjusting sleeve) to the gear case. Align the projection inside the adjusting sleeve with the groove of the gear case and push the adjusting sleeve as far as it will go.
SETTING DEPTH
The adjustable nose piece of the tool will automatically drive a screw to a preset depth. To adjust your screwdriver so it will drive screws to the desired depth unlock the locking sleeve, turn the adjusting sleeve until depth for bit holders or depth is obtained. Test drive a fastener in scrap materials to determine if fastener is correctly seating. Further adjustment may be nec-essary to increase or decrease the fastener depth.
DRIVING SCREWS
To engage the clutch to drive the screw, set the screw in the bit and align it in the desired position against the work surface. Depress the trigger. With the motor running, push the tool forward to engage the clutch.
The clutch will disengage when the screw is driven to the selected depth.
Read section titled "Safety Warnings" before maintaining tool.
Repairs other than those described here should be performed only by trained, qualified personnel. Contact SENCO for information at 1-800-543-4596.
SENCO offers a full line of DuraSpin screws and accessories for your SENCO tools, including:
For more information or a fully illustrated catalogue of Senco accessories, contact your sales representative or call Senco at 1-800-543-4596.
SG2510 Tech Specs | SG4100 Tech Specs | ||
BIT SHANk SIZE | 1/4" HEx | BIT SHANk SIZE | 1/4" HEx |
FREqUENCY | 60 HZ | FREqUENCY | 60 HZ |
VOLTAGE | 120 V | VOLTAGE | 120 V |
CURRENT | 6.5 A | CURRENT | 6.5 A |
NO LOAD SPEED | 0-2500 MIN. | NO LOAD SPEED | 0-4000 MIN. |
WEIGHT | 3.5 LBS. | WEIGHT | 3.1 LBS. |
Problem/Symptom | Probable Cause | Corrective Action |
Tool will not start or run slowly | No electrical power | Ensure tool is plugged in, check power supply (fuse) |
Trigger switch is defective | Replace or return to Senco authorized service centre for repair | |
Motor is defective | ||
Tool will not fully drive fastener | Bit is worn or incorrect bit installed | Replace bit |
Power capabilities of the tool have been exceeded | Discontinue use for that application | |
Tool is in reverse | Switch tool to forward | |
Depth of drive not set properly | ||
Bit slips off screw or screw is driven at an angle | Tool slid forward during drive | Hold tool firmly while driving |
Bit is worn or broken | Replace bit | |
Tool overheats | Drive application requires too much torque | Discontinue use for that application |
