Summary of Contents for Senco DuraSpin DS275-18V

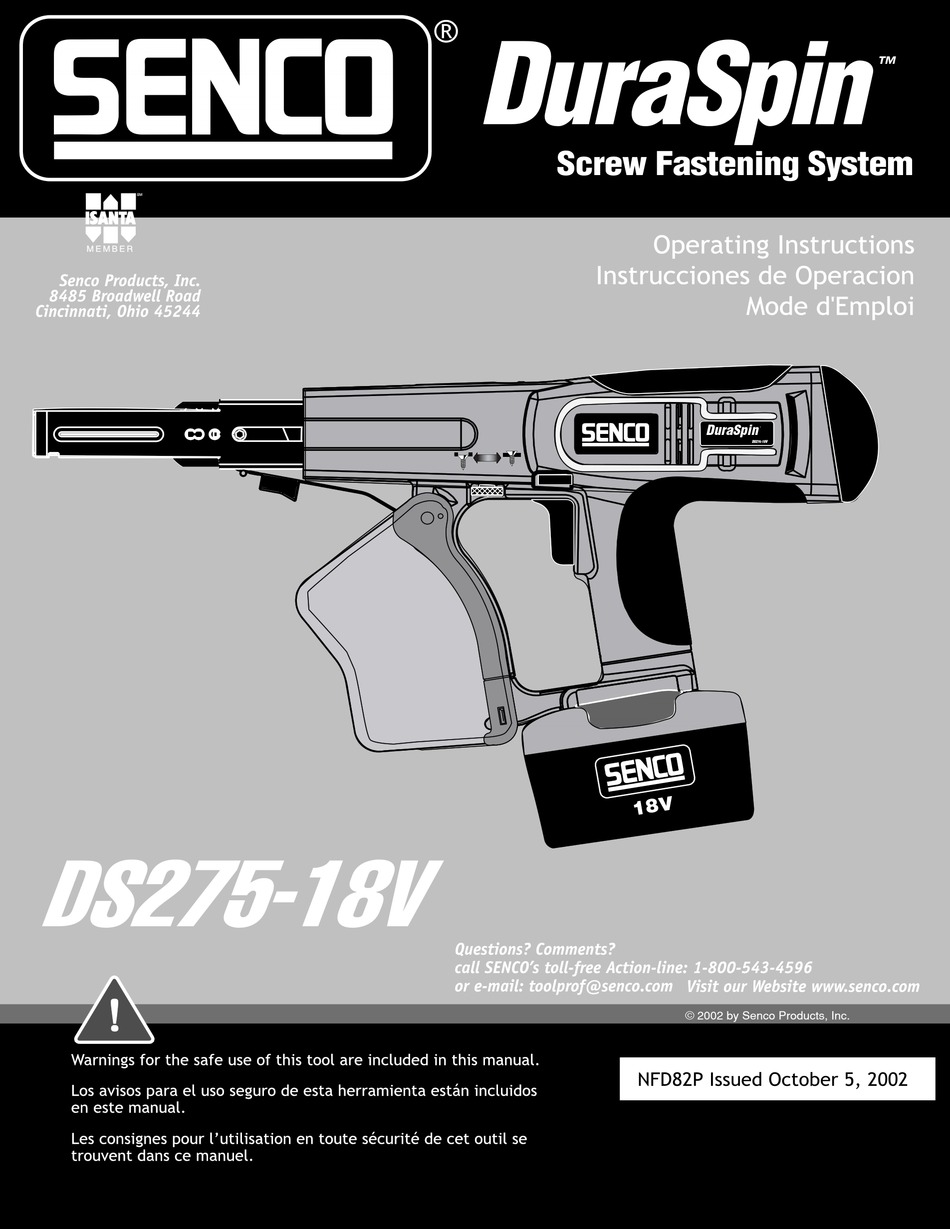

- Page 1 DuraSpin ™ Screw Fastening System �������� ��������� DS275-18V © 2002 by Senco Products, Inc. �����������������������������...
- Page 2 TABLE OF CONTENTS Safety Warnings Tool Operation Maintenance Accessories Troubleshooting Specifications EMPLOYER’S RESPONSIBILITIES Employer must enforce compliance with the safety warnings and all other instructions contained in this manual. Keep this manual available for use by all people assigned to the use of this tool.
-
Page 3: General Safety Rules
Safety Warnings Avisos de Seguridad Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. INSTRUCTIONS Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. -
Page 4: Avisos De Seguridad
Safety Warnings Avisos de Seguridad Personal Safety Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. - Page 5 Safety Warnings Avisos de Seguridad Do not force tool. Use the correct tool for your ap- plication. The correct tool will do the job better and safer at the rate for which it is designed. Do not use tool if switch ...
- Page 6 Safety Warnings Avisos de Seguridad Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may af- fect the tool’s operation and safety. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.
- Page 7 (1) battery charger, (2) battery, and (3) product using battery. CAUTION of injury, charge only SENCO batteries. Other types of batteries may burst causing personal injury and damage. Do not expose charger to ...
- Page 8 SENCO agréé. Ne démontez pas le chargeur ou la batterie ; apportez l’unité dans un centre SENCO agréé si un entretien ou une réparation s’avère nécessaire. Un remontage incorrect peut provoquer un risque d’électrocution ou d’incendie.
- Page 9 Do not use tool without Danger Label on tool. If label is miss- ing, damaged or unreadable, contact your SENCO repre- sentative to obtain a new label at no cost. A battery short can cause a large current flow, overheat- ing, possible burns and even a breakdown.
-
Page 10: Functional Description
SOAP least 10 minutes and seek medical attention immediately. VINEGAR LEMON JUICE For information on the “SENCO Safety First Pro- gram,” contact your SENCO representative. Functional Description Adjustable Nose Piece Tensioning Device Screw Guard... -
Page 11: Tool Operation
This will prevent damage to the strip guide. Check for proper fastener length setting (see “Setting the fastener length” page 15). DuraSpin ™ DS275-18V Feed the strip into the strip guide. The screw guard may be removed to simplify the loading process. - Page 12 Tool Operation Operación de la Herramienta (1) Pull the trigger to start the motor. (2) Press the nosepiece, with constant force, against the work surface. Do not remove the tool from the work surface until the clutch disengages and the bit stops rotating, signaling a fully driven screw.
- Page 13 Tool Operation Operación de la Herramienta Switch tool from forward to reverse: To switch to reverse, push reverse button. Remove the strip, pull it through from the top of the nosepiece. Depress nose piece while inserting bit into screw. (1) Maintain forward ...
- Page 14 Yellow light on and red light flashing indicates defective battery pack. Return battery pack to your nearest SENCO Authorized Authorized Service Center for Service Center checking or replacing.
- Page 15 Tool Operation Operación de la Herramienta The battery pack will become slightly warm to the touch while charging. This is normal and does not indicate a problem. To preserve natural resources, please recycle or dispose of properly. This product contains nickel-cadmium.
-
Page 16: Maintenance
Caution: Such solutions may damage other tool parts. Repairs other than those described here should be performed only by trained, qualified personnel. Contact SENCO for information at 1-800-543-4596. Las reparaciones, fuera de aquellas descritas aquí, deben de ser llevadas a cabo solamente por personal entrenado y calificado. -
Page 17: Troubleshooting
Pruebe con otra tira de tornillos. Reemplace la broca. Lleve a un representante de servicio autorizado de SENCO Limpie el mecanismo Lleve a un representante de servicio autorizado de SENCO Permita que la herramienta se enfrie e inserte una batería cargada. - Page 18 Essayez une autre bande de fixations. Remplacez la broche. Retournez l’outil chez un réparateur SENCO agréé. Nettoyez le mécanisme. Retournez l’outil chez un réparateur SENCO agréé. Laissez refroidir l’outil et insérez une pile neuve.
- Page 19 Placoplâtre sur métal 18ga. 41mm Sous-plancher sur bois 44mm Sous-plancher sur bois 50mm Sous-plancher sur bois 65mm deckboard au bois DS275-18V 18 V 2000 mAh 3000 revoluciones por minuto 2,9 kg (6,3 libras) 279 mm (11 pulgadas) 425mm (16,8 pulgadas) 96mm (3,85 pulgadas)
- Page 20 TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD SPECIFIED ABOVE. Replacement of Tool Due to Natural Disaster SENCO will also replace any tool destroyed by an Act of God such as flood, earthquake, hurricane or other disaster resulting only from the forces of nature.
