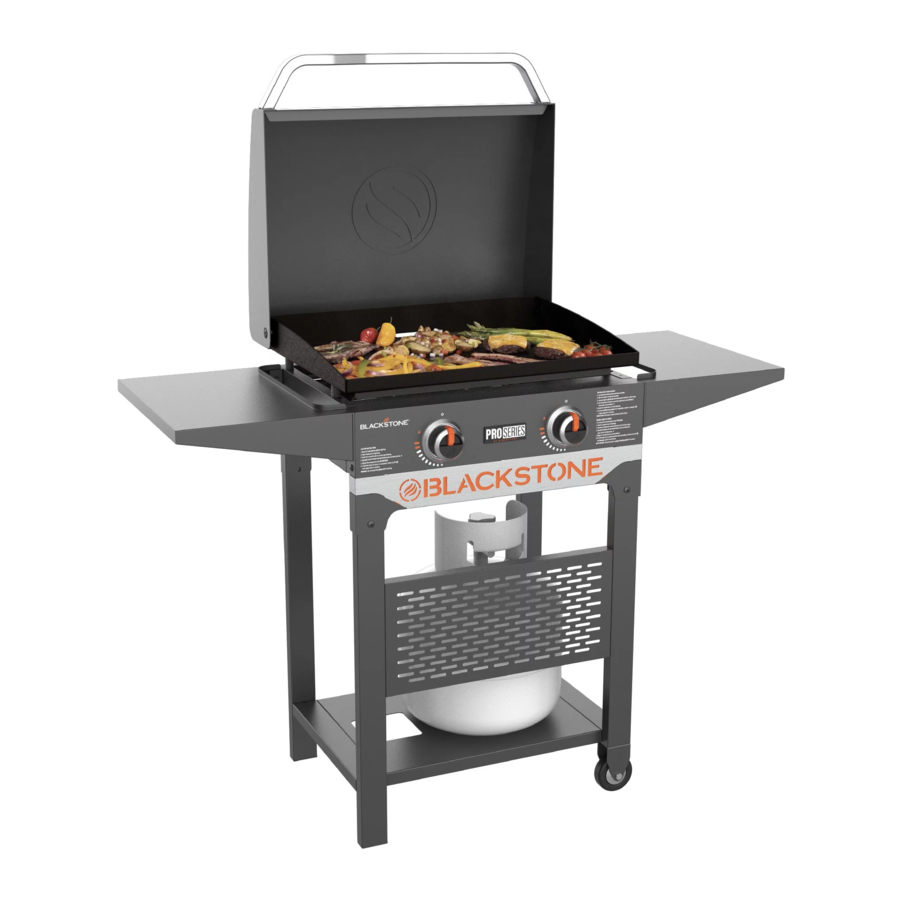

BLACKSTONE 2165 - 22" GRIDDLE with Hood Manual

IMPORTANT SAFETY INFORMATION

If you smell gas:

• Shut off gas to the appliance
• extinguish any open flame
• open hood
• If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department

• DO NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance
• An LPG cylinder not connected for use shall not be stored in the vicinity of this or any other appliance

This appliance shall be used outdoors only.

• CARBON MONOXIDE HAZARD USING THIS APPLIANCE IN AN ENCLOSED SPACE MAY CAUSE DEATH.
• ONLY USE IN WELL VENTILATED AREAS.
• DO NOT use this appliance inside buildings, garages, caravans, tents, marine craft, cars, mobile homes or similar locations.

GAS APPLIANCE SAFETY

DO NOT OPERATE THIS APPLIANCE UNATTENDED.

• The use of alcohol, prescription, or non-prescription drugs may impair the consumer's ability to properly assemble or safely operate the appliance.
• Keep children and pets away from the appliance at all times.

HAVE A TYPE BC OR ABC FIRE EXTINGUISHER READILY AVAILABLE.

• In the event of an oil or grease fire DO NOT attempt to extinguish with water. Immediately call the fire department. A Type BC or ABC fire extinguisher may, in some circumstances contain the fire

DO NOT USE FOR PURPOSES OTHER THAN INTENDED:

1. DO NOT modify this appliance.
2. DO NOT use for commercial cooking.
3. DO NOT use this appliance as a heater.
4. DO NOT install this appliance in or on a boat.
5. DO NOT attempt to attach this appliance to the self-contained LPG system of a camper trailer, recreational vehicle or motor home.

MAINTAIN PROPER CLEARANCES FROM COMBUSTIBLE MATERIAL:

• DO NOT use this appliance on or under any apartment or condo-minium balcony or deck.
• DO NOT operate this appliance any closer than 36 in (1 m) from the sides and back of the appliance.
• DO NOT use this appliance under overhead combustible construction.


Register your appliance at blackstoneproductscom/register

ASSEMBLY GUIDE

EXPLODED VIEW

PARTS LIST

ASSEMBLY INSTRUCTIONS

Find a large, clean area to assemble your appliance. Remove all packing material before assembling.

Sharp edges. Wear gloves while assembling.	Heavy pieces. Two people should assemble this appliance.

NOT INCLUDED: LPG cylinder Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar to protect LPG cylinder valve

TOOLS NEEDED:
LPG cylinder Phillips head screwdriver & Adjustable wrench

STEP 03 Use two (2) M6x12 screws to attach the right side of the cart base to the right leg assembly. Ensure that the grate panel holes are oriented to the inside of the cart.

STEP 04 Use two (2) M6x12 screws to attach the left side of the cart base to the left leg assembly. Ensure that the grate panel holes are oriented to the inside of the cart.

STEP 05 With the help of another person, set the cart on its feet. Use four (4) M6x12 screws to loosely attach the grate panel to the left and right leg assemblies. DO NOT fully tighten the screws at this time.

STEP 06 With the help of another person, place the griddle body on the cart.

STEP 07 Use four (4) M6x12 screws to attach the front logo panel to either side of the griddle body.

STEP 08 Use four (4) M6x12 screws to secure the griddle body to the left and right leg assemblies. Ensure the griddle legs are standing level on ground and tighten the four (4) M6x12 screws on the grate panel.

STEP 12 Hook one (1) side shelf on the top screws on the left side of the griddle body. Use two (2) M6x12 screws to secure the side shelf to the griddle body.

STEP 13 Use two (2) M6x12 screws to install the hood handle to the front of the hood.

STEP 14 With the help of another person, place the griddle top and hood onto the griddle body by aligning the four pins to the holes on top of the appliance.

Make sure the front pins are fully seated in the holes, then push the griddle top back to lock the griddle in place.

STEP 15 Hang the grease cup in the slot on the back of the griddle body.

STEP 16 Proceed to USING YOUR BLACKSTONE.

NOTICE

DO NOT leave the hood closed for more than 10 minutes while cooking.

NOTICE

Maximum weight on the side shelf is 10 lbs (4.5 kg). The side shelf may get hot while appliance is in use.

USING YOUR BLACKSTONE

THE LPG CYLINDER VALVE MUST HAVE:

• Type 1 valve outlet (thread on the outside).
• Safety relief valve.
• Ul listed overfill Protection device (OPD). This OPD safety feature is identified by a unique triangular hand wheel.
• Safety cap (dust cap).


REGULATOR SAFETY

Cross threading can occur if you force thread a connection at an improper angle. This will damage the threads, lead to propane leaking, and potentially result in a build-up of fuel that can ignite. DO NOT cross thread the connection between your LPG cylinder and regulator.

If you can not connect the regulator, DO NOT use the regulator. Regulator must be replaced with a Blackstone approved model by a professionally licensed, authorized dealer.

Use this appliance, as purchased, only with gas and regulator/valve assembly supplied.

FITTINGS & HOSES

• Annual checking and tightening of metal fittings is recommended.
• Keep the fuel supply hose away from any heated surfaces.
• Before each use, check to see if hoses are cut or worn. Replace damaged hose before using appliance. (Use only Blackstone approved replacement parts for valve, hose, or regulator. Failure to comply will void the warranty.)

LEAK TEST INSTRUCTIONS

NOTICE

DO NOT use household cleaning agents. Damage to gas valve, hose, and regulator components may result. Use a clean paintbrush and a 10/90 mild soap and water solution to perform the leak test.

LEAK TEST: LPG CYLINDER

• Leak test new and exchanged LPG cylinders BeFoRe connecting to griddle.
• DO NOT smoke during leak test.
• DO NOT use an open flame to check for gas leaks.
• Appliance must be leak tested outdoors in a well-ventilated area, away from ignition sources such as gas fired or electrical appliances.
• During leak test, keep appliance away from open flames or sparks.

STEP 01 Brush soapy solution onto joint areas of the LPG cylinder
(Indicated by arrows in figure 01)

• Leaks are indicated by growing bubbles

If growing bubbles appear during leak test, DO NOT use or move the LPG cylinder. Immediately contact an LPG supplier or fire department

LEAK TEST: VALVES, HOSE & REGULATOR

STEP 01 Turn the control knobs to OFF.

STEP 02 Connect the regulator to the LPG cylinder.

STEP 03 Completely open the LPG tank by turning the OPD hand wheel counterclockwise.

• If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection.
• Immediately close the LPG cylinder by turning the OPD hand wheel clockwise and re-tighten connections. If leaks cannot be stopped DO NOT TRY To REPAIR.

STEP 04 Brush soapy solution cylinder. onto joint areas of valves and regulator.
(Indicated by arrows in figure 02)

• Leaks are indicated by growing bubbles.
• Immediately close the LPG cylinder by turning the OPD hand wheel clockwise and re-tighten connections.

If leaks cannot be stopped, DO NOT try to repair.
Regulator must be replaced with a Blackstone approved model by a professionally licensed, authorized dealer.

FIRST TIME CLEANING

CLEANING YOUR GRIDDLE TOP

NOTICE

Soap will ruin a seasoned griddle. This is the only time you should use soap on the griddle cooking surface.

STEP 01 Wash the griddle cooking surface with hot, soapy water.

STEP 02 Rinse and dry completely.

IGNITION INSTRUCTIONS

CHECK VALVES

STEP 01 Turn knobs to OFF position.

STEP 02 Push in knobs and release. Knobs should spring back.
If knobs DO NOT spring back, replace valve assembly before using appliance

STEP 03 Rotate knobs to loW then turn back to OFF. Knobs should turn smoothly.

If burner does not ignite with open LPG cylinder valve, gas will continue to flow out of burner and could accidentally/ inadvertently ignite with risk of injury. Ensure gas is off at the supply shut off valve before checking appliance valves.

PIEZO-ELECTRIC GRIDDLE IGNITION

DO NOT lean over the appliance while lighting.

1. Push the control knob in to start gas flowing.
2. Turn the control knob counter-clockwise to activate the starter.
3. Adjust the temperature to desired level.

A clogged burner tube can lead to a fire beneath the appliance. Burner should be removed and cleaned annually or whenever heavy build-up or insects/insect nests are found.

HEALTHY BURNER FLAME PATTERN

1. Flickers of yellow color.
2. Dark blue color.
3. Vibrant blue.

GRIDDLE SEASONING INSTRUCTIONS

PREVENTING RUST

Use your griddle frequently. every time you cook, you are adding to the seasoning, which makes rust less likely.

NOTICE

If you live in a humid or coastal climate, your griddle may require more frequent seasonings between uses.

If rust appears on the griddle surface, rub it off with steel wool, low grit sandpaper or the Blackstone Pumice Stone and re-season the surface.

VIDEO TUTORIAL
Recovering your Blackstone Griddle Top
youtube.com/watch?v=thPe2IgnSiI

COOKING ON YOUR BLACKSTONE

Flammable items can spontaneously combust if placed near the appliance. DO NOT place flammable items such as aerosol containers, oily or greasy towels near the cooking surface.

This appliance will be hot during and after use. DO NOT handle hot parts with unprotected hands. Use long-handled cooking utensils and oven mitts.

NOTICE

DO NOT store any items within 3 in (8 cm) of the cooking surface while in use.

IF GREASE OR OTHER HOT MATERIAL DRIPS ONTO VALVE, HOSE OR REGULATOR:

STEP 01 Turn off gas supply immediately.

STEP 02 determine the cause and correct it.

STEP 03 Clean and inspect valve, hose and regulator. STEP 04 Perform a leak test. (Please reference the leak Test Instructions in USING YOUR BLACKSTONE.)

VIDEO RECIPES

Find recipes and cooking tips at:
blackstoneproducts.com/blogs/recipes
youtube.com/c/BlackstoneGriddles
@blackstoneproducts

CLEANING YOUR APPLIANCE

Clean your appliance after each use, after it is cool to the touch.

• DO NOT use abrasive pad on areas with graphics.
• If a bristle brush is used to clean any of the cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to cooking.

Grease build up can cause a fire. Clean any part of the appliance that gets hot and experiences grease build up after each use.

PLASTIC PARTS & PAINTED SURFACES:
Wash with warm soapy water and wipe dry with a non-abrasive cloth.

NOTICE

DO NOT use Citrisol, abrasive cleaners, or a concentrated cleaner on plastic parts. This may result in damage to and failure of parts.

FOR EVERY SURFACE
The Blackstone degreaser and Cleaning Spray is gentle enough to clean every surface of your appliance. Use it on the cooking surface, the appliance frame, or anywhere that experiences a build up of grease.

APPLIANCE STORAGE

DO NOT move the appliance when in use. Allow the appliance to cool to 115°F (45°C) before moving or storing.

COVER FIT GUIDE
Always cover your appliance if stored outdoors.

Visit blackstoneproducts.com/support to find a cover that will fit your appliance.

CLEANING YOUR GRIDDLE TOP

Clean griddle top after each use, while still warm.

• DO NOT use soap on the griddle top. This will destroy the griddle's seasoning.
• The grease cup must be removed and emptied after each use.

Grease cup will be hot during and after use. DO NOT remove the grease cup until the griddle has completely cooled.

VIDEO TUTORIAL
How to Clean your Blackstone Griddle
youtube.com/watch?v=-Iedu9z6NPY

STEP 01 Push loose food debris into the grease cup with spatula or straight metal scraper.

STEP 02 Wipe down griddle top with paper towel.

STEP 03 Apply a few tablespoons of water to the griddle surface, then scrape the water and debris into the grease cup. (For stuck-on food residue, use a bit of coarse salt.)

STEP 04 Wipe again with a paper towel and dry completely.

STEP 05 Apply thin coat of cooking oil to maintain seasoning and protect the griddle top.

DISCONNECT THE LPG CYLINDER

STEP 01 ensure that the control knobs are turned to OFF.

1. Ensure that the LPG cylinder is OFF by turning the OPD hand wheel clockwise to a full stop.
2. Turn the coupling nut counter-clockwise by hand to remove the regulator. (DO NOT use tools to disconnect.)

STEP 02 Place safety cap on LPG cylinder valve outlet whenever cylinder is not in use.
Only install the type of safety cap on cylinder valve outlet that is provided with the cylinder valve other types of caps or plugs may result in leakage of propane

STORING LPG CYLINDERS

DO NOT store a spare LPG cylinder under or near this appliance.

DO NOT fill an LPG cylinder beyond 80% full.
If the information above is not followed exactly, a fire causing death or serious injury may occur

LPG cylinders must be stored outdoors and out of the reach of children.

DO NOT store an LPG cylinder inside a building, garage, or any other enclosed area.

FILLING & EXCHANGE

• Use only those reputable exchange companies that inspect, preci-sion fill, test and certify their cylinders. LPG dealer must purge new cylinder before filling.
• Volume of propane in cylinder will vary by temperature.

A frosty regulator indicates gas overfill. Immediately close LPG cylinder valve and call local LPG dealer for assistance.

DO NOT release liquid petroleum gas (LPG) into the atmosphere.

• To remove gas from LPG cylinder, contact a certified LPG dealer or local fire department for assistance.
• Exchange tank only for an OPD safety feature-equipped tank.
  Your retailer can help you match a replacement LPG cylinder to your appliance

THE EDGES OF THE GRIDDLE SURFACE ARE NOT BLACK:
After using your griddle for multiple cooks, the seasoning will even out and improve.

CLEANING THE BURNER ASSEMBLY

VIDEO TUTORIAL
How to Clean Your Burner Tube
youtube.com/watch?v=xKQTCrFCzf8

STEP 01 Ensure that the gas is turned OFF at control knobs and gas supply. Remove the cooking top.

STEP 02 Carefully detach and remove the burner.

STEP 03 Clean the inside of the burner:

• Run a narrow bottle brush through each burner tube several times. (DO NOT use wire brushes)
• Run a stiff wire bent into a small hook through each burner tube several times.
• Use an air hose to force air into burner tube and out burner ports. Check that air blows through each hole. (Wear eye protection)

STEP 04 Brush entire outer surface of burner to remove grime.

STEP 05 Clean any blocked ports with stiff wire such as an open paper clip.

STEP 06 Carefully replace burners and reattach.

The gas rail fuel nozzle must be reengaged within the burner opening.

CUSTOMER SERVICE
Visit us online at blackstoneproducts.com/support for assistance concerning appliance use, replacement parts, or your warranty.

CUSTOMER SERVICE HOURS:
Monday – Friday 7:00 am – 5:00 pm (MST)
