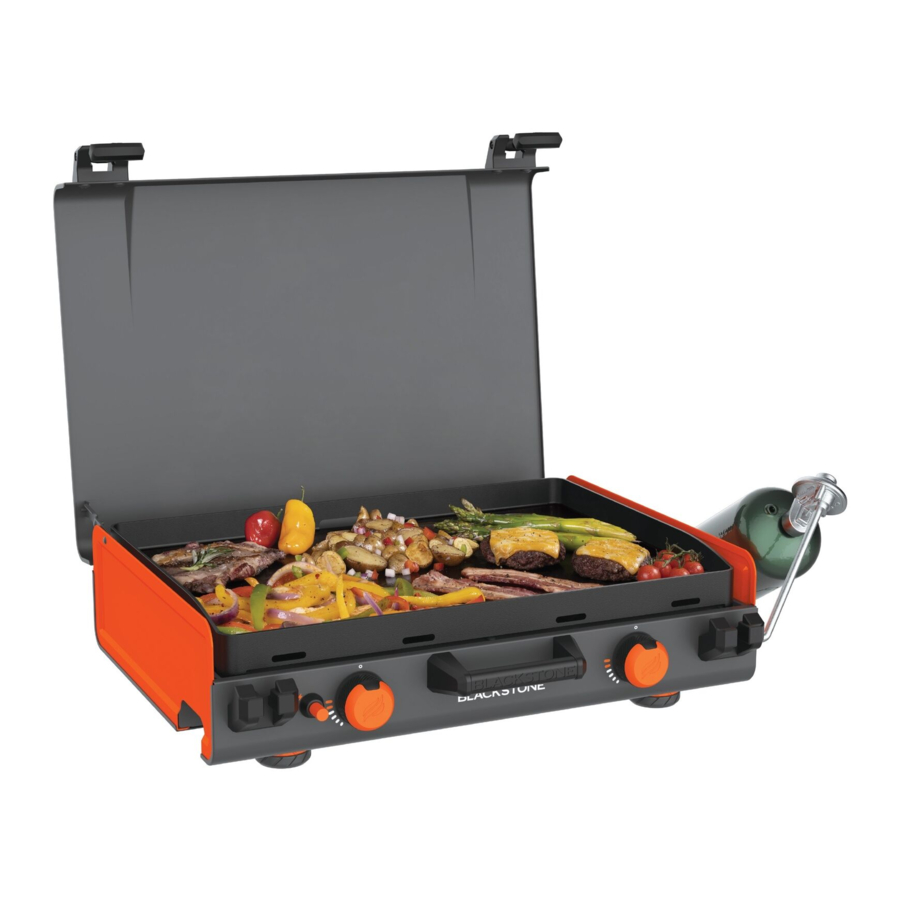

BLACKSTONE 2246 - 20" GRIDDLE 2 BURNER Manual
ASSEMBLY GUIDE
EXPLODED VIEW
![BLACKSTONE - 2246 - Exploded view Exploded view]()
PARTS LIST
| PARTS | QTY |
1.1a | Handle | 1 |
1.1b | Latch hasps | 2 |
1.1c | Control knobs | 2 |
1.1d | Plunger | 1 |
1.2a | Base panel | 1 |
1.2b | Left panel | 1 |
1.2c | Inset panel | 1 |
1.2d | Right panel | 1 |
1.3a | Baffle panel | 1 |
1.3b | Regulator clip | 1 |
1.4 | Gas rail | 1 |
1.5 | Ignition needles | 2 |
1.6a | H burners | 2 |
1.6b | Burner mounts | 4 |
1.7a | Griddle lock | 1 |
1.7b | Griddle lock hardware | 1 |
1.7c | Grease cup lock | 1 |
1.8a | Hood | 1 |
1.8b | Hood hinges | 2 |
1.8c | Hood hinge lever assembly | 1 |
1.8d | Hood latch assembly | 2 |
1.9a | Adjustable feet | 4 |
1.9b | Feet spacers | 4 |
![]()
ASSEMBLY INSTRUCTIONS
Find a large, clean area to assemble your appliance.
Remove all packing material before assembling.
![]()
Sharp edges. Wear gloves while assembling.
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
![]()
USING YOUR BLACKSTONE
BEFORE COOKING
CHECK BURNERS
Prior to connection and use, ensure that there is no debris caught in, or damage to, the head of the gas cylinder, regulator, hose, burner and burner ports.
Spiders and insects can nest within and clog the burner/venturi tube at the orifice.
Please reference the Troubleshooting chapter for burner cleaning instructions.
![]()
![]()
A clogged burner can lead to a fire beneath the appliance.
Burner should be removed and cleaned whenever blockages are found.
Ensure that the gas rail fuel nozzle orifice is correctly engaged within the burner opening.
THE MINIMUM AMBIENT OPERATING TEMPERATURE IS 0°F (-18°C).
![]()
Flammable items can combust if placed near the appliance.
Keep the appliance area clear and free from combustible materials, aerosol containers, gasoline and other flammable vapors and liquids.
![]()
If the appliance is fitted with a paper towel holder, the arm must be in the open position while the appliance is in use.
IF GREASE OR OTHER HOT MATERIAL DRIPS ONTO VALVE, HOSE OR REGULATOR:
- Turn off gas supply immediately.
- Determine the cause and correct it.
- Clean and inspect valve, hose and regulator.
- Perform a leak test. (Please reference the Leak Test Instructions.)
SETTING UP YOUR OUTDOOR SPACE
THIS APPLIANCE MUST ONLY BE USED OUTDOORS.
- DO NOT use this appliance inside buildings, garages, or any other enclosed area.
- DO NOT install this appliance in or on a boat.
- DO NOT install this appliance in or on a recreational vehicle.
MAINTAIN PROPER CLEARANCES FROM COMBUSTIBLE MATERIAL.
- DO NOT use this appliance on or under any apartment or condo-minium balcony or deck.
- DO NOT obstruct the flow of combustion and ventilation air.
- DO NOT operate this appliance any closer than 36 in (1 m) from the sides and back of the appliance to combustible construction.
![]()
- DO NOT use this appliance under overhead combustible construction.
SHELTERED OUTDOOR AREAS:
All openings must be permanently open; sliding doors, garage doors, windows or screened openings are not considered as permanent openings.
An appliance is considered to be outdoors if installed with shelter no more inclusive than:
- With walls on three sides, but with no overhead cover.
![]()
- Within a partial enclosure that includes an overhead cover and no more than two sidewalls. The sidewalls may be parallel, as in a breezeway, or at right angles to each other.
![]()
- Within a partial enclosure that includes an overhead cover and three sidewalls, as long as 30% or more of the horizontal periphery of the enclosure is permanently open.
![]()
CONNECT THE LPG CYLINDER
ONLY USE A 1 LB (453 G) CYLINDER
- Screw in the LPG cylinder into the gas regulator, turning the cylinder clockwise.
The regulator may make a humming or whistling noise during operation. This will not affect safety or use of the appliance.
![]()
- Insert the regulator and LPG cylinder into the gas line of the appliance. Turn the collar of the regulator clockwise to secure it to the gas line.
![]()
LPG CYLINDER SAFETY
- The LPG supply cylinder to be used must be constructed and marked in accordance with the specifications for LP gas cylinders, U.S. Department of Transportation (DOT) or the Standard for Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods, CAN/CSA-B339.
- Only LPG cylinders marked "propane" shall be used.
- The cylinder used, if in excess of 2.2 Ib (1.00 kg) propane capacity, must include a collar to protect the cylinder valve.
- The LPG cylinder supply system must be arranged for vapor withdrawal.
Always keep new LPG cylinders in upright position during use, transit or storage.
Ensure that the LPG cylinder is positioned below the regulator.
(If the liquid level of the propane is above the regulator, the regulator will frost.)
![]()
IF FROSTING PERSISTS AFTER CYLINDER IS ANGLED CORRECTLY:
- Turn off the appliance and disconnect LPG cylinder immediately. This indicates a problem with the LPG cylinder and it should not be used on any product.
- Return LPG cylinder to supplier.
REGULATOR SAFETY
- Use this appliance, as purchased, only with gas and regulator/valve assembly supplied. DO NOT use quick connect fittings or other add-ons.
- DO NOT cross thread (force at an improper angle) the connection between your LPG cylinder and regulator.
- If you can not connect the regulator, DO NOT use the regulator.
Regulator must be replaced with a Blackstone approved model by a professionally licensed, authorized dealer.
LEAK TEST INSTRUCTIONS
- Turn the control knobs to OFF.
- Connect the LPG cylinder to the regulator. Connect the regulator to the appliance.
- Use a clean paintbrush to brush a 10/90 mild soap and water solution onto joint areas of valves and regulator.
Leaks are indicated by growing bubbles.
![]()
- If growing bubbles appear, re-tighten connections.
![]()
If leaks cannot be stopped, DO NOT try to repair.
Regulator must be replaced with a Blackstone approved model by a professionally licensed, authorized dealer.
DISCONNECTING THE LPG CYLINDER
1 LB (453 G)
- Ensure that the control knob(s) are turned to OFF.
- Once the appliance has cooled, disconnect the regulator from the gas line by unscrewing the collar.
- Unscrew the LPG cylinder from the regulator.
- Place dust cap on LPG cylinder valve outlet whenever cylinder is not in use.
Only install the type of dust cap on cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.
STORING LPG CYLINDERS
![]()
- DO NOT store a spare LPG cylinder under or near this appliance.
- DO NOT fill an LPG cylinder beyond 80% full.
If the information above is not followed exactly, a fire causing death or serious injury may occur.
- The LPG cylinder must be disconnected when the appliance is not in use.
- Only store the appliance indoors if the LPG cylinder is disconnected and removed from the appliance.
IGNITON INSTRUCTIONS
CHECK VALVES
![]()
- Turn knob to OFF position.
- Push in knob and release Knob should spring back.
If knobs DO NOT spring back, replace valve assembly before using appliance. - Rotate knob to LOW then turn back to OFF. Knob should turn smoothly.
PLUNGER IGNITION
- Read all instructions before lighting.
- Open lid prior to lighting.
![]()
Starting from the OFF position, push and turn the control knob counter-clockwise to ❶ HIGH. - ❷ Push the plunger repeatedly until ignition
- ❸ Release knob and adjust the temperature to desired level
ALWAYS CHECK BURNER FLAME BEFORE USE
- Light burners and rotate knobs from HIGH to LOW.
- Look below the cooking surface to view burners. When knob is at HIGH, flames should be larger than when knob is at LOW.
HEALTHY FLAME PATTERN
![]()
- Flickers of yellow color.
- Dark blue color.
- Vibrant blue.
YELLOW OR IRREGULAR
![]()
If there is a sudden drop or low flame issue, please reference the Troubleshooting chapter.
IF IGNITION DOES NOT OCCUR IN 5 SECONDS:
- Turn the burner control knob OFF.
- Wait 5 minutes.
- Repeat the lighting procedure.
If burner does not ignite, please reference the Troubleshooting chapter.
COOKING ON YOUR BLACKSTONE
![]()
This appliance will be hot during and after use. Use long handled utensils and oven mitts/ protective gloves when handling potentially hot parts to protect against burns and splatters.
VIDEO RECIPES
Find recipes and cooking tips at:
BlackstoneProducts.com/recipes
youtube.com/BlackstoneGriddles
![]()
@blackstoneproducts
PROTECTING THE NON-STICK SURFACE
- You DO NOT need to season the griddle top.
- DO NOT cut directly on the griddle surface.
- Only use silicone coated cooking utensils on the cooking surface.
- Cooking spray containing lecithin will degrade the non-stick coating. We recommend using regular cooking oil in a spray bottle.
WASHING YOUR GRIDDLE TOP
WASH GRIDDLE SURFACE BEFORE INITIAL USE.
- DO NOT allow the electric components to come in contact with water. (if applicable)
- DO NOT leave water on the griddle surface for more than two hours.
- DO NOT wash the griddle top in the dishwasher.
- Avoid using anything that may scratch the surface, including metal scouring pads and abrasive cleaners.
DAILY CLEANING
- Be sure that the grease cup is in place.
- Wipe off griddle surface with a moist, soapy cloth or paper towel.
- Wash off soap and dry.
EMPTY YOUR GREASE CUP
The grease cup must be removed and emptied after each use.
![]()
Grease cup will be hot during and after use. DO NOT remove the grease cup until the griddle has completely cooled.
DEEP CLEANING
- Be sure that the grease cup is in place.
- Turn heat to low.
- While wearing rubber gloves, use one (1) tablespoon of mild soap per one (1) cup of hot water, and wipe down the griddle surface with a cloth or non-metal cleaning pad.
- Turn off griddle, and once cool, wipe off surface with a moist, soapy cloth or paper towel.
- Wash off soap and dry.
CARE AND MAINTENANCE
![]()
Grease build up can cause a fire. Clean any part of the appliance that gets hot and experiences grease build up after each use.
![]()
All cleaning and maintenance should be carried out when the appliance is cool and everything is turned OFF.
- DO NOT use abrasive pad on areas with graphics.
- If a bristle brush is used to clean any of the cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to cooking.
APPLIANCE BODY:
Wash with warm soapy water and immediately wipe dry with a non-abrasive cloth. (DO NOT allow cleaning agents to rest on any porous surface for a prolonged amount of time.)
NOTICE
DO NOT use Citrisol, abrasive cleaners, or a concentrated cleaner on the appliance. This may result in damage to and failure of parts.
APPLIANCE STORAGE
![]()
DO NOT move the appliance when in use. Allow the appliance to cool to 115°F (45°C) before moving or storing.
Storage of an appliance indoors is only permissible if the gas supply is disconnected and removed from the appliance
COVER FIT GUIDE
Always cover your appliance when stored outdoors.
To find a cover that will fit your appliance, visit BlackstoneProducts.com/support
![]()
TROUBLESHOOTING
IGNITION TROUBLESHOOTING
BURNER WILL NOT IGNITE
If ignition does not occur in 5 seconds:
- Turn the burner control knob OFF.
- Wait 5 minutes.
- Repeat the lighting procedure.
If this does not work, to determine the cause, please try to ignite your appliance with a match.
MATCH LIGHTING INSTRUCTIONS
Before beginning, check for gas leaks. open hood (if applicable).
- Turn control knob to OFF position.
- Light a match (or long lighter) no shorter than 11 inches long.
- Place the flame next to the burner.
![]()
- Push in and turn the control knob to start gas flowing ensure burner lights and stays lit.
IF YOU CAN IGNITE YOUR APPLIANCE WITH A MATCH
POSSIBLE CAUSES | SOLUTION |
Ignitor wire misaligned. | Ensure that the ignitor needle is positioned 3-7mm (1/8-1/4 inch) away from the burner, and aligned with the burner holes. ![]() |
Damage to the ignition system. | Contact customer support for replacement parts. |
IF YOU CAN NOT IGNITE YOUR APPLIANCE WITH A MATCH
POSSIBLE CAUSES | SOLUTION |
Burner tubes are not receiving fuel. | Clean the burner assembly to remove the obstruction. |
GAS FLOW TROUBLESHOOTING
BURNER FLAMES ARE YELLOW OR IRREGULAR
- Appliance will not achieve a high heat or heats unevenly.
- Burner flames start strong, then immediately drop to low even when burner is set to high position.
- Flame height drops when a second burner is lit.
- Flames DO NOT extend the full length of the burner, or only run on one side of the burner.
- Burner flames are inconsistent.
POSSIBLE CAUSES | SOLUTION |
Obstructions in the burner, gas jets, or fuel rail. | Clean the burner, jets, and gas hose. |
Gas cylinder is empty or low. | Refill or replace the gas cylinder. |
The regulator's flow limiting device was triggered. | Reset the safety system: - Turn OFF the appliance, close the LPG cylinder valve, and disconnect the regulator from the LPG cylinder.
- Wait five minutes to allow the pressure to dissipate, then reconnect the regulator to the LPG cylinder and slowly open the OPD hand wheel one half turn.
- Ignite your appliance.
|
Regulator stuck in safety position. | Contact customer support for replacement parts. |
A FLAME IS COMING OUT OF THE AIR GATE
![]()
POSSIBLE CAUSES | SOLUTION |
Something is blocking the venturi in the burner. | Clean the burner assembly to remove the obstruction. |
CLEANING THE BURNER ASSEMBLY
To reduce chance of "flash-back" the procedure below should be followed at least once a month when spiders are most active or when your appliance has not been used for a period of time.
VIDEO TUTORIAL
How to Clean Your Burner Tube
youtube.com/watch?v=xKQTCrFCzf8
![]()
- Ensure that the gas is turned OFF at control knobs and gas supply. Remove the griddle top.
- Carefully detach and remove the burner.
![]()
- Clean the inside of the burner:
- Run a bottle brush (not a wire brush) or a stiff wire bent into a small hook through each burner tube several times.
- Use compressed air to blow through the burner tube and out the burner ports (Wear eye protection).
- Brush entire outer surface of burner to remove grime.
![]()
- Clean any blocked ports with stiff wire such as an open paper clip.
![]()
- Carefully replace burners and reattach, with attention to the location of the ignition needle.
![]()
The gas rail fuel nozzle must be reengaged within the burner opening.
![]()
If you smell gas:
- Shut off gas to the appliance.
- Extinguish any open flame.
- Open hood (if applicable).
- If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.
Failure to follow these instructions could result in fire or property damage, personal injury or death.
![]()
- NEVER operate this appliance unattended.
- If a fire should occur, keep away from the appliance and immediately call your fire department. DO NOT attempt to extinguish an oil or a grease fire with water.
- NEVER operate this appliance within 25 ft (7.5 m) of any Failure to follow these instructions could result in fire or flammable liquid. property damage, personal injury or death. Failure to follow these instructions could result in fire or property damage, personal injury or death.
![]()
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which is poisonous and has no odor.
Using it in an enclosed space can kill you.
NEVER use this appliance in an enclosed space such as a camper, tent, car or home.
![]()
![]()
- DO NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
- An LPG cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
GAS APPLIANCE SAFETY
- The use of alcohol, prescription, or non-prescription drugs may impair the consumer's ability to properly assemble or safely operate the appliance.
- Keep children and pets away from the appliance at all times.
- Have a type BC or ABC fire extinguisher readily available.
DO NOT USE FOR PURPOSES OTHER THAN INTENDED.
- DO NOT use for commercial cooking.
- DO NOT use this appliance as a heater.
![]()
Improper installation, use, adjustment, alteration, service, modification, or maintenance can cause injury or property damage. Refer to this manual.
INSTALLATION MUST CONFORM WITH LOCAL CODES.
In the absence of local codes, installation must conform with either ANSI Z223.1/NFPA 54, CSA B149.1, or CSA B149.2.
FOR OUTDOOR USE ONLY.
CUSTOMER SUPPORT
Visit us online at BlackstoneProducts.com/support for assistance concerning appliance use, replacement parts, or your warranty.
CUSTOMER SUPPORT HOURS:
Monday – Friday
7:00 am – 5:00 pm (Mountain Time)
Documents / Resources
References
Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download BLACKSTONE 2246 - 20" GRIDDLE 2 BURNER Manual
Need help?
Do you have a question about the 2246 and is the answer not in the manual?
Questions and answers
