This product may be used under supervision, or if instruction regarding the safe use of the product has been provided and the resulting dangers have been understood, by children aged 8 and above, as well as by persons with physical, sensory or mental disabilities or a lack of experience and knowledge. Children must not be allowed to play with the product. Cleaning and user maintenance must not be performed by children without supervision. The use of this product by young people under the age of 16 is not recommended. Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.
Intended use:

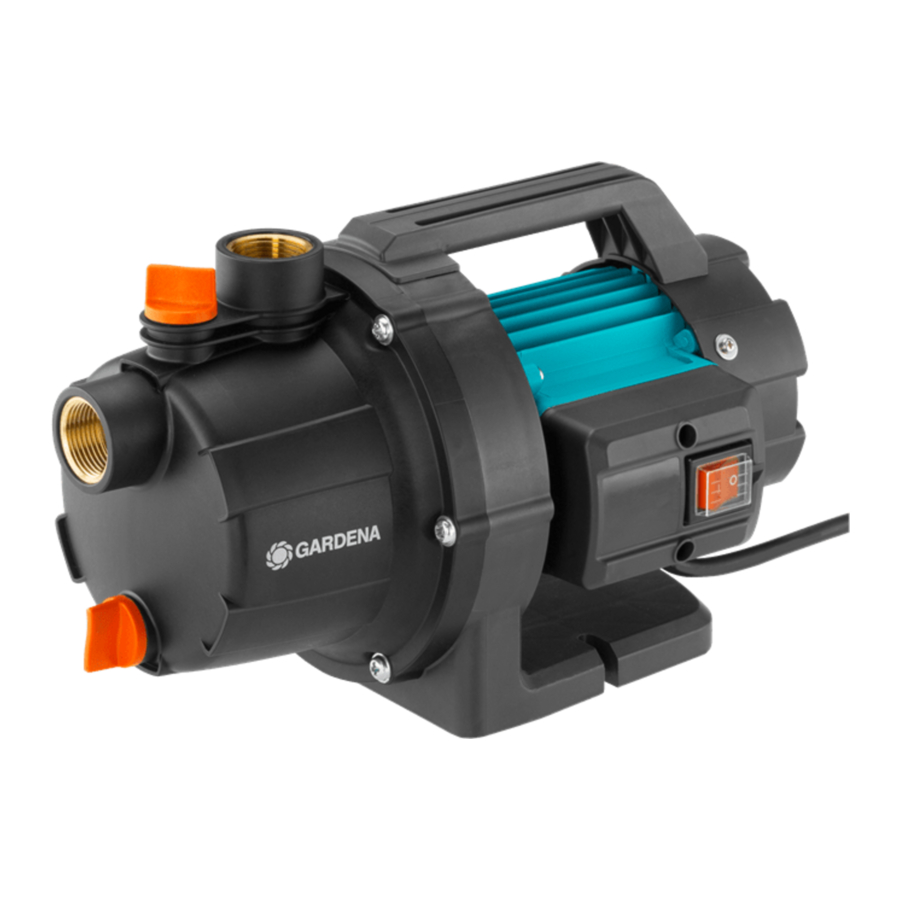

The GARDENA Garden Pump is intended for pumping ground water and rain water, tap water and water containing chlorine in private domestic gardens and allotments.
Liquids to be pumped:
The GARDENA Garden Pump must only be used to pump water. When the pump is used for pressure boosting, the maximum permissible internal pressure of 6 bar (on the delivery side) must not be exceeded. The increased delivery pressure and the pump pressure have to be added together.
– Example:
Pressure at the tap = 2.5 bar, max. pressure of the Garden Pump Art. 9010 = 3.5 bar, total pressure = 6.0 bar.
The product is not intended for long term use (continuous circulation operation).
Risk of injury!
The pump must not be used for the delivery of salt water, muddy water, corrosive, easily inflammable or explosive liquids (e. g. petrol, paraffin, thinners), oil, heating oil or foodstuffs.
Read the operator's manual carefully before use and keep for future reference.
Symbols on the product:
Read operator's manual.
General safety warnings
Electrical safety
Electric shock!
Risk of injury due to electric current.
→ The product must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
Risk of physical injury!
Risk of injury due to electric current.
→ Disconnect the product from the mains before you maintain or replace parts. Thereby the disconnected socket must be in the visual range.
Safe operating practices
The water temperature should not exceed 35°C.
The pump must not be used when people are in the water.
Pollution of the liquid could occur due to leakage of lubricants.
Circuit breaker
Thermal protection switch:
In the event of an overload, the pump is switched off by the built-in thermal motor protection. After sufficient cooling of the motor, the pump is operational again.
Additional safety warnings
Electrical safety
Cardiac arrest!
This product makes an electromagnetic field while it operates. This field may under some conditions interfere with active or passive medical implants. To decrease the risk of conditions that can possibly injure or kill, we recommend persons with medical implants to speak with their physician and the medical implant manufacturer before you operate the product.
Cables
If extension cables are used, these must comply with the minimum crosssections in the table below:
Voltage | Cable length | Cross section |
230 – 240 V / 50 Hz | Up to 20 m |
|
230 – 240 V / 50 Hz | 20 – 50 m | 2.5 mm2 |
Electric shock!
Risk of injury due to electric current.
→ Disconnect the product from the mains before you put into storage, maintain or troubleshoot.
The pump must be located on solid, even ground, protected from flooding. Take care that the pump cannot fall into water. Position the pump at a safe distance (min. 2 m) from the liquid to be pumped. As an additional safety device an authorised safety switch can be used.
→ Please ask your electrician for his advice.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Protect the mains plug and the mains power cable from heat, oil and sharp edges.
Do not use the power cable for carrying the pump or for unplugging.
Protect the pump from rain. Don't use the pump in wet or moist areas.
Please regularly check the connecting line.
Before using, always subject the pump (especially the power cables and the power connections) to a visual inspection.
A pump which is damaged must not be used. In the event of damage, have the pump checked by GARDENA Service.
When using our pumps with a generator, the warnings of the generator manufacturer must be observed.
Personal safety
Risk of suffocation!
Small parts can be easily swallowed. There is also a risk that the polybag can suffocate toddlers. Keep toddlers away when you assemble the product.
Risk of injury due to hot water!
If the pump is operated for prolonged periods of time (> 5 min.) with the delivery side closed, the water in the pump may heat up so that there is a risk of scalding yourself with hot water.
→ The pump should not run against the closed delivery side for more than 5 minutes.
If the water supply on the intake side of the pump fails, the water in the pump can heat up so that if water emerges, injuries could be caused by the hot water.
→ Disconnect the pump from the mains via the main circuit breaker, let the water cool and secure the suction-side water supply before putting into operation again.
When connecting the pump to the water supply system, the country-specific sanitary regulations must be observed to prevent water not of drinking water quality being drawn back in.
→ Please consult a specialist for sanitary installations.
In order to avoid dry-running of the pump, take care that the end of the suction hose is always submerged into the liquid.
→ Before each operation, fill the pump to overflowing with approx. 2 to 3 l of the liquid to be pumped!
Sand and other abrasive substances cause increased wear and reduce the pump's output.
→ Use a pump pre-filter for pumping sandy liquids.
Pumping dirty water, e.g. stones, pine needles etc., can cause damage to the pump.
→ Do not pump dirty water.
Risk of injury!
Injury when the product starts accidentally.
→ Disconnect the product from the mains before you assemble the product.
To set up the pump:
The site must be firm and solid in order to ensure safe and sturdy operating conditions for the pump.
→ Position the pump at a safe distance (min. 2 m) from the water.
The pump must be installed in a location with low air humidity and sufficient ventilation in the area of the ventilation slots. It must be at a distance of at least 5 cm from the walls. Dirt (e. g. sand or soil) must not be sucked in through the ventilation slots.
The plastic connection pieces on the intake and delivery sides may only be tightened by hand.
To connect the hose to the suction side [ Fig. A1 ]:
Don't use any hose quick connection system fittings on the suction side!
→ A vacuum-resistant suction hose must be used, e. g. GARDENA Suction Unit, Art. 1411 or GARDENA Bore Hole Suction Hose Art. 1729.
In order to reduce the suction time, it is advisable to use a suction hose with backflow preventer avoiding automatic draining of the suction hose when the pump has been switched off.
To connect the hose to the pressure side [ Fig. A2 ]:
The pump connection (4) is equipped with a 33.3 mm (G 1") internal thread.
Hose diameter | Pump connection |
13 mm (1/2") | GARDENA Pump Connection Set Art. 1750 |
16 mm (5/8") | GARDENA Tap Connector Art. 18202 GARDENA Hose Connector Art. 18216 |
19 mm (3/4") | GARDENA Pump Connection Set Art. 1752 |
Optimised use of the pump capacity is achieved by connecting 19 mm (3/4") hoses with e. g.
– GARDENA Pump Connection Set Art. 1752,
or by connecting 25 mm (1") hoses with
– GARDENA Quick Thread Coupling with male thread Art. 7115 / Quick Coupling Hose Connector Art. 7103.
If more than one hose /accessory is connected simultaneously, we recommend using the
– GARDENA 2- or 4-Channel Water Distributor Art. 8193 / 8194, GARDENA Twin-Tap Connector Art. 940
which can be screwed directly onto the pump connection piece (2).
Risk of injury!
Injury when the product starts accidentally.
Disconnect the product from the mains before you connect, adjust or transport the product.
To pump water [ Fig. O1 / O2 ]:
Dry-Running of the pump!
Fill the pump with water up to the overflow (approx. 2 to 5 l) before each start-up.
→ If the pump does not deliver water after approx. 5 minutes, switch off the pump (press On / Off switch (8) ) (see TROUBLESHOOTING).
The specified maximum self-priming suction height of 7 m is reached only if the pump is filled via the filler neck (7) up to the overflow and if, while doing so and during the self-priming, the delivery hose (5) is held up sufficiently high to prevent any water escaping from the pump via the delivery hose (5).
Rust formation: The pump Art. 9013 has a cast iron housing. After contact with water, rust will form (this does not damage the pump and is not covered by the warranty). Therefore rusting water may initially escape after switching on the pump.
Risk of injury!
Injury when the product starts accidentally.
→ Disconnect the product from the mains before you maintain the product.
To flush the pump:
After pumping chlorinated water, the pump must be flushed.
To put into storage [ Fig. S1 ]:
The pump is not frost-proof!
The product must be stored away from children.
Risk of injury! Injury when the product starts accidentally.
→ Disconnect the product from the mains before you troubleshoot the product.
To loosen the impeller [ Fig. T1 ]:
An impeller blocked by dirt can be freed again.
→ Turn shaft of the impeller (10) with a screwdriver. This will loosen the stuck impeller.
Problem | Possible Cause | Remedy |
Pump is running, but the suction action doesn't take place | Leaky or damaged suction hose. | → Check suction line for damage and seal so is airtight. |
The pump was not filled with water. | → Fill the pump (see OPERATION). | |
The liquid escapes over the hose which is connected to the delivery side during the suction action. | → 1. Fill the pump again (see OPERATION).
| |
Absolutely vacuum-resistant connection is achieved by using GARDENA Suction Hoses (see ACCESSORIES). | ||
Leaky screw fitting at the filler neck. | → Check seal (replace if necessary) and tighten connection securely (do not use pliers). | |
Air cannot escape, since delivery side is closed or remaining water is in the pressure hose. | → Open shut-off valves (e g. nozzle) in the delivery line, empty the delivery hose or disconnect it from the pump during priming. | |
The waiting time wasn't observed. | → Switch on the pump and wait up to 5 min. | |
Suction filter or backflow preventer in the suction hose clogged. | → Clean the filter or the back flow preventer. | |
Too high suction height. | → Reduce suction height. | |
In case of any other difficulties concerning the suction action, use GARDENA Suction Hoses with Backflow Preventer (see 8. ACCESSORIES) and fill in the liquid to be pumped over the filler neck before operation. | ||
Pump does not start, or stops suddenly during operation | Thermal switch has turned the pump off because of overheating. | → Observe the max. media temperature (35°C). |
No power supply to the pump. | → Check fuses and electrical plug connections. | |
RCD has triggered (residual current). | → Disconnect the pump and contact the GARDENA Service. | |
Pump is not switched on. | → Push the On / Off switch to On. | |
Pump is running but the delivery drops suddenly | Suction hose end is not in water. | → Submerge the end of the suction hose deeper in the water. |
Suction filter or backflow preventer clogged. | → Clean the suction filter or back-flow preventer. | |
Leaks at suction side. | → Eliminate leak. | |
Impeller blocked. | → Release impeller. | |
Noise development in the hydraulic area | In the case of strong flows (e.g. open hose end, without connecting device), noise may result in the hydraulic part of the pump. This is harmless and does not lead to damage of the pump. The noise can be removed by lightly changing the flow (e. g. light opening / closing of a connecting device). |
NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA.
Garden Pump | Unit | Value (Art. 9010) | Value (Art. 9013) |
Rated power | W | 600 | 800 |
Mains voltage | V (AC) | 230 | 230 |
Mains frequency | Hz | 50 | 50 |
Max. delivery capacity | l/h | 3000 | 3600 |
Max. pressure / max. delivery head | bar / m | 3.5 / 35 | 4.0 / 40 |
Max. self-priming suction height | m | 7 | 7 |
Permitted internal pressure (delivery side) | bar | 6 | 6 |
Power cable | m | 1.5 (H07RN-F) | 1.5 (H07RN-F) |
Weight | kg | 5.3 | 8.2 |
Sound power level LWA 1) measured / guaranteed KWA Uncertainty2) | dB(A) | 77 / 80 3 | 71 / 73 2.2 |
Max. media temperature | °C | 35 | 35 |
GARDENA Suction Hoses | Kink-proof and vacuum-proof, optionally available by the metre Art. 1720 / 1721 (19 mm (3/4")- / 25 mm (1")) without connecting fittings or in fixed length Art. 1411 / 1418 complete with connecting fittings. | |
GARDENA Suction Hose Fitting | For connection on the suction side. | Art. 1723 / 1724 |
GARDENA Pump Connection Set | For connection on the delivery side. | Art. 1750 / 1752 |
GARDENA Suction Filter with backflow preventer | To equip suction hoses with backflow preventer sold by the metre. | Art. 1726 / 1727 / 1728 |
GARDENA Pump Preliminary-Filter | Recommended for pumping sandy liquids. | Art. 1730 / 1731 |
GARDENA Electronic Manometric Switch | Automatically cuts in and out the pump depending on the current operating pressure. With dry-running safety. | Art. 1739 |
GARDENA Bore Hole Suction Hose | For vacuum-resistant connection of the pump to boreholes or pipe networks. Length 0.5 m. With 33.3 mm (G1) female thread at both ends. | Art. 1729 |
GARDENA Floating suction system | For dirt-free suction below the water surface. | Art. 1417 |
GARDENA Pump Connection Piece | For connecting the GARDENA Connection System on the pressure side. | Art. 1745 |
