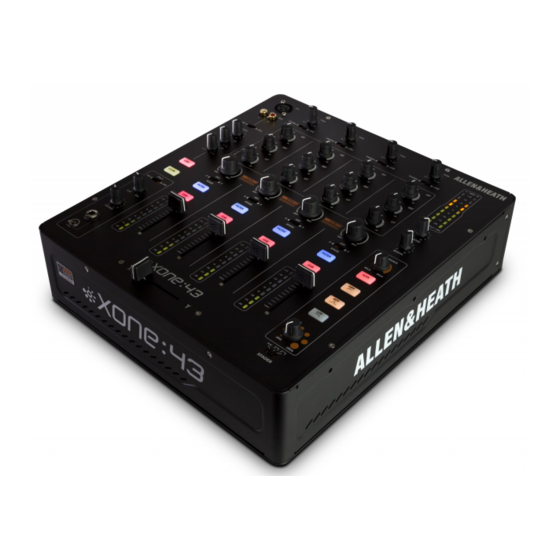

ALLEN & HEATH XONE:43 Quick Start Manual

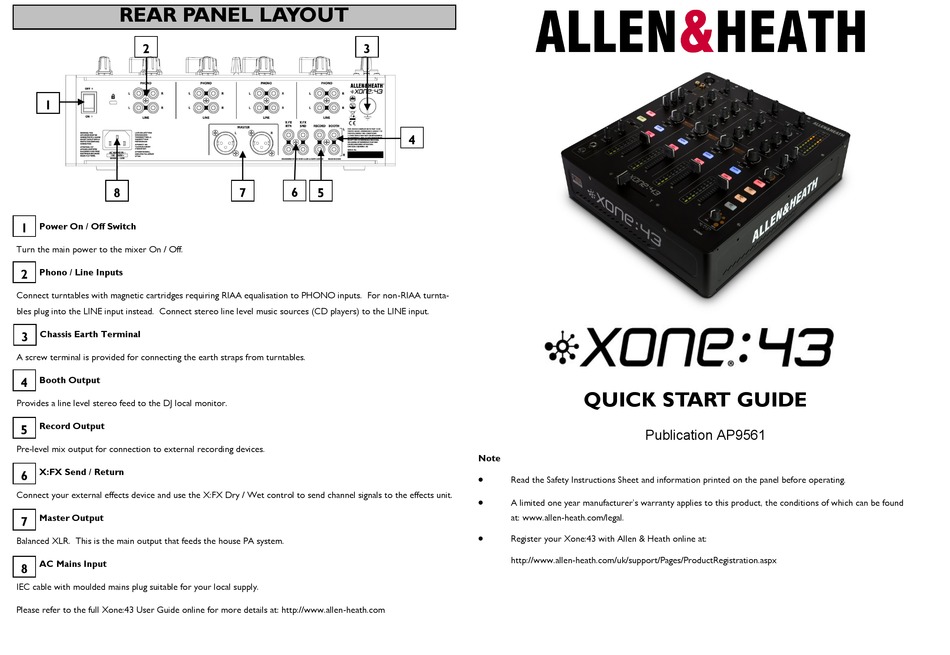

REAR PANEL LAYOUT

2
1
8
1 Power On / Off Switch
Turn the main power to the mixer On / Off.
2 Phono / Line Inputs
Connect turntables with magnetic cartridges requiring RIAA equalisation to PHONO inputs. For non-RIAA turnta-
bles plug into the LINE input instead. Connect stereo line level music sources (CD players) to the LINE input.
Chassis Earth Terminal
3
A screw terminal is provided for connecting the earth straps from turntables.
4 Booth Output
Provides a line level stereo feed to the DJ local monitor.
Record Output
5
Pre-level mix output for connection to external recording devices.
X:FX Send / Return
6
Connect your external effects device and use the X:FX Dry / Wet control to send channel signals to the effects unit.
Master Output
7
Balanced XLR. This is the main output that feeds the house PA system.
AC Mains Input
8
IEC cable with moulded mains plug suitable for your local supply.
Please refer to the full Xone:43 User Guide online for more details at: http://www.allen-heath.com
3
4
7 6 5
QUICK START GUIDE
Publication AP9561
Note

Read the Safety Instructions Sheet and information printed on the panel before operating.

A limited one year manufacturer's warranty applies to this product, the conditions of which can be found
at: www.allen-heath.com/legal.

Register your Xone:43 with Allen & Heath online at:
http://www.allen-heath.com/uk/support/Pages/ProductRegistration.aspx
