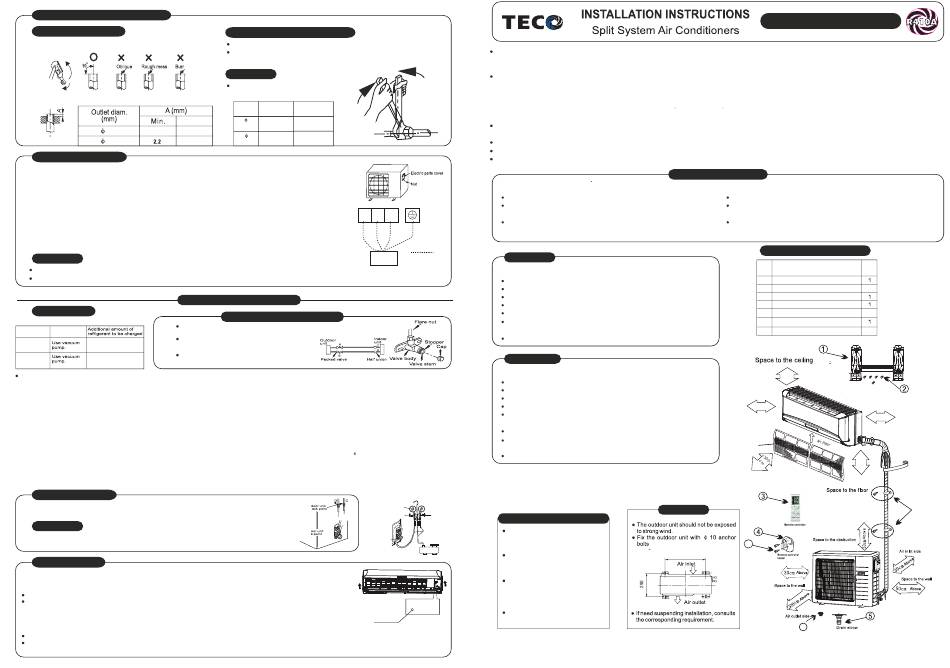

TECO TWS-TSO25HVAMJBB Installation Instructions

2.4. Refrigerant Piping Connection
4.1. Piping connection
1. Cut the pipe with a pipe cutter.
Fig.14
2. Insert a flare nut into a pipe and flare the pipe.
Max.
6.35 1.6 2.2
9.52 2.7
2.5. Wiring connection
1. Remove the electric parts cover from the outdoor unit.
2. Connect the electrical cables to the terminals as identified with their respective numbers on
the terminal block of indoor and outdoor units.
3. To prevent water from entering the unit, form a loop of the electrical cable.
4. Insulate unused cables (conductors). Ensure they do not touch any electrical or metal parts.
NOTE: (1) To prevent wires coming lose or leaving the Cord Clamp, select the correct cable diameter
to fit the holes on the Cord Clamp.
(2) Power supply cables and interconnecting cables are field supplied.
CAUTION
Incorrect wiring connections may cause electrical parts to malfunction.
Terminal block of outdoor unit is grounded separately to the Electric Control Installation Plate.
3. Evacuation & Test operation
3.1 Evacuation
Choose evacuation method from the table:
Open the valve stem until it hits against
Pipe Evacuation
the stopper. Do not try to open it further.
Length Method
Securely tighten the valve stem cap with
<5m
- (5-Pipe length)x20g
a spanner.
Valve stem cap tightening torque
>5
(Pipe length-5)x20g
1800 N.cm
up to 20m
When relocating the unit, it is recommended to perform an evacuation using the vacuum pump.
Using the vacuum pump (For manifold valve, refer to its user manual.)
1. Completely tighten the flare nuts A, B, C and D, (Fig.18) connect the manifold valve charge hose to a charge port of the low-pressure valve
on the gas pipe side.
2. Connect the charge hose connection to the vacuum pump.
3. Fully open the handle Lo of the manifold valve.
4. Operate the vacuum pump to evacuate. After starting evacuation, slightly loosen the flare nut of the Lo valve on the gas pipe side and
check that the air is entering. (Operation noise of the vacuum pump charges and a compound meter indicates 0 instead of minus).
NOTE: Evacuate for 15 minutes or more and check that the compound meter indicates -76cmHg(-1.0x10 Pa).
5. After the evacuation is complete, fully close the handle Lo of the manifold valve and stop the operation of the vacuum pump.
6. Fully open the packed valve stems B and A (Fig.17).
7. Securely tighten the cap of the packed valve.
3.2 Gas leak check
Make sure no gas comes out from connections using a leak detector or soapy water.
CAUTION
A. Lo packed valve B. Hi packed valve C. & D. ends of indoor connections.
3.3 Test operation
This operation MUST only be
conducted by a qualified person.
Perform test operation after completing gas leak check at the flare nut connections and electrical
safety check.
Check that all tubing and wiring have been properly connected.
Check that the gas and liquid side service valves are fully open.
1. Connect the power, press the ON/OFF button on the remote controller to turn the unit on.
2. Use the MODE button to select COOL, HEAT, AUTO and FAN to check if all the functions work.
3. When the ambient temperature is too low (<17 C), the unit can not be controlled by the remote controller to run at cooling mode,
o
manual operation can be used. Manual operation is used only when the remote controller is disabled or maintenance is necessary.
Hold the panel sides and lift the panel up to an angle until it remains fixed with a clicking sound (Fig.19).
Press the Manual control button to select the AUTO or COOL, the unit will operate under forced AUTO or COOL mode
4. The test operation should last approx. 30 minutes.
JBB-PV
4.2. Tightening flare connection
Align pipes to be connected.
Tighten the flare nut with fingers and then tighten it with a spanner
and torque wrench as shown in Fig.15.
CAUTION
Fig.15
Excessive torque can break the nut
depending on installation conditions.
Minimum
Pipe Maximum
torque N.cm
diameter torque N.cm
1500 1600
6.35mm
2500 2600
9.52mm
L N S
indoor unit
connection
Caution handling packed valve
Fig.17
Interconnecting
pipe work
Fig.17
Fig.18
Multimeter
-76cmHg
Lo Handle
A
B
Low pressure valve
Fig.19
Manual con trol
Button
(see User Manual for details)
4
Teco Australia Pty Ltd does not warrant the equipment supplied by Teco Australia Pty Ltd, will as installed, comply with the Building Code of
Australia or any other similar standard or code. The customer/contractor is solely responsible for ensuring that the equipment, as installed,
complies with any relevant code or standard.
The information contained in this material is provided by Teco Australia Pty Ltd in good faith. The information supplied to our knowledge is correct;
however is subject to change without notice, therefore before relying on the material in any important matter, users should carefully evaluate its
accuracy, completeness and relevance for their purpose. It is not intended as a substitute for consulting the relevant legislation or for obtaining
appropriate professional advice relevant to your particular circumstances. Teco Australia Pty Ltd cannot accept responsibility or liability for any loss,
damage, cost or expense you might incur as a result of the use of or reliance on information provided. It is not intended to be, and should not be
relied upon as the ultimate and/or complete source of information
Read these instructions before starting installation. Please save these instructions in a safe place. This air conditioner must be installed properly
by qualified technicians in accordance with the installation instructions provided with the unit.
The system must be installed in accordance with the current Australia and New Zealand Refrigerant Handling Code of Practice.
All charging must be carried out in accordance with AS/NZS 1677.2:1998 section 6.1:
Images are for illustrative purposes only.
Installation in the following locations may effect unit performance. Consult the dealer if any of the following conditions apply:
Salt water environment (eg. coastal or beach environment)
Fig.17
Locations where there are high frequency machines such as:
wireless installations, welding machinery and medical facilities.
The appliance is not recommended to be installed in a laundry
or locations with high condensation.
Indoor unit
Field
supplied
Note the following when installing the indoor unit:
Ensure there are no obstacles near the air inlet and air outlet areas.
Ensure correct airflow and service access (Fig.1).
Ensure the location can sustain the full weight of the indoor unit.
Keep unit away from extreme heat, steam and combustible gases.
Ensure adequate clearance around the indoor unit (Fig.1).
Ensure 1m or more distance between items such as TV or
radio equipment.
Locate unit at least 1.5m above the floor.
Outdoor unit
Note the following when installing the outdoor unit:
Do not install the outdoor unit directly onto grass or dirt area.
Ensure the unit is installed in a location that is easily accessible.
Ensure there are no obstacles near the air inlet and air outlet areas.
Ensure the unit will not be exposed to strong winds.
Ensure the location can sustain the full weight of the outdoor unit
and is level.
Keep unit away from extreme heat, steam and combustible gases.
A refrigerant piping length of 20m with a height difference of
8m is allowable.
Ensure adequate clearance around the outdoor unit (Fig.1).
NOTE:
All electrical and refrigeration connections must be in accordance with
national regulations.
Manifold Valve
Manometer
Hi handle
Cautions on remote controller installation
Operate the remote control to
Charging hose
determine it is within the
reception range.
Keep the remote controller at
Vacuum pump Vacuum pump
least 1m away from the nearest
TV set or stereo equipment.
Do not install the remote
control in a location exposed to
direct sunlight or close to a heat
source, such as a stove.
AUTO/COOL
Note, the polarity of the batteries
are correct.
OEM Doc. No.
TWS-TSO25HVAMJBB
Installation Precautions
Unusual environmental conditions.
The air conditioner should be installed with accordance with best
practice guidelines.
The handling of refrigerants should be compliant to the current
refrigerant handling code of practice.
Installation parts (supplied)
Part
Name of part
No.
1 Installation plate
2 Mounting screw ST4.2X25TA
3 Remote controller
4 Remote controller holder
4a Remote controller holder screws
5 Drain elbow
6 Drain plugs
<150
Fig.1 cm
<15cm
space to the wall
Charcoal filter
Air outlet side
Caution
4a
530
Drain plug
6
(if applicable)
1
Qty.
5
2
0
<15cm
space to the wall
<150
cm
Field supplied
