INSTALLATION & SERVICING MANUAL
Models covered by these instructions
CXD 40
CXD 50
CXD 60
CXD 70
CXD 80
CXD 90
CXD 100
THE IDEAL
CAUTION:
To avoid the possibility of injury during the installation, servicing or cleaning of this appliance, care should be taken when handling
edges of sheet steel components.

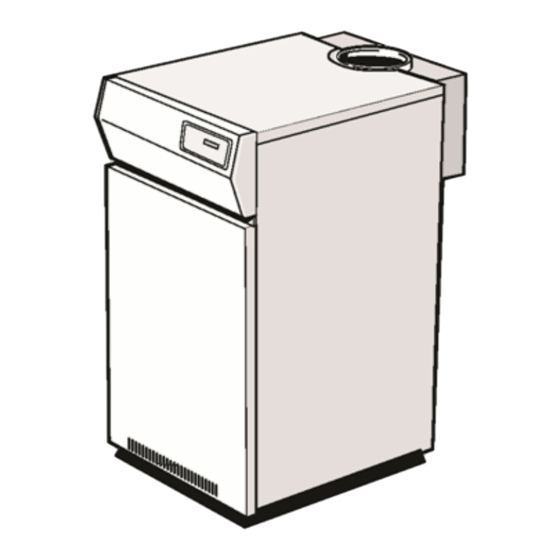

Concord CXD CXD 100 (Natural gas)
CONTENTS
Air Supply
Boiler Assembly - exploded view
Boiler Clearances
Burner Assemblies - exploded views CXD 40-60
CXD 70-100
Casing Assembly
Chimney System
Commissioning
Controls
Electrical Connections
Electrical Supply
Fault Finding
Gas Safety Regulations
Gas Supply
Hydraulic Resistance
Initial Lighting
Installation
Mandatory Requirements
Option Kits
Pump
Servicing
Short List of Parts
Site Assembled Boilers
Static Head Requirements
System Connections
Concord CXD 40
Concord CXD 50
Concord CXD 60
Concord CXD 70
Concord CXD 80
Concord CXD 90
Concord CXD 100
B.G.
Destination
Certified -
Countries:
P.I. No.
GB & IE
87/AQ/103
