Teac UD-H01 - D/A Converter Manual

What's in the Box

If one of the following is missing or damaged, contact your dealer or our customer service/ technical support (stated on the back cover).
Power cord x 1
RCA audio cable x 1
Owner's manual (this document) x 1
Warranty card x 1

Before Use

Placement of the unit

• Avoid placing it in high temperature environments such as in direct sunlight or close to a source of heat. Also, do not place the unit on an amplifier or any other device that generates heat. Doing so may cause discoloration, deformation, or malfunction.
• When the unit is turned on, switching on the TV may cause lines to appear on the TV screen, depending on the wave frequency of the T V broadcast. This is not a malfunction in the unit or the TV. If you see such lines, place this unit far away from the TV set.

Maintenance

If the surface of the unit gets dirty, wipe it with a soft cloth or use diluted mild liquid soap. Do not use thinner, benzene or alcohol as they could damage the surface of the unit.

For safety, disconnect the power cord from the socket before cleaning.

Sound Etiquette

What is music to you may be noise to others. Even a little sound can be clearly heard on a silent night. Low sound passes through floors and walls easily, and may annoy others unintentionally.
Enjoy music at an appropriate volume, close the window, or use headphones to ensure a pleasant living environment.

Connections

After all connections are complete, connect the power cord's plug to the AC wall socket.

• Read the instructions of each device that you intend to use with this unit.
• To avoid hum and noise, do not bundle the connection cords.
• Be sure to connect each plug securely.

1. Analog audio output terminals
   Output 2-channel analog audio signals. Connect the XLR or RCA terminals with the stereo amplifier or speakers.
   Use commercially available cables.
   XLR: Balanced XLR cables
   RCA: RCA audio cables
   Connect the R terminal on this unit to the right (R) terminal of the amplifier and the L terminal on this unit to the left (L) terminal of the amplifier.
2. Digital audio input terminals
   Input digital audio. Connect to the digital audio output terminals of digital audio output devices.
   COAXIAL: RCA digital coaxial cable
   OPTICAL: Optical digital cable (TOS)
3. USB input terminal
   Inputs digital audio from a personal computer. Connect to the USB port of a personal computer. Use a commercially available USB cable.
   • Install dedicated TEAC driver software on the computer before connecting the unit. (see "Installing dedicated TEAC driver software on a computer")
4. Power cord connector
   Connect the supplied power cord to the power cord receptacle.
   After all other connections are complete, connect the power cord's plug to the wall socket.

Do not use any power cords other than the one included with this unit. Use of other power cords may result in fire or electric shock. Unplug the power cord when you are not going to use the unit for several weeks.

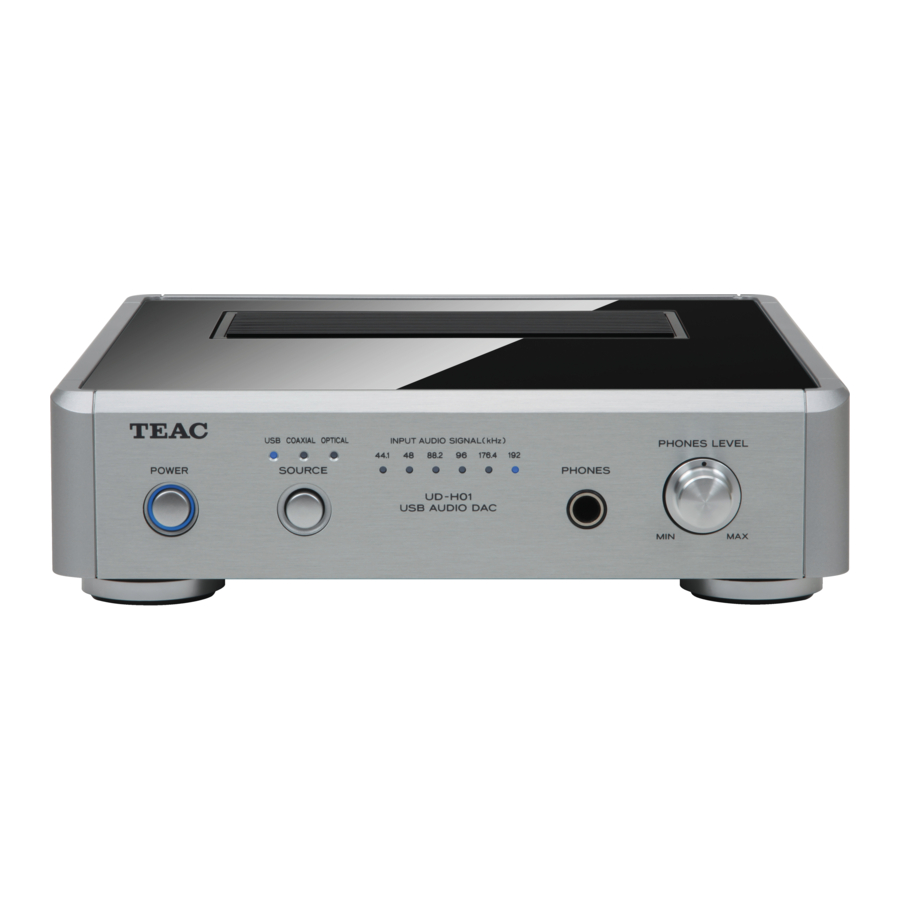

Identifying the Parts

1. POWER
   Press this button to turn the unit on and off. The blue indicator lights when the unit is turned on.
2. SOURCE
   Each time this button is pressed, the source changes.
3. Input indicators
   The source being selected lights up.
   Blinks when the input signal is not digital audio data or the format of the audio signal is not compatible with this unit, such as Dolby Digital, dts, or AAC.
4. Frequency indicators
   The sampling frequency of the signal being input lights up.
   These indicators will blink when there is no input signal or the input signal cannot be locked.
   * If the sampling frequency of the input signal is 32 kHz, the frequency indicators do not light up, but the input indicators do.
5. PHONES
6. PHONES LEVEL
   Insert the headphone plug (stereo standard) into the headphone terminal (PHONES), and gradually adjust the volume with the volume control (PHONES LEVEL).

Be sure to set the volume to the minimum level before putting on the headphones. Do not turn on/off the power or plug/unplug the headphones while wearing them. Doing so may cause a loud sound to be suddenly emitted and cause hearing loss.

Playback

1. Press the POWER button to turn the unit power ON.

   • If a power amplifier is connected, turn on the power amplifier last.
2. Press the SOURCE button repeatedly to select a source.


Each time the SOURCE button is pressed, the source changes as follows:

The input indicator of the selected source and the indicator of the input sampling frequency light up.

• The input indicator blinks when the input signal is not digital audio data or the format of the audio signal is not compatible with this unit, such as Dolby Digital, dts, or AAC. If this happens, set the digital OUT setting of the connected device to PCM audio output.
• The frequency indicator blinks when there is no input signal or the input signal cannot be locked.
• If the sampling frequency of the input signal is 32 kHz, the frequency indicators do not light up, but the input indicators do.
• To select "USB" to play back music files stored on a computer, install dedicated TEAC driver software on the computer before connecting the unit. (see "Installing dedicated TEAC driver software on a computer")

3. Start playback on the connected source device, and adjust the volume on the audio player.

Playing Back Music Files Stored on a Computer

Installing dedicated TEAC driver software on a computer

To play back music files stored on a computer with this unit, you must download dedicated driver software from our website and install it on the computer before making your USB connections.

<Website address for downloading the dedicated driver software>
http://www.teac.co.jp/audio/software_teac_e.html

This unit can be connected by USB and used with a computer running Windows XP, Windows Vista, Windows 7, Mac OS X 10.6.4 or later. Use with a computer running a different operating system cannot be guaranteed.

Note
Install dedicated TEAC driver software before connecting to the computer by USB.
If you connect the unit with the computer before installing the driver, it will not function properly. Moreover, when using Windows XP, the computer could become remarkably slower and require restarting in some cases.

• For details on how to install dedicated driver software, see our website.
• Depending on the computer's hardware and software configuration, the unit might not function even when used with one of the operating systems listed above.

Connect to the computer using HIGH SPEED asynchronous mode.
Sampling frequencies that can be transmitted are 32 kHz*, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz.
* If the sampling frequency of the input signal is 32 kHz, the frequency indicators do not light up, but the input indicators do.

If the connection has been made properly, "TEAC USB HS ASYNC AUDIO" will be selectable as an audio output destination.

• In asynchronous mode, jitter that occurs during transfer is suppressed because the clock signal of this unit is used for playback of the audio data transmitted from the computer.

Playing back music files stored in the computer

1. Connect the unit to the computer using a USB cable.

   • Use a cable with a connector that fits the USB port on the unit.
2. Turn the computer power ON.
   • Confirm that the operating system has started properly.
3. Press the POWER button to turn the unit power ON.

4. Press the SOURCE button repeatedly to select "USB".

5. Start playback of the music file on the computer.
   Even better sound quality can be achieved by setting the volume on the computer to maximum and using the amplifier connected to this unit to adjust the volume.
   Set the volume of the amplifier to the minimum at the beginning of playback and gradually raise the level.

• The computer and this unit cannot be used to control each other.
• When playing back a music file using the USB connection, do not attempt any of the following operations. Doing so could cause the computer to behave irregularly. Always stop music playback software on your computer before doing any of the following:
  • Disconnecting the USB cable
  • Turning the unit's power OFF
  • Changing the input source
• When playing back a music file using the USB connection, computer operation sounds will also be played through this unit. To avoid this, make appropriate settings on the computer.
• If you connect this unit with the computer or you set this unit's input to "USB" after starting music playback software, music files might not play back properly. If this occurs, restart the music playback software or reboot the computer.

Troubleshooting

If you experience any problems with the unit, please take a moment to look through this chart before asking for repairs. If you still have a problem, contact your dealer or TEAC customer service/technical support (stated on the back cover).

Since this unit uses a microcontroller, external noise and other interference can cause the unit to malfunction. If this occurs, unplug the power cord, wait for a while, and then turn the power back on to restart operations.

Specifications

Accessories
Power cord x 1
RCA audio cable x 1
Owner's manual (this document) x 1
Warranty card x 1

• Design and specifications are subject to change without notice.
• Illustrations may differ slightly from production models.

The nameplate is located on the bottom of the unit as shown below.

IMPORTANT SAFETY INSTRUCTIONS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
• The apparatus should be located close enough to the AC outlet so that you can easily grasp the power cord plug at any time.
• The appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• An apparatus with Class I construction shall be connected to an AC outlet with a protective grounding connection.
• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
• Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

• DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE WITHIN.
• IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
