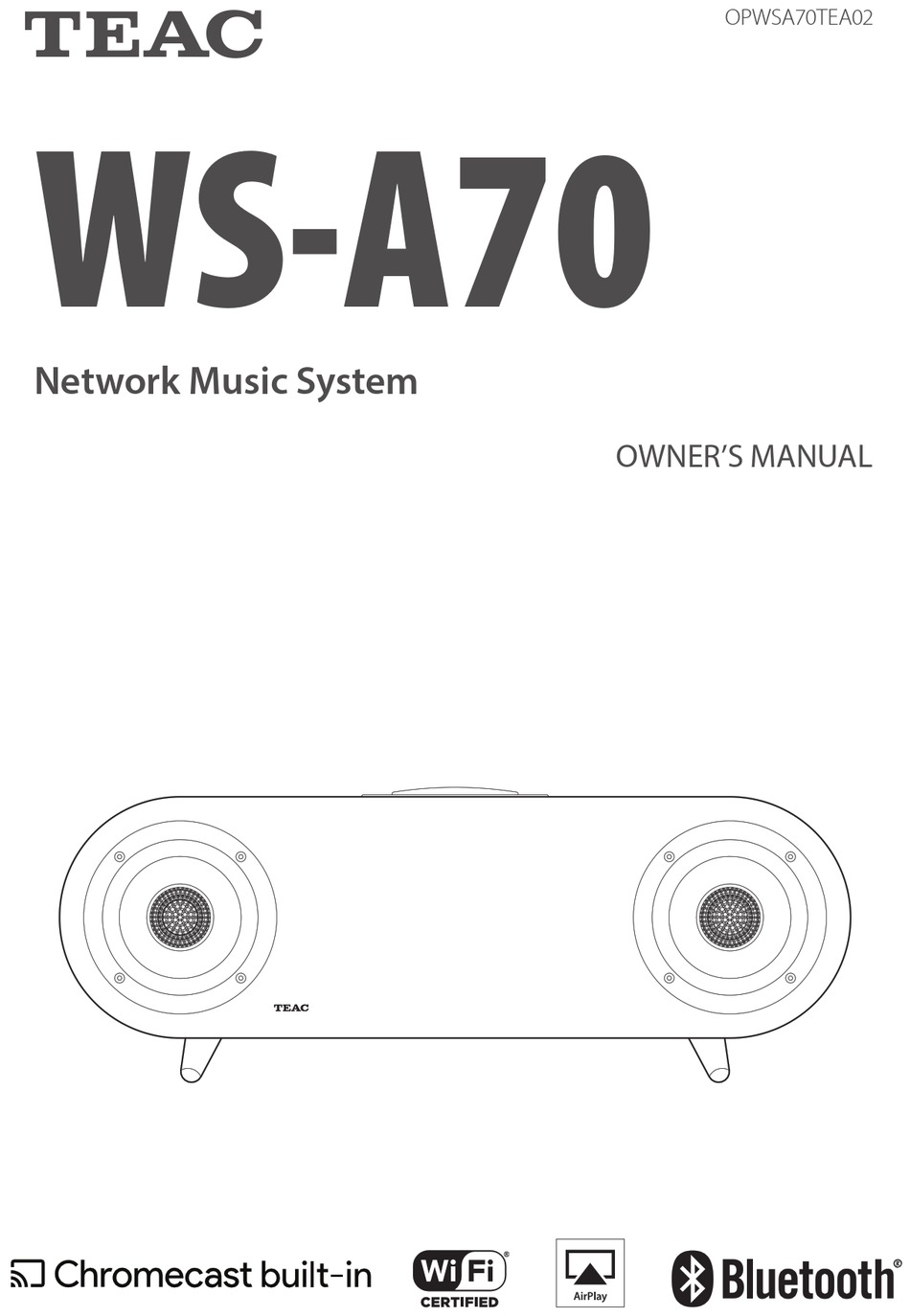

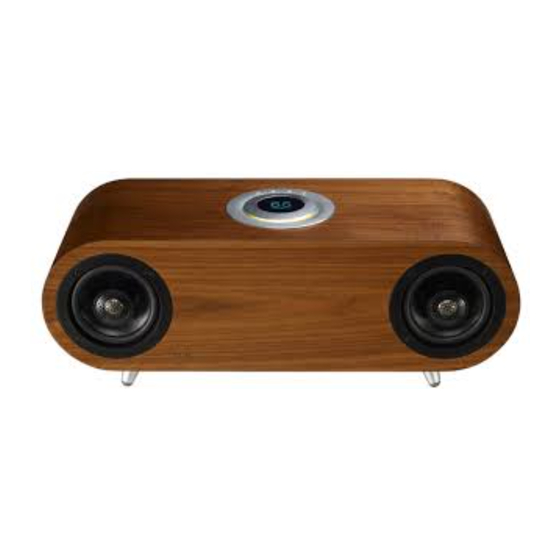

  • Page 1 OPWSA70TEA02 WS-A70 Network Music System OWNER’S MANUAL...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF ELECTRIC Clean only with dry cloth. SHOCK, DO NOT REMOVE COVER (OR BACK). Do not block any ventilation openings.
  • Page 3 CAUTION For European Customers Disposal of electrical and electronic o Do not expose this apparatus to drips or splashes. equipment and batteries and/or o Do not place any objects filled with liquids, accumulators such as vases, on the apparatus. a) All electrical/electronic equipment and waste o Do not install this apparatus in a confined batteries/accumulators should be disposed of space such as a book case or similar unit.

  • Page 4: Wireless Equipment Precautions

    This product has the function of broadband transmit- ter using 2.4GHz and 5.0GHz Bands. Statement of compliance Hereby, TEAC Corporation declares Model for EEA (European Economic Area) that the radio equipment type is in This equipment complies with EN.62311; Assessment...

  • Page 5: Table Of Contents

    Software ......... . . 36 Using the TEAC Global Site .......6 WARRANTY/GARANTIE/GARANTÍA/GARANTIE/GARANZIA/...

  • Page 6: Included Items

    Bluetooth SIG, Inc. and any use of such marks by TEAC CORPORATION is under license. You can download updates for this unit from the TEAC Global Site: http://teac-global.com/ Wi-Fi, Wi-Fi Protected Access® (WPA), the Wi-Fi logo and Wi-Fi Alliance are registered trademark of Wi-Fi Alliance.

  • Page 7: Before Use

    Bluetooth standard specifications, but it does not guarantee the privacy of such transmissions. Maintenance TEAC CORPORATION will bear no responsibility should an information leak occur during Bluetooth wireless The enclosure is made of natural wood, so exposure to transmission.

  • Page 8: Connections

    Connections Complete all other connections before turning the unit on. o Carefully read the manuals of the devices that you are connecting and follow their instructions when Android smartphone, iPhone, etc. making connections. o Do not bundle connecting cables with power cords.

  • Page 9: Connecting The Wireless Lan Antennas

    Android smartphone, iPhone, etc. USB port Install the app to control this unit. Connect USB flash drives here. o Install the dedicated app onto a smartphone or Wireless LAN antenna connectors and tablet in advance, and use it to work with this LAN antennas device.

  • Page 10: Names And Functions Of Parts

    Names and functions of parts Front...

  • Page 11: Menu Button

    Rear Coaxial two-way speakers Passive radiators These coaxial two-way units provide an excellent These primarily amplify low frequencies. sense of stereo positioning. Since these move backward and forward, make sure that no cables or other objects touch them. Display Main POWER switch This shows the volume, input source and menu.

  • Page 12: Basic Operation

    Basic operation Turning the main power on Turning the unit on and putting it into standby When the unit is on, press the standby/on (¤) button to put it into standby. Press it once more to turn it on again. When the main POWER switch is set to ON, a progress bar will appear on the display and the unit will start up.

  • Page 13: Adjusting The Volume

    The display changes to show input source selection. Adjusting the volume Turn the Control Dial when the Home Screen DIGITAL IN is open. Current input Display example source LINE IN Volume Turn the Control Dial to change the input source shown in the middle of Wi-Fi the display.

  • Page 14: Automatic Power Saving Function

    Basic operation (continued) Press the ENTER button to confirm the Automatic power saving function input source. When the unit is on, it will automatically enter standby mode if it is not used for a certain amount of time. See “APS (automatic power saving function)” in “Settings” for details (page 24).

  • Page 15: Capabilities Of This Unit

    (page 22) Support information For detailed operation procedures using smart phones and tablets, see the Network Application Manual. The Network Application Manual can be downloaded from the following TEAC website. http://teac-global.com/ Notes about Chromecast built-in Chromecast built-in is a platform that lets you stream your favorite music from your phone, tablet or laptop right to your speakers.

  • Page 16: Using As A Bluetooth Speaker

    Example with iPhone Open Settings > Bluetooth, and turn Bluetooth on. Open Settings > Bluetooth, and turn Bluetooth on. Select this WS-A70 unit from the device list on the smartphone or other device. Example with Android Example with iPhone After opening Settings > Bluetooth, select “WS-A70 After opening Settings >...

  • Page 17: Playback From A Bluetooth Device

    Open Settings > Bluetooth, and turn Bluetooth on. Open Settings > Bluetooth, and turn Bluetooth on. Select “WS-A70 xxxxxx” from “Paired Devices”, and Select “WS-A70 xxxxxx” from the “Devices” list, and make make it “connected”. it “connected”. After connection completes, “Bluetooth” will appear at the bottom of the display.

  • Page 18: Preparations

    The dedicated TEAC HR AirCast allows you to use smartphones as remote controls for this unit. Search for TEAC HR AirCast on Google Play or the App Store, or access one of the addresses below, and install the app. https://play.google.com/store/apps/ details?id=com.teac.teachraircast...
  • Page 19 A) Use “SET UP NEW AIRPLAY SPEAKER” for an iPhone or other iOS device Turn this unit on. Press the MENU button, and select “Wi-Fi CONF” > “iOS(WAC)”. Wi-Fi CONF iOS(WAC) When “iOS(WAC)” appears on the display, the unit is ready for connection.
  • Page 20 Preparations (continued) C) Use a LAN cable to connect Set the main POWER switch on this unit to OFF. Connect the LAN cable. Rear Broadband router, etc. Commercially-available LAN cable Set the main POWER switch on this unit to ON. After the unit starts up, “ETHERNET”...

  • Page 21: Using As An Airplay Speaker

    Example with iPhone Swipe up from the bottom of the screen to open the Control Center, and tap the AirPlay icon. Tap “WS-A70 xxxxxx” in the list. NOTE When using AirPlay, “Wi-Fi” will appear at the bottom of the display.

  • Page 22: Listening To Audio From Analog Playback Devices

    Listening to audio from analog playback devices (LINE IN) Press the SOURCE button, and select LINE IN. “LINE IN” will appear at the bottom of LINE IN the display. LINE IN Play audio on the analog playback device. For playback procedures, refer to the operation manual of that device.

  • Page 23: Settings

    Settings Follow these procedures to change the settings of this Turn the Control Dial clockwise to change the input unit. source in the following order. SLEEP o Settings are retained even when the unit is in standby mode or the main POWER switch is set OFF. DIMMER Press the MENU button to open the menu screen.

  • Page 24: Sleep

    Settings (continued) Turn the Control Dial to select the set- DIMMER ting value, and press the ENTER button This sets the brightness of the display. to confirm it. DIM 3 Press the MENU button to cancel setting and return Normal brightness to the Home Screen.

  • Page 25: Ps-Mode (Power Saving Mode)

    Settings (continued) PS-MODE (power saving mode) Wi-Fi CONF (Wi-Fi setting) This sets the power saving mode used when in standby. This sets the connection of this unit with a Wi-Fi router or other access point. This mode turns the power amp inside the unit off, iOS (WAC) reducing power consumption during standby.

  • Page 26: Information

    Settings (continued) INFORMATION RESET This shows information about this unit. This restores all the unit settings to their factory defaults. Turn the Control Dial clockwise to show items in the fol- When RESET is shown, press the ENTER lowing order. button.

  • Page 27: Troubleshooting

    Troubleshooting If you experience a problem with the unit, please take Bluetooth function a moment to review the following information before requesting service. If it still does not operate correctly, Cannot change connected Bluetooth device. contact the retailer where you purchased the unit. This unit cannot have Bluetooth connections to multiple Bluetooth devices at the same time.

  • Page 28: Specifications

    Specifications Amplifier section Digital audio input Maximum output ..38 W + 38 W (10% distortion, 6 Ω) Digital audio input connector . . OPTICAL (rectangular) × 1 Rated output ... . 31 W + 31 W (1% distortion, 6 Ω) Supported format .

  • Page 30: Important Notice Regarding Software

    The software used in this product includes software that The original texts of the GNU General Public License and TEAC Corporation (hereafter, “TEAC”) has received permis- GNU Library General Public License are provided below. sion to use from third parties either directly or indirectly.
  • Page 31 The reason we have a separate public license for some libraries is that they blur You may charge a fee for the physical act of transferring a copy, and you may at the distinction we usually make between modifying or adding to a program your option offer warranty protection in exchange for a fee.
  • Page 32 Important Notice Regarding Software (continued) 5. A program that contains no derivative of any portion of the Library, but is 7. You may place library facilities that are a work based on the Library side-by- designed to work with the Library by being compiled or linked with it, is called side in a single library together with other library facilities not covered by this a “work that uses the Library”.
  • Page 33 similar in spirit to the present version, but may differ in detail to address new You should have received a copy of the GNU Library General Public License problems or concerns. along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301, USA.
  • Page 34 Important Notice Regarding Software (continued) know that what they have is not the original, so that any problems introduced on the terms of this License, whose permissions for other licensees extend to by others will not reflect on the original authors’ reputations. the entire whole, and thus to each and every part regardless of who wrote it.
  • Page 35 7. If, as a consequence of a court judgment or allegation of patent MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, infringement or for any other reason (not limited to patent issues), BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, conditions are imposed on you (whether by court order, agreement or INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR otherwise) that contradict the conditions of this License, they do not...

  • Page 36: Important Notice Regarding Other Third-Party

    Important Notice Regarding Software (continued) libstagefright_foundation.so Important Notice Regarding libstagefright_httplive.so Other Third-Party Software libstagefright_omx.so libstagefright_soft_aacdec.so This product includes the following software that TEAC libstagefright_soft_aacenc.so has received permission to use from third parties either libstagefright_soft_amrdec.so directly or indirectly. libstagefright_soft_flacenc.so libstagefright_soft_mp3dec.so Notices for file(s) : libstagefright_soft_rawdec.so...
  • Page 37 Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an “AS IS” BASIS, WITHOUT WARRANTIES OR http://www.apache.org/licenses/LICENSE-2.0 CONDITIONS OF ANY KIND, either express or implied. Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an “AS IS”...
  • Page 38 Important Notice Regarding Software (continued) All rights reserved. Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an “AS IS” BASIS, WITHOUT WARRANTIES OR Copyright (c) 2010 The Android Open Source Project CONDITIONS OF ANY KIND, either express or implied.
  • Page 39 2. Redistributions in binary form must reproduce the above copyright notice, ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED this list of conditions and the following disclaimer in the documentation and/ OF THE POSSIBILITY OF SUCH DAMAGE. or other materials provided with the distribution.
  • Page 40 Important Notice Regarding Software (continued) libwpa_client.so Notices for file(s) : libupnp.so Copyright (c) 2002-2012, Jouni Malinen <j@w1.fi> and contributors All Rights Reserved. Copyright (C) Satoshi Konno 2005 These programs are licensed under the BSD license Copyright (C) 2006 Nokia Corporation. All rights reserved.
  • Page 41 Notices for file(s) : “Source” form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files. libusb1.0.so “Object” form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to Android build config for libusb tests other media types.
  • Page 42 Important Notice Regarding Software (continued) (c) You must retain, in the Source form of any Derivative Works that You END OF TERMS AND CONDITIONS distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not APPENDIX: How to apply the Apache License to your work.

  • Page 43: Garantie/Garanti

    WARRANTY/GARANTIE/GARANTÍA/GARANTIE/GARANZIA/GARANTIE/GARANTI Europe/Europa In countries/regions other than Europe This product is subject to the legal warranty regulations of the country of purchase. In case of a defect or a problem, This warranty gives you specific legal rights, and you please contact the dealer where you bought the product. may also have other rights that vary by country, state or Ce produit est sujet aux réglementations concernant la province.
  • Page 44 Phone: +1-323-726-0303 TEAC AUDIO EUROPE Gutenbergstr. 3, 82178 Puchheim, Germany Phone: +49-8142-4208-141 This product has a serial number located on the rear panel. Please write it here and retain this for your records. Model name: WS-A70 Serial number: 1117. MA-2383A...
