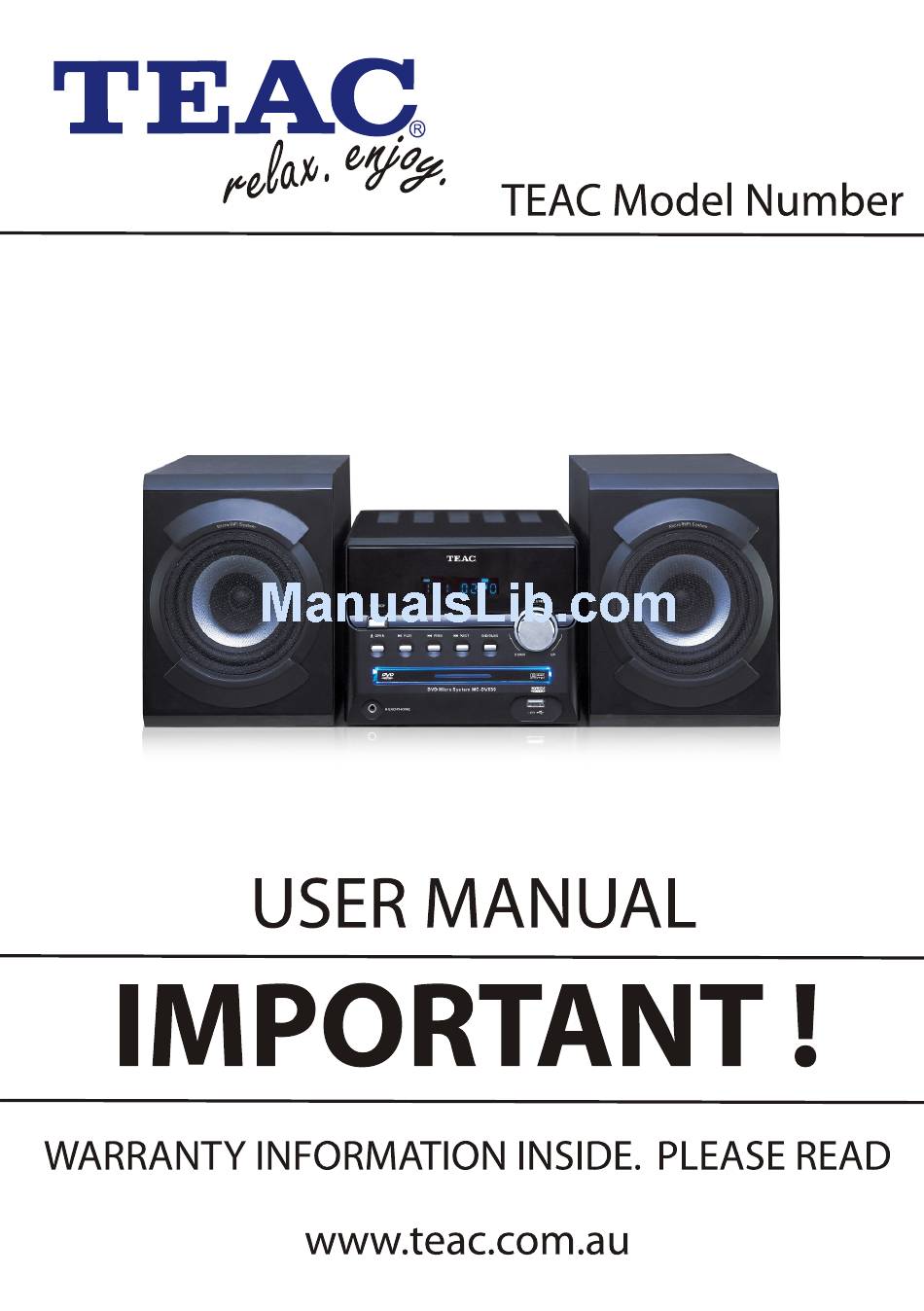

  • Page 1 MC-DV639...

  • Page 5: Table Of Contents

    Contents Features................2 For your Attention..............3 Accessories................4 Panel.................5-6 Connection.................7-8 System Setup..............9-13 Play................14-19 Troubleshooting..............20 Specification................21 Remote control Instruction book Power cord...

  • Page 6: Features

    Features Thank you for purchasing our product. Please go through this manual carefully before connection and operation. Please keep this manual for future reference. DVD player is a new generation home player which can produce high quality video and audio. Its performance is much better than that of any previous home video playing equipment.

  • Page 7: For Your Attention

    For Your Attention IMPORTANT NOTES IMPORTANT NOTES Please read through the manual carefully before connection and operation. Do not open the cover or touch any internal components for non- professional Turn off the power when the unit is not being used. (Unplug the power cord if the unit is not used for a long time) And keep the unit' plug in easy-to-plug/unplug status in daily life for convenient use.

  • Page 8: Accessories

    Accessories Accessories User Manual A/V Cable FM Antenna AM Antenna Speaker Connect Cable Remote Controller Operation Insert the batteries into the cell box. The remote controller would work within 8 meters if facing the obverse face of the unit /within 6 meters if facing the side of the unit and within 30 degrees at left or right side.

  • Page 9: Panel

    Panel FRONT PANEL 1 Standby 2 Headphone 3 Open /Close 4 Play/ Pause 5 Prev 6 Next 7 DVD/Radio 8 USB Port 9 Master Vol.
  • Page 10 Panel REAR PANEL 1 2 3 1 Speaker Output 2 Video Output 3 S-Video Output 4 Component Y, Cb/Pb, Cr/Pr 5 R/ L Audio Output 6 Coaxial Jack 7 FM Antenna 8 Power on/off 9 AM Antenna...

  • Page 11: Connection

    Connection Video system connection Video system connection Video system connection Video system connection Video system connection Video system connection Video system connection Video system connection Video system connection Video system connection The following video output available for this unit . The following video output available for this unit .
  • Page 12 Connection Connection Connection Audio system connection: Audio system connection: Audio system connection: The player has both analogue and digital audio output. The analogue The player has both analogue and digital audio output. The analogue The player has both analogue and digital audio output. The analogue audio is two channel.

  • Page 13: System Setup

    System Setup MENU OPERATION Press [SETUP] button in the remote controller, the SETUP MENU (main) will be displayed. 1. After accessing the [SETUP] Menu, press [ ]and [ ] buttons to select a desired item, then press [ENTER] button to enter the sub-menu. In the submenu, press [ ]and [ ] buttons to select the desired one, then press the [ENTER]...
  • Page 14 System Setup SCREEN SAVER: If the SCREEN SAVER is set ON and the unit is switched on without a disc playing for several minutes, a moving picture appears on the screen, and the unit will go to standby mode after 20 minutes. You can press [STANDBY] key on the remote controller to wake it up.

  • Page 15: Video Output

    System Setup DOLBY DIGITAL SETUP: Dual Mono: Stereo: Set audio output to the stereo output. L-mono: Set audio output to the mono-left channel. R-mono: Set audio output to the mono-right channel. Mix-mono: Set audio output to the Mix mono channel. DYNAMIC: Select this to reduce the overall volume and still keep defined audio sound.
  • Page 16 System Setup COLOR SETTING: COLOR SETTING includes: SHARPNESS, BRIGHTNESS, CONTRAST, GAMMA, HUE, SATURATION and LUMA DELAY. Adjust each item in the Color Setting to get the suitable color output of the TV screen. SHARPNESS: There are three optional output modes: HIGH\MEDIUM\LOW, can press [enter] and [ ]and [ ] direction key to choose one.

  • Page 17: System Setup

    System Setup PBC: In the item, you can set it ON or OFF. AUDIO, SUBTITLE and DISC MENU LANGUAGE SETUP: These are the initial setting by your preference. If a setting is supported by disc content, it will work. Otherwise disc default value works. And these setting can be changed respectively by pressing key [AUDIO] and [SUBTITLE] when playing.

  • Page 18: Play

    Play The following is the basic operation for this unit with the attached remote controller. Please note some function just is available for some disc. STANDBY Stand by/working mode switch SOURCE SELECT AV Source switch among DVD/TUNER(AM/FM) OPEN/CLOSE Eject or load the disc tray CH-LEVEL Press this key to select a channel then press VOLUME+/- to adjust its level.
  • Page 19 Play AUDIO Select the desired audio channel when playing DVD disc. SUBTITLE When playing the disc with multi-subtitle, press SUBTITLE continually to select the desired sub-title . ANGLE When playi ng the disc with multi-angle, it's convenient to change the view angle. When playing VCD1.1, CD disc, after loading the disc, use the digit key to select the desired track or chapter directly.
  • Page 20 Play Press this button for quick forward search. Press this button for quick rewind search. When playing DVD disc, press PREV to the previous chapter. When playing SVCD, VCD or CD disc, press PREV to the previous track. When playing DVD disc, press NEXT to the next chapter. When playing SVCD, VCD or CD disc, press NEXT to the next track.
  • Page 21 Play REPEAT Press REPEAT button to repeat a title, chapter, track or the whole disc. When playing DVD disc, press REPEAT button continually, the turn is chapter repeat, title repeat, all repeat, repeat cancel. When playing SVCD, VCD or CD disc, the turn is track repeat, all repeat, repeat cancel.
  • Page 22 Play PLAY PICTURE CD DISC Press [ ] key,12 small pictures will show on the TV screen. Press to select the desired picture, then press [ENTER] to start random play. Press [ ] to pausing playing picture CD. Press [ ] again to return to normal play.

  • Page 23: Play

    Play Tuner Operation: AM/FM FM/AM switch MO/ST Mono/Stereo switch in FM mode. MEMORY After having selected a station and tuned a new frequency, press MEMORY to start saving the frequency, and press MEMORY again to confirm the store action. AUTO Automatic searching and presetting in FM/AM tuner mode.

  • Page 24: Troubleshooting

    Troubleshooting Before resorting to maintenance service, please kindly check by yourself with the following chart. Cause(s) Symptom Solution The power cord isn't connected Connect the power cord properly No power Fuse melting Replace a same specification fuse! TV video setup isn't correct Select the suitable setup Player video setup isn't correct No picture...

  • Page 25: Specification

    Specification DVD Mini Combination System Power supply AC ~240V/50Hz Power consumption Temperature -10~+40 Working Relative humidity 5%~90% environment TV System MULTI/PAL/NTSC Output level 1V P-P 75 NEGATIVE SYNCHRONISM 1.0~2.2V rms 1KHz/0dB Output level 20Hz~20KHz Frequency Response Disc output 80dB(1KHz) S/N A weight 70dB(1KHz) Frequency Range THD+NOISE...
