What's in the box

If one of the following is missing or damaged, contact your dealer.
Power cord × 1
Owner's manual including warranty (this document) × 1

Product registration

Customers in the USA, please visit the following TEAC website to register your TEAC product online.
http://audio.teac.com/support/registration/

Using the TEAC Global Site

You can download the dedicated drivers necessary for this unit from the TEAC Global Site:
http://teac-global.com/

1. Open the TEAC Global Site.
2. In the TEAC Downloads section, click the desired language to open the Downloads website page for that language.

NOTE
If the desired language does not appear, click Other Languages.

3. Click the product name in the "Products" for the users in Europe or "Search by Model Name" section for the users in North America or areas other than those mentioned above to open the Downloads page for that product.
4. Select and download the dedicated drivers that are needed.

Before use

Placement of the unit

•
  Avoid placing it in high temperature environments such as in direct sunlight or close to a source of heat. Moreover, do not place the unit on an amplifier or any other device that generates heat. Doing so could cause discoloration, deformation or malfunction.

Placement precautions

• Do not put anything on top of the unit.
• Avoid placing the unit in direct sunlight or close to any source of heat, such as a radiator, heater, open fireplace or amplifier. Moreover, avoid locations that are subject to vibrations or exposed to excessive dust, cold or moisture.
• Place the unit in a stable location near the audio system that you will use with it.
• Do not move the unit during use.
• The voltage supplied to the unit should match the voltage printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.
• Since the unit could become warm during operation, always leave sufficient space around it for ventilation. When placing this unit, position it so that it is at least 5 cm (2") from walls and other devices in order to allow good heat dissipation. When installing it in a rack, leave at least 5 cm (2") open above the unit and 10 cm (4") open behind it.
• Do not open the body of the unit because this could result in damage to the circuitry or cause electric shock. If a foreign object should enter the unit, contact your dealer.
• When removing the power plug from the wall outlet, always pull directly on the plug; never yank on the cord.
• If a TV is turned on while the unit is on, static might appear on the TV screen depending on the characteristics of the TV broadcast signal. This is neither a malfunction of the unit nor of the TV. If this occurs, put the unit in standby.

Maintenance

If the surface of the unit becomes dirty, wipe it with a soft cloth or use diluted mild liquid soap. Do not use thinner or alcohol because they could damage the surface of the unit.

For safety, disconnect the power cord from the outlet before cleaning.

Connections

After all connections are complete, connect the power cord's plug to the AC wall outlet.

• Read the instructions of each device that you intend to use with this unit.
• To avoid hum and noise, do not bundle the connection cords.
• Be sure to connect each plug securely.

1. Analog audio output jacks
   Use these to output two channels of analog audio. Connect the XLR jacks or RCA jacks to a stereo amplifier or powered speakers.
   Use commercially-available cables.
   XLR: Balanced XLR cables
   RCA: RCA audio cables
   Connect the R jack of this unit to the right (R) jack of the amplifier and the L jack of this unit to the left (L) jack of the amplifier.
2. USB input port
   Connect to the USB port of a computer to input digital audio from it.
   Use a commercially-available USB cable.
   • When using a Windows computer, you must install the dedicated driver on it before connecting it to this unit (see "Playing back music on a computer"). When using a Macintosh computer, you do not need to install a driver.
3. Output level switch (LEVEL)
   • Regardless of the LEVEL setting, the VOLUME knob on the front of the unit always adjusts the headphones output level.
4. Maintenance connector (UPDATE)
   This connector is only for maintenance use. Unless directed by our service department, do not connect anything to it.
5. Digital audio input connectors
   Input digital audio. Connect to the digital audio output connectors of digital audio output devices.
   COAXIAL: RCA digital coaxial cable
   OPTICAL: Optical digital cable (TOS)
6. Power cord connector
   Connect the supplied power cord to the power cord receptacle.
   After all other connections are complete, connect the power cord's plug to a wall outlet.

Do not use any power cord other than the one included with this unit. Use of other power cords could result in fire or electric shock. Unplug the power cord when you are not going to use the unit for several weeks.

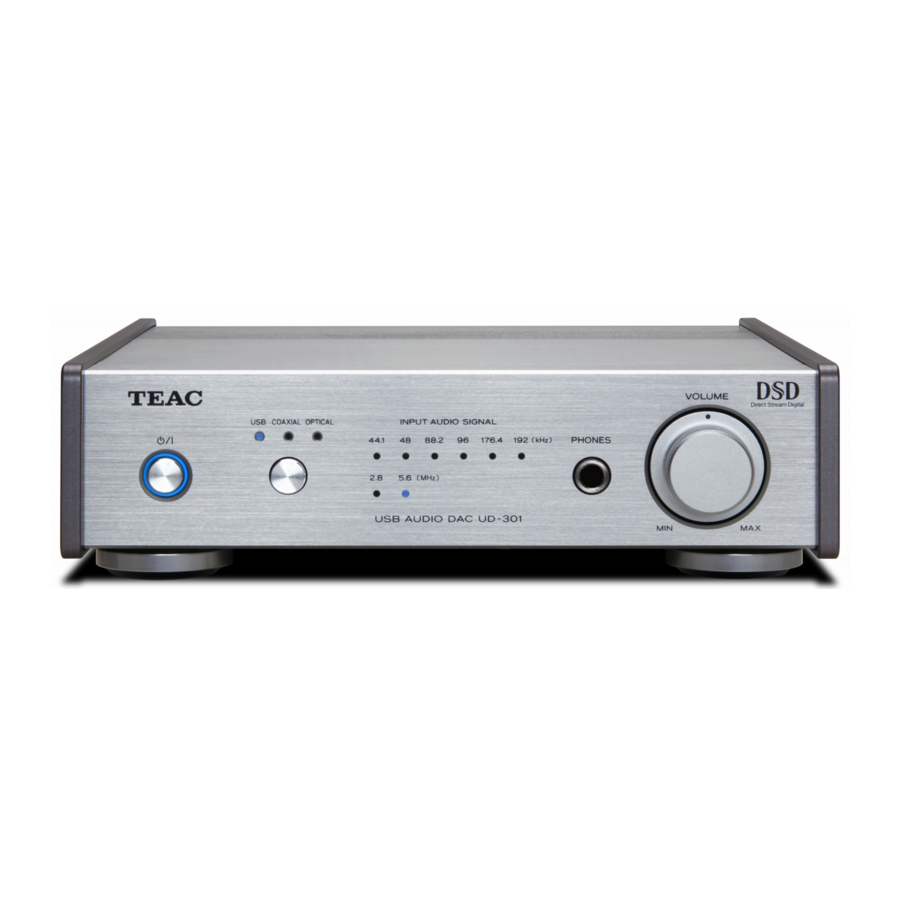

Front Panel Overview

1. Standby/on ( ) button
   Press this button to turn the unit on and put it in standby. The blue indicator lights when the unit is turned on.
   • When this unit is in standby mode, it still consumes some power, which is why the term "standby" or "standby mode" is used instead of "off".
2. Source button
   Each time this button is pressed, the source changes.
3. Input source indicators
   The indicator for the selected source lights. These indicators blink when the input signal is not a digital audio signal or is a digital audio signal in a format other than PCM or DSD (such as Dolby Digital, dts or AAC).
4. Sampling frequency indicators
   These show the sampling frequency of the input digital audio signal.
   When an input signal is locked, the indicator for its sampling frequency lights. These indicators blink when there is no input signal or the input signal is not locked.
   NOTE
   If the sampling frequency of the input signal is 32 kHz, no sampling frequency indicator will light, but the input indicator will light.
5. PHONES jack
   Connect headphones with a standard 6.3mm (1/4") stereo plug here.
6. VOLUME knob
   When the LEVEL switch is set to VARI, you can use this knob to control the audio level output from the analog audio output jacks (see "Connections").
   When headphones are connected, this knob also adjusts the headphones volume.

Be sure to set the VOLUME knob to MIN before putting on connected headphones. Do not turn the unit on or put it in standby or connect/disconnect headphones while wearing them. Doing so could cause a sudden loud sound, resulting in harm to hearing.

Playback

1. Press the button to turn the unit on.


When using this unit (as a preamp) connected to a power amplifier, always set the LEVEL switch to VARI and minimize the volume knob before turning the amplifier on. If the connected amplifier is turned on when the LEVEL switch is set to a different setting, this could cause a sudden loud sound, resulting in damage to the speakers, harm to hearing and other trouble.

2. Press the source button to set the input source.
   Press the source button repeatedly to cycle through the inputs in the following order.



The indicators light for the selected source and input sampling frequency.

• The input source indicators blink when the input signal is a digital audio signal in a format other than PCM or DSD (such as Dolby Digital, dts or AAC). If this is the case, check to see if the connected digital audio output device has a "PCM" setting for the digital output format. Refer to the operation manual for that device to make this setting.
• The sampling frequency indicators blink when there is no input signal or the input signal is not locked.
• If the sampling frequency of the input signal is 32 kHz, no sampling frequency indicator will light, but the input indicator will light.
• When using a Windows computer connected to this unit by a USB cable, you must install the dedicated driver on that computer in order to play audio files through this unit (see "Playing back music on a computer").

3. Start playback on the connected source device.

Playing back music on a computer

Installing the driver on a computer

When using Mac OS X
This unit can be used with the following Mac operating systems.
Mac OS X 10.6.4 or later (Snow Leopard)
OS X Lion 10.7
OS X Mountain Lion 10.8
OS X Mavericks 10.9
(as of March, 2014)

• This unit will run with the standard Mac OS driver, so there is no need to install a special driver.

When using Windows OS
Installing the driver on the computer
In order to play audio files stored on a Windows computer through this unit, you must install a dedicated driver on that computer beforehand. Download the dedicated driver from the TEAC Global Site:
http://teac-global.com/

This unit can be used with the following Windows operating systems. Windows XP (32-bit)
Windows Vista (32/64-bit)
Windows 7 (32/64-bit)
Windows 8 (32/64-bit)
Windows 8.1 (32/64-bit)
Operation with other operating systems is not guaranteed.

Install the dedicated driver software before connecting the computer to this unit using a USB cable.
If a computer is connected to this unit before the driver is installed, proper operation will not be possible. Moreover, after doing this, proper driver installation might not be possible. Furthermore, if using Windows XP, the computer might start operating noticeably slower and require restarting.

For instructions about driver installation procedures, please visit the Downloads page from the TEAC Global Site (http://teac-global.com/).

Depending on the combination of hardware and software, proper operation might not be possible even with the above operating systems.

About the transmission mode

This unit connects using high-speed asynchronous mode.
Transmittable PCM sampling frequencies are 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz.
2.8 MHz and 5.6 MHz DSD are also supported.

When properly connected, you will be able to select "TEAC USB AUDIO DEVICE" as an audio output from the computer.

In asynchronous mode, the audio data sent from the computer is processed using this unit's clock, reducing data transmission jitter.

Downloading the TEAC HR Audio Player application

If you need, you can download our free TEAC HR Audio Player application, which supports DSD file playback, from the TEAC Global Site (both Mac and Windows versions available).
http://teac-global.com/

Playing back music files stored on the computer

1. Connect the unit to the computer using a USB cable.

   • To use a Windows computer, you must install the dedicated driver beforehand (see "Playing back music on a computer").
   • Use a cable with a connector that fits the USB port on the unit.
2. Turn the computer on.
   • Confirm that the computer has started up correctly.
3. Press the button to turn the unit on.

4. Press the source button repeatedly to select "USB".

5. Start playback of the music file on the computer.
   If you can adjust the volume from the computer, set it to its maximum level and use this unit's VOLUME knob to adjust the level for the best audio quality.
   • If you are using the TEAC HR Audio Player Application, the volume cannot be adjusted from the computer.

Turn this unit's VOLUME knob to MIN before starting playback. Then, gradually turn it up.

• The computer and this unit cannot control each other.
• When playing back a music file using the USB connection, do not attempt any of the following operations. Doing so could cause the computer to behave irregularly. Always stop music playback software on your computer before doing any of the following.
  • Disconnect the USB cable
  • Put the unit into standby
  • Change the input source
• When playing back a music file using the USB connection, computer operation sounds will also be played through this unit. To avoid this, make appropriate settings on the computer.
• If you connect this unit with the computer or you set this unit's input to "USB" after starting music playback software, music files might not play back properly. If this occurs, restart the music playback software or restart the computer.

Automatic power saving function

This unit has an automatic power saving function.
So, by default, the unit will enter automatic power saving mode automatically after 30 minutes elapse without any locked input signal. (Power consumption in this standby mode is 0.5 W or less.)

• The automatic power saving function is on when the unit is shipped from the factory.

Checking the automatic power saving setting
If automatic power saving is off, all the input indicators will light temporarily when the unit is turned on.

Setting the automatic power saving function
When the unit is on, press and hold the button for five seconds until all the input indicators light or turn off.
No indicators lit: APS on
All indicators lit: APS off

Upconversion function

When using a digital input (USB*, OPTICAL or COAXIAL), the upconversion function can be used. *DSD audio will not be upconverted.

Press and hold the source button for about five seconds until the sampling frequency indicators light as follows.
44.1kHz and 48kHz indicators lit: Upconversion off
44.1kHz to 96kHz indicators lit: Upconversion setting 1
44.1kHz to192kHz indicators lit: Upconversion setting 2

Input frequency and frequency after upconversion

• Frequencies of 176.4 kHz and higher will not be upconverted when input.

Sampling frequency indicators during upconversion
When upconversion is in use, two sampling frequency indicators will light.
The left one shows the input frequency and the right one shows the frequency after upconversion.

Troubleshooting

If you experience any problems with the unit, please take a moment to read this before seeking repair. If you still have a problem, contact the retailer from which you purchased the product.

Since this unit uses a microcontroller, external noise and other interference can cause the unit to malfunction. If this occurs, unplug the power cord, wait for a while, and then turn the power back on to restart operations.

Specifications

1) If the sampling frequency of the input signal is 32 kHz, no frequency indicator lights, but the input indicator does.
2) The maximum is 96 kHz when using the optical digital input.
3) Only during USB input

Accessories
Power cord × 1
Owner's manual including warranty (this document ) × 1

• Design and specifications are subject to change without notice.
• Weight and dimensions are approximate.
• Illustrations may differ slightly from production models.

IMPORTANT SAFETY INSTRUCTIONS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

• DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
• IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
• USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

IN USA/CANADA, USE ONLY ON 120 V SUPPLY.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
• The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
• Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
• CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

Products with Class I construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.

The nameplate is located on the bottom of the unit as shown below.
