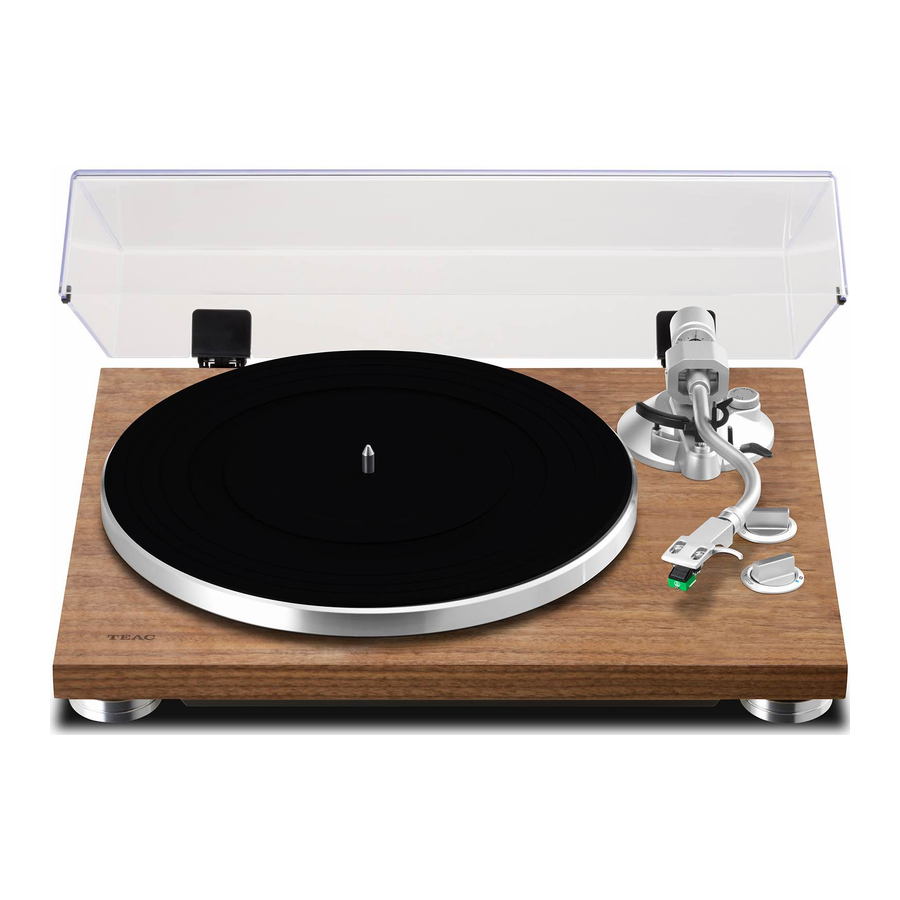

Teac TN-400BT - Analog Turntable Manual

Before use

Included items

Check to be sure the box includes all the supplied accessories shown below. Please contact the store where you purchased this unit if any of these accessories are missing or have been damaged during transportation.
Felt mat × 1
45 RPM adapter × 1
Counterweight × 1
Headshell × 1
Audio-Technica VM Type (dual magnet) stereo cartridge (AT95E) preinstalled
Turntable (platter) × 1
Dust cover × 1
Dust cover hinges × 2
RCA audio cable with grounding terminal × 1
AC adapter (GPE053A-V120050) × 1
Owner's manual (this document) × 1

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site: http://teac-global.com/

1. Open the TEAC Global Site.
2. In the TEAC Downloads section, click the desired language to open the Downloads website page for that language.
   NOTE
   If the desired language does not appear, click Other Languages.
3. Click the "Search by Model Name" section to open the Downloads page for that product. (Users in Europe should click the product name in the "Products" section instead.)
4. Select and download the updates that are needed.

Precautions for use

• Place the unit on a flat surface.
• Do not place anything on the dust cover. Objects on the cover might cause noise due to vibrations or fall off, especially during playback.
• Avoid placing the unit in direct sunlight, close to a source of heat or in other similar conditions. Do not place the unit on top of an amplifier or other equipment that might generate heat that exceeds the operating temperature range of this unit. Doing so could cause discoloration, deformation or malfunction.
• As the unit could become warm during operation, always leave sufficient space around it for ventilation. When installing this unit, leave a little space (at least 20 cm (8")) between it and other devices and walls to allow good heat dissipation.
  When placing it in a rack, for example, leave at least 35 cm (13 3/4") open above it and 10 cm (4") open behind it. Failure to provide these gaps could cause heat to build up inside and result in fire.
• DO NOT MOVE THE UNIT DURING PLAYBACK. During playback, the record rotates. Do not lift or move the unit during playback. Doing so may damage the record, the stylus, the cartridge or the unit.
• Always remove the record before relocating or moving this unit. Moving the unit with a record on the turntable could damage the record, the stylus and the cartridge or could cause a malfunction.
• The voltage supplied to the unit should match the voltage as printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.

Maintenance

If the surface of the unit gets dirty, wipe it with a soft cloth or use diluted mild liquid soap. Allow the surface of the unit to dry completely before using.

• Do not use chemical cleaning cloths, thinner or similar substances as they could damage the surface of the unit.

For safety, disconnect the power cord from the socket before cleaning.

Handling records

Holding records

When holding a record or removing it from its sleeve, avoid touching the grooves by holding the record by its label and edge with one hand or by holding it by its edge with both hands.

Cleaning

• Fingerprints and dust on a record can cause noise and the sound to skip, as well as damage the record itself and the stylus. Use a commercially-available record cleaner to clean records. Do not use thinner or anything other than a record cleaner. Such chemicals could harm the surface of the record.
• When using a record cleaner, wipe the surface of the record in a circular motion, following the grooves.


Precautions for use

• Do not leave records in places that are exposed to direct sunlight or are very hot or very humid. Leaving a record in such a condition for a long time could result in warping, mold growth or other damage.
• Do not stack multiple records or place heavy objects on top of them. Do not leave records at an angle for long amounts of time either. Doing so could result in warping or other damage.
• Do not allow hard objects to directly touch the audio grooves. Doing so could cause scratches.
• After you finish playing a record, always put it back into its sleeve for storage. Leaving a record unprotected could result in warping or scratching.
• Do not use cracked records.

Preparing the Unit

Keep the unit in standby while setting it up ( in section "Connections")

1. Place it on a flat surface.
   Place it on a flat surface so that the record can be accurately traced.
2. Install the turntable (platter).
   Align the turntable (platter) with the center shaft and install it.

3. Loop the belt around the motor pulley.
   The rubber belt is wrapped around the sub-platter. Use a finger to pull the rubber belt through the round opening.

   • Be careful not to let the rubber become twisted.
   • Rotate the turntable (platter) several times to make sure that the rubber belt is secure.
4. Place the felt mat on the turntable (platter).
   Place the included felt mat on the turntable (platter) before using it.

5. Install the counterweight.
   Place the counterweight over the end of the tone arm, and press it gently as you turn it right to attach it.

6. Install the headshell.
   Insert the headshell on the end of the tone arm and turn the nut to secure it in place.


Balancing the tone arm and adjusting the stylus pressure

1. Set the anti-skating dial to zero.
2. Slide the tone arm clasp to the right to remove it.
3. Raise the arm lifter lever and shift the tone arm to the left slightly.

4. Lower the arm lifter lever.
5. Turn the counterweight and adjust so that the tone arm is level.

   • Remove the protective cap from the cartridge stylus before adjusting.
   • Be careful not to let the cartridge stylus touch the unit.
6. Return the tone arm to its original position, and use the clasp to lock it.
7. Turn the stylus pressure adjustment ring so that the center line aligns with 0 on the scale.

   • Only turn the ring. Be careful not to let the counterweight turn.
8. Turn the counterweight so that the stylus pressure adjustment ring scale matches the stylus pressure specified for the cartridge.
   • The stylus pressure of the included cartridge is 2.0 g. So, turn it to 2.0 on the counterweight scale when using the included cartridge.

   • Turn it right from 0 in the direction of 0.5 and 1.0.
9. Adjust the anti-skating dial.
   Start with it set at 2.0 and adjust it during record playback (see "Connections") to the position where the left and right volumes are balanced.


Dust cover

Attaching the dust cover

1. Insert the hinges completely into the hinge holders at the left and right ends of the back of the main unit.
2. Align the tops of the hinges with the dust cover hinge holders and insert them.

• Close the dust cover during playback. Since doing this prevents skipping caused by unintended contact and blocks external sound pressure, it makes noise less likely to occur.
• Do not open or close it when a record is playing. Doing so could, for example, cause the stylus to skip.
• Keep it closed whenever possible to keep dust out.

Removing the dust cover

Hold both edges of the dust cover and lift it slowly to remove it along with the hinges from the unit. Then, remove the hinges from the dust cover.

Opening and closing the dust cover

Opening
Hold the front edge of the dust cover and gently lift it open completely until it stops. The dust cover will stay open in this position.

Closing
Gently lower the dust cover until it is closed.

Be careful not to pinch your finger, for example, when opening and closing the dust cover.

Notes about record styluses

• If the stylus becomes bent (damaged), it will no longer be able to accurately trace the groove. Since a bent stylus could also damage records and cause malfunction, handle styluses carefully.
• Always use a commercially-available stylus cleaner to clean a stylus. Use of anything other than a stylus cleaner could damage the stylus.

Replacing the stylus

If the tip of the stylus becomes worn, not only will it worsen the sound quality, it could also damage records. After about 300 hours of playback time, replace the stylus with one that we specify.
Please use an Audio-Technica ATN95E replacement stylus.

• An Audio-Technica AT95E VM Type cartridge is installed in this unit.
  NOTE
  VM type cartridges have the same characteristics as MM type cartridges.
• Follow the replacement instructions in the manual of the replacement stylus.

• Since loud noises could suddenly occur, put the unit into standby before changing the stylus.
• Be careful not to hurt your hand or the equipment.
• Be careful not to allow small children to accidentally swallow styluses.
• Be aware that bent styluses, for example, that result from insufficient customer caution or an outside cause are not covered by the warranty.

Changing the cartridge

To change the cartridge, first remove the headshell from the tone arm.

• An Audio-Technica AT95E VM Type cartridge is installed in this unit.
  NOTE
  VM type cartridges have the same characteristics as MM type cartridges.
• We recommend that you attach the protective cap to the cartridge stylus before doing this task.

1. Disconnect the shell lead terminals from the cartridge.
2. Loosen the screws and remove the cartridge.
3. Attach the new cartridge and tighten the screws.
   See the illustration below for the position of the screws when attached.

4. Connect the shell lead terminals to the cartridge.
   • The signals and colors of the shell leads are shown below.

Signal	Color
Left channel +	White
Left channel −	Blue
Right channel +	Red
Right channel −	Green

5. Balance the tone arm and adjust the stylus pressure.
   Follow the procedures in "Preparing the Unit".

Names and functions of parts

1. Turntable (platter)
   Place records centered on the turntable (platter).
2. Counterweight
3. Stylus pressure adjustment ring
4. Anti-skating dial
5. Arm lifter lever
   Use this to raise and lower the tip of the stylus.
   We recommend using the arm lifter lever to avoid damaging records and styluses, because it is safer and more certain than using a finger to do so.
6. Tone arm holder
   This is a rest for the tone arm. Before starting to play a record, shift the clasp to the right to remove it.
7. Tone arm
8. Rotation speed setting knob
   Select the rotation speed indicated on the record to be played.
9. START/STOP rotation knob
10. Headshell
    This is a universal type that allows the cartridge to be changed easily.

Connections

When PHONO EQ is ON
Connect to line input connectors of amplifier, etc.
When PHONO EQ is THRU
Connect to phono input connectors of amplifier, etc.

Precautions when making connections

• Do not plug the unit in until after making all connections.
• Carefully read the manuals of the devices that you are connecting and follow their instructions when making connections.

1. Grounding terminal (|)
   Use the grounding wire of the included RCA audio cable to connect this connector to the grounding terminal of the amplifier, for example.
   • This is NOT an electrical safety ground.

If noise from speakers is conspicuous
If connecting the grounding wire of the audio cable to the grounding terminal of this unit does not reduce noise, disconnect the grounding wire and check the sound again. Use the method (connected/disconnected) that has the least noise.

2. Analog audio output connectors (L/R)
   These output analog audio signals.
   The PHONO EQ switch setting changes the type of output signal.
   Use the included audio cable (or commercially-available ones) to connect other equipment to the output connectors of this unit.
3. PHONO EQ (audio output setting) switch
   ON
   Signals that have been amplified by the built-in equalizer amp are output from the analog audio output connectors (L/R).
   THRU
   The MC or MM cartridge signal is output directly through the analog audio output connectors (L/R). Connect to a device with phono inputs, such as a phono equalization preamplifier or an amplifier with phono input connectors.
   • When shipped new from the factory, this is set to ON.
   • Set this to ON if a device is connected to the USB port.

When set to ON, if connected to the PHONO inputs of an amplifier, for example, the output from speakers and headphones will be very loud, which could damage equipment or harm hearing.

4. USB port (USB B type)
   The sound of the record is converted to digital (resolution up to 48 kHz/16-bit) and output. Recording on a computer is possible by connecting this to a USB port on the computer using a USB cable (see "Recording with a computer").
5. DC input connector
   After completing all other connections, connect the included AC adapter to this connector. Confirm that the power plug of the AC adapter is plugged into a power outlet.
   • Do not use any AC adapter other than the one included.

Be sure to connect the power cord to an AC outlet that supplies the correct voltage. Connection to an outlet that supplies incorrect voltage could cause fire or electric shock.
Hold the power plug when plugging it into an outlet or unplugging it. Never pull or yank on the power cord.
Unplug the power cord from the outlet when you are not planning to use the unit for an extended period of time.

6. STANDBY/ON button
   Press the STANDBY/ON button to turn the unit on or put it in standby.

Basic operation

Playing records

1. Press the STANDBY/ON button on the back of the unit to turn it on.

2. Open the dust cover slowly.


Be careful not to pinch your hand, for example, when opening and closing the dust cover.

3. Place a record on the turntable (platter).
   When playing a 45 RPM large-hole single record, use the included adapter.

4. Select the rotation speed indicated on the record.
   The rotation speed can be set to 33 1/3, 45 or 78 RPM.

5. Turn the START/STOP rotation knob to START to start the turntable (platter).

   • When the START/STOP rotation knob is set to START, the turntable (platter) will start rotating and the blue START lamp will light.
6. Slide the tone arm clasp to the right to remove it.

7. Raise the arm lifter lever.

   • You can also move the tone arm to above the record without raising the arm lifter lever and then slowly lower the tone arm to start playback.
8. Move the tone arm to the track where you want to start playback.

9. Use the arm lifter lever to lower the tone arm.
   The tone arm lowers slowly until the stylus touches the record and playback begins.
   • Close the dust cover during playback. Doing so reduces the occurrence of noise by preventing skipping caused by unintended contact and blocking external sound pressure.

Do not place anything on the dust cover.

ATTENTION

• During playback, do not touch the tone arm or the record. Doing so could damage the stylus tip and cause scratches on the record.
• Do not forcibly stop turntable (platter) rotation during playback. Since this product is not a turntable designed for DJs (direct drive), doing something like this could cause malfunction.

During record playback, feedback could occur if the volume is too loud. If this happens, lower the volume of the amplifier.

When playback finishes

1. Raise the arm lifter lever to separate the stylus from the record, and return the tone arm to its original position.

2. Turn the START/STOP rotation knob to STOP to stop the turntable (platter).

   • The blue START lamp will become unlit and the turntable (platter) will stop.

Recording with a computer

The sound of a record can be digitally recorded on a computer by using a commercially-available USB cable to connect this unit to a USB port on the computer.

Supported operating systems

Computers running the following operating systems can be connected by USB to this unit (as of June 2018).

Windows
Windows 7 (32-bit, 64-bit)
Windows 8 (32-bit, 64-bit)
Windows 8.1 (32-bit, 64-bit)
Windows 10 (32-bit, 64-bit)

Mac
OS X Lion (10.7)
OS X Mountain Lion (10.8)
OS X Mavericks (10.9)
OS X Yosemite (10.10)
OS X El Capitan (10.11)
macOS Sierra (10.12)
macOS High Sierra (10.13)

Use with operating systems other than these is not guaranteed.

• This unit will run with the standard Windows or Mac driver. so there is no need to install a special driver.

Connecting with a computer

1. Turn the computer on.
   Confirm that the operating system is working correctly.
2. Use the USB cable to connect the computer and this unit.

   • Use a commercially-available USB cable with a ferrite core.
3. Press this unit's STANDBY/ON button to turn it on.
   The computer will automatically detect this unit's USB port and identify the unit as "USB Audio CODEC".

• To record audio from this record player using a computer, you must first install software that can be used for audio recording on the computer.
  You may purchase the audio recording software that you prefer separately or download free software, such as Audacity (http://www.audacityteam.org/), from the Internet.
  As free software, Audacity is not supported by TEAC.
• When recording with a computer, do not do any of the following. Doing so could cause the computer to malfunction. Always quit the computer recording software before doing the following.
  • Disconnect the USB cable
  • Put the unit into standby

Computer settings

The following example explains the settings to make using Windows 7.

1. From the Start menu, select Control Panel.
2. Click "Sound".
3. Click the "Recording" tab, and confirm that "USB Audio CODEC" is set as the "Default Device".
4. Select "Microphone USB Audio CODEC", and click the Properties button.
5. Click the "Advanced" tab.
6. From the "Default Format" pull-down menu list, select the desired recording quality (format).
   TIP
   To record at the highest audio quality that this unit can output, select "2 channel, 16 bit, 48000 Hz".
   Lowering the sampling frequency setting value will relatively reduce the size of files but also decrease the audio quality.
7. Click "OK".

Listening with Bluetooth speakers

This unit has a Bluetooth transmitter that can send sound to Bluetooth speakers wirelessly.

1. Press the STANDBY/ON button on the back of the unit to turn it on.

2. Pair and connect the Bluetooth speakers.


Pairing Bluetooth speakers
Pairing this unit with another Bluetooth device is necessary the first time you connect with that Bluetooth device.
Press the PAIRING button on this unit to start connection mode. The pairing lamp will blink slowly. Press the PAIRING button again for at least two seconds to start pairing mode. The pairing lamp (white) will blink rapidly.
After this unit enters pairing mode, put the Bluetooth speaker into pairing mode.
When this unit and the Bluetooth speaker are connected, the pairing lamp will stay lit without blinking.

• Refer to the operation manual of the Bluetooth speaker for information about how to use it.
• Pairing might take some time depending on the connected device.
• This unit will connect to the closest Bluetooth speaker. If no Bluetooth speaker is found for five minutes, Bluetooth standby mode will begin and the pairing lamp will become unlit.

Connecting already paired Bluetooth speakers
Press the PAIRING button on this unit to start connection mode. The pairing lamp will blink slowly.
Make the Bluetooth speaker ready to connect.
When this unit and the Bluetooth speaker are connected, the pairing lamp will stay lit without blinking.

• When connecting to a Bluetooth speaker, move other Bluetooth speakers and receiving devices at least 10 meters (33 ft.) away from this unit or turn them off.

3. Play a record.
   • Bluetooth connection is also possible while a record is playing.
   • Adjust the Bluetooth speaker volume if necessary.
   • This unit cannot be used to adjust the volume.
   • To end a connection, press the PAIRING button on this unit for at least six seconds to enter Bluetooth standby mode or turn this unit off.
   • Pressing the PAIRING button for 10 or more seconds will cause the pairing lamp to blink and clear all existing pairings with other devices.

Troubleshooting

If you experience a problem with this unit, please check the following items before requesting service. Something other than this unit could also be the cause of the problem. Please also check that the connected devices are also being used properly. If it still does not operate correctly, contact the retailer where you purchased the unit.

No power

• Confirm that the AC adapter is plugged into an outlet. Then, press the STANDBY/ON button to turn the unit on (see "Basic operation").

There is no sound

• When connecting this unit's analog audio output connectors to the audio input connectors of an amplifier or other equipment, set the PHONO EQ (audio output setting) switch to ON (see "Connections").

Playback is not possible/there is noise

• Remove the protective cap.
• Fingerprints and dust on a record can cause noise and the sound to skip. Use a commercially-available record cleaner to clean records (see "Handling records").
• Clean the stylus (see "Notes about record styluses").
• If the stylus is worn-out, replace it (see "Notes about record styluses"). The lifespan of a stylus depends on the use conditions, but it is usually about 300 hours.
• Place the unit as far away as possible from TVs, microwave ovens and other devices that emit electromagnetic waves.

Noise occurs when a record is playing

• Noise could occur if the stylus pressure is higher than cartridge's specified value. Readjust the stylus pressure so that it is the specified value (see "Preparing the Unit").

The pitch is wrong

• Select the rotation speed indicated on the record (see "Basic operation").

The sound is skipping

• Vibrations will cause skipping. Place this unit in a stable location.
• Clean the record.
• Do not use scratched records.
• Balance the tone arm and readjust the stylus pressure (see "Preparing the Unit"). The stylus and sound might skip if the stylus pressure is lower than the cartridge's specified value.

Connection is not possible with the Bluetooth speaker I want to connect.

• Turn both this unit and the Bluetooth device off once. Turn them both on and try pairing again.
• Turn off the power of other Bluetooth speakers within 10 meters (33 ft). The closest Bluetooth speaker will be paired.

Connection with the Bluetooth speaker succeeded, but I cannot hear any playback sound.

• Check the volume of the Bluetooth speaker.
• Press the PAIRING button on this unit for at least six seconds to disconnect the Bluetooth speaker once. Then, try pairing again.
• Turn this unit off and then on again. Then, press the PAIRING button to try pairing again.

Connection with the smartphone is not possible

• This unit functions as a Bluetooth transmitter, and it can send sound to Bluetooth speakers.
  Since it does not function as a Bluetooth receiver, it cannot be connected to a smartphone.

Specifications

Turntable (platter)
Drive system		Belt drive
Motor		DC motor
Rotation speed		33 1/3 rpm, 45 rpm, 78 rpm
Rotation speed variation		±2%
Wow and flutter		0.2%
SN ratio		67 dB or higher (A-weighted, 20 kHz LPF)
Turntable (platter)		Aluminum die-cast 30cm (12") diameter
Tone arm
Arm type		Static-balanced S-shaped tone arm
Effective arm length		223 mm
Stylus pressure variation range		0–5 g
Acceptable cartridge weight		4.0–8.0 g
Cartridge Type		VM (equivalent to MM)
Type		VM (equivalent to MM)
Output voltage		3.5 mV (1 kHz, 5 cm/s)
Stylus pressure		2.0 ±0.5 g
Cartridge weight		5.7 ±0.5 g
Included headshell weight		10 g (including screws, nuts and wires)
The lifespan of a stylus depends on the use conditions but is usually about 300 hours. An Audio-Technica AT95E VM Type cartridge is installed in this unit. Note: VM type cartridges have the same characteristics as MM type cartridges. Replacement stylus model: Audio-Technica ATN95E
Output voltage
PHONO EQ THRU		3.5 mV (1 kHz, 5 cm/s) ±3 dB
PHONO EQ ON		155 mV (−16 dBV)
Output connectors		RCA
USB port
USB port that can receive power from computer USB buses (Full Speed)		USB connector type B
USB bus power support		5 V, 500 mA
Sampling frequency		8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz
Quantization bit depth		16-bit
Bluetooth function
Bluetooth version		4.0 (DUAL MODE)
Output class		Class 2
Supported profile		A2DP
Codecs		SBC, AAC, Qualcomm aptX audio
Maximum number of stored pairings		8 devices
General
AC adapter power
Input		AC 100 V – AC 240 V, 50–60 Hz
Output		DC 12 V, 500 mA
Power consumption
Standby		0.5 W or less
On (START)		1.5 W or less
Weight		4.9 kg (10 7/8 lb)
Operating temperature range		5°C to 35°C
Dimensions (W × H × D) (including protrusions)
When the dust cover is closed		420 × 117 × 356 mm (16 5/8" × 4 5/8" × 14 1/8")
When the dust cover is open		420 × 381 × 402 mm (16 5/8" × 15" × 15 7/8")
When the dust cover is removed		420 × 102 × 356 mm (16 5/8" × 4 1/8" × 14 1/8")

• Performance data is specified at 20°C.

Included items
Felt mat × 1
45 RPM adapter × 1
Counterweight × 1
Headshell × 1
Audio-Technica VM Type (dual magnet) stereo cartridge (AT95E) preinstalled
Turntable (platter) × 1
Dust cover × 1
Dust cover hinges × 2
RCA audio cable with grounding terminal × 1
AC adapter (GPE053A-V120050) × 1
Owner's manual (this document) × 1

• Specifications and appearance are subject to change without notice.
• Weight and dimensions are approximate.
• Illustrations in this owner's manual might differ slightly from production models.

IMPORTANT SAFETY INSTRUCTIONS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead in an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that could be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point in an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

• DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
• IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
• USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
• The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
• Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.

Documents / Resources

References

• TEAC - Global Site
• Audacity ® | Free Audio editor, recorder, music making and more!

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Teac TN-400BT - Analog Turntable Manual
