Teac PD-301 - CD PLAYER / FM TUNER Manual

Included accessories

Check to be sure the box includes all the supplied accessories shown below.
Please contact the store where you purchased this unit if any of these accessories are missing or have been damaged during transportation.

AC adapter (GPE015A-120125-D) × 1

Power cord for AC adapter × 1

RCA audio cable × 1

Remote control (RC-1323) × 1

Batteries for remote control (AAA) × 2

FM antenna × 1

Owner's manual (this document) × 1

Before use

Placement precautions

• Avoid placing it in high temperature environments such as in direct sunlight or close to a source of heat. Moreover, do not place the unit on an amplifier or any other device that generates heat. Doing so could cause discoloration, deformation or malfunction.

Maintenance

Wipe dirt from the top cover and other panel surfaces using a soft cloth that has been slightly dampened with a diluted neutral cleanser.
Do not use chemically-treated wipes, thinner or similar substances because they could damage the surface of the unit.

For safety, disconnect the power cord from the outlet before cleaning.

Notes about discs

Types of discs that can be played by this unit

CDs (12cm) with the Compact Disc Digital Audio logo

This logo appears on disc labels and packaging.

• This unit cannot play 8cm CDs.

CD-R and CD-RW discs that have been properly recorded and finalized using the audio CD format. CD-R discs that have been written with MP3 or WMA files and finalized.

• Multi-session discs are not supported.

This unit cannot play discs of types other than those above.

If you try to play any other type of disc with this unit, loud noises that damage speakers or harm hearing could occur. Never try to play any type of disc other than those shown above.

• WMA files
  Windows Media Audio Professional (WMA Pro) and Windows Media Audio Lossless (WMA Lossless) formats are not supported.
• Depending on the quality of the disc and the condition of the recording, playback might not be possible.
• This unit cannot read or play the following types of discs.
  Video CDs
  Super Audio CDs
  DVD video discs
  DVD audio discs
  DVD-ROM discs

If you load a DVD video, DVD audio, DVD-ROM or similar disc into this unit, the unit will try to play it and spin at high speed. If you accidentally load such a disc, the disc could be damaged, so do not try to remove it until it stops spinning.

• This unit might not be able to properly play Copy Control CDs, Dual Discs or other special CDs that do not conform to the Red Book CD standard. Operation and sound quality cannot be guaranteed when special discs are used in this unit. If playback of a special disc should cause trouble, contact the seller of the disc.

CD-R/CD-RW discs

This unit can play CD-R/CD-RW discs that have been recorded in audio CD format (CD-DA) and CD-R discs that contain MP3 or WMA format files.

• In order to play a disc created by a CD recorder, be sure to finalize it.
• Depending on the quality of the disc and the condition of the recording, playback might not be possible. For details, see the operation manual for the device you are using.
• If you have any questions about how to handle a CD-R or CD-RW disc, contact the seller of the disc directly.

Precautions for use

• Do not use cracked discs because they could damage the unit.
• Do not apply labels or other materials to discs. Do not use discs that have had tape, stickers or similar materials removed from them as they may have left a sticky residue on the disc's surface. Other discs to avoid are ones that have exposed glue around the edges of stickers, for example. Using such a disc in this unit could cause the disc to become stuck or could damage the unit.
• When writing something on the label side of a disc, use a felt tip permanent marker. The use of a ballpoint pen or other pen with a hard tip could damage the disc, making it unplayable.
• Never use commercially-available CD stabilizers. Doing so could make the disc unplayable or damage the unit.
• Never use discs with irregular shapes, including heartshaped and octagonal discs, because they could damage the unit.

• To remove a disc from its case, while pressing down on the center of the case, hold the disc by its edges. Do not touch the side of the disc that has the data encoded on it (unlabeled side).

If a disc will not load properly

If a disc becomes caught or is otherwise difficult to insert, do not push it in forcefully. Press the EJECT () button and remove the disc once before trying to reinsert it. (Pushing a disc forcefully could damage the unit.)

Storing discs

• Discs should be stored in their cases when not being used. Failure to do so could result in warping and scratches.
• Do not leave discs in places that are exposed to direct sunlight or that are very humid or hot. Doing so could cause discs to become deformed or degraded, making them unplayable.
• CD-R and CD-RW discs are more susceptible to the impacts of heat and ultraviolet rays than ordinary CDs. For this reason, do not leave them for long times in places that are exposed to direct sunlight or near devices that generate heat, for example.
• Always clean discs before storing them. Leaving a disc in an unclean state might result in skipping or degraded sound quality.

Cleaning discs

• If the side of the disc that has the data encoded on it (unlabeled side) becomes dirty with fingerprints or dust, use a soft cloth to wipe the surface from the center directly toward the edge.

• Never use record cleaners, antistatic treatments, thinners or similar chemicals to clean discs. Such chemicals could harm the surface of the disc.

Notes about USB flash drives

This unit can use USB flash drives.*

*The USB ports on this unit only support USB flash drives (also known as "thumb drives" and "jump drives"). They do not support standard USB hard drives.

• FAT16 and FAT32 formats are supported for USB flash drives.
• This unit does not support USB hubs or devices with USB hub functions. Never connect such devices to this unit.

ATTENTION

• If the connected media is not supported, "Media Error!" appears on this unit's display.
• This unit cannot play back audio files if copyright protection is used.
• Do not connect computers to this unit's USB ports. Audio from computers cannot be input through this unit's USB ports.
• This unit might not be able to use media that is loaded into a USB card reader.
• Depending on the USB flash drive and its contents, reading data from it might take some time.
• Depending on the USB flash drive, the unit might not be able to read its data correctly or supply power properly.
• During the use of USB flash drives, please be aware that our company will take no responsibility should data be lost or changed, a USB flash drive become damaged or other harm occur.
• We recommend backing up data saved on a USB flash drive before using it with this unit.
• This unit does not support USB flash drives with security functions.

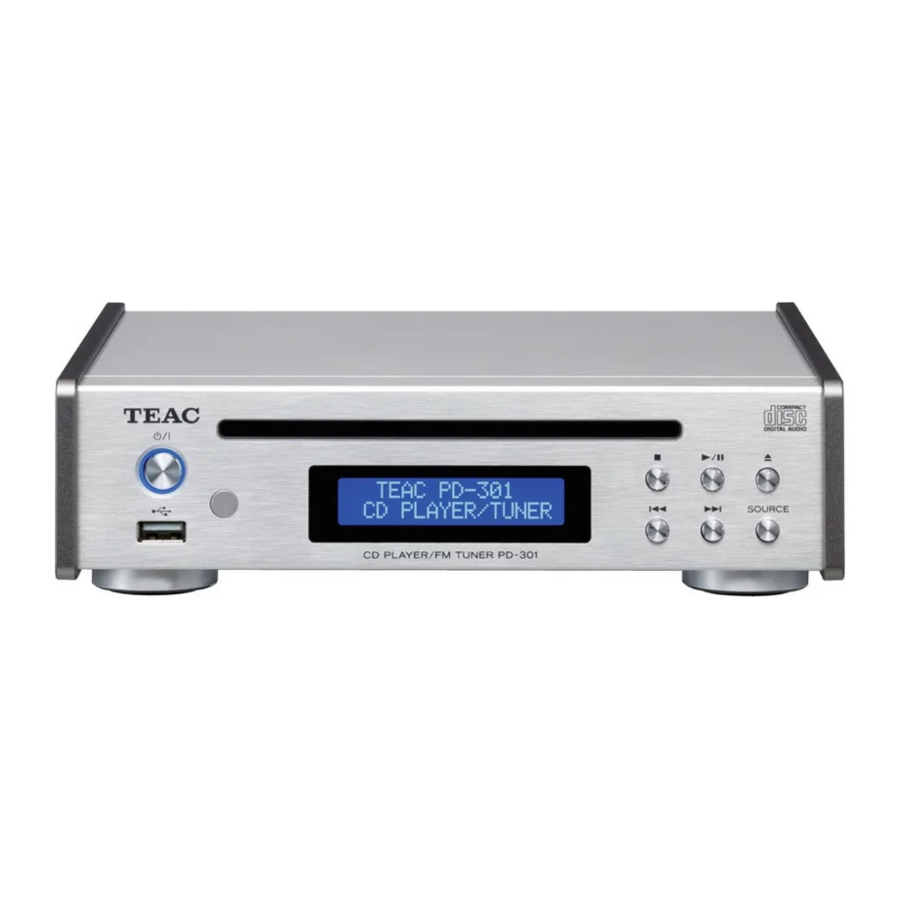

Names and functions of parts (main unit)

1. Standby/on () button
   Press this button to turn the unit on and put it in standby. When the unit is ON, the ring around the button lights blue.
   • When this unit is in standby mode, it consumes standby power. For this reason, we use the term "standby" rather than "off".
2. USB port
   Connect a USB flash drive to the unit.
   • Do not connect this unit's USB port to a computer or similar device. Audio from computers cannot be input through this USB port.
3. Remote control signal receiver
   This receives signals from the remote control. When using the remote control, point the remote control here.
4. Disc slot
   Insert a disc here. After a disc is inserted partway, the unit will automatically draw it in.
5. Display
   This shows a variety of information.
6. Stop () button
   Press during playback to stop playback.
   When the input source is FM, use to switch between frequency and preset modes.
7. Skip () buttons
   Use to skip to the previous or next track. During play back, press and hold to search backward/forward.
8. Play/pause () button
   Press when stopped or paused to start playback.
   Use this button to pause playback during playback.
9. SOURCE button Use this button to select the input source.
10. Eject () button
    Press to partially eject the disc. Hold the disc by its edges and pull it out.

Connections

After all connections are complete, connect the power cord's plug to the AC wall outlet.

• Read the instructions of each device that you intend to use with this unit.
• Do not bundle connecting cables with power cords. Doing so could cause noise.
• Be sure to connect each plug securely.

1. FM antenna
   When receiving an FM broadcast, extend this antenna and position it for the best reception. After moving this unit, readjust the position again.
2. Digital audio output connectors
   These output digital audio. Connect these to the audio input connectors of devices capable of receiving digital audio.
   COAXIAL: RCA coaxial digital cable
   OPTICAL: Optical digital cable (TOS)
3. Analog audio output connectors
   These output 2 channels of analog audio. Connect a stereo amplifier or powered speakers to them.
   Use RCA audio cables for connections. Connect the R connector of this unit to the right (R) connector (or equivalent) of the amplifier and the L connector of this unit to the left (L) connector (or equivalent) of the amplifier.
4. DC power connector (DC IN 12V)
   After all other connections have been completed, connect the included GPE015A-120125-D AC adapter to this connector and connect the AC adapter power cord to the adapter.
   Then, connect the AC adapter power cord plug to an AC power outlet.

Do not use any power cord other than the one included with this unit. Use of other power cords could result in fire or electric shock. Unplug the cord from the outlet when not using the unit for a long time.

Using the remote control

Precautions for use

Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of items nearby. Please read and observe the precautions carefully.

• When using the remote control, point it toward the remote control signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between the main unit and the remote control.
• The remote control might not work if the remote control signal receiver on the main unit is exposed to sunlight or bright lights. In this case, try moving the main unit.
• Beware that use of this remote control could cause the unintentional operation of other devices that can be controlled by infrared rays.

Installing batteries

Remove the cover on the back of the remote control, and insert 2 AAA batteries into the case, aligning them with the and indications. Replace the cover.

When to replace batteries

If the operation range of the remote control decreases, the batteries have become exhausted. In this case, replace the batteries with new ones.
Dispose of the used batteries according to the instructions on them or requirements set by your local municipality.

Names and functions of parts (remote control)

When both the main unit and the remote control have buttons with the same functions, the instructions in this manual refer only to one, but the other can be used in the same way.

1. SOURCE button
   Use this button to select the input source.
2. Stop ( ) button
   Press during playback to stop playback.
3. Eject ( ) button
   Press to partially eject the disc. Hold the disc by its edges and pull it out.
4. REPEAT button
   Use for repeat playback.
5. Scroll () buttons
   When the input source is USB and folder mode is enabled, use to select folders.
   When the input source is FM, use to change preset numbers.
6. Number buttons
   Use to select and program tracks, for example.
7. PROGRAM button
   When the input source is CD, use with program playback.
   When the input source is FM, use with radio station presets.
8. RDS/INFO button
   When the input source is FM, use this button to select an RDS mode. Please ignore "INFO" on the remote control unit. (INFO function does not work on this unit.) This button does not work at all on the USA/Canadian model.
9. Standby/on () button
   Press this button to turn the unit on or put it in standby. When the unit is ON, the ring around the main unit standby/on button lights blue.
10. Play/pause ( ) button
    Press when stopped or paused to start or resume playback.
    Press during playback to pause.
11. Search ( ) buttons
    When the input source is CD/USB, press during playback to search backward/forward.
    When the input source is FM, press to start automatic station selection.
12. RANDOM button
    Use for random playback.
13. ENTER button
    Use to confirm after entering a track number.
14. Skip () buttons
    Direction ( ) buttons
    When the input source is CD/USB and file mode is enabled, use to skip to the previous or next track.
    When the input source is USB and folder mode is enabled, use to select files.
    If the input source is FM, use to decrease/increase the frequency received.
    Press and hold for at least one second to begin automatically selecting stations.
15. DISPLAY button
    Press to change what is shown on the display.
16. MENU button
    Press to enter setting mode.
17. FM MODE button
    When receiving an FM broadcast, use to switch between stereo and mono.
18. DIMMER button
    Use to adjust the display brightness.
19. CLEAR button
    Use to clear programmed tracks.
20. PTY button
    Use to search for stations by program type (PTY). This button does not work at all on the USA/Canadian model.

Basic operation

Selecting the input source

1. Press the standby/on () button to turn the unit on.
   When the unit is ON, the ring around the button lights blue.

   In order to prevent sudden loud noises, turn the amplifier ON last.
2. Press the SOURCE button to select the input source.
   Press the SOURCE button repeatedly to cycle through the inputs as shown below.


Playing a CD

1. Hold the disc by its edges with the labeled side up and insert it partway.

2. Push the disc in further until just before it disappears. It will automatically be drawn in to the slot.

   If a disc becomes caught or is otherwise difficult to insert, do not push it in forcefully. Press the EJECT ( ) button and remove the disc once before trying to reinsert it. (Pushing a disc forcefully could damage the unit.)
   • The input source will change to CD (unless USB playback is active).
3. Press the play/pause () button.


Playing files from a USB flash drive

1. Connect a USB flash drive to the USB port.

2. Use the skip ( ) buttons to select a track.
3. Press the play/pause () button.

Selecting FM stations

Use the remote control scroll () buttons to select preset stations.

If the current preset stations do not match the stations in your area, follow the instructions in "Setting presets automatically".

Dimmer

Press the remote control DIMMER button to cycle through display brightness levels.

Display information

The name of the input source appears at the top left of the display.
Press the DISPLAY button to change the information shown on the display.

• The display contents shown below are examples.

Audio CD

Stopped

Playing back

Disc/USB flash drive with audio files

The following examples are of use with a USB flash drive.

Stopped

Playing back

• A maximum of 62 characters, including the header, will scroll across the screen for the folder name, file name and ID3 tags (title, artist, album).

Listening to files on a CD or USB flash drive

The formats that can be played back from each kind of media are as follows.
CD: CD-DA (audio CD), MP3, WMA USB: WAV, MP3, WMA, AAC

Starting playback

Press the play/pause () button.
During playback, PLAY appears on the upper line of the display.

Pausing playback

Press the play/pause () button to pause playback.
To resume playback from the position where it was paused, press the play/pause () button again.
When paused, PAUSE appears on the upper line of the display.

Stopping playback

Press the stop () button to stop playback.

Ejecting a disc

When playback is stopped, press the eject () button.
The disc will be partially ejected. Hold the disc by its edges and pull it out.

Skipping to search for a track

Press a skip () button to skip to the previous or next track.

• During playback, press the button once to return to the beginning of the current track. When you want to play an earlier track, press the button repeatedly until you reach that track.
• During program playback, tracks from earlier or later in the program will be played back.

Searching for part of a track

Press and hold a skip () button to search backward/forward. Release the button when you find the desired part.
Press a remote control search () button to search backward/ forward. Release the button when you find the desired part.

Direct playback using track numbers (audio CD only)

In addition to using the skip () buttons to select tracks, you can input a track by number and start playback.
During playback or when stopped, you can use the remote control number buttons to select a track by number.

Example: entering track number 7

Example: entering track number 23

• During program or random playback, the number buttons cannot be used to select tracks.

Selecting and playing CD/USB tracks

Select tracks on CDs in file mode.
Select tracks on USB flash drives in file or folder mode.

• See "USB Mode" for how to set the mode. When the input source is USB, you can also press and hold the stop () button to change the mode.

File mode

You can select files in this mode with all folders treated equally regardless of folder level.

Selecting files

– is the file playback order when a CD is loaded or a USB flash drive is connected.

Folder mode

You can select files and folders using the folder hierarchy.
In folder mode, the folder icon appears at the bottom right of the display. The folder icon also appears before the folder name.

Folder mode operation examples

• These examples use the file/folder structure shown in the illustration above.

NOTE
When the input source is changed to USB, the file name will not be shown, but FILE01.mp3 will be selected.

Selecting files/folders on the same level

Press the skip () button to select files and folders as shown in the illustrations below. Press the skip () button to select them in reverse order.

• The display contents shown are examples.


Icon is not blinking.
Icon is blinking.

Changing the folder level

Select a folder and press the scroll () button or ENTER button to show the files/folders inside the current folder.
Press the scroll () button to move up one level and show the files/folders in that folder.

Starting playback

When a file is shown on the upper line, press the scroll (j) button or ENTER button to select that file and start playing it.

NOTE

• The folder icon blinks when a file/folder is selected.
• To cancel file/folder selection, press the CLEAR button.

Skip mode

In folder mode, press and hold the ENTER button for 5 seconds to enable skip mode. "S" appears at the right end of the upper line.

Example of display in skip mode

In this mode, the skip () buttons do not select files. Instead, you can use them to skip, which enables playback without pressing the ENTER button.
Press and hold the ENTER button for 5 seconds again to return to ordinary folder mode. (The "S" disappears.)

NOTE

• The file number shown is the number of a file in the selected folder.

Repeat playback

Each time you press the REPEAT button, the repeat mode changes as shown in the illustration to the right.

• During program playback, repeat playback is not possible.
• This cannot be used at the same time as random playback. *"RP-FOLDER" only appears when in USB folder mode.


Random playback

Press the RANDOM button to turn random playback on/off.
When ON, the tracks on the disc will play back in random order.
Playback will not stop until you press the stop () button.

• This cannot be used at the same time as repeat playback.

Program playback

Program playback is only possible with audio CDs.

Using program playback

1. Press the PROGRAM button.
   MEM and the track number blink.

   • Press when stopped.
2. Use the skip () or number buttons to select a track and press the PROGRAM button to add it to the program.

   Add all the tracks that you want to the program.
   • If no action is taken for 20 seconds, the program will be canceled.
3. Press the play/pause () button to start program playback.


Checking and changing the program

1. Press the PROGRAM button twice.
   MEM and the program number blink.

2. Use the skip () buttons to change the program number and check track numbers.


Changing the program

1. Show the track that you want to change.
2. Press the PROGRAM button.
3. Select a track and press the PROGRAM button to add it to the program in place of the original track.

Removing a track from the program

1. Show the track that you want to remove.
2. Press the CLEAR button.

3. Press the play/pause () button to start program playback.


Adding tracks to the program

1. Press the PROGRAM button.
   MEM and the program number blink.
2. Select a track and press the PROGRAM button to add it to the program.
   Repeat to add more tracks as desired.
3. Press the play/pause () button to start program playback.

Removing all tracks from the program

1. When stopped, press and hold the CLEAR button.

2. When "Program clear?" appears, press the ENTER button to remove all tracks from the program.

   To cancel the operation, press the stop () or CLEAR button.

Any of the following operations will also clear all the tracks from the program.

• Ejecting the disc
• Pressing the unit's standby/on ( ) button to put it in standby mode

Listening to FM radio

FM mode

Press the FM MODE button to switch between stereo and mono reception.

Display example

Stereo

Receive stereo FM broadcasts in stereo.

• If reception is poor, switch to Mono.

Mono

Receive FM broadcasts in mono. When the reception of an FM stereo broadcast is poor, select this mode. The sound becomes mono, but noise is also reduced, making it sound better.

Changing the received frequency

When a preset number is shown, press the stop () button to enable frequency selection mode.

Increasing the received frequency

Press the direction () button to increase the received frequency one step. Press the search () button to automatically search toward higher frequencies.

Decreasing the received frequency

Press the direction () button to decrease the received frequency one step. Press the search () button to automatically search toward lower frequencies.

Changing the frequency from the main unit

Press the stop () button and use the skip () buttons in frequency selection mode (preset number not shown).
When a preset number appears, use the skip () buttons to change the preset number.

Broadcast station presets

This unit can have up to 20 FM station presets.

Setting presets automatically

Press and hold the remote control PROGRAM button.
The unit will automatically search for radio stations and set them in order, starting with preset 01 (P01). The unit will stop automatically adding presets when 20 have been added or the reception frequency range has been searched completely.

Setting presets manually

1. Tune in the station that you want to add as a preset.
2. Press the PROGRAM button.
3. Use the direction ( ) buttons to select the number FM to preset and press the ENTER button.


RDS (European model only)

The Radio Data System (RDS) is a broadcasting service that allows stations to send additional information along with the regular radio program signal.

• RDS works on the FM frequency band in Europe only.

1. Tune in to an FM RDS station.
2. Press the remote control RDS button.

   Pressing the RDS button cycles through RDS modes as follows:

Program service (PS)
When you select Program service, "PS" will appear to the right of "FM" and then the program service name or station's name will be displayed. If there is no program service data, the frequency will be displayed.

RDS Program type (PTY)
When you select RDS Program type, "PTY" will appear to the right of "FM" and then the program type will be displayed.

RDS Radio text (RT)
When you select RDS Radio text, "RT" will appear to the right of "FM" and then information from the station consisting of up to 64 characters will be displayed.

PTY search

You can search for stations by program type. This function is available only through the RDS services of FM frequency stations in Europe.

1. Press the PTY button.
   "PTY SEARCH" appears on the display.

2. Use the direction () buttons to select the desired program.
   You can select from 31 program types (PTY).
3. Press the ENTER button.
   The unit starts searching.
   • When the program type that you have selected is found, searching stops and the program type will be displayed.
   • If a matching program type is not found during PTY Search, it will stop at the frequency set before searching started. FM PTY SEARCH o If you want to stop searching, press the PTY button.


NEWS:
Brief announcements, events, public opinion, reports and real situations.

AFFAIRS:
Suggestions, including practical announcements other than news, documents, discussion and analysis.

INFO:
Useful and reference information, such as weather forecasts, consumer guides and medical advice.

SPORT:
Sports-related programs.

EDUCATE:
Educational and cultural information.

DRAMA:
All kinds of radio concerts and serial dramas.

CULTURE:
All aspects of national or local culture, including religious events, philosophy, social science, language and theatre.

SCIENCE:
Programs on natural science and technology.

VARIED:
Popular programs such as quizzes, entertainment news, interviews, comedy and satire.

POP M:
Programs of commercial and popular songs, including music sales volumes, etc.

ROCK M:
Modern music generally composed and played by young musicians.

EASY M:
Popular music usually lasting for less than 5 minutes.

LIGHT M:
Classical music, instrumental music, chorus, and light music favored by general audiences.

CLASSICS:
Orchestral music including great operas and symphonies, chamber music and so on.

OTHER M:
Other music styles, including rhythm & blues and reggae.

WEATHER:
Weather reports and forecasts.

FINANCE:
Financial reports, commerce and trading.

CHILDREN:
Children's programs.

SOCIAL:
Social affairs.

RELIGION:
Religious programs.

PHONE IN:
Programs in which the public expresses its views by phone.

TRAVEL:
Travel reports.

LEISURE:
Programs concerning recreational activities.

JAZZ:
Jazz music.

COUNTRY:
Country music.

NATION M:
National music.

OLDIES:
Music from the so-called golden age of popular music.

FOLK M:
Folk music.

DOCUMENT:
Documentaries.

TEST:
Broadcast when testing emergency broadcast equipment or receivers. Not intended for searching or dynamic switching for consumer receivers.

ALARM!:
A program with notifications about emergencies and natural disasters.

Settings

1. Press the MENU button.
2. Use the direction () buttons to select the item that you want to set and press the ENTER button.
   Display example

   Press the button to cycle through the following items.

   Press the button to cycle through these items in reverse order.
3. Use the direction () buttons to change the setting, and press the ENTER button to confirm the change.
   Display example

   The previous screen will reappear after confirming.
   • Press the MENU button instead to cancel the setting change.

Setting the automatic power saving function (APS Setting)

• When shipped new from the factory, the automatic power saving function is set to OFF in models for the US and Canada and ON in models for Europe.

ON
When the input source is CD/USB, the unit will enter standby if playback is stopped or paused for 30 minutes.

OFF
The unit will not enter standby automatically.

The automatic power saving function setting appears when the unit is turned on.
Display example

USB Mode

• This is set to File (file mode) when shipped new from the factory.
  Display example


File (file mode)
Select files with all folders treated equally regardless of folder level.

Folder (folder mode)
Select files and folders using the folder hierarchy.

CD Auto Start

• This is set to Stop (OFF) when shipped new from the factory.
  Display example


Stop OFF)
When a CD is inserted, it will not start automatically playing back.

Playback(ON)
When a CD is inserted and the source is set to CD, playback will start automatically.

Information

This shows the current firmware version.

Display example

Troubleshooting

General

The unit does not turn on.
(The standby/on () button LED does not light.)

• Check that the power cord is completely plugged into the power outlet. If the outlet is switched, confirm that the switch is in the ON position.
• Connect a different electrical device to the outlet to confirm that it is supplying power.

Remote control does not work.

• Point the remote control at the front panel of the unit from a distance of less than about 5 m (16 ft).
• The remote control will not work if there is an obstruction between it and the main unit. In this case, try changing the position.
• If the batteries are exhausted, replace both of them with new ones.

A television set or another device operates in error.

• Some televisions that are able to receive signals from wireless remote controls might be operated in error by this unit's remote control. If this should occur, use the main unit's buttons.

No or very little sound is output.

• Confirm connections with the amplifier.
• Confirm connections with the speakers and other devices.

There is noise.

• Place the unit as far away as possible from TVs, microwave ovens and other devices that have strong magnetism.

Radio

A station cannot be received. The reception is poor.

• Select a broadcast station.
• If reception is poor, try repositioning the antenna.
• If a TV is near the unit, turn the TV off.
• Keep USB flash drives disconnected from the unit when receiving radio signals. A connected USB flash drive could cause noise or other issues.

Stereo broadcasts become mono.

• Press the remote control FM MODE button to select stereo.

CD Player

Playback is not possible.

• If the disc is upside down, reload it with the labeled side up.
• If the disc is dirty, wipe it clean.
• Depending on the quality and recording conditions of the disc, some CD-R/CD-RW discs cannot be played back.
• CD-R/CD-RW discs that have not been finalized cannot be played back.

The sound skips.

• Vibrations can cause the sound to skip. Install this unit in a stable location.
• If the disc is dirty, wipe it clean.
• Do not use discs that are scratched or cracked.

MP3, WMA, AAC and WAV files

Playback is not possible.

• Check the file extension. Files are recognized by their extensions: ".mp3" for MP3 files, ".wma" for WMA files, ".m4a" for AAC files and ".wav" for WAV files.
• The MP3/WMA/AAC/WAV file might be damaged.
• Check the file format. This unit can play MP3, WMA, AAC and WAV files. However, it cannot play WAV and AAC files from a CD.

"NO USB" appears and the USB flash drive is not recognized.

• Try formatting the USB flash drive with a computer. This should rewrite the FAT data, making it possible for this unit to recognize it. (WARNING: formatting will erase all files on the USB flash drive.)

The names of tracks, artists and albums are not shown.

• There is no ID3 tag information for the music file. Use a computer, for example, to prepare MP3/WMA/AAC files with corrected ID3 tag information. ID3 tags cannot be used with WAV files.

Some characters are not shown correctly.

• If the file information uses Japanese, Chinese or other double-byte characters, playback is possible but the name will not be shown correctly.

"No Music file" appears on the display

• The disc or USB flash drive does not contain any playable audio files. Load a disc or USB flash drive that contains playable audio files.

Since this unit uses a microcontroller, external noise and other interference can cause the unit to malfunction. If this occurs, unplug the power cord, wait for a while, and then turn the power back on to restart operations.

Specifications

CD Player

Playback media: CD-DA, CD-ROM/R/RW*
Only 12cm discs can be used

Format: ISO9660 LEVEL 1/2/JOLIET

Maximum number of files: 300 (including folders)

Maximum number of folders: 50

*Only CD-RW discs in CD-DA format supported

USB

Supported USB devices: USB mass storage device class

Interface compatibility:

USB 2.0 (Full speed)
USB 1.1 (High speed)
USB3.0

File systems: FAT16, FAT32

Maximum number of files: 300 (including folders)

Maximum number of folders: 50

USB output voltage: DC 5 V

USB power supply current: 500 mA maximum

Playable audio formats

WAV (USB only)

Extension: ".wav", ".WAV"
Quantization bit depth: 16-bit
Sampling frequency: 44.1 kHz, 48 kHz

MP3

Extension: ".mp3", ".MP3"
Bit rate: 32 kbps – 320 kbps or VBR
Sampling frequency: 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz
Supported standards: MPEG-1/2 Audio Layer-3

WMA

Extension: .wma", ".WMA"
Bit rate: 32 kbps – 320 kbps or VBR
Sampling frequency: 8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz
Supported standard: WMA ver.9 (DRM not supported)

AAC (USB only)

Extension: .m4a", ".M4A"
Bit rate: 8 kbps – 320 kbps or VBR
Sampling frequency: 8 kHz, 16 kHz, 32 kHz, 11.025 kHz, 22.05 kHz, 44.1 kHz, 12 kHz, 24 kHz, 48 kHz
Supported standard: MPEG4 AAC-LC (Audio Stream)

Tuner

Frequency range
FM; 87.5 MHz to 108.0 MHz

Analog audio output

Connector: RCA connectors (2 channels) × 1

Output impedance: 470 Ω or less

Maximum output level (1 kHz/full-scale, into 10 kΩ): 2.0 Vrms

Frequency response: 20 Hz – 20 kHz (−3 dB)

S/N ratio: 113 dB

Distortion: 0.005% (1 kHz)

Digital audio output

COAXIAL digital connector × 1

Output impedance: 75 Ω
Output level: 0.5 Vp-p

OPTICAL digital connector × 1
TOS (JEITA RC-5720C)

Sampling frequency: 44.1 kHz

Quantization bit depth: 16-bit

General

Power supply

Model for Europe: AC 220–240 V (50 Hz, 60 Hz)
Model for USA/Canada: AC 120 V (50 Hz, 60 Hz)

Power consumption: 8 W

External dimensions:
215 × 61 × 232 mm (8 1/2" × 2 1/2" × 9 1/4")
(W × H × D, including protrusions)

Weight: 2.1 kg (4 3/4 lb)

Operating temperature: +5°C to +35°C

Operating humidity: 5% to 85% (no condensation)

Storage temperature: −20°C to +55°C

Included accessories

AC adapter (GPE015A-120125-D) × 1
Power cord for AC adapter × 1
RCA audio cable × 1
Remote control (RC-1323) × 1
Batteries for remote control (AAA) × 2
FM antenna × 1
Owner's manual (this document) × 1

• Specifications and appearance are subject to change without notice.
• Weight and dimensions are approximate.
• Illustrations in this manual might differ slightly from production models.

IMPORTANT SAFETY INSTRUCTIONS

• DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
• IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
• USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.
    Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
• The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
• Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus. o Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time. o If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
• CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

Precautions concerning batteries
Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of nearby things. Please read and observe the following precautions carefully.

• Be sure to insert the batteries with correct positive () and negative ( ) orientations.
• Use batteries of the same type. Never use different types of batteries together.
• If the remote control is not used for a long time (more than a month), remove the batteries to prevent them from leaking.
• If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries with new ones.
• Do not use batteries of types other than those specified.
  Do not mix new batteries with old ones or use different types of batteries together.
• Do not heat or disassemble batteries. Never throw batteries into fire or water.
• Do not carry or store batteries with other metallic objects. The batteries could short circuit, leak or explode.
• Never recharge a battery unless it is confirmed to be a rechargeable type.

The nameplate is located on the bottom of the unit as shown below.

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site: http://teac-global.com/

1. Open the TEAC Global Site.
2. In the TEAC Downloads section, click the desired language to open the Downloads website page for that language.
   NOTE
   If the desired language does not appear, click Other Languages.
3. Click the "Search by Model Name" section to open the Downloads page for that product. (Users in Europe should click the product name in the "Products" section instead.)
4. Select and download the updates that are needed.

Product registration

Customers in the USA, please visit the following TEAC website to register your TEAC product online. http://audio.teac.com/support/registration/

Documents / Resources

References

• TEAC - Global Site

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Teac PD-301 - CD PLAYER / FM TUNER Manual
