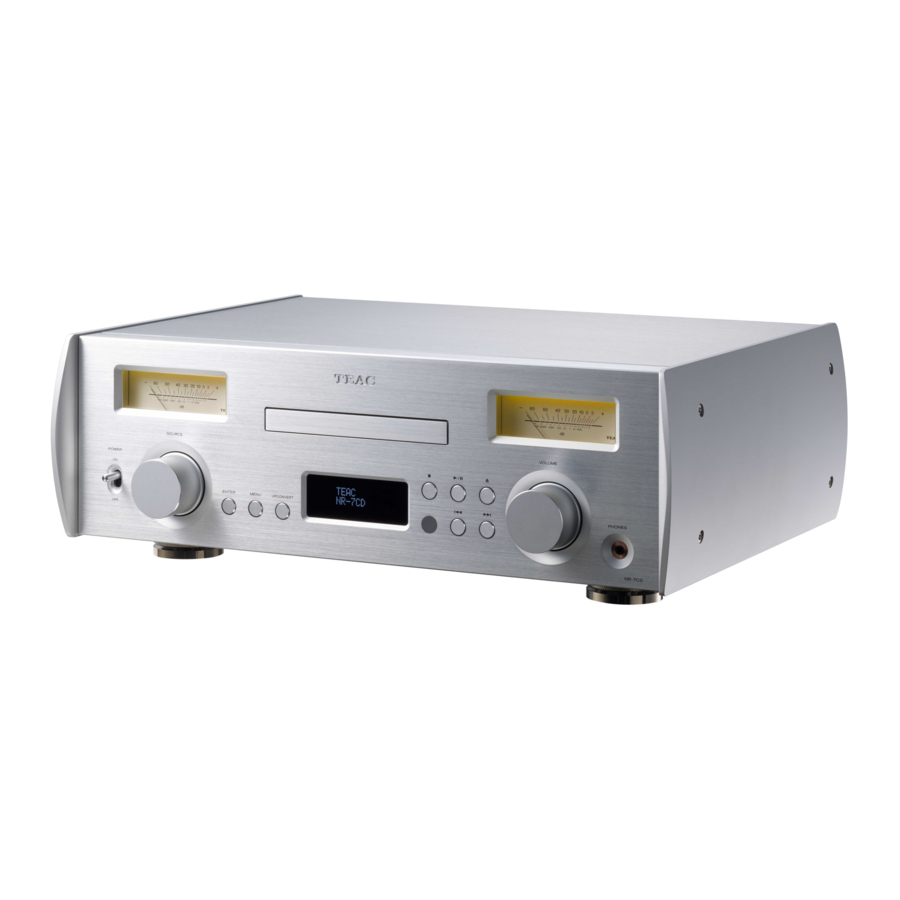

Teac NR-7CD - Integrated Amplifier Manual

Included items

Check to be sure the box contains all the included items shown below.
Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.
Power cord × 1
Remote control (RC-1328) × 1
Batteries for remote control (AAA) × 2
Felt pads × 3
Owner's manual (this document, including warranty) × 1

Downloading the remote app

To use network and USB playback functions, you must also use an iPad or other device that has the dedicated app (free) installed and is connected to the same network.

How to download the app for iOS devices including iPad
Search for "TEAC HR Streamer" in the App Store.

• Release is planned for an Android version (as of January 2017).See the product website for details.

NOTE
Network module firmware is updated through TEAC HR Streamer. We recommend that you regularly select this unit in TEAC HR Streamer, and update it with the latest firmware. A pop-up window recommending a firmware update will appear if one is available.

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site: http://teac-global.com/

1. Open the TEAC Global Site.
2. In the TEAC Downloads section, click the desired language to open the Downloads website page for that language.
   NOTE
   If the desired language does not appear, click Other Languages.
3. Click the "Search by Model Name" section to open the Downloads page for that product.(Users in Europe should click the product name in the "Products" section instead.)
4. Select and download the updates that are needed.

Product registration

Customers in the USA, please visit the following TEAC website to register your TEAC product online.
http://audio.teac.com/support/registration/

Before use

Placement precautions

• Do not install this unit in a location that could become hot. This includes places that are exposed to direct sunlight or near a radiator, heater, stove or other heating equipment. Moreover, do not place it on top of an amplifier or other equipment that generates heat. Doing so could cause discoloration, deformation or malfunction.
• When installing this unit, leave a little space (at least 3 cm or 1") between it and walls and other devices in order to allow good heat dissipation.
  If you put it in a rack, for example, leave at least 5 cm (2") open above it and at least 10 cm (4") open behind it.
  Failure to provide these gaps could cause heat to build up inside and result in fire.

Note about pinpoint feet

High-precision metal pinpoint feet are attached firmly to the bottom plate of this unit.
The stands for these feet are loose, but when the unit is placed in position, it is supported by these pinpoint feet, which will effectively disperse vibrations.

• The included felt pads are intended to protect the surface where the unit is placed. Apply them to the bottoms of the foot-stands.

Maintenance

Wipe dirt from the top cover and other panel surfaces using a soft cloth that has been slightly dampened with a diluted neutral cleanser.
Do not wipe with chemical cleaning cloths, thinner or other chemical agents. Doing so could damage the surface.
For your safety, disconnect the power cord from the outlet before cleaning.

Using the remote control

Precautions for use

Misuse of batteries could cause them to rupture or leak, which might result in fire, injury or the staining of nearby materials. Please carefully read and observe the precautions.

• When using the remote control, point it toward the remote control signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between the main unit and the remote control.
• The remote control might not work if the remote control signal receiver on the unit is exposed to direct sunlight or bright light. If this occurs, try moving the unit.
• Beware that use of this remote control could cause the unintentional operation of other devices that can be controlled by infrared rays.

Installing batteries

Remove the cover from the back of the remote control and insert two AAA batteries with their / oriented as shown in the case. Replace the cover.

When to replace batteries

If the distance required between the remote and the main unit decreases or if the unit stops responding to the remote buttons, replace both batteries with new ones.
Dispose of the used batteries according to the instructions on them or requirements set by your local municipality.

Discs

The following marks appear on disc labels and disc cases. This unit can play discs that have these marks without using an adapter. This unit cannot play discs that do not have these marks.

Types of discs that can be played on this unit and their marks
CDs with the "COMPACT disc DIGITAL AUDIO" logo (12 cm, 8 cm)

• This logo appears on disc labels and packages.

If you try to play any other type of disc with this unit, loud noises that could damage speakers or harm hearing might occur. Never try to play any type of disc other than those shown above.

• This unit cannot play DVD video, DVD audio, video CD, DVD-ROM and CD-ROM discs, for example.
• This unit might not be able to properly play Dual Discs, Copy Control CDs or other special CDs that do not conform to the Red Book CD standard. Operation and sound quality cannot be guaranteed when special discs are used in this unit. If playback of a special disc should cause trouble, contact the seller of the disc.

CD-R/CD-RW discs
This unit can play CD-R/CD-RW discs that are in audio CD format.

• Be sure to finalize discs created by CD recorders.

Depending on the quality of the disc and the condition of the recording, playback might not be possible. For details, see the operation manual for the device you are using.

Handling discs

• Load discs with their labeled sides up.
  (CDs only have one playable side.)
• To remove a disc from its case, always press down on the center of the case first and then hold the disc by its edges.

• Be careful when handling discs. If the side that contains the data (unlabeled side) is scratched, smudged with fingerprints or otherwise dirty or marred, errors could occur during playback.
• If the side of the disc that has the data encoded on it (unlabeled side) becomes dirty with fingerprints or dust, use a soft cloth to wipe the surface from the center directly toward the edge.
  Always clean discs before storing them. Leaving a disc in an unclean state might degrade its sound quality.

• Never use record cleaners, antistatic treatments, thinners or similar chemicals to clean discs. Such chemicals could harm the surface of the disc.
• Do not leave discs in places that are exposed to direct sunlight or that are very humid or hot.
• When writing something on the label side of a disc, use a felt tip permanent marker. The use of a ballpoint pen or other pen with a hard tip could damage the disc, making it unplayable.
• After you finish playing a disc, always put it back into its case for storage. Failure to do so could result in warping and scratches.
• Do not apply labels or other materials to discs. Do not use a disc that has sticky residue left on its surface after removing tape or a sticker, for example. If such a disc is loaded, it might become stuck in the unit or damage the unit.
• Never use commercially-available CD stabilizers. Doing so could make the disc unplayable or damage the unit.
• Do not use cracked discs because they could damage the unit.
• Never use discs with irregular shapes, including heart-shaped and octagonal discs, because they could damage the unit.

• Do not use printable discs, which allow printing on the label side. Since the surface of such a disc has been specially treated, if loaded, it might become stuck in the unit or damage the unit.

If you have any questions about how to handle a CD-R or CD-RW disc, contact the manufacturer of the disc directly.

Connecting speakers

Notes about speaker cables

• Use commercially-available speaker cables to connect the speakers.
• Use the shortest speaker cables possible. The longer the cable, the greater the resistance value and the more that damping performance is reduced. Moreover, length also increases impedance and capacitance, degrading the sound quality of high frequencies.
• Use left and right speaker cables that have the same length.

How to connect speaker cables

Use commercially-available speaker cables to connect the terminal of the unit to the terminal of the speaker and the terminal of the unit to the terminal of the speaker.

• Use speakers with at least 4Ω impedance.
• If the exposed tip of the core wire of a speaker cable contacts another cord or terminal, a short could occur. Never allow a speaker cable to short.
• Do not connect more than one amplifier to a speaker.
• Do not bundle speaker cables with power cords. Doing so could cause noise.

The power plug should always be disconnected when connecting speaker cables.

When using bare wires
Loosen the cap and insert the core wire into the hole in the terminal. Then, tighten the cap.

When using spade lugs
Loosen the cap and insert the lug between the cap and base of the terminal. Then, tighten the cap.

• When using a spade lug to connect, use one with an inside diameter of at least 8 mm (3/8").

When using banana plugs
With the cap tightened, insert the plug into the opening in the end of the terminal.

• Carefully read the instructions for the banana plugs that you are using.

Notice about the European model
In accordance with European safety regulations, connecting banana plugs to speaker terminals is not allowed on European models.
The holes into which banana plugs could be inserted have been covered with black caps.
Connect speakers using bare wires or spade lugs.
If a black cap should become separated from its terminal, return it to its original position.

Connections

1. SPEAKER terminals
   Use commercially-available speaker cables to connect the terminal of the unit to the terminal of the speaker and the terminal of the unit to the terminal of the speaker.
2. Analog audio input (LINE IN) connectors
   Use these to input 2-channel analog audio signals. Connect an analog audio output device to these RCA connectors.
   Use commercially-available cables for connections.
   Connect this unit's R input connector to the R output connector of the audio output device, and this unit's L input connector to the L output connector of the other device.
   RCA audio cables

3. Digital audio input connectors
   COAXIAL
   Use this to input digital audio. Connect the coaxial digital audio output connector of a digital audio device to it.
   Use a commercially-available RCA coaxial digital cable for connection.
   OPTICAL
   Use these to input digital audio. Connect optical digital audio output connectors of digital audio devices to them.
   Use commercially-available optical digital cables with rectangular connectors for connection.
4. Power inlet (~IN)
   Connect the supplied power cord here.
   After all other connections are complete, connect the power cord's plug to a wall outlet.
   Do not use any power cord other than the one included with this unit. Use of other power cords could result in fire or electric shock. Unplug the cord from the outlet when not using the unit for a long time.
5. ETHERNET port
   Connect a commercially-available LAN cable to this port when you want to connect this unit to a wired network or the Internet.
   • When switching input sources, this port is labeled "NET".
6. USB port
   Connect USB flash drives that contain audio files here.
   • USB flash drive playback requires operation using a device (with the dedicated app) that is on the same network as this unit.

Complete all other connections before turning the unit on.

• Carefully read the manuals of the devices that you are connecting and follow their instructions when making connections.
• Do not bundle connecting cables with power cords. Doing so could cause noise.
• Connect all plugs completely.

Network connections

Connection example

• The Wi-Fi router must be connected to the Internet when installing apps on the iPad or other device, when updating the NET firmware of this unit, and when listening to Internet radio.

1. NAS (Network Attached Storage)
   Use to store audio files.
   Operation as a UPnP server is necessary to use it as a media server. MinimServer is the media server recommended for use with this unit.
2. Wi-Fi™ router
   Use Wi-Fi to connect the iPad or other device to this unit and the NAS.
3. iPad or other device
   Install the app to control this unit.
4. NR-7CD
   This unit. The IP address is acquired from the DHCP server.

Names and functions of parts

Remote control

• When the main unit and the remote control both have buttons with the same functions, this manual explains how to use one of the buttons. The other corresponding button can be used in the same manner.

1. STANDBY/ON button
   Press to put the unit into standby mode or turn it on.
2. Input selection buttons Use to select the playback source.
   • The USB button is not used with this unit.Select NET and use the app to control USB flash drive playback.
   • LINE 1 is the only line input for this device.
3. UPCONVERT button
   Use to show and change the upconversion setting.
4. FILTER button
   Use to change the filter setting.
   This changes the filter according to the input (PCM or DSD).
5. SHUFFLE button
   Use to change the shuffle playback setting.
6. REPEAT button
   Use to change the repeat playback setting.
7. Stop () button
   Press to stop CD, NET or Bluetooth playback.
8. MUTE button
   Press this button to temporarily mute the sound.
9. METER button
   Use to set level meter brightness and turn operation on and off.
10. DIMMER button
    Use this button to change the brightness of the display.
11. MENU button
    Use to enter setting mode.
    Press when in setting mode to return to the previous screen.
12. ENTER button
    Press to confirm the selected item.
13. Up/down (/) buttons
    Use to select setting items.
14. Skip (/) buttons
    During CD playback
    Use to skip to the previous or next track.
    Press and hold for at least one second during playback to search forward/backward.
    During NET and Bluetooth playback
    Use to skip to the previous or next track in the playlist.
15. Play/pause (/) button
    When the input source is CD, NET or Bluetooth and playback is stopped or paused, press to start playback.
    Press during playback to pause.
16. VOLUME (+/−) buttons
    Use to adjust the speaker and headphone volumes.

Main unit

1. Level meters
   These show the output levels.
2. Disc tray
   Load a disc here.
3. POWER switch
   Use to turn the unit on and off.
   • If the display or level meters are dark even though the POWER switch is set to ON, one of the following conditions is possible.
   • The power is on, but the display brightness is set to DIMMER 0 and/or the level meter operation setting is DIM0 or OFF.
   • The automatic power saving function has activated, putting the unit into standby.
   • The power cord is disconnected.
4. SOURCE knob
   Use to select the input source.
   Use to change setting values when a menu item is shown.
   Turn when the menu is open to change the item shown or the setting value.
5. ENTER button
   Press to confirm the selected item.
   • Press when the unit is in standby to turn it on.
6. MENU button
   Use to enter setting mode.
   Press when in setting mode to change the setting item.
7. UPCONVERT button
   Use to show and change the upconversion setting.
8. Display
   This display shows information about the audio playing back and menu screens.
9. Stop () button
   Press to stop CD, NET or Bluetooth playback.
10. Play/pause (/) button
    When the input source is CD, NET or Bluetooth and playback is stopped or paused, press to start playback.
    Press during playback to pause.
11. Remote control signal receiver
    This receives signals from the remote control. When operating the remote control, point it at the remote control signal receiver.
12. Skip (/) buttons
    During CD playback
    Use to skip to the previous or next track.
    Press and hold for at least one second during playback to search forward/backward.
    During NET and Bluetooth playback
    Use to skip to the previous or next track in the playlist.
13. Tray open/close () button
    Press to open and close the disc tray.
14. VOLUME knob
    Use to adjust the volume. Turn right to increase and left to decrease the volume.
    • Volume settings are saved separately for speaker and headphone outputs.
15. PHONES jack
    Connect headphones (3.5 mm stereo mini plug) here.
    • This headphone amp circuit uses a four-pole connector with independent left and right for grounding. Ordinary plugs with 3 or 4 poles can be used.
    • If headphones are connected to this unit, audio will not be output from the SPEAKER terminals on the rear panel.

NOTE
The following buttons on the unit and the remote control function with CD, NET and Bluetooth playback.
Stop () button
Play/pause (/) button
Skip (/) buttons

• This unit cannot be used to create playlists, for example, on another unit connected to it. Playlists must be created and other settings must be made to enable playback on connected devices.

Connecting headphones

Wiring illustration

While wearing headphones, do not connect or dis connect them or turn the unit on or off.
Doing so could result in a sudden loud noise that could harm your hearing.
Always set the volume to minimum (−∞ dB) before putting headphones on.

Upconversion

The conversion function can be used when digital audio is being input (CD, NET*, Bluetooth, OPT1, OPT2, COAX).

• During MQA playback, 4Fs upconversion will be used regardless of the setting.

  Press the UPCONVERT button to show the current setting.Press it again to change the upconversion setting.
  *For USB flash drive playback, set the input source to NET.


Display example

OFF
Upconversion will not occur.
The original input signal is sent as is directly to the D/A converter.

DSD
2Fs
4Fs
8Fs
The upconversion shown will be used.
The relationships between input sampling frequencies and sampling frequencies after upconversion are as follows.

These values are not converted.

Display

When the unit is turned on

After messages like the above appear, the input source will be shown on the display.

Input source information

The input source information screen will appear after turning the unit on as well as after about 10 seconds pass without operation on a setting screen.

Display example

• Turning the VOLUME knob will change the volume, and the volume will appear to the right of the input signal status.

Input source name

This shows the name of the selected source.
The names on the display correspond to the selected connectors as follows.
CD
CD player in this unit
NET
ETHERNET port, USB port
COAX
RCA COAXIAL digital audio input connector
OPT1
Optical digital audio input connector 1
OPT2
Optical digital audio input connector 2
LINE
Analog audio input connectors

• When using Bluetooth, the name of the connected device is shown.

Input signal status

This shows the input source signal status.
UNLOCK!
The unit cannot synchronize with the input signal.
NOT AUDIO!
A signal with a format that cannot be played is being received.
NETWORK!
The input source is NET, but the unit is not connected to a network.
READY
The input source is NET and it is connected, but no audio signal is being received.
WAV 44k
DSD 2.8M
DSD 5.6M
FLAC96k, etc.
These are abbreviations of the input signal type and sampling frequency.
SBC
AAC
aptX
LDAC
When the input source is Bluetooth, abbreviations of the codec type and sampling frequency are shown.

Volume display

The volume setting shown will be enlarged when you turn this unit's VOLUME knob.

Display example

Basic operation

1. Turn on the connected input source devices.
2. Shift the POWER switch to its ON position to turn the unit on.

3. Turn the SOURCE knob to select an input source.

   The input sources will be shown in the following order

   • You can also use the input selection buttons on the remote control.
   • If the input signal is not a digital audio signal or is an audio signal format that is not supported by this unit, such as Dolby Digital or DTS, "NOT AUDIO!" will appear on the screen and no audio will be output. Set the digital output of the connected device to PCM audio output.
   • To use NET or the USB port, install the dedicated app on an iPad or other device, and connect it to the same network as this unit.
4. Start playback on the source device.
   Refer to the operation manual of that device.
   • CD and Bluetooth operation are explained in later sections of this manual.
5. Play the source, and then adjust the volume by turning the VOLUME knob.

   • The volume operation screen will appear.

Automatic power saving function

When the automatic power saving function is ON, this unit will automatically enter standby mode if there is no playback and it is not operated for 30 minutes.

• Even when audio is playing back, automatic power saving will also function if the VOLUME knob is set to a value at which sound cannot be heard.

Turning the unit on from standby

• Press the remote control STANDBY/ON button.

• Press the ENTER button on the front of the unit.


Dimmer

Each time you press the remote control DIMMER button, the brightness of the display changes as follows.

Muting playback

If you want to temporarily mute the volume of this unit, press the MUTE button on the remote control.
Press the MUTE button on the remote control again to return to the previous volume level.

• When muted, adjusting the volume will unmute it.

Level meters

Press the remote control METER button to change level meter brightness and turn the meters on and off.

Listening to CDs

1. Turn the SOURCE knob to select CD.

   • You can also use the remote control CD button.
2. Press the tray open/close () button.

3. Place a disc on the tray with the labeled side up.

   • Do not put more than one disc onto the tray at a time.
   • If the tray is closed while a disc is outside the center guides, the disc might become stuck inside and the tray might not open. Be sure to always place discs within the guides at the center of the tray.
   • When the tray is opening or closing, do not force it by hand.
4. Press the tray open/close () button to close it.


   Be careful not to let your fingers be pinched when the tray closes.
   "TOC READ" will appear on the display and the unit will start to read the disc.
   • The unit takes some time to load the disc.
     Wait until the total number of tracks and total playback time appear on the display.

When reading completes, the display will appear as follows.

Display example

• "NO DISC" appears if no disc has been loaded.
• "DISC!" appears if a disc that cannot be played is loaded.

5. Press the play/pause (/) button.

   Playback starts from the first track.
   Display example


Skipping to search for a track

Use the skip (/) buttons to skip to the previous or next track. Keep pressing until the desired track is selected.

• During playback, press the button once to return to the beginning of the current track. Press the button repeatedly to return to an earlier track.

Searching for part of a track

During playback, press a skip (/) button for at least one second until searching forward/backward starts. When you find the point where you want to listen, press the play/pause (/) button.

Bluetooth^® wireless technology

Bluetooth^® notes

When using this unit with a mobile phone or other Bluetooth devices, they should be no more than about 10 m (33 ft) apart. Depending on the circumstances of use, however, the effective transmission distance might be shorter.
Wireless communication with every device that supports Bluetooth wireless technology is not guaranteed.
To determine the compatibility between this unit and another device that supports Bluetooth wireless technology, refer to that device's operation manual or contact the shop where you purchased it.

Profiles

This unit supports the following Bluetooth profiles.

• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)

In order to transfer audio using Bluetooth wireless transmission, the Bluetooth device must support A2DP.
In order to control playback on the Bluetooth device, it must support AVRCP.
Even if a Bluetooth device supports the same profiles, though, its functions might differ according to its specifications.

Codecs

This unit supports the following codecs. It will automatically select one of them during audio transfer.

• SBC
• AAC
• Qualcomm® aptX™ audio
• LDAC

The unit will select the appropriate codec to use according to the codec compatibility of the other Bluetooth device and communication conditions.

LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res) Audio content, even over a Bluetooth connection.
Unlike other Bluetooth compatible coding technologies such as SBC, it operates without any down-conversion of the Hi-Res Audio content*, and allows approximately three times more data** than those other technologies to be transmitted over a Bluetooth wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.
* excluding DSD format contents
** in comparison with SBC (Subband Coding) when the bitrate of 990 kbps (96/48 kHz) or 909 kbps (88.2/44.1 kHz) is selected

NOTE

• You cannot select the codec to be used by pressing a button, for example.
• Due to characteristics of Bluetooth wireless technology, playback from a Bluetooth device will be slightly delayed compared to playback from this unit.

Content protection

This unit supports SCMS-T as a form of content protection when transmitting audio, so it can play protected audio.

Transmission security

This unit supports security functions during Bluetooth wireless transmission in accordance with the Bluetooth standard specifications, but it does not guarantee the privacy of such transmissions. TEAC CORPORATION will bear no responsibility should an information leak occur during Bluetooth wireless transmission.

Pairing with another Bluetooth device

Pairing this unit with another Bluetooth device is necessary the first time it is used and when connecting to a different Bluetooth device for the first time.

1. Turn the SOURCE knob to select Bluetooth.

   • If no paired device is available, "NO PAIRED DEVICE" will appear.
2. Enable Bluetooth transmission on the other Bluetooth device.
3. Press and hold the ENTER button to enter pairing mode.

   • "PAIRING" blinks when pairing.
4. On the other Bluetooth device, select "NR-7CD" (this unit).
   After this unit enters pairing mode, pair with it from the other Bluetooth device.
   For details, refer to the operation manual of that Bluetooth device.
   After connection, the display will show the input source.

Playback from a Bluetooth device

• Pair this unit the first time you use it and when you want to connect it with a different Bluetooth device for the first time.
• When pairing or connecting with another Bluetooth device, they should be within a few meters of each other. If they are too far apart, pairing and connection afterwards might become impossible.

1. Turn the SOURCE knob to select Bluetooth.

   • You can also use the Bluetooth button on the remote control.
2. Enable Bluetooth transmission on the other Bluetooth device.
3. When "SELECT DEVICE?" appears, press the ENTER button to show Bluetooth devices that have already been paired.
   The bottom line of the display shows the name of the last connected device.
   ATTENTION
   Depending on the source device, you might also need to conduct connection operations on it.
   If you are unable to connect it successfully, refer to the operation manual of the source device.
   Display example

   • Turn the SOURCE knob to change the device name shown.
   • The unit can remember a maximum of eight device pairings.
   • If no paired device is available, the display will appear as follows.

     Press and hold the ENTER button to enter pairing mode.
4. Press the ENTER button to connect.
   • If there are multiple paired devices, turn the SOURCE knob to show other devices. When the name of the device that you want to connect is shown, press the ENTER button.

After connection, the display will show the input source.

Display example

• The first 8 characters of the device name are shown.
• If characters other than English letters and numbers are included in the device name, it will not be shown properly.

ATTENTION
Regardless of the connection status of this unit and the other Bluetooth device, if the input source is not shown, restart both this unit and the other device and then connect them again.

5. Start playback on the other Bluetooth device.
   • Confirm that the volume is turned up on the other Bluetooth device. If you do not turn up the volume on the playback device, no sound might be output from this unit.

NOTE
Press and hold the MENU button to clear a paired device.

Settings

1. Press the MENU button repeatedly to show the setting items.

   The menu items appear in the following order.

2. Turn the SOURCE knob to change the setting value.

   • You can also use the up and down (, ) buttons on the remote control.
   • The currently set value is shown on the display.
3. When you are done changing settings, press the MENU button repeatedly to show the input source again.

   • If no operation occurs for about 10 seconds, the input source will reappear.

PCM digital filter

This sets the type of digital filter used when converting PCM signals from digital to analog.

• During MQA playback, SDLY SLOW will be used regardless of the setting.


OFF
No digital filter is used.
FIR SHARP
An FIR filter with a steep roll-off is used to sharply cut signals outside the audio band.
FIR SLOW
An FIR filter with a slow roll-off is used to gently cut signals outside the audio band.
SDLY SHARP
A short delay filter with a steep roll-off is used to sharply cut signals outside the audio band.
SDLY SLOW
A short delay filter with a slow roll-off is used to gently cut signals outside the audio band.

Note about the digital filter during PCM playback
FIR-type digital filters
This type of filter has an established reputation for sound quality and features tonal quality with both dense, rich sound reverberations and crisp sound transients.
SDLY-type digital filters
This type of filter has no pre-echo in the impulse response and features natural sound attack and reverberation for a tonal quality that is close to the original.

DSD digital filter

This sets the type of digital filter used when converting DSD signals from digital to analog.

CUTOFF 50kHz
50kHz cutoff frequency
CUTOFF 150kHz
150kHz cutoff frequency

Display brightness

This sets the brightness of the display.

• Regardless of the brightness setting, however, error messages will always be shown at normal brightness.

  DIMMER 3
  Normal brightness
  DIMMER 2
  Slightly dim
  DIMMER 1
  Even dimmer
  DIMMER 0
  Unlit
  • The display stays unlit even when the unit is on.

Level meter operation

This sets level meter brightness and turns operation on and off.

DIM3
Level meter brightness: bright
Level meter operation: on
DIM2
Level meter brightness: slightly dim
Level meter operation: on
DIM1
Level meter brightness: even dimmer
Level meter operation: on
DIM0
Level meter brightness: unlit
Level meter operation: on
OFF
Level meter brightness: unlit
Level meter operation: off

Automatic power saving function

This unit has an automatic power saving function.

• The automatic power saving function is on when the unit is shipped new from the factory.

  OFF
  The automatic power saving function is disabled.
  ON
  If no audio is played back for about 30 minutes, the unit will automatically enter standby mode.
  • Even when audio is playing back, automatic power saving will also function if the VOLUME knob is set to a value at which sound cannot be heard.

MQA (Master Quality Authenticated)

MQA is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download.
Visit mqa.co.uk for more information.
The NR-7CD includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.
'MQA' or 'MQA.' indicates that the product is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material.''MQA." indicates it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner.

• This unit can decode MQA streams and files only when the playback source is NET.

Display example during MQA playback

Troubleshooting

If you experience a problem with the unit, please take a moment to review the following information before requesting service. If it still does not operate correctly, contact the retailer where you purchased the unit.

General

The unit does not turn on.

• Check that the power cord is completely plugged into the power outlet. If the outlet is switched, confirm that the switch is in the ON position.
• Connect a different electrical device to the outlet to confirm that it is supplying power.
• If the automatic power saving function has caused the unit to enter standby, press the remote control STANDBY/ON button to turn the unit on again.

No sound is output.

• Adjust the VOLUME knob. Turn it clockwise (right) to increase the volume.
• Use the SOURCE knob to select the input that is connected to the source that you want to hear.
• Reconfirm the connections with other equipment.

There is a humming noise.

• If a connecting cable is near a power cord, fluorescent light or similar cause of interference, increase the distance between them as much as possible.

There is no sound from one side of the headphones.

• Confirm that the headphones plug is inserted completely.

Sound output suddenly stopped.

• Heat might have caused the protection circuit to activate.
  Set the POWER switch to OFF once, and wait several minutes before restarting the unit.

The level meter lights are blinking and no sound is output.

• The + and − speaker cables might have shorted. In this case, turn the unit off and check the speaker cable connections.

CD

Playback is not possible.

• If the disc is upside down, reload it with the labeled side up.
• If the disc is dirty, wipe it clean.
• If a blank disc is loaded, replace it with a disc that has recordings on it.
• Depending on the quality of the CD-R/CD-RW disc and recording conditions, proper playback might not be possible.
• This unit cannot play back unfinalized CD-R/CD-RW discs.

The sound skips.

• Vibrations will cause the sound to skip. Install this unit in a stable location.
• If the disc is dirty, wipe it clean.
• Do not use discs that are scratched or cracked.

Bluetooth function

Cannot show device name.

• This unit does not support the display of symbols or doublebyte characters, including Japanese and Chinese. Use only single-byte English letters and numbers for the names of Bluetooth devices connected to this unit.

Cannot change connected Bluetooth device.

• This unit cannot have Bluetooth connections to multiple Bluetooth devices at the same time.
  To change the device connected with this unit by Bluetooth, end the connection with the currently connected Bluetooth device before connecting to another Bluetooth device.

Since this unit uses a microcontroller, external noise and other interference can cause the unit to malfunction. If this occurs, unplug the power cord, wait for a while, and then turn the unit on again and restart operations.

Restoring default settings

While pressing and holding the MENU button, set the POWER switch to ON. Release the MENU button when the "SETUP CLEAR" message appears.

After "SETUP CLEAR" appears for a few seconds, initialization will complete and the following startup screens will appear.

• The factory default settings are the setting values shown in the screen images used in the explanations in this manual.

ATTENTION

• Do not put the unit in standby until the screen above appears.
• This operation will restore all settings, including network settings, to their default values.

Specifications

Amplifier

Maximum output

• When power supply voltage is 230 V:
  • 230 W + 230 W (10% distortion, 1 kHz, 4 Ω)
  • 130 W + 130 W (10% distortion, 1 kHz, 8 Ω)
• When power supply voltage is 120 V:
  • 210 W + 210 W (10% distortion, 1 kHz, 4 Ω)
  • 130 W + 130 W (10% distortion, 1 kHz, 8 Ω)

Rated output:

• 100 W + 100 W (0.07% distortion, 1 kHz, 4 Ω)
• 60 W + 60 W (0.07% distortion, 1 kHz, 8 Ω)

Allowable speaker impedance: 4–8 Ω
Total harmonic distortion: 0.008% (1 kHz, 8 Ω, 50 W)

Signal-to-noise ratio

• LINE IN: 110 dB (IHF-A/LPF 20 kHz, 1kHz/2V input)

Frequency response: 5 Hz – 100 kHz (+1/−3 dB)

Headphone amplifier

3.5mm stereo mini jack: 1 (Supports 4-pole separate ground connections)
Practical maximum output: 500 mW + 500 mW (into 32 Ω)
Compatible impedance range: 16–600 Ω

Analog audio inputs

RCA connectors: 1 pair (L/R)

• Input impedance: 47 kΩ
• Input sensitivity: 30 mV

CD

Supported disc types: CD, CD-R, CD-RW (12 cm, 8 cm)
Playback file format: CD-DA
Sampling frequency: 4.1 kHz
Quantization bit depth: 16-bit

Digital audio inputs

COAXIAL digital

• RCA connector: 1 (0.5 Vpp, 75 Ω)

OPTICAL digital

• Square (TOSLINK) connectors: 2 (−24.0 to −14.5dBm peak)

USB flash drive

• USB Type A port: 1 (USB 2.0 standard)

LAN

• 1000BASE-T: 1

PCM data sampling frequency

• COAXIAL digital: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• OPTICAL digital: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• USB flash drive/Network: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz

Quantization bit depth

• COAXIAL digital/OPTICAL digital: 16/24-bit

DSD data sampling frequency

• COAXIAL digital/OPTICAL digital: 2.8 MHz (supported using 176.4kHz/24-bit DoP transmission)
• USB flash drive/Network: 2.8/5.6 MHz

Bluetooth

Bluetooth version: 4.0
Output class: Class 2 (transmission distance without obstructions*: 10 m)
Supported profiles: A2DP, AVRCP
Supported A2DP codecs: SBC, AAC, Qualcomm® aptX™ audio, LDAC
Supported A2DP content protection: SCMS-T
Maximum number of stored pairings: 8
*The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic waves.

General

Power supply

• Model for Europe: AC 220–240 V, 50/60 Hz
• Model for U.S.A./Canada: AC 120 V, 60 Hz

Power consumption

• Model for Europe: 130 W
• Model for U.S.A./Canada: 120 W

Standby power: less than 0.5 W (in standby mode)
External dimensions (W × H × D, including protrusions): 442 mm × 152 mm × 345 mm (17 1/2" × 6" × 13 5/8")
Weight:; 13.4 kg (29 5/8 lb)
Operating temperature: +5°C to +35°C
Operating humidity range: 5% to 85% (no condensation)
Storage temperature range: −20°C to +55°C

Included items

Power cord × 1
Remote control (RC-1328) × 1
Batteries for remote control (AAA) × 2
Felt pads × 3
Owner's manual (this document, including warranty) × 1

• The TEAC HR Streamer User's Manual can be the TEAC Global Site (http://www.teac-global.com/).
• Design and specifications are subject to change without notice.
• Weight and dimensions are approximate.
• Illustrations in this manual might differ slightly from production models.

IMPORTANT SAFETY INSTRUCTIONS

RISK OF ELECTRIC SHOCK
DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

• DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
• IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
• USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
• The mains plug is used as the disconnect device; the disconnect device shall remain readily operable.
• Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
• CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

Products with Class I construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.
IN USA/CANADA, USE ONLY ON 120V SUPPLY.

Precautions concerning batteries
Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of nearby things. Please read and observe the following precautions carefully.

• Be sure to insert the batteries with correct positive () and negative () orientations.
• Use batteries of the same type. Never use different types of batteries together.
• If the remote control is not used for a long time (more than a month), remove the batteries to prevent them from leaking.
• If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries with new ones.
• Do not use batteries of types other than those specified. Do not mix new batteries with old ones or use different types of batteries together.
• Do not heat or disassemble batteries. Never throw batteries into fire or water.
• Do not carry or store batteries with other metallic objects. The batteries could short circuit, leak or explode.
• Never recharge a battery unless it is confirmed to be a rechargeable type.

Laser information

This product contains a semiconductor laser system inside the cabinet and is classified as a "CLASS 1 LASER PRODUCT".
To prevent being exposed to the laser beam, do not try to open the enclosure.
