Teac AX-505 - Integrated Amplifier Manual

Read this manual carefully to get the best performance from this unit. After reading it, keep it in a safe place for future reference.
Check to be sure the box contains all the included items shown below. Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.
Power cord × 1
Remote control (RC-1332) × 1
Batteries for remote control (AAA) × 2
Owner's manual (this document, including warranty) × 1

Maintenance

Wipe dirt from the top cover and other panel surfaces using a soft cloth that has been slightly dampened with a diluted neutral cleanser. Do not wipe with chemical cleaning cloths, thinner or other chemical agents. Doing so could damage the surface.
For your safety, disconnect the power cord from the outlet before cleaning.

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site:
http://teac-global.com/
In the TEAC Downloads section, click the desired language to open the Downloads website page for that language.

Before use

Placement precautions

• Place the unit in a stable location near the audio system that you will use with it.
• Do not install this unit in a location that could become hot. This includes places that are exposed to direct sunlight or near a radiator, heater, stove or other heating equipment. Moreover, do not place it on top of an amplifier or other equipment that generates heat. Doing so could cause discoloration, deformation or malfunction.
  Also avoid locations that are subject to vibrations or exposed to excessive dust, cold or moisture.
• When installing this unit, leave a little space (at least 3 cm or 1") between it and walls and other devices in order to allow good heat dissipation.
  If you put it in a rack, for example, leave at least 5 cm (2") open above it and at least 10 cm (4") open behind it. Failure to provide these gaps could cause heat to build up inside and result in fire.
• You may stack this unit with a PD-501HR, NT-505 or other 501/503/505 series units. However, if heat should cause the protection circuit to be activated and sound output stops suddenly, place this unit on top and with sufficient distance between it and walls and other devices in order to improve heat dissipation.
• Do not place CDs, CD-Rs, cassette tapes, other audio equipment or other items that are susceptible to heat on top of the unit. Doing so could damage these items.
• Do not put cloth on top of the unit or place the unit on top of bedding or thick carpets. Doing so could cause the unit to overheat and damage it. o Do not move the unit during use.
• The voltage supplied to the unit should match the voltage printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.
• Do not open the body of the unit as this might result in damage to the circuitry or cause electric shock. If a foreign object should get into the unit, contact your dealer.
• When removing the power plug from the wall outlet, always pull directly on the plug; never yank on the cord.

Using the remote control

Precautions for use
Misuse of batteries could cause them to rupture or leak, which might result in fire, injury or the staining of nearby materials. Please carefully read and observe the precautions.

• When using the remote control, point it toward the remote control signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between the main unit and the remote control.
• The remote control might not work if the remote control signal receiver on the unit is exposed to direct sunlight or bright light. If this occurs, try moving the unit.
• Beware that use of this remote control could cause the unintentional operation of other devices that can be controlled by infrared rays.

Installing batteries
Remove the cover from the back of the remote control and insert two AAA batteries with their / oriented as shown in the case. Replace the cover.

When to replace batteries
If the distance required between the remote and the main unit decreases or if the unit stops responding to the remote buttons, replace both batteries with new ones.
Dispose of the used batteries according to the instructions on them or requirements set by your local municipality.

Precautions when connecting speakers

• Connect the power plugs after all connections have been made.
• Carefully read the manuals of the devices that you are connecting and follow their instructions when making connections.
• When the left and right grounds are shared in a sub woofer with a built-in amplifier, for example, use might not be possible depending on connection conditions.

ATTENTION

• This unit works with speakers that have nominal impedances between 4 Ω and 8 Ω. Use of speakers with impedances of less than 4 Ω, in particular, could cause the protection circuit to activate and sound output to stop. In some cases, damage could even occur to this unit and the speakers.
• This unit's red terminal is positive () and its black terminal is negative (). Generally, the wire of the speaker cable is marked to distinguish it from the wire of the cable. Connect the marked wire to the red terminal and the unmarked wire to the black terminal.
• If the exposed end of a core wire in a speaker cable contacts another cable or terminal, a short could occur.
• Never allow speaker cables to cause a short.
• To prevent hum and noise, avoid bundling the cables together with the AC power cord or other cables.

Connecting speakers

How to connect speakers

1. Remove about one centimeter (1/2") of insulation from the end of the speaker cable and twist the core wires well.
2. Turn the terminal cap counterclockwise to loosen it.
3. Insert the wire into the hole in the terminal post and turn the terminal cap clockwise to securely connect it.

   • Connect it so that none of the wire insulation is touching the terminal.
4. Confirm that the cable is fastened securely by gently pulling the cable.

Connecting with banana plugs
You can also make connections using commercially-available banana plugs. First, connect the banana plugs to the speaker cables and then connect the plugs to the terminals.

• Keep the caps tightened when in use.
• Carefully read the instructions for the banana plugs that you are using.

ATTENTION
Notice about the European model
In accordance with European safety regulations, connecting banana plugs to speaker terminals is not allowed on European models. The holes into which banana plugs could be inserted have been covered with black caps.
Connect speakers using bare wires or spade lugs.
If a black cap should become separated from its terminal, return it to its original position.

Connections

1. A Analog audio input connectors
   (LINE 1, LINE 2, LINE 3, XLR)
   Use these to input stereo analog audio. Connect the audio output connectors of a cassette deck, CD player or other audio output equipment to these.
   Connect this unit's R input connector to the R output connector of the audio output device, and this unit's L input connector to the L output connector of the other device.
   • This unit's XLR connectors are 2: HOT.
     Use commercially-available audio cables for connections.
     LINE1: RCA cables
     LINE2: RCA cables
     LINE3: RCA cables
     XLR: XLR cables

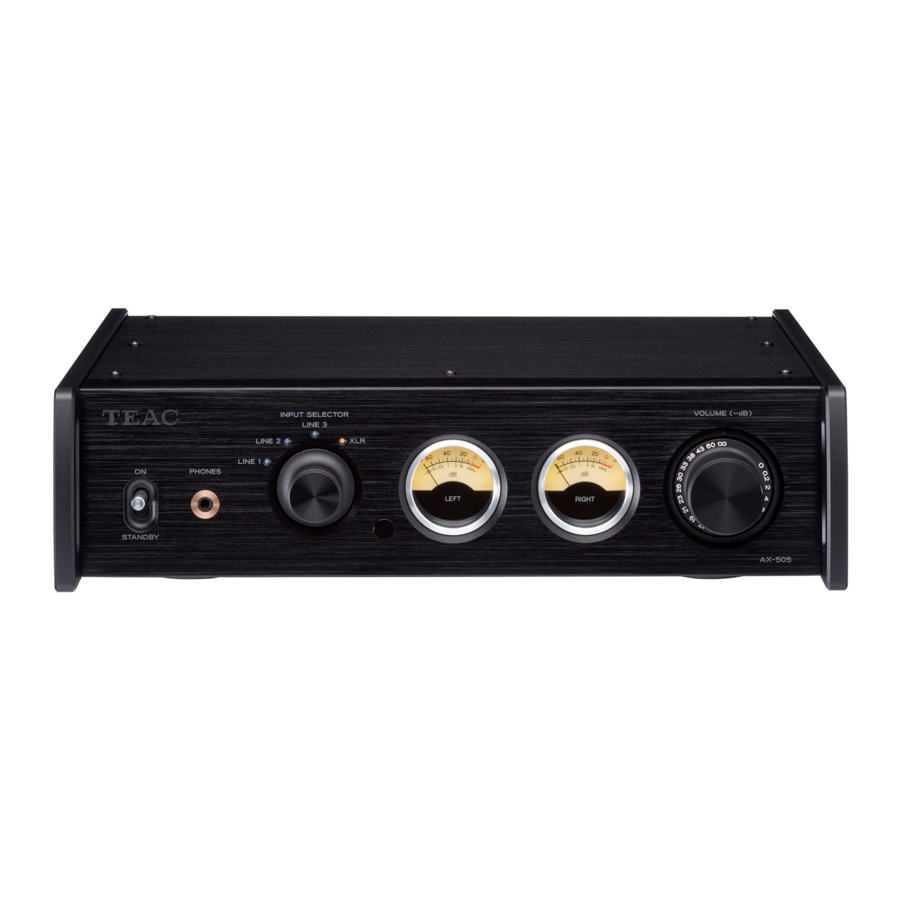

Main unit parts and functions

1. STANDBY/ON switch
   Use to put the unit into standby mode or turn it on.
2. PHONES jack
   Connect headphones with a 3.5mm (1/8") stereo mini plug here.
   • This headphone amp circuit uses a four-pole connector with independent left and right for grounding. Ordinary plugs with 3 or 4 poles can be used.
   • When headphones are connected to this unit, sound will be output from the PHONES jack but will not be output from the SPEAKERS terminals on the back of the unit.


3. INPUT SELECTOR knob
   Use to select the input source. The indicator lights for the selected source.
4. Remote control signal receiver
   This receives signals from the remote control. When operating the remote control, point it at the remote control signal receiver.
5. Level meters
   These show the output levels.
6. VOLUME knob
   Use to adjust the volume. Turn right to increase and left to decrease the volume.

Remote control parts and functions

The RC-1332 remote control supplied with the AX-505 can control both AX-505 and PD-501HR units. Only the buttons used for the AX-505 are explained in this document. When the main unit and the remote control both have buttons with the same functions, this manual explains how to use one of the buttons. The other corresponding button can be used in the same manner.

1. STANDBY/ON button
   Press to put the unit into standby mode or turn it on.
2. Input selection buttons
   Use to select the playback source.
3. METER button
   Press to change level meter operation.
4. MUTE button
   Press this button to mute the sound temporarily. Press it again to restore sound output at the previous level. Press and hold to cancel muting.
5. DIMMER button
   Use to change the brightness of the input source indicators and level meters. Press to cycle through the brightness settings in the following order.

6. VOLUME (+/−) buttons
   Use to adjust the volume. Press and hold a VOLUME button to continuously change the volume.

Basic operation

Automatic power saving function
This unit has an automatic power saving function. If the automatic power saving function is set to on, the unit will automatically enter standby mode if there is no audio input for about 30 minutes. You can check the automatic power saving setting by looking at the input source indicators immediately after turning the unit on. Automatic power saving function on An input source indicator will blink every two seconds. Automatic power saving function off After all input source indicators light for two seconds, an input source indicator will blink every two seconds.

Turning automatic power saving on and off

1. Press the remote control STANDBY/ON button to put the unit into standby.
2. Press and hold the remote control STANDBY/ ON button for three seconds.
   The unit turns on, all the input source indicators blink and the on/off setting changes.


Muting playback
If you want to temporarily mute the volume of this unit, press the remote control MUTE button.

• The input source indicators blink when playback is muted. Press the remote control MUTE button again to cancel muting.


Changing level meter operation
Press the remote control METER button to cycle through level meter operation settings.

• When level meter operation is +20 dB, needle movement will be greater than usual.

Restoring default settings
After minimizing the volume, press and hold the remote control MUTE button for at least 3 seconds. The defaults will be restored after the input source indicators and level meters blink and the unit restarts.

Troubleshooting

If you experience a problem with the unit, please take a moment to review the following information before requesting service. If it still does not operate correctly, contact the retailer where you purchased the unit.

General

The unit does not turn on

• Check that the power cord is completely plugged into the power outlet. If the outlet is switched, confirm that the switch is in the ON position.
• Connect a different electrical device to the outlet to confirm that it is supplying power.

No sound is output

• Adjust the VOLUME knob. Turn it clockwise (right) to increase the volume
• Use the INPUT SELECTOR knob to select the input that is connected to the source that you want to hear
• Reconfirm the connections with other equipment.

Remote control does not work

• Set the main unit STANDBY/ON switch to ON before using the remote control.
• If the batteries are exhausted, replace both of them with new ones.
• The remote control will not work if there is an obstruction between it and the main unit.
  Point the remote control at the remote control center on the unit from a distance of less than 5 m (16 ft.).

A television set or another device operates in error

• Some televisions that are able to receive signals from wireless remote controls might be operated in error by this unit's remote control.
  If this is the case, turn the other devices off when using this remote control.

Noise occurs

• Place the unit as far away as possible from TVs, microwave ovens and other devices that have strong magnetism.

There is a humming noise

• If a connecting cable is near a power cord, fluorescent light or similar cause of interference, increase the distance between them as much as possible.

There is no sound from one side of the headphones

• Confirm that the headphones plug is inserted completely.

The level meter lights are blinking and no sound is output.

• The and speaker cables might have shorted. Set the STANDBY/ON switch to STANDBY, and check the speaker connections.

Sound output stops suddenly and the level meter lights are blinking.

• The protection circuit might have activated due to high temperature, excessive load or another cause. Set the STANDBY/ ON switch to STANDBY, check the power and speaker connections, and wait several minutes before setting it to ON again. If this unit is becoming hot, increase the amount of space between it and walls and other devices to increase the dissipation of heat.

Automatic power saving caused the unit to enter standby.

• Set the STANDBY/ON switch to STANDBY once and then set it to ON again.

Specifications

Amplifier
Rated output. . . . . .. . . 115 W + 115 W
(4 Ω, 1 kHz, THD 0.8%)
70 W + 70 W
(8 Ω, 1 kHz, THD 0.8%)
Allowable speaker impedance. . . . . 4–8 Ω
Total harmonic distortion. . . . . . . 0.002%
(8 Ω, 1 kHz, 1 W, JEITA) S/N ratio (input short)
LINE IN. . . . . . . . . . 110 dB
(8 Ω, 1 kHz, IHF-A)
Frequency response. .. . . . . 10 Hz – 50 kHz (−5 dB)
(8 Ω, 1 kHz, 1 W, JEITA)

Headphones output
Connector. . . . 3.5mm (1/8") 4-pole stereo mini jack
Maximum output level. . . . . . . . . 360 mW + 360 mW
(into 32Ω load, THD 10%, JEITA)
Frequency response. . . . . . . . . . . . . 5 Hz – 150 kHz (−3 dB)
Distortion. . . . . . . . . . . . . . 0.003%
(30mW output into 32Ω load, JEITA)
S/N ratio. . .. . . . . . . . 115 dB
Compatible impedance range. . . . . . . 16–600 Ω

Analog inputs
LINE connectors. . . . . . . 3 pairs
Maximum input level. . . . . . 2.5 Vrms
Input impedance. . . . .. 10 kΩ or more
XLR connectors. . .. . 1 pair
Maximum input level. . . . . . . . 3 Vrms
Input impedance. .. . . . . .10 kΩ or more

General
Power supply
Model for Europe. . . . . . AC 220–240 V, 50/60 Hz
Model for USA/Canada. . . AC 120 V, 60 Hz
Power consumption
Models for Europe and USA/Canada. . .. . . 56 W
External dimensions (W × H × D, including protrusions)
290 × 81.2 × 264 mm (11 1/2" × 3 1/4" × 10 1/2")
Weight. . . . . . . . . . . . 4.2 kg (9 3/8 lb)
Operating temperature range. . . . . . . . +5°C to +35°C
Operating humidity range. . . . . . 5% – 85% (no condensation)
Storage temperature range. . . . . . −20°C to +55°C

Included accessories
Power cord × 1
Remote control (RC-1332) × 1
Batteries for remote control (AAA) × 2
Owner's manual (this document, including warranty) × 1

• Design and specifications are subject to change without notice. o Weight and dimensions are approximate.
• Illustrations in this manual might differ slightly from production models.

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
•
  for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.
